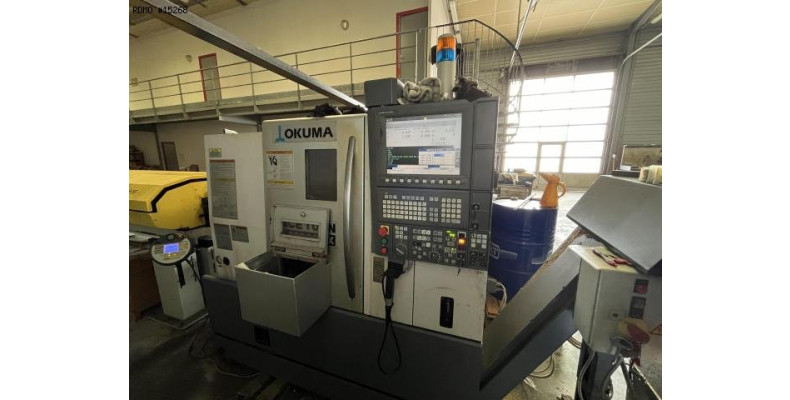

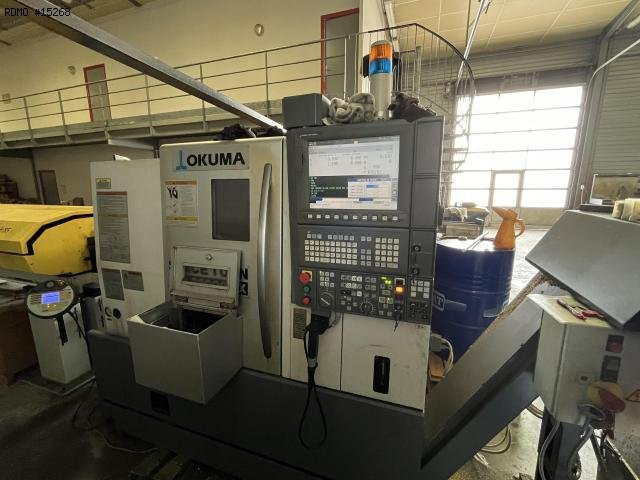

OKUMA LB2000 EX Space turn 2 axis

Brand: OKUMA
Model: LB2000 EX Space turn
Year: 2011
Serial: 155818
15268
OKUMA LB2000 EX Space turn 2 axis
Brand: OKUMA
Model: LB2000 EX Space turn
Year: 2011
Serial: 155818

Caracteristics & Equipment

Caracteristics
- Number of axes : 2

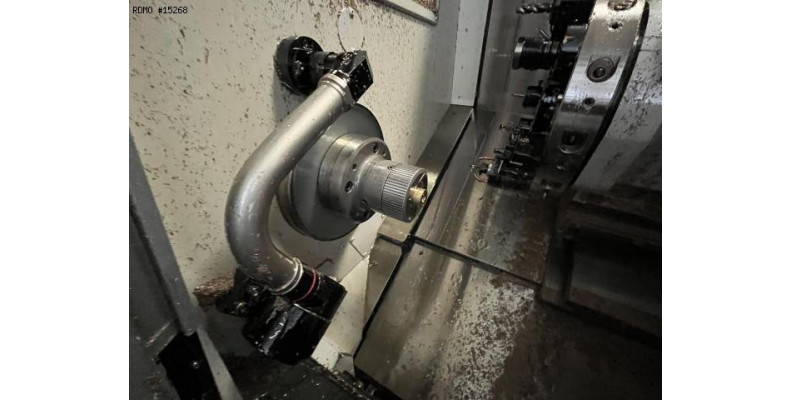

MAIN SPINDLE
- Spindle nose : A2-6"
- Spindle power : 11 [kW]
- Spindle speeds : 50- 6.000 [rpm]
- Max. bar diameter : 60 [mm]
- Max. turning diameter : 430 [mm]
- Max. diameter on bench : 580 [mm]
- C axis indexing precision : 0,001 [°]

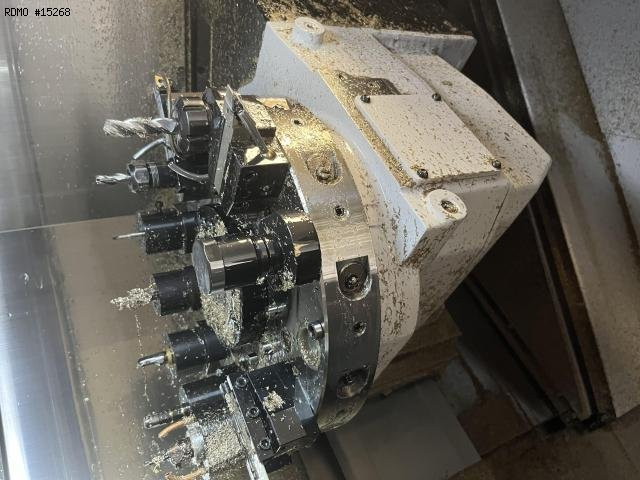

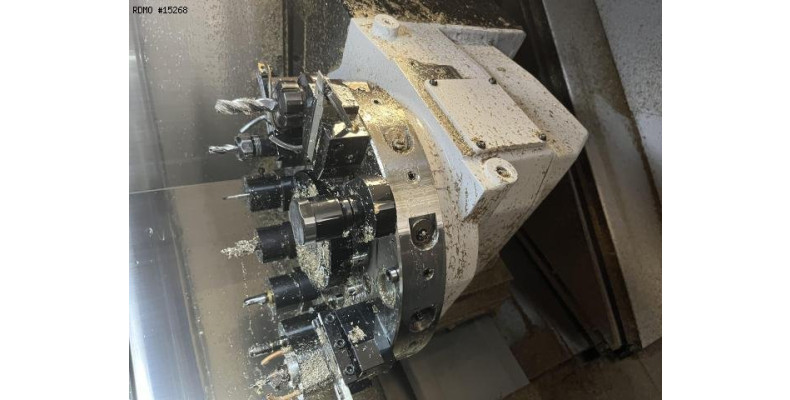

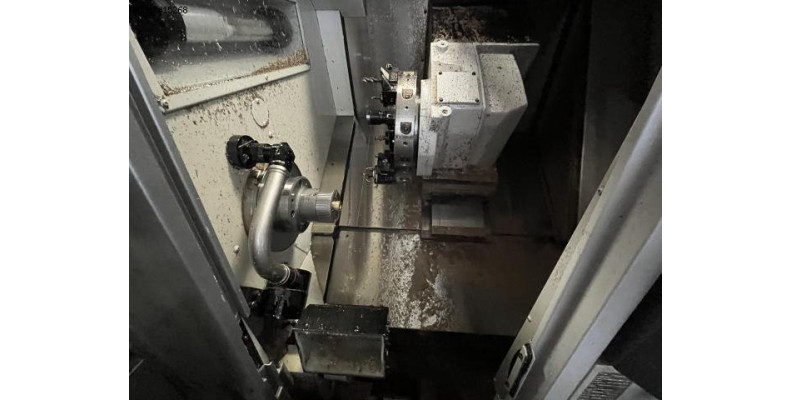

TURRET
- Number of positions : 12
- Z stroke : 390 [mm]
- X stroke : 260 [mm]
- Tool type : V12
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 38 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.200 x 1.734 [mm]
- Machine height : 1.839 [mm]
- Machine weight : 3.400 [kg]
MACHINE HOURS
- Number of hours under power : 23.682 [h]
- Number of working hours : 11.795 [h]
- Number of spindle hours : 7.225 [h]
Equipment

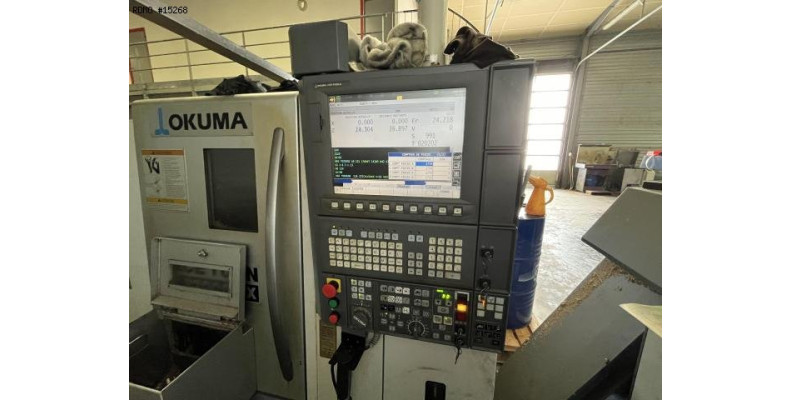

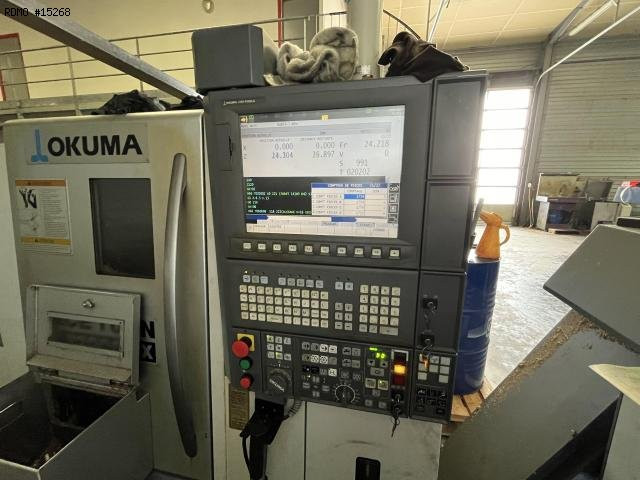

- CNC : OKUMA OSP-P200 LA
- Interface : Ethernet / RS232 / USB
- Interactive programming : Advanced One Touch IGF-L V302A
- 3 colors status lamp
- Coolant tank
- Chips conveyor : Droite MAYFRAN
- Tool probe : manuel
- Parts catcher

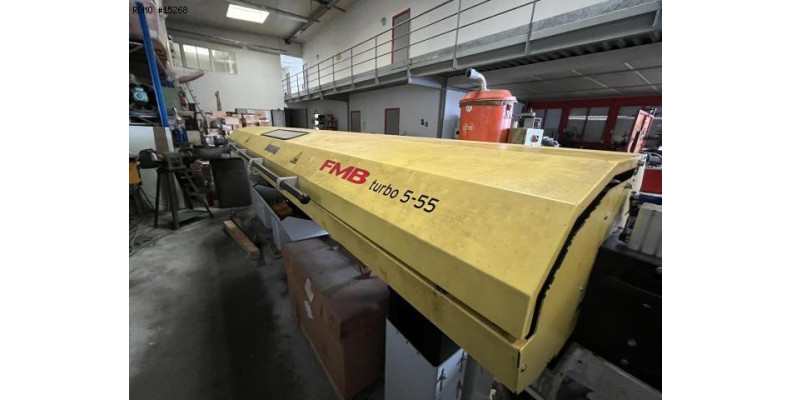

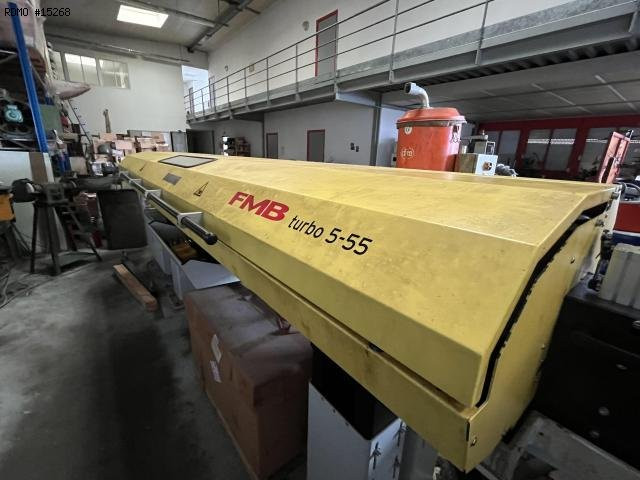

- Bar loader : FMB 5-55 /3200

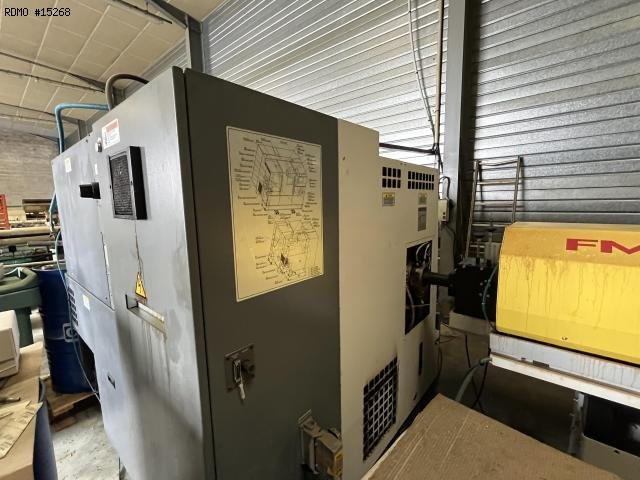

- Electric transformer

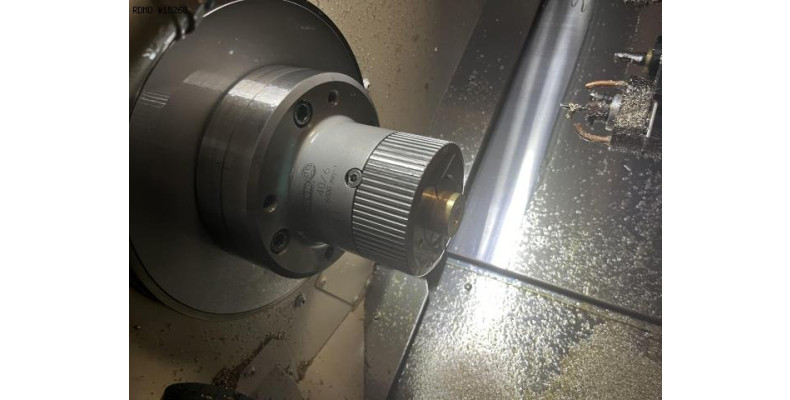

- Collet chuck : Nann KSF 40/6 -6000 t/min
- Collet chuck : TYPE 173E/48F Ø de barre max 42 mm
PDF datasheet to download:

Description
