- Number of spindles : 2
- Number of axes : 6
- Number of turrets : 3

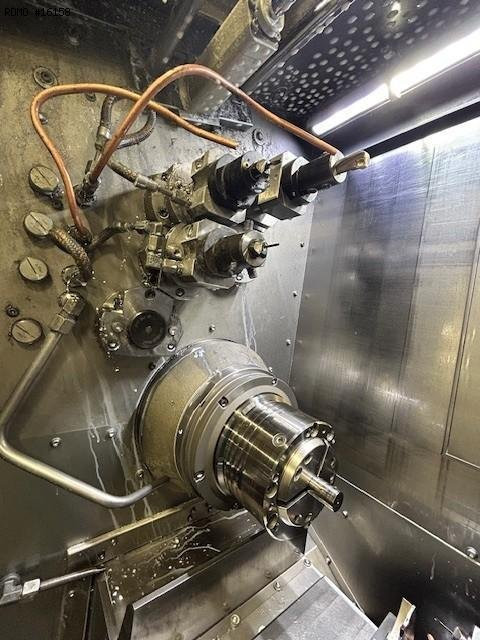

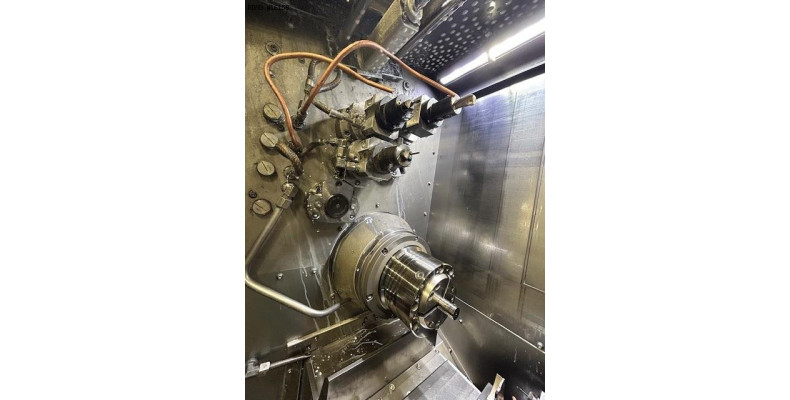

MAIN SPINDLE
- Spindle power : 29 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 52 [mm]
- C axis indexing precision : 0.01 [°]

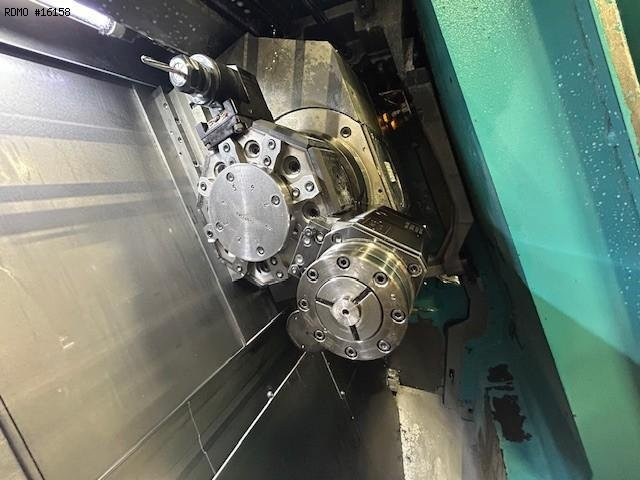

COUNTER-SPINDLE
- Spindle power : 4.2 [kW]
- Spindle speeds : 4500 [rpm]
- C axis indexing precision : 7.5 [°]

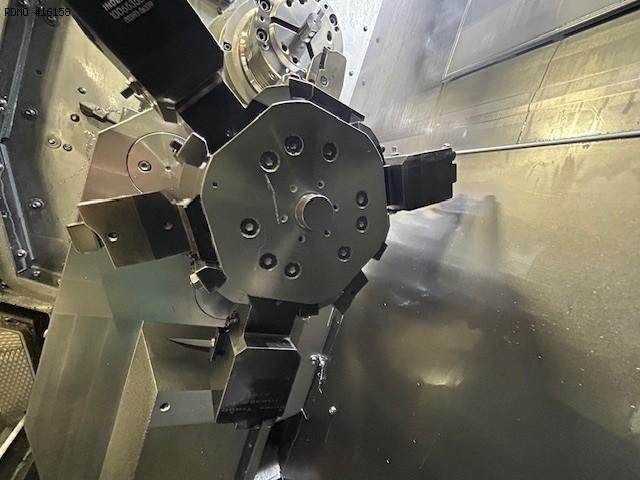

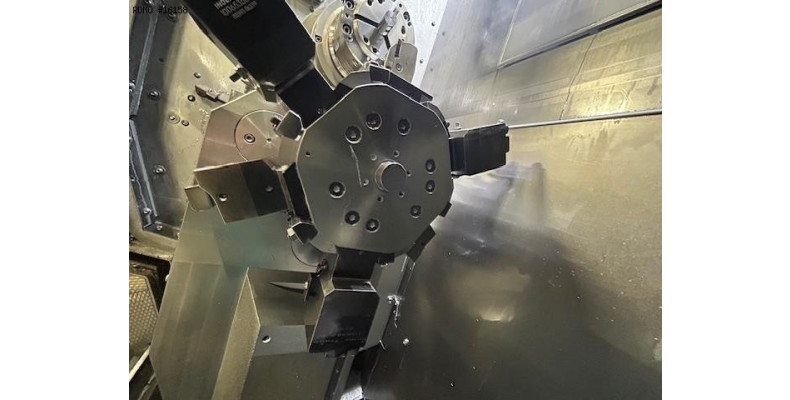

UPPER LEFT TURRET
- Number of positions : 5
- Number of motorized positions : 2
- Tool type : VDI25
UPPER RIGHT TURRET
- Number of positions : 8
- Number of motorized positions : 8
- X/Z stroke : 90/280 [mm]
- Tool type : VDI25
- Live tools speed : 4500 [rpm]
- Live tools power : 4.2 [kW]
LOWER LEFT TURRET
- Number of positions : 6
- X/Z stroke : 81/80 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 37 [kW]
Equipment
- CNC : Fanuc 31i-B
- Interface : RS232
- Coolant tank : 220
- Oil mist extractor : SH 05 PE/Tandem
- Chips conveyor : KNOLL
- Parts catcher
- Parts conveying strip

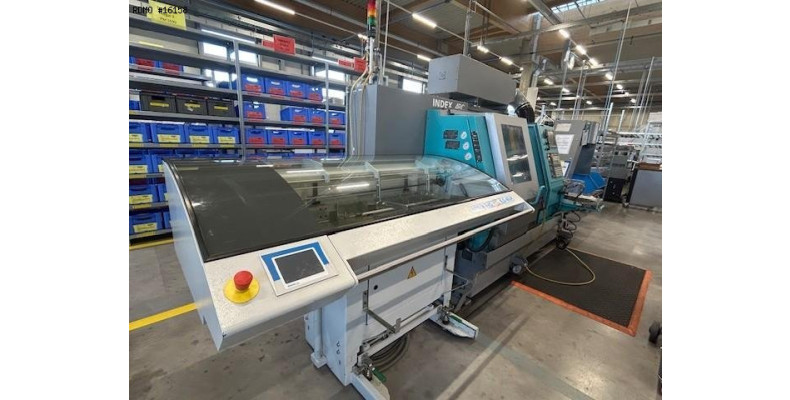

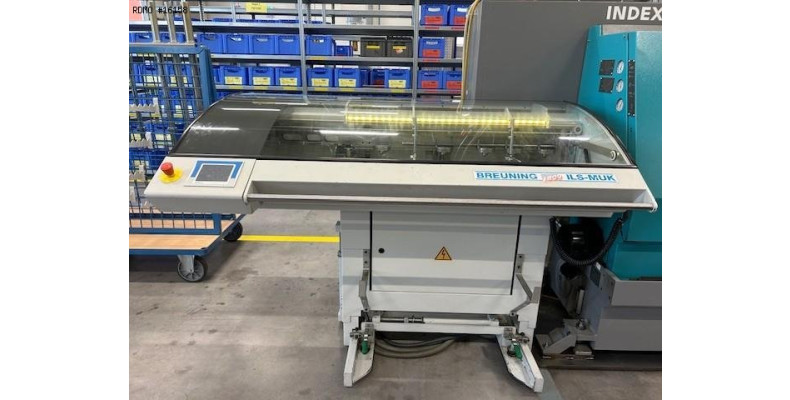

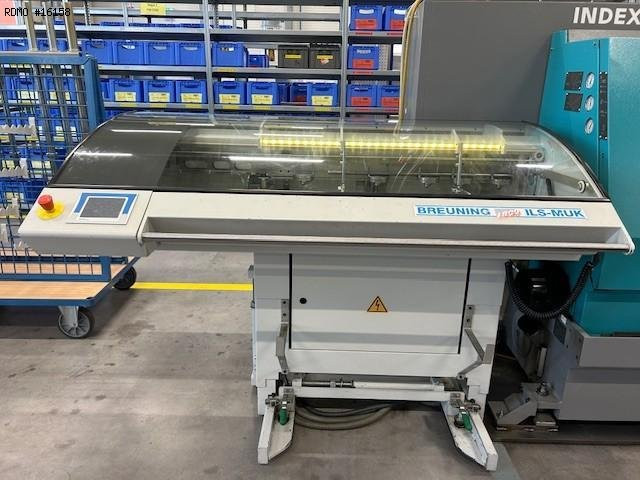

- Bar loader : BREUNING ILS MUK 7012-II
- Collet chuck : HAINBUCH Spanntop
