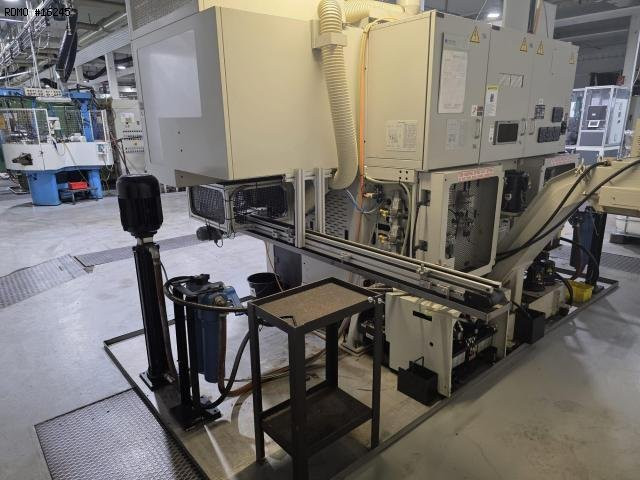

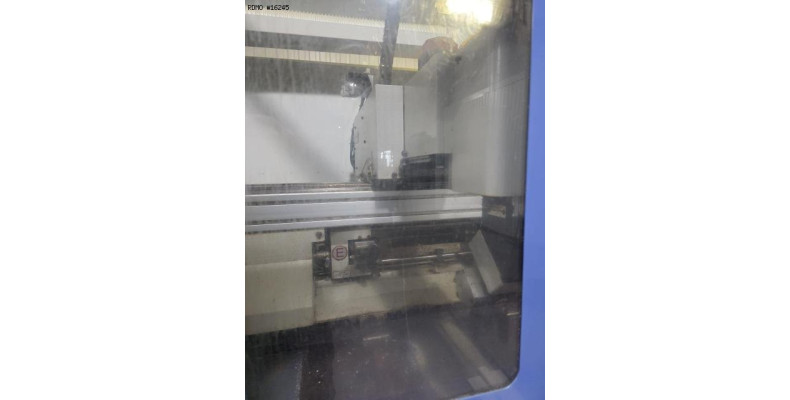

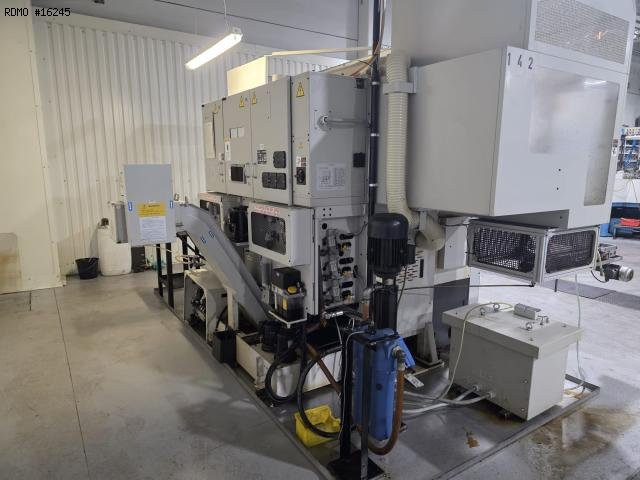

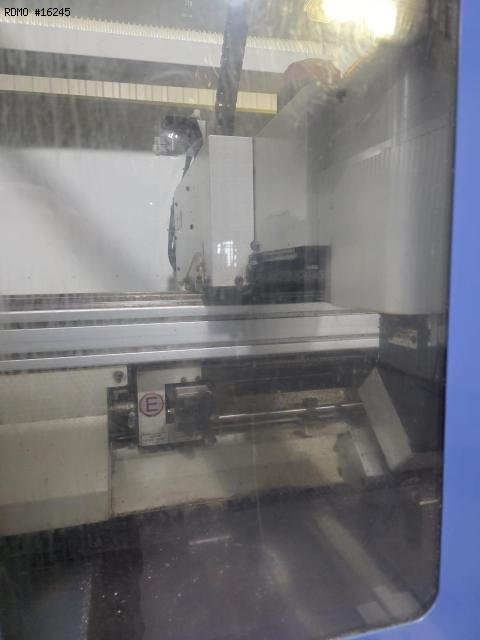

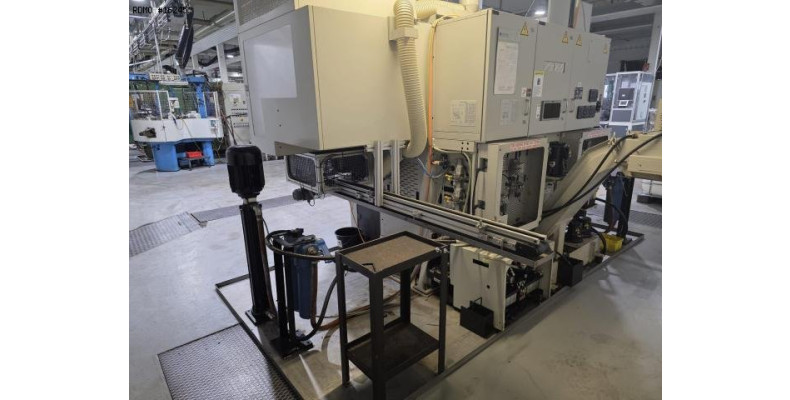

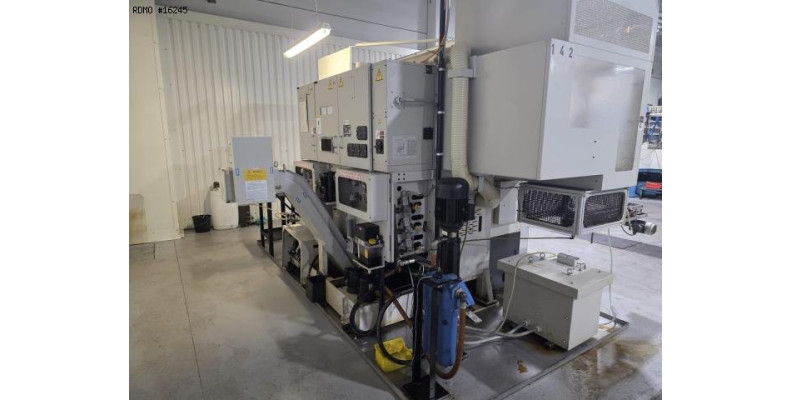

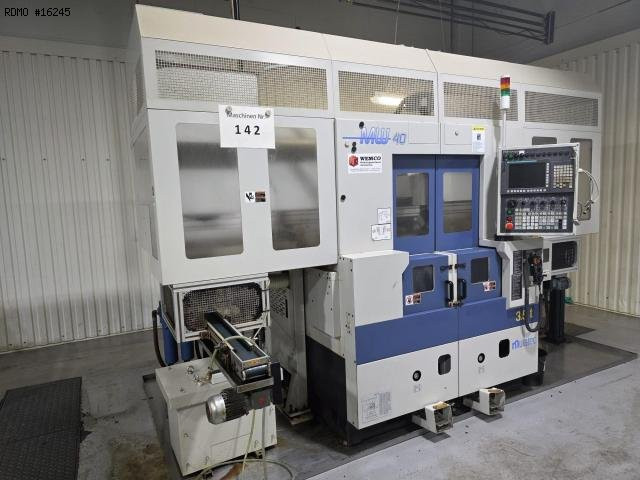

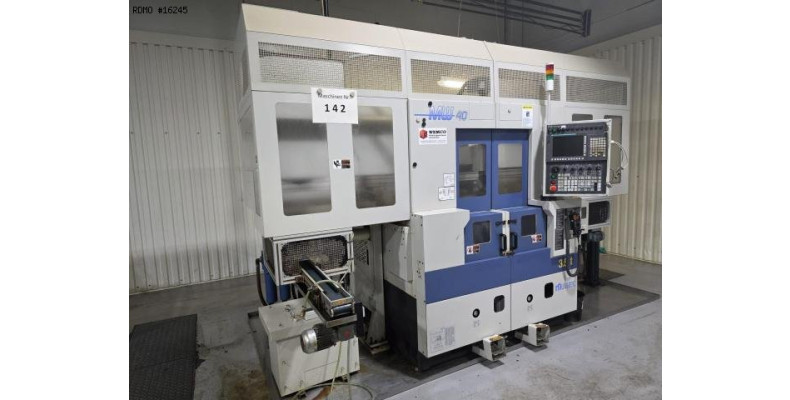

MURATEC MW40 6 axis

- Number of axes : 6
- Number of spindles : 2
- Number of turrets : 2

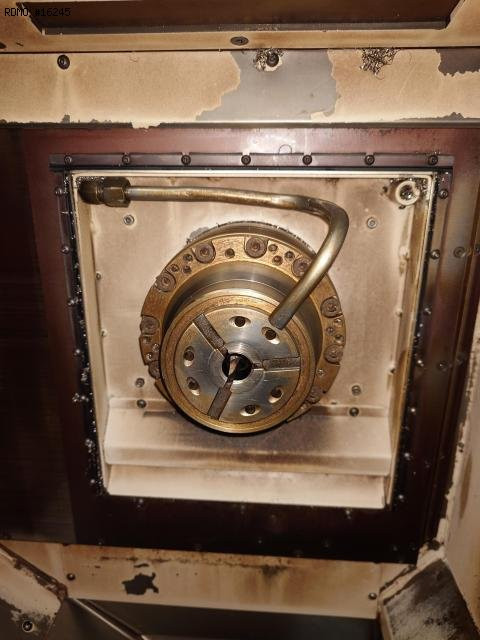

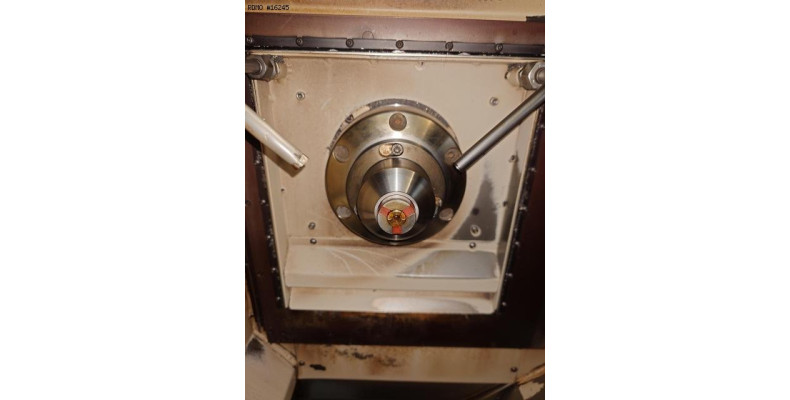

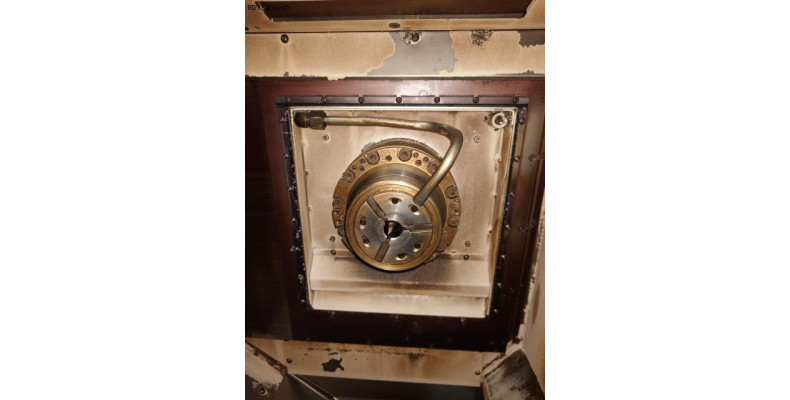

MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 3.7 [kW]
- Spindle speeds : 8000 [rpm]
- Max. chuck diameter : 110 [mm]

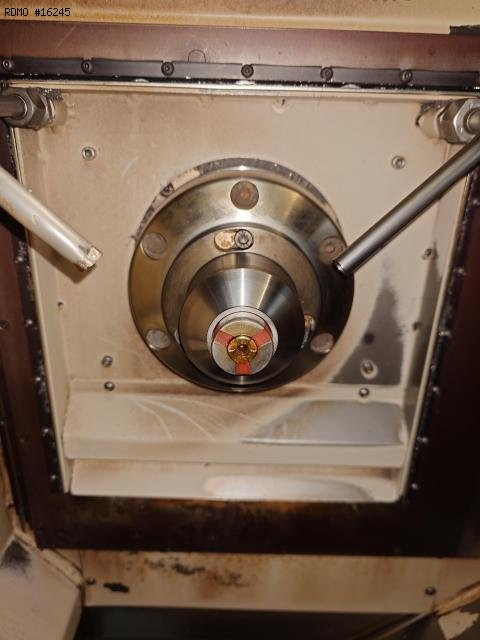

MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 3.7 [kW]
- Spindle speeds : 8000 [rpm]
- Max. chuck diameter : 110 [mm]

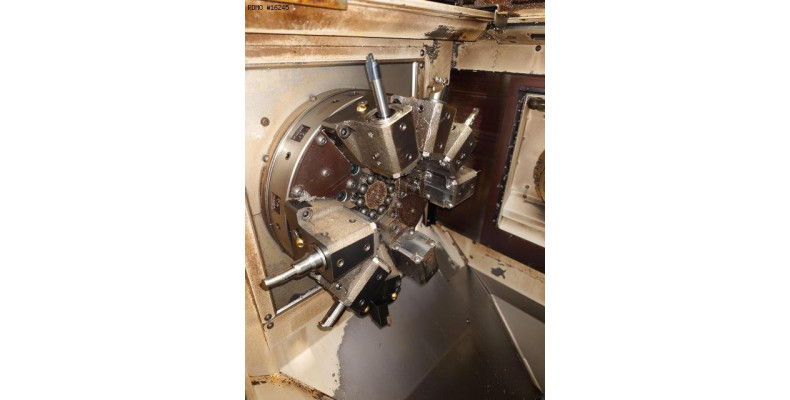

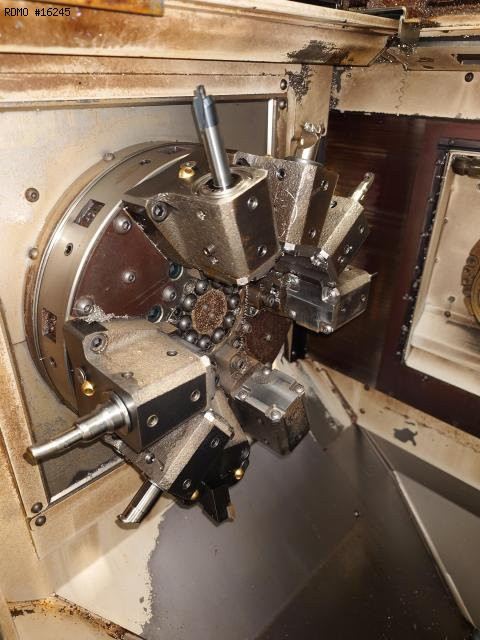

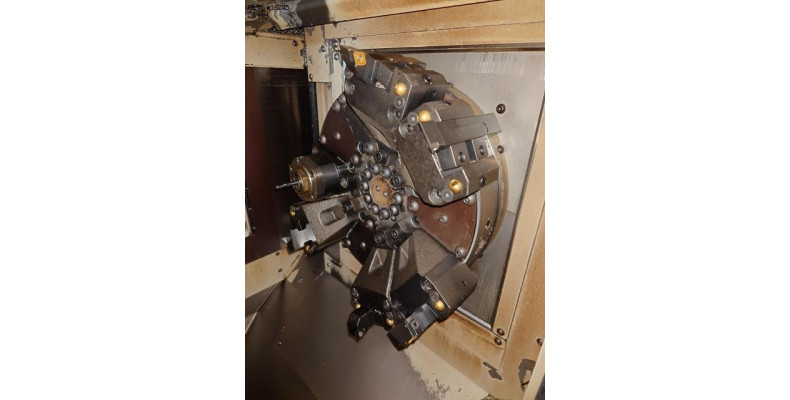

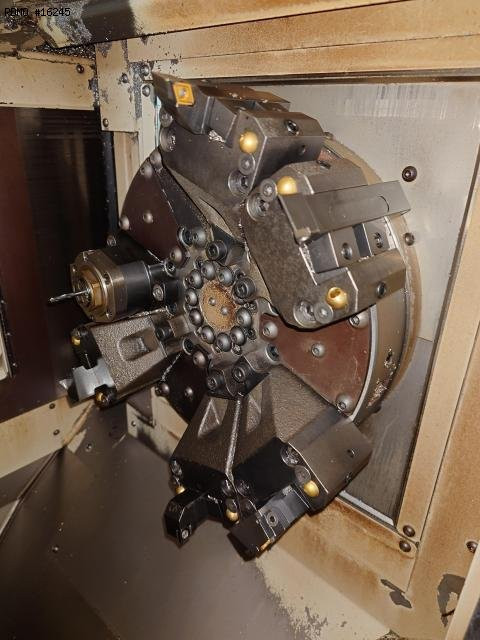

TURRET 1
- Number of positions : 10
- X/Z stroke : 155/170 [mm]
- Y stroke : +/-25 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 1.4 [kW]
TURRET 2
- Number of positions : 10
- X/Z stroke : 155/170 [mm]
- Y stroke : +/-25 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 1.4 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3300/1950 [mm]
- Machine height : 2000 [mm]
- Machine weight : 3500 [kg]

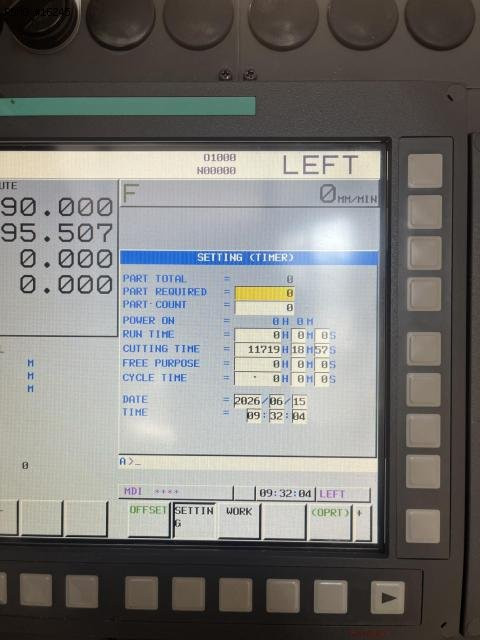

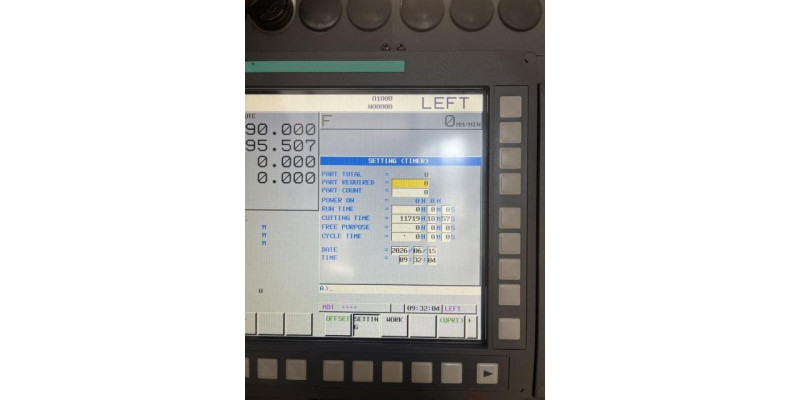

MACHINE HOURS
- Number of working hours : 11719 [h]

- CNC : Fanuc 32i
- Interface : USB / PCMCIA
- 3 colors status lamp
- Coolant tank
* with high-pressure pump
- Chips conveyor : ARRIERE
- Parts catcher
- Parts conveying strip

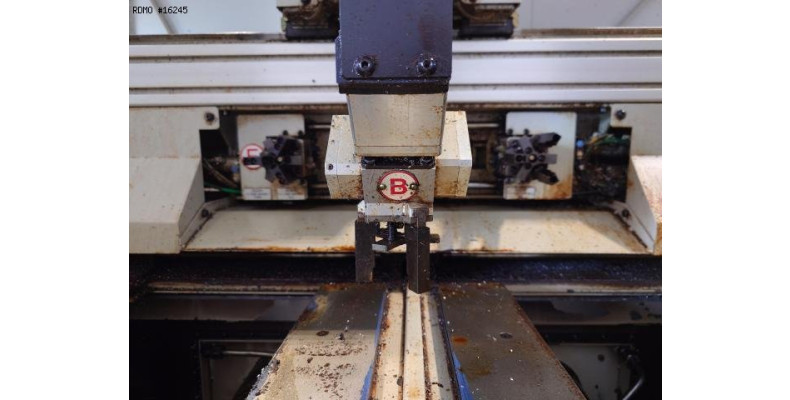

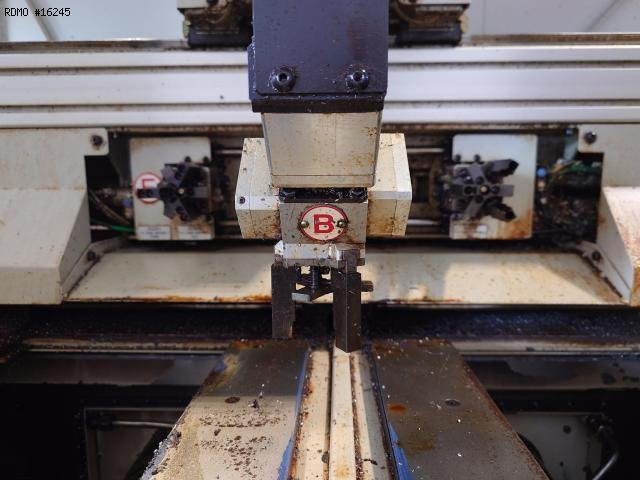

- Workpiece loading robot
- Electric transformer
