- Number of axes : 4

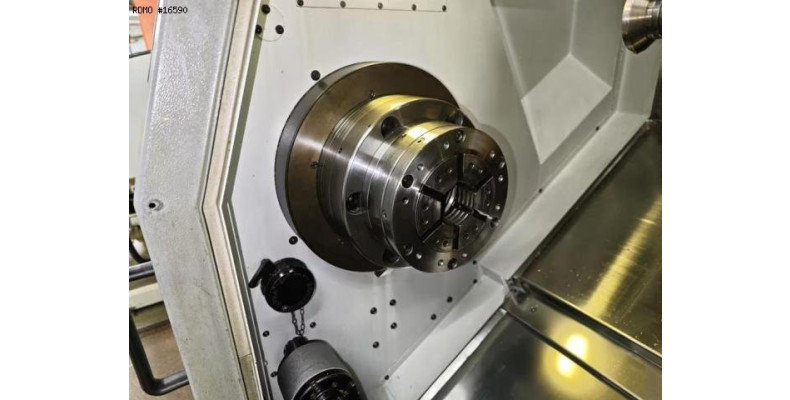

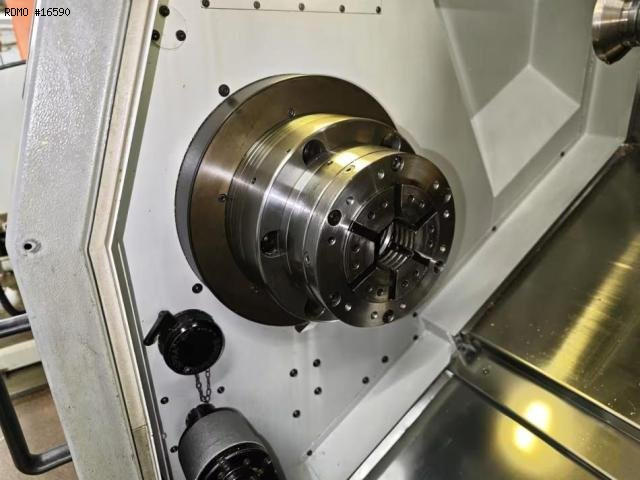

MAIN SPINDLE
- Spindle nose : ASA 11'' A2
- Spindle power : 39 / 48 [kW]
- Spindle speeds : 3000 [rpm]
- Max. bar diameter : 95 [mm]
- Max. turning diameter : 550 [mm]
- Max. diameter on bench : 920 [mm]
- Maximum rotation diameter on the carriage : 745 [mm]
- C axis indexing precision : 0,001 [°]

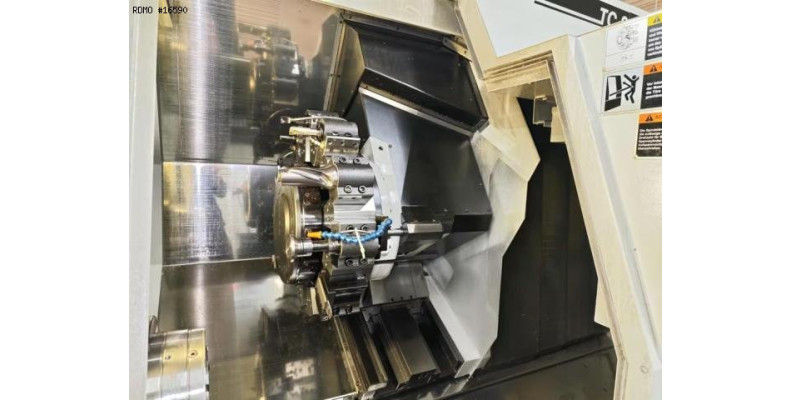

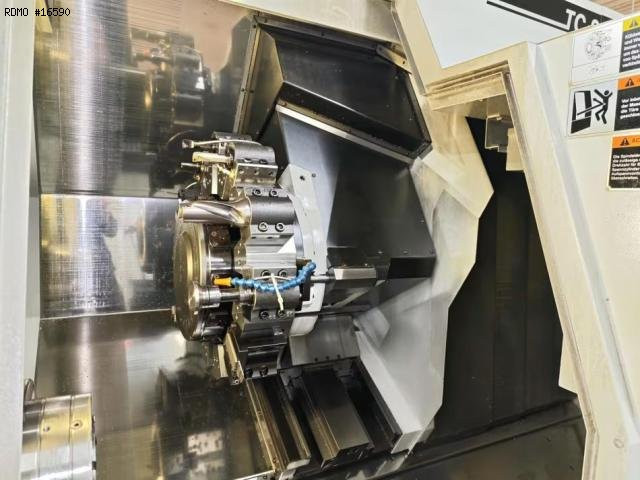

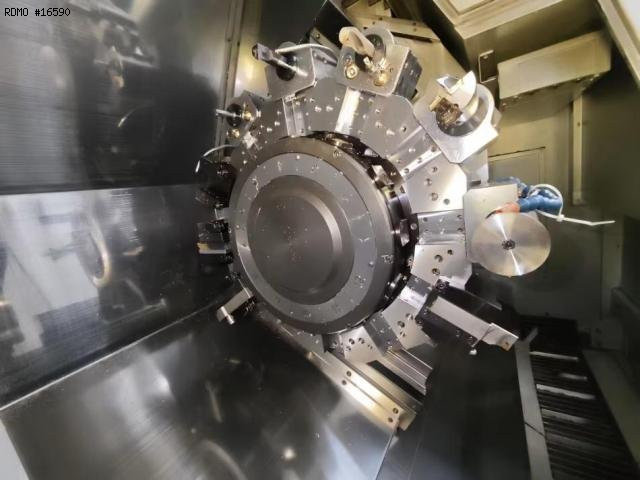

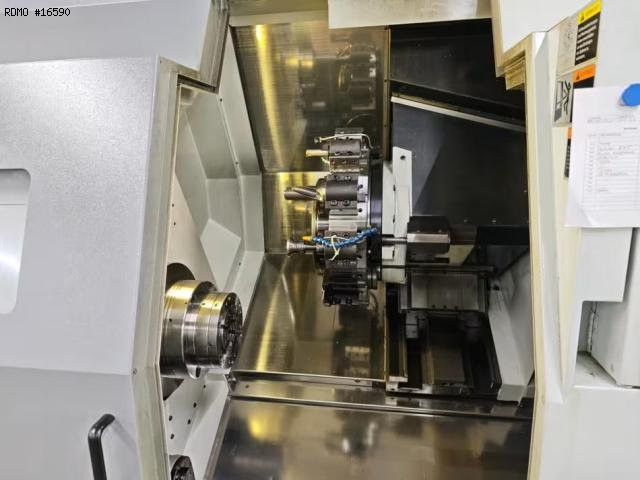

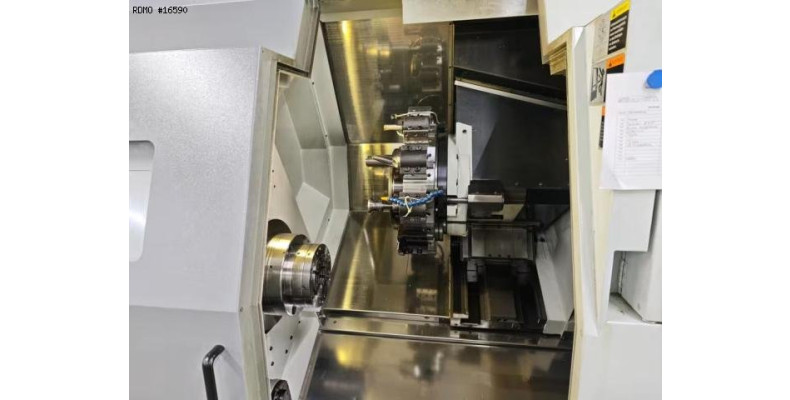

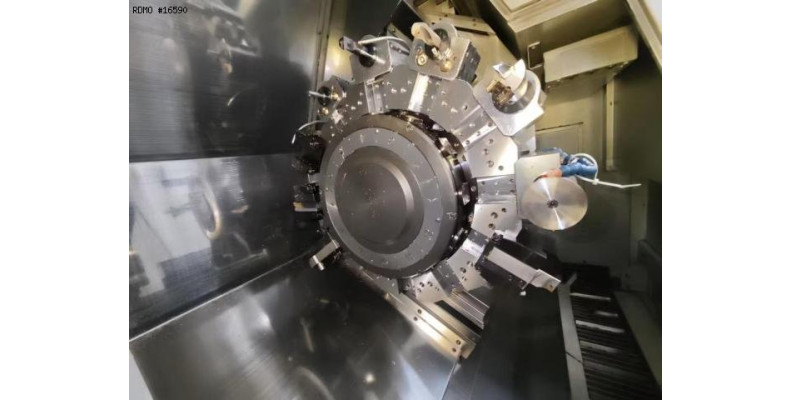

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- Live tools speed : 4000 [rpm]
- Live tools power : 16 [kW]
- X/Z stroke : 315 / 800 [mm]
- Y stroke : +80 / -60 [mm]
- Rapid traverses rates (X/Y/Z) : 30 / 15 / 30 [m/min]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 65 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2803 x 2020 [mm]
- Machine height : 2240 [mm]
- Machine weight : 8200 [kg]
MACHINE HOURS
- Number of hours under power : 21934 [h]
- Number of working hours : 3899 [h]
Equipment

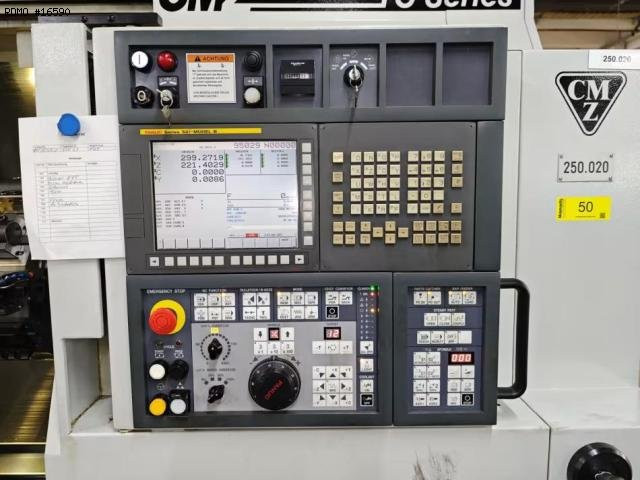

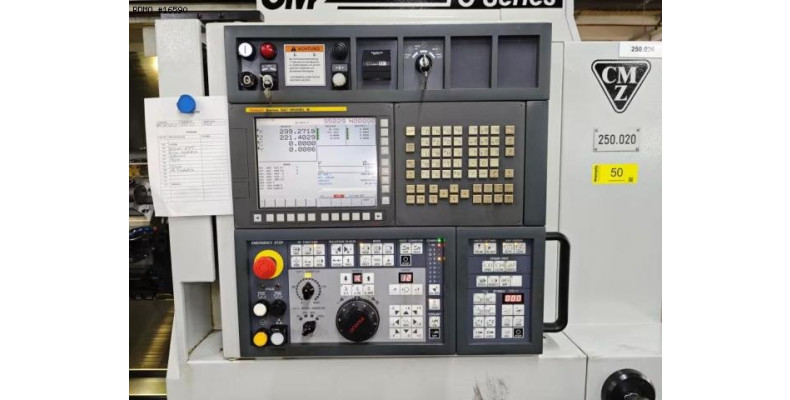

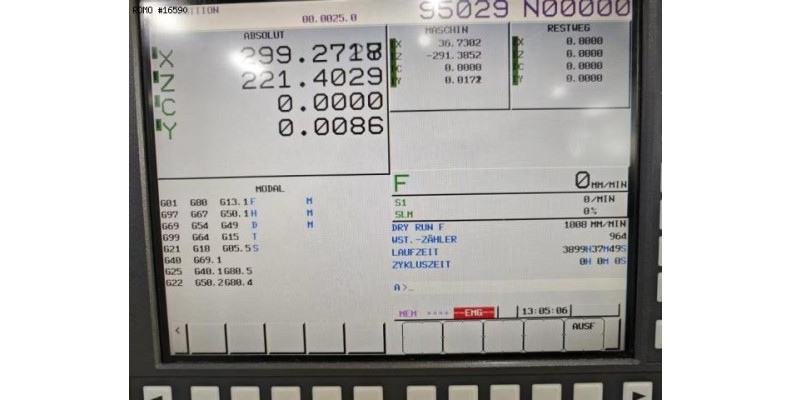

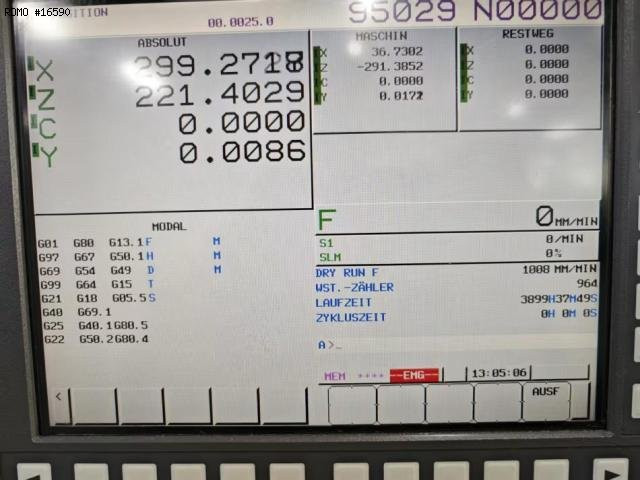

- CNC : Fanuc 32i Model B
- 3 colors status lamp
- Coolant tank
* with high-pressure pump
- Chips conveyor
- Spindle cooling unit

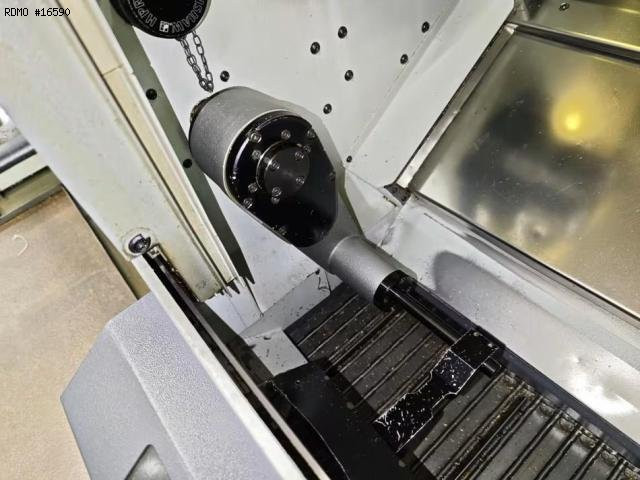

- Parts catcher
- Parts conveying strip

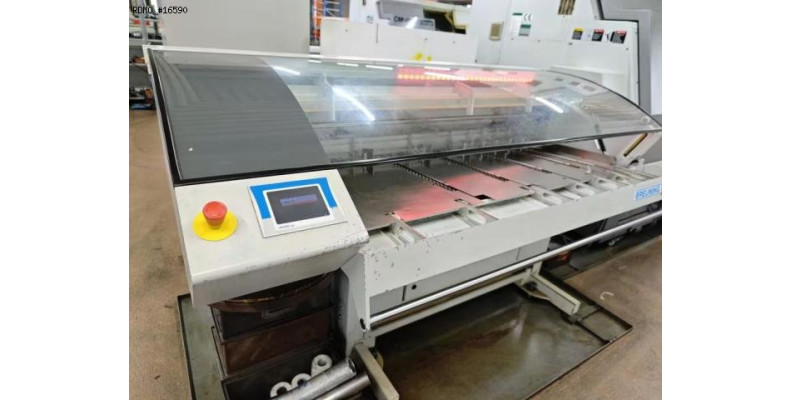

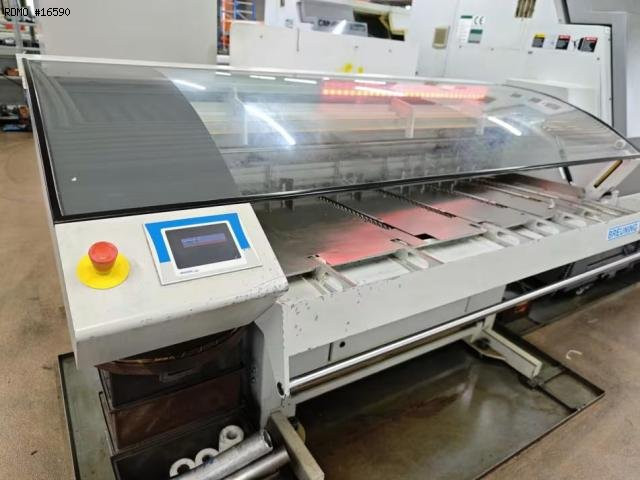

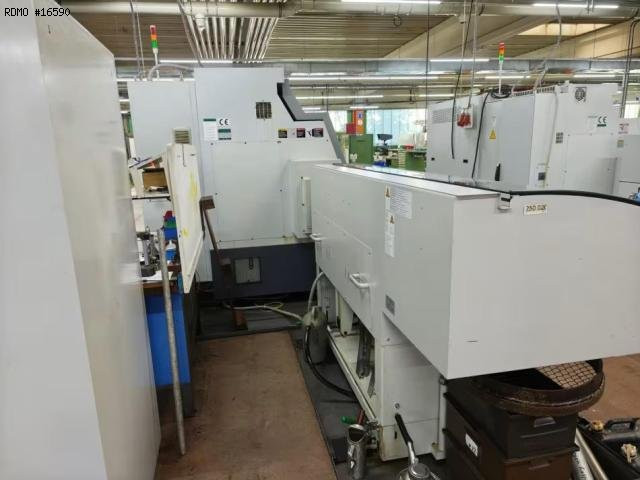

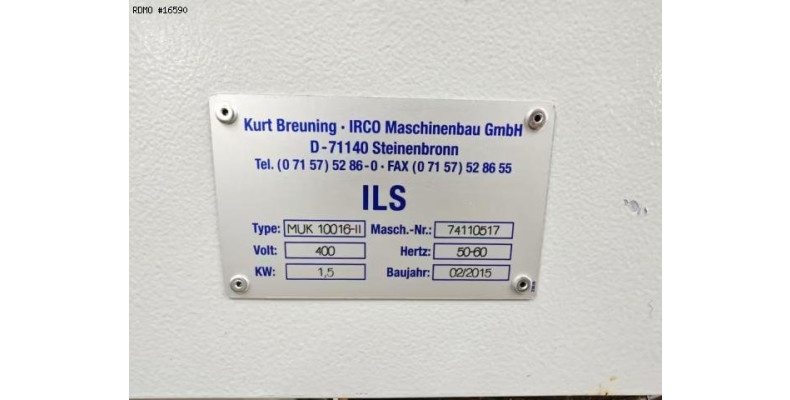

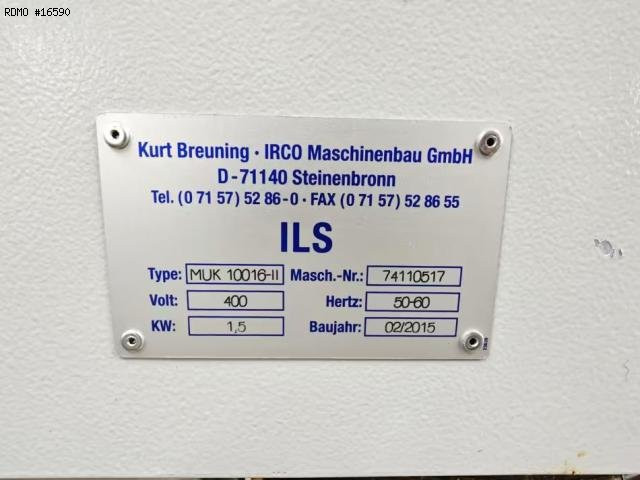

- Bar loader : BREUNING MUK 10016-II
