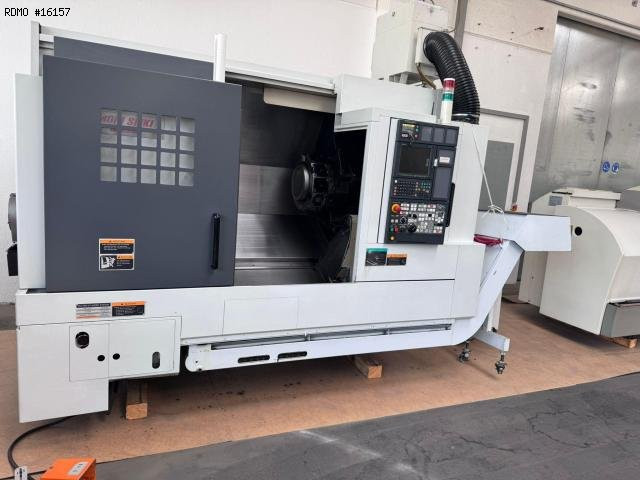

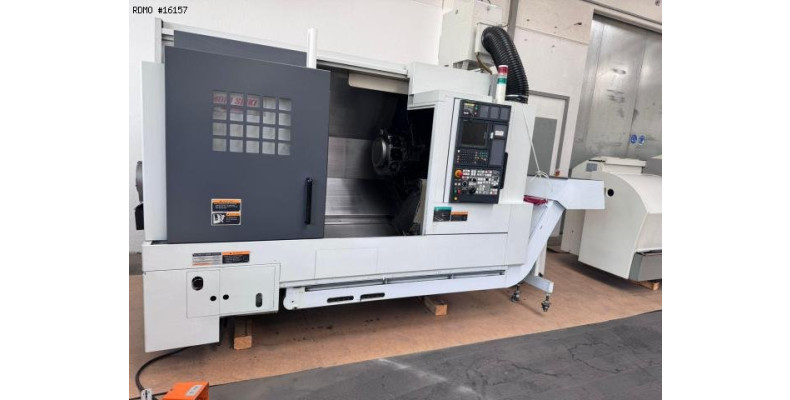

MORI SEIKI NL 2500Y 5 axis

Name: CNC lathe MORI SEIKI NL 2500Y 5 axes
Brand: MORI SEIKI
Availability: InStock

Turning CNC lathe

16157

PDF datasheet to download:

Brand: MORI SEIKI

Model: NL 2500Y

Year: 2006

Serial: NL251FB1881

16157

MORI SEIKI NL 2500Y 5 axis

Turning CNC lathe

PDF datasheet to download:

Brand: MORI SEIKI

Model: NL 2500Y

Year: 2006

Serial: NL251FB1881

Ask Price

Caracteristics

- Number of axes : 4
MAIN SPINDLE
- Spindle nose : A2-8
- Spindle power : 18,5 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 80 [mm]
- Max. turning diameter : 366 [mm]
- C axis indexing precision : 0.001 [°]

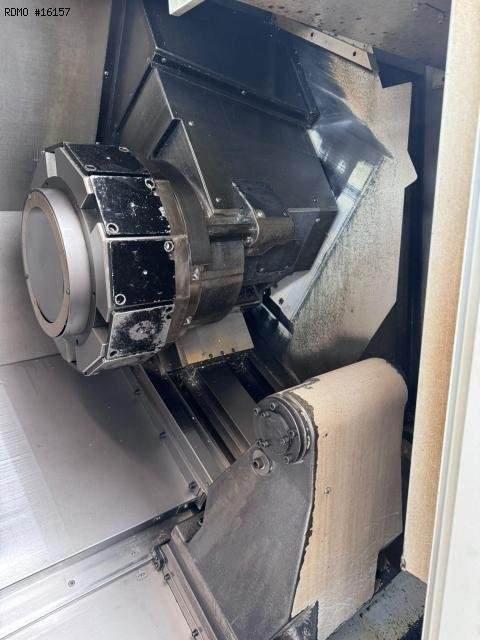

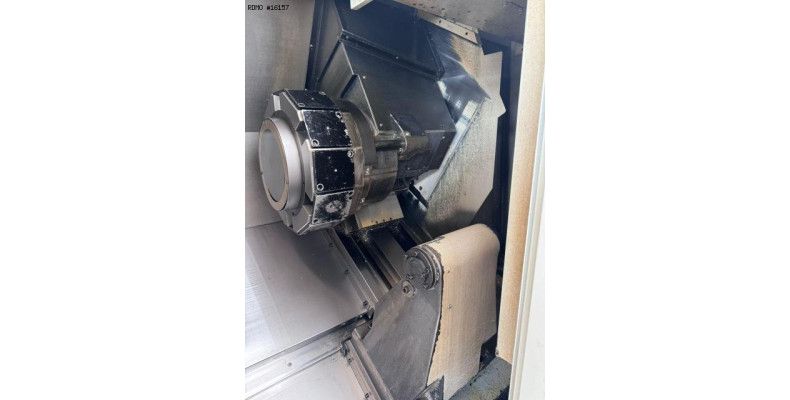

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 280 x 785 [mm]
- Y stroke : +/- 50 [mm]
- Live tools speed : 6000 [rpm]
* Live tools power : 5,5 [kW]
TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM5
- Distance between centers : 705 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 39 [kVA]
MACHINE HOURS

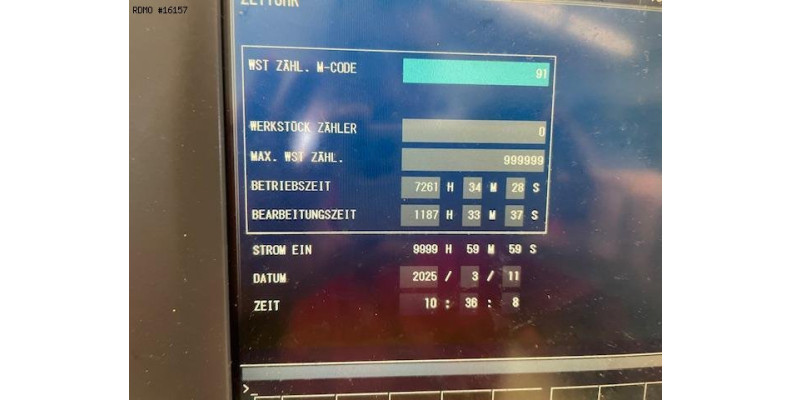

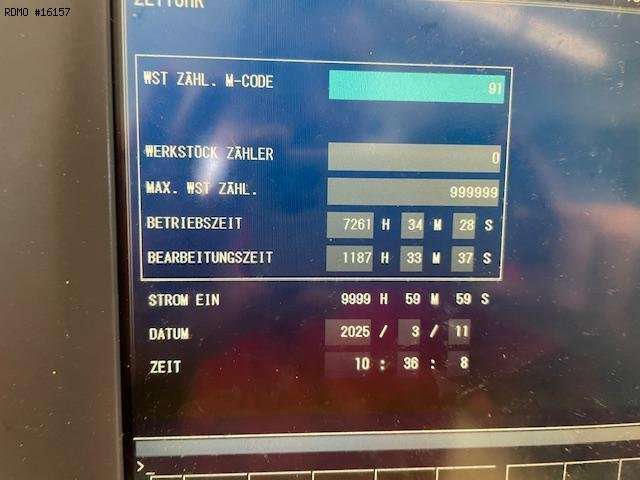

- Number of working hours : 7261 [h]
WEIGHT & DIMENSIONS
- Machine floor space : 3800 x 2143 [mm]
- Machine height : 2232 [mm]
- Machine weight : 6100 [kg]

Equipment

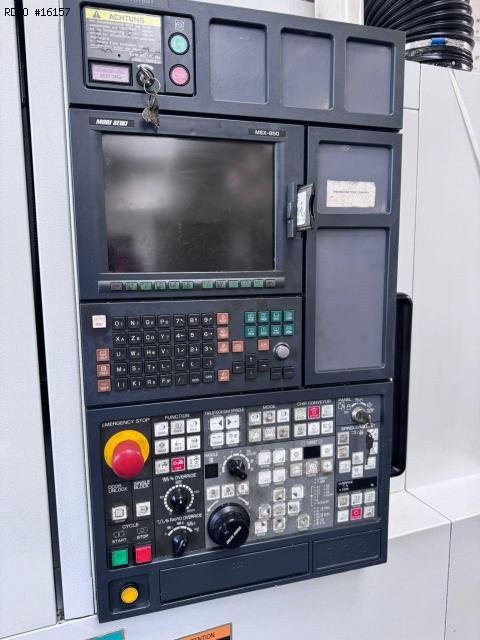

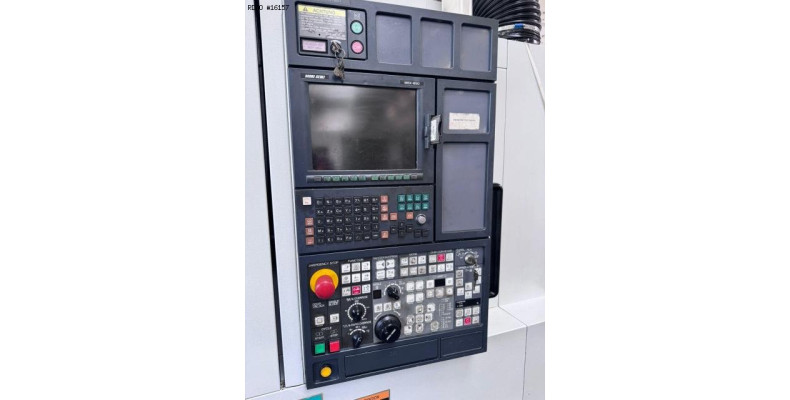

- CNC : MORI MSX-850 III (Mitsubishi 720BM)
- Tool probe
- 3 colors status lamp
- Coolant tank
- Chips conveyor

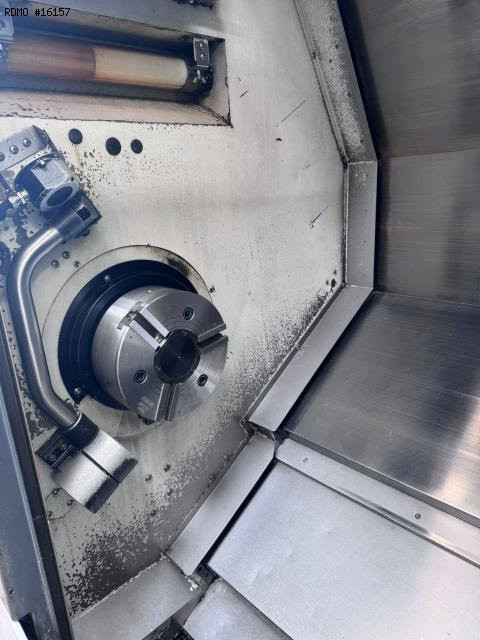

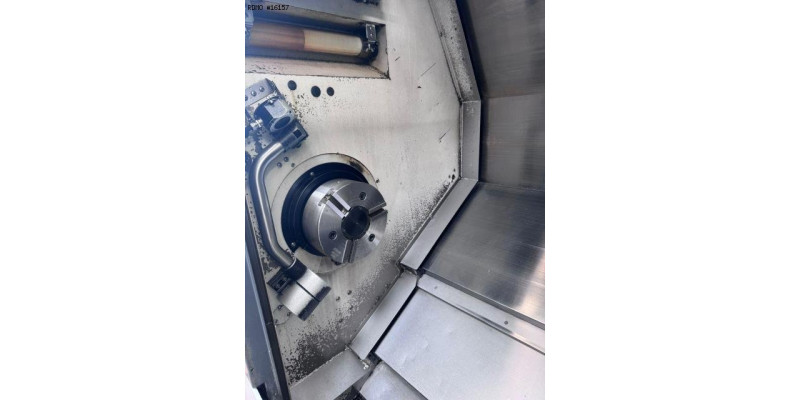

- Chuck 3 jaws : hydraulique
- Number of turning tool holders : 3
