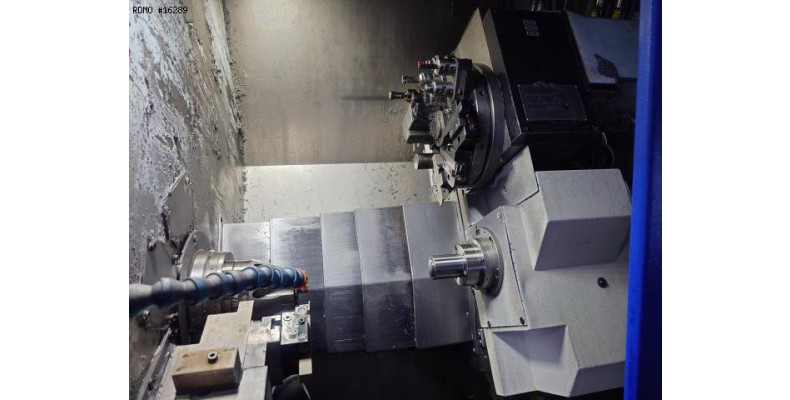

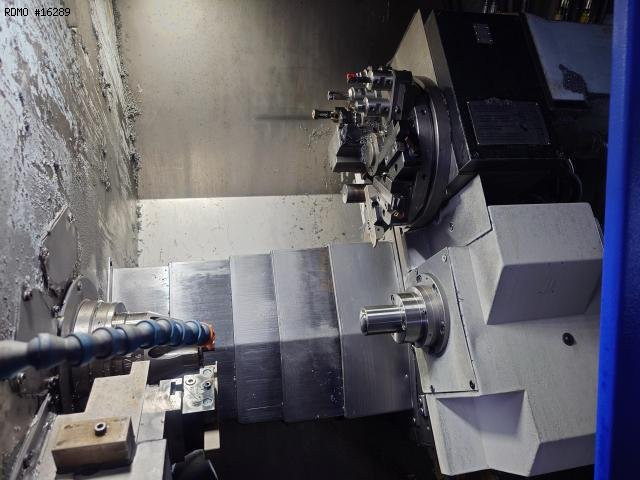

SCHAUBLIN 110 CNC-R 3 axis

Name: CNC lathe SCHAUBLIN 110 CNC-R 3 axes
Brand: SCHAUBLIN
Availability: InStock

Turning CNC lathe

16289

PDF datasheet to download:

Brand: SCHAUBLIN

Model: 110 CNC-R

Year: 1997

Serial: 337710

16289

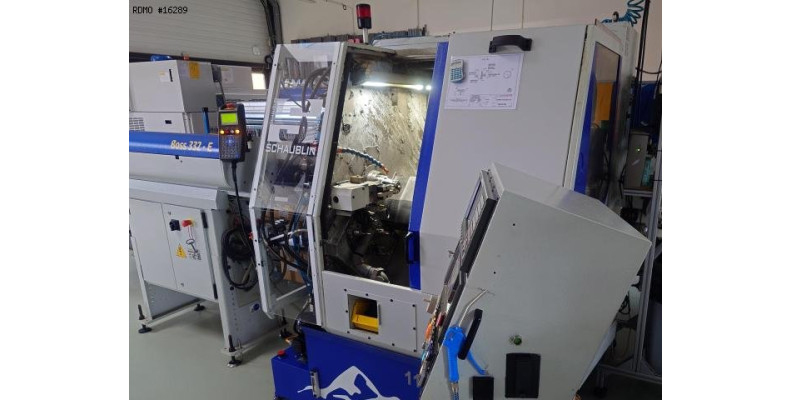

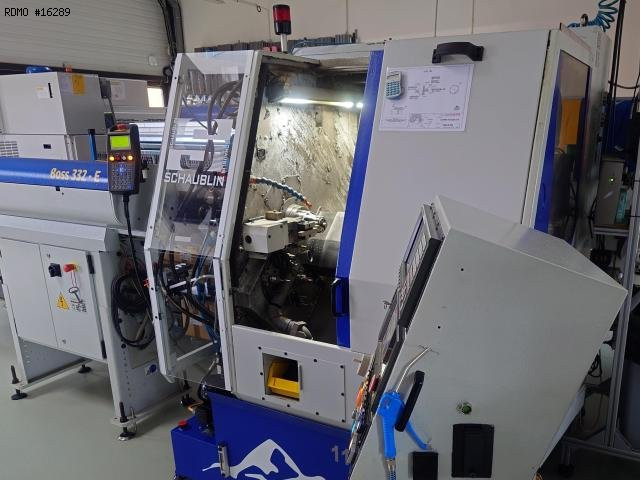

SCHAUBLIN 110 CNC-R 3 axis

Turning CNC lathe

PDF datasheet to download:

Brand: SCHAUBLIN

Model: 110 CNC-R

Year: 1997

Serial: 337710

Ask Price

Caracteristics

- Number of axes : 3
- Number of spindles : 2
MAIN SPINDLE
- Spindle speeds : 30 - 6000 [rpm]
- Spindle power : 5.5 [kW]
- Max. bar diameter : 32 [mm]
- Max. turning diameter : 115 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-4

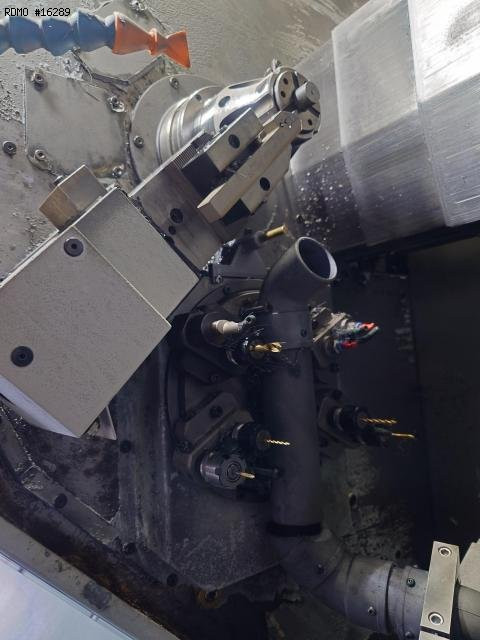

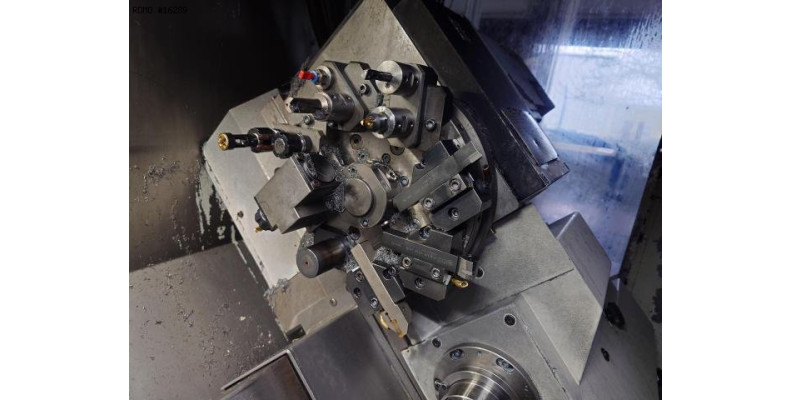

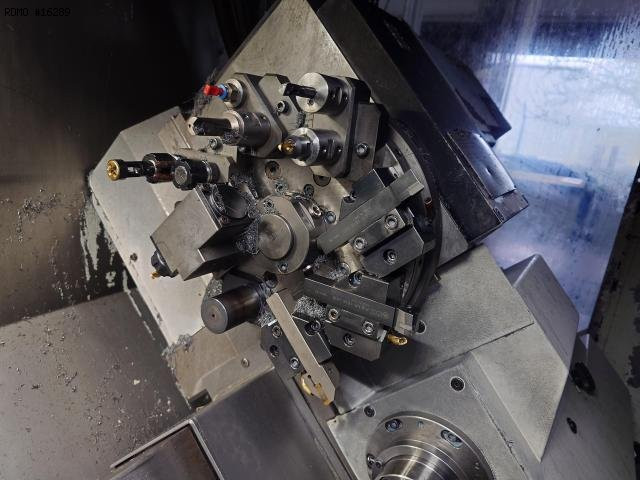

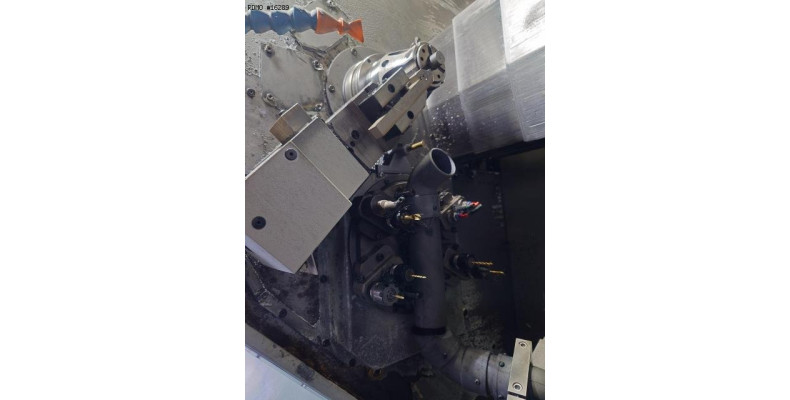

TURRET 1
- Number of positions : 8

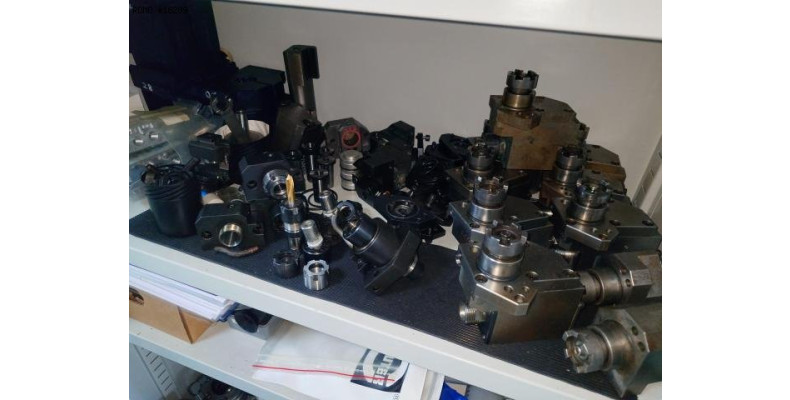

- Number of motorized positions : 8
- Live tools speed : 5000 [rpm]
- Live tools power : 0.75 [kW]
- X stroke : 220 [mm]
- Z stroke : 300 [mm]
- Rapid traverses rates (X/Z) : 6 / 10 [m/min]
TURRET 2
- Number of positions : 6
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 16 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2830 x 2610 [mm]
- Machine height : 1860 [mm]
- Machine weight : 1600 [kg]

Equipment

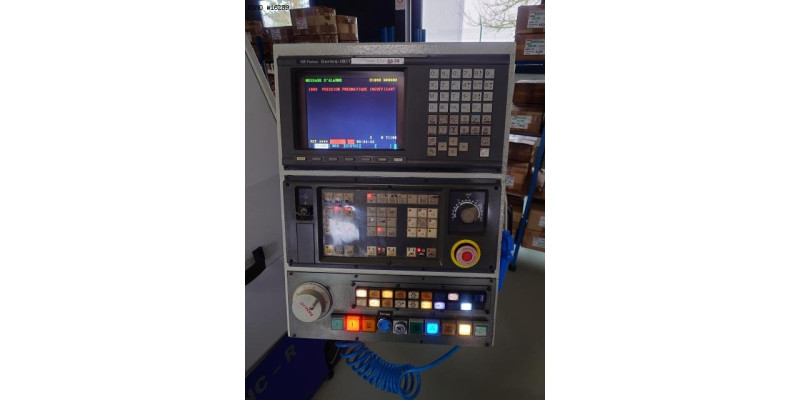

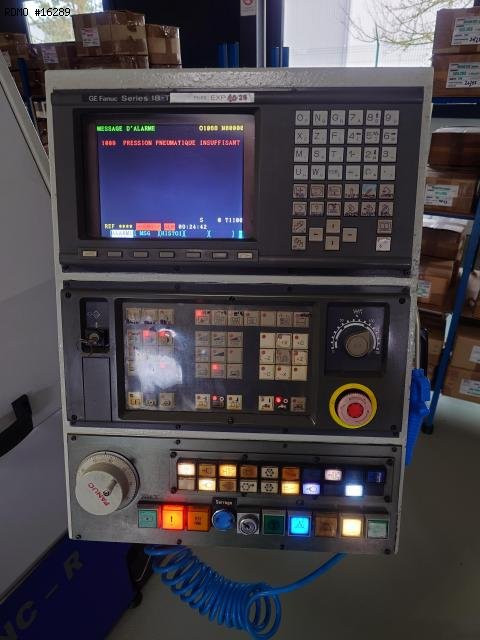

- CNC : Fanuc 18-TB
- Coolant tank
- Parts catcher

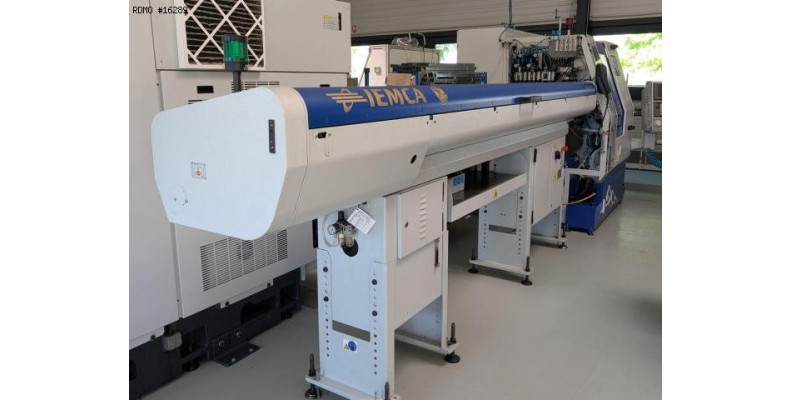

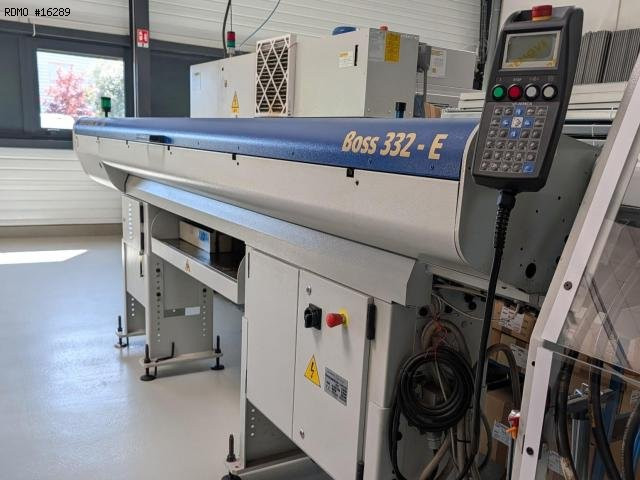

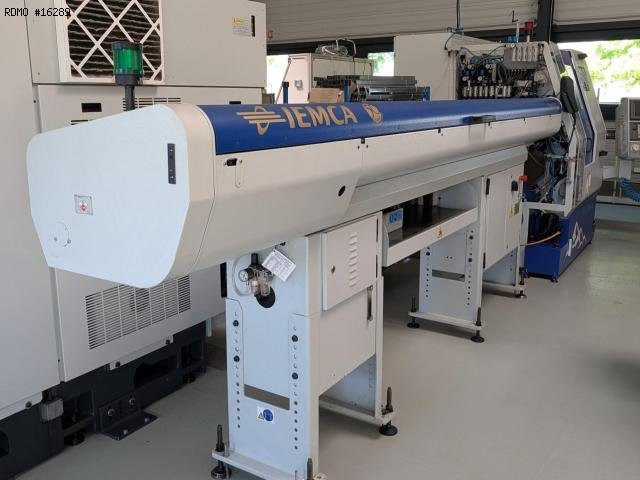

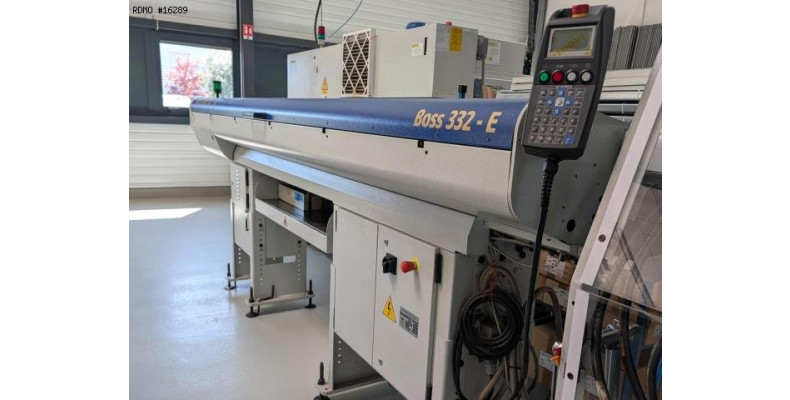

- Bar loader : IEMCA BOSS 332 E / 32 LL
