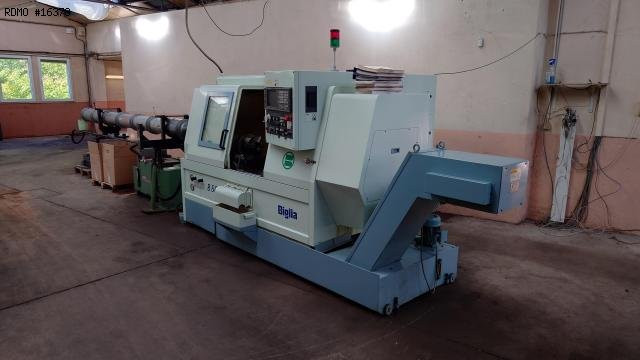

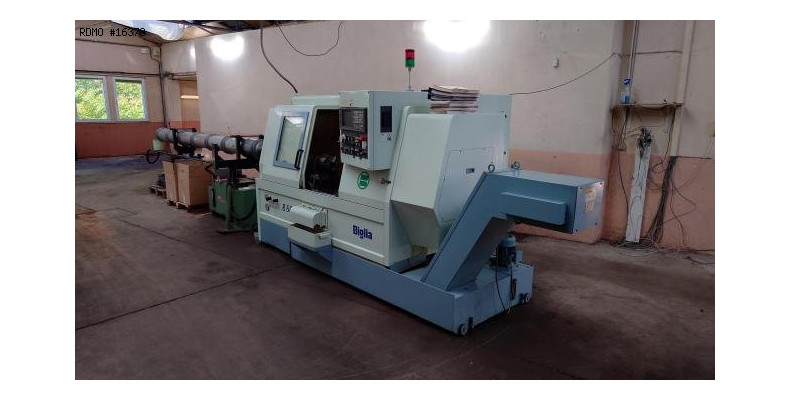

BIGLIA B501M 3 axis

Name: CNC lathe BIGLIA B501M 3 axes
Brand: BIGLIA
Availability: InStock

Turning CNC lathe

16378

PDF datasheet to download:

Brand: BIGLIA

Model: B501M

Year: 1998

Serial: 5458

16378

BIGLIA B501M 3 axis

Turning CNC lathe

PDF datasheet to download:

Brand: BIGLIA

Model: B501M

Year: 1998

Serial: 5458

Ask Price

Caracteristics

- Number of axes : 3
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 68 [mm]
- Max. diameter on bench : 320 [mm]
- C axis indexing precision : 0.001 [°]
TURRET
- Number of positions : 12
- Number of motorized positions : 6
- X/Z stroke : 210/500 [mm]
- Tool type : VDI 40
- Live tools speed : 4000 [rpm]
- Live tools power : 3.7 [kW]

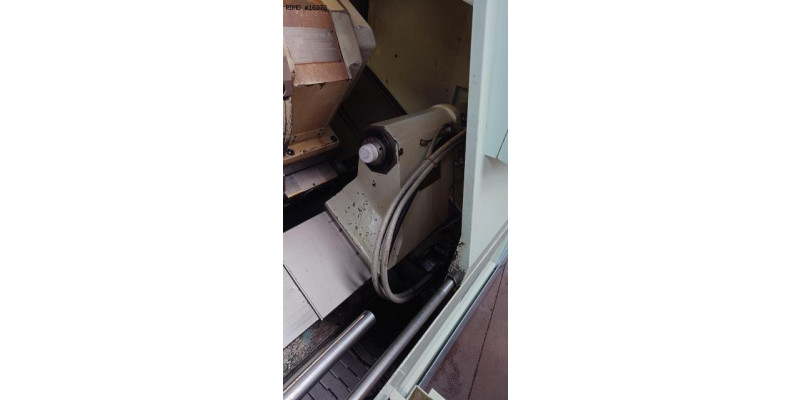

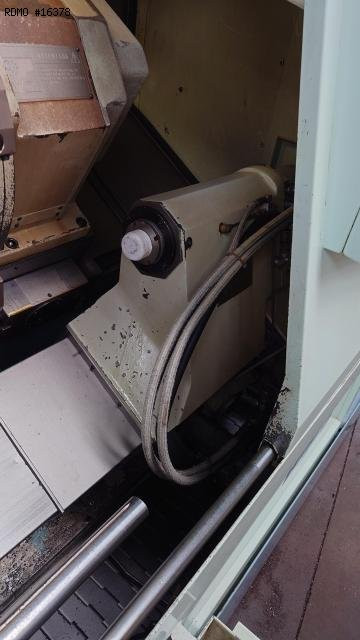

TAILSTOCK
- Tailstock type : Manuelle
- Type of cone : MK 4
- Tailstock stroke : 500 [mm]
- Quill stroke : 100 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 17 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3900 X 1870 [mm]
- Machine height : 1960 [mm]
- Machine weight : 4300 [kg]

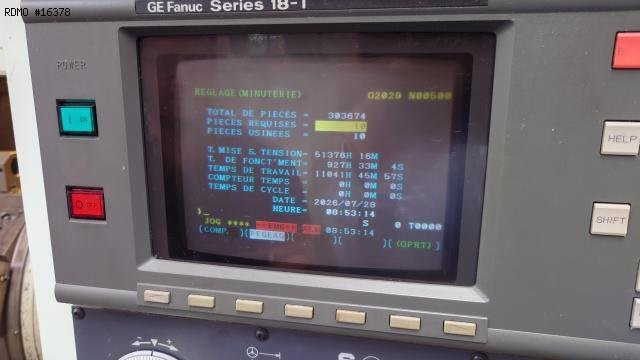

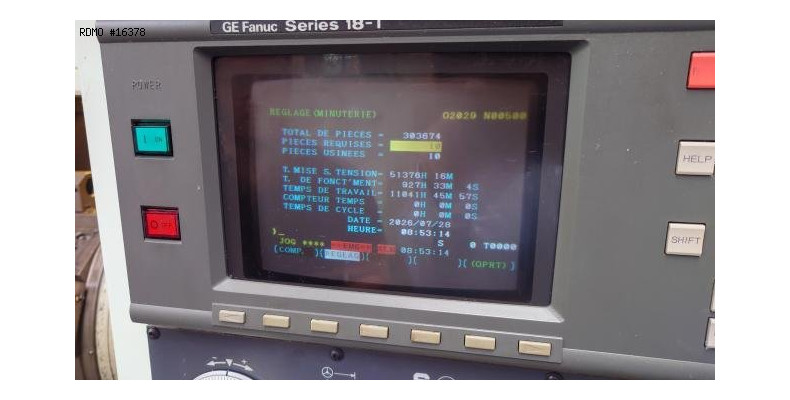

MACHINE HOURS
- Number of hours under power : 51376 [h]
- Number of working hours : 11041 [h]

Equipment

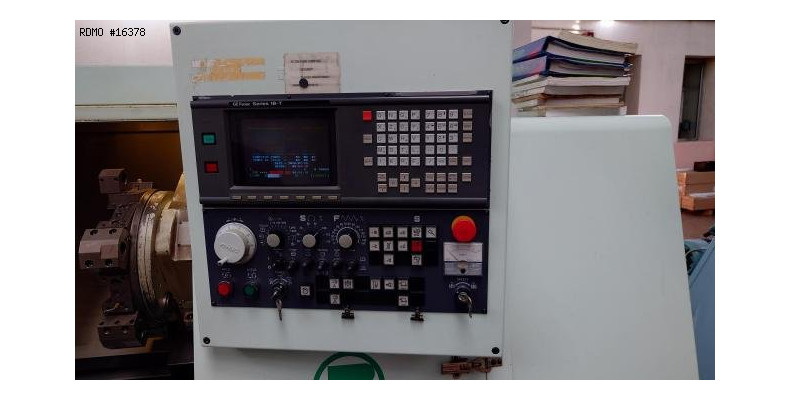

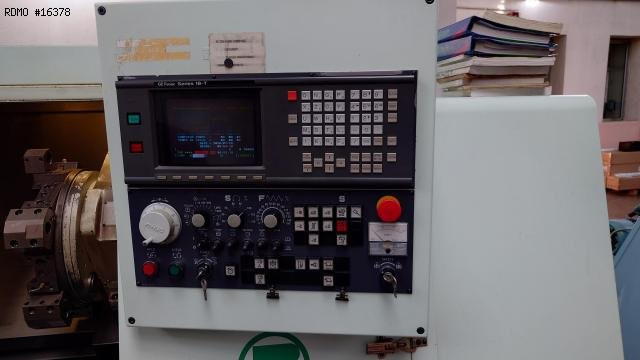

- CNC : Fanuc 18-TB
- Coolant tank
- Chips conveyor
- Parts catcher
- Bar loader : LNS

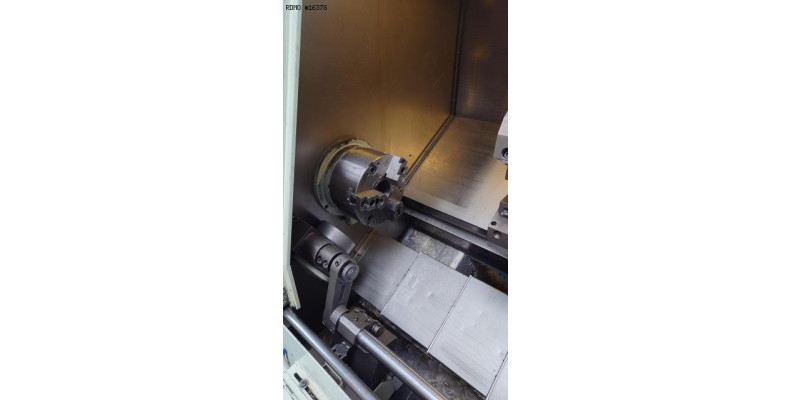

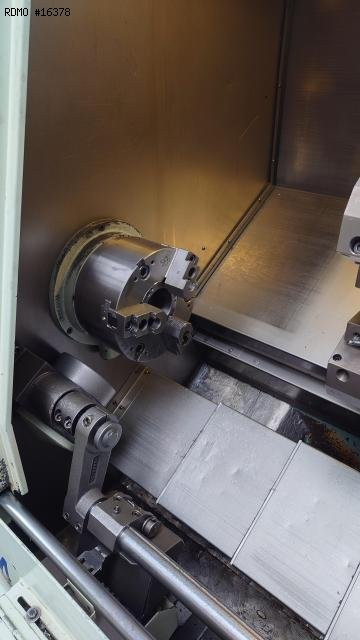

- Chuck 3 jaws
