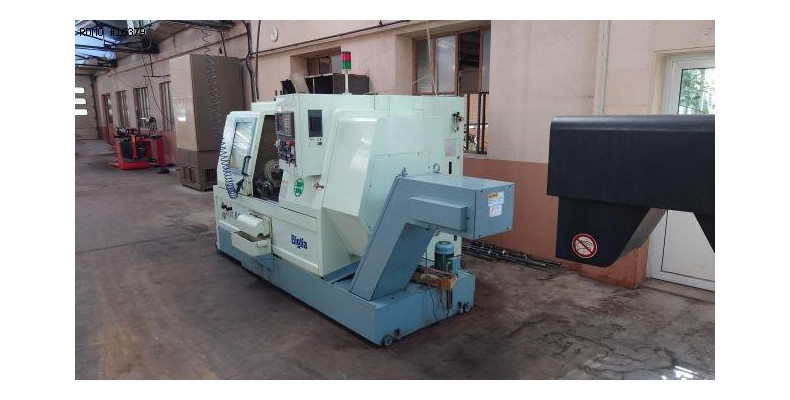

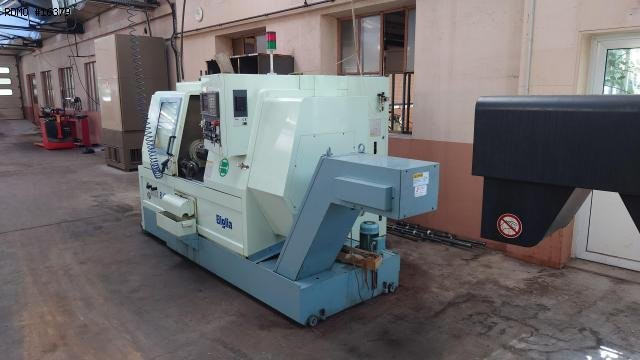

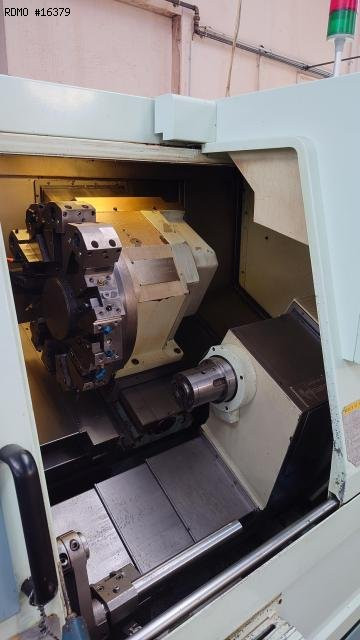

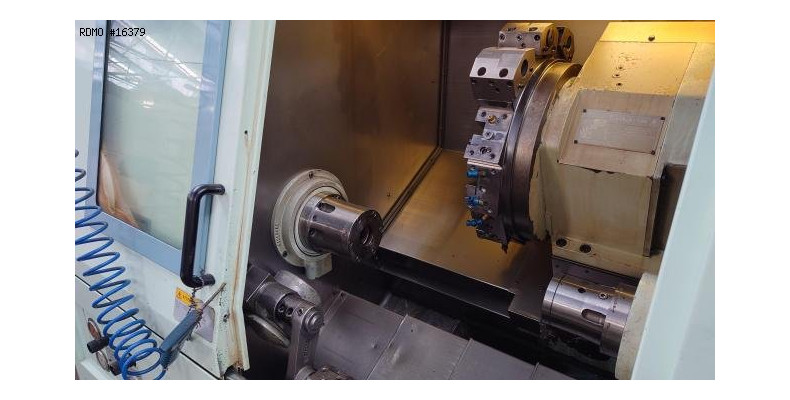

BIGLIA B501S 2 axis

Name: CNC lathe BIGLIA B501S 2 axes
Brand: BIGLIA
Availability: InStock

Turning CNC lathe

16379

PDF datasheet to download:

Brand: BIGLIA

Model: B501S

Year: 1998

Serial: 5461

16379

BIGLIA B501S 2 axis

Turning CNC lathe

PDF datasheet to download:

Brand: BIGLIA

Model: B501S

Year: 1998

Serial: 5461

Ask Price

Caracteristics

- Number of axes : 2
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 68 [mm]
COUNTER-SPINDLE
* Spindle power : 5.5 [kW]
- Max. diameter on bench : 320 [mm]
- C axis indexing precision : 0.001 [°]

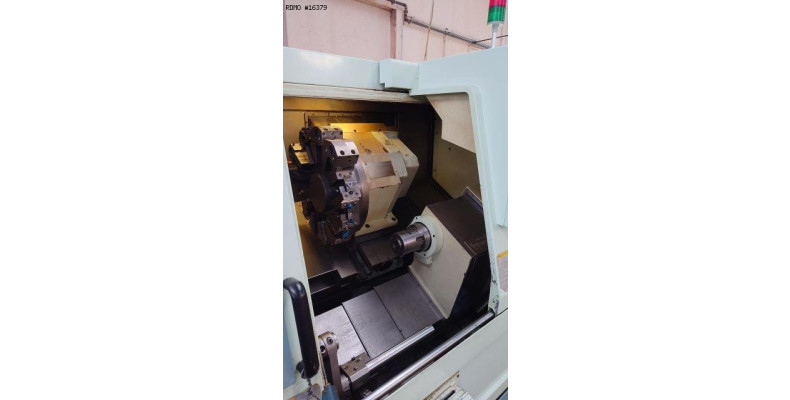

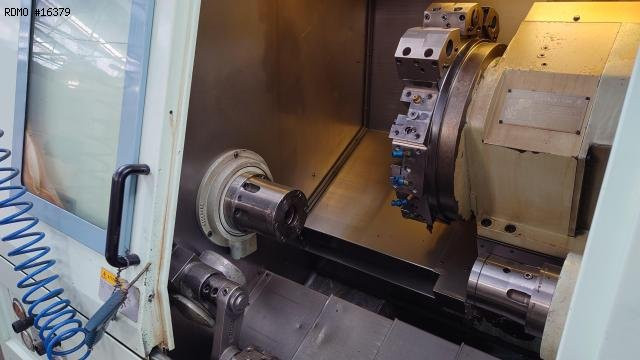

TURRET
- Number of positions : 12
- X/Z stroke : 210/500 [mm]
- Live tools power : 3.7 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 17 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3900 X 1870 [mm]
- Machine height : 1960 [mm]
- Machine weight : 4300 [kg]
MACHINE HOURS

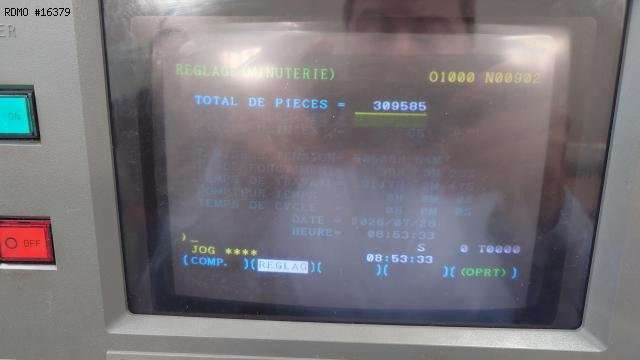

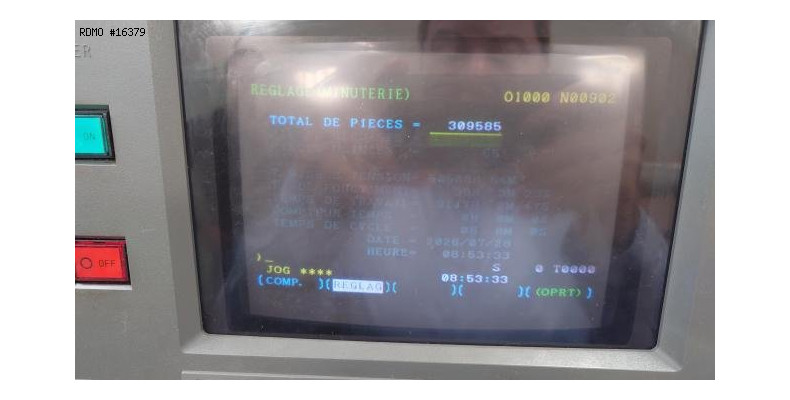

- Number of hours under power : 50508 [h]
- Number of working hours : 9147 [h]

Equipment

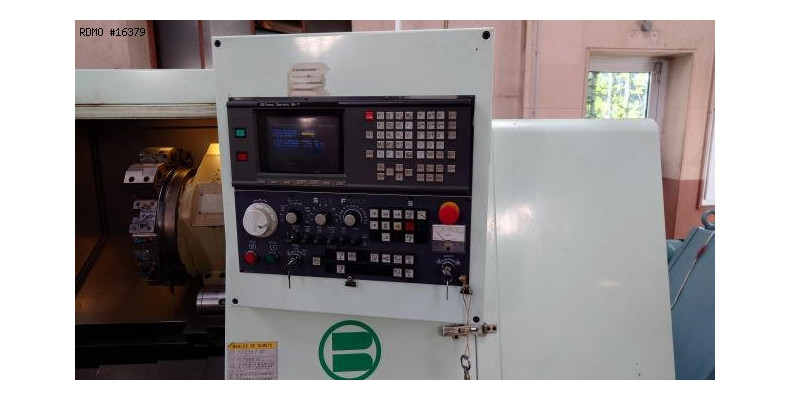

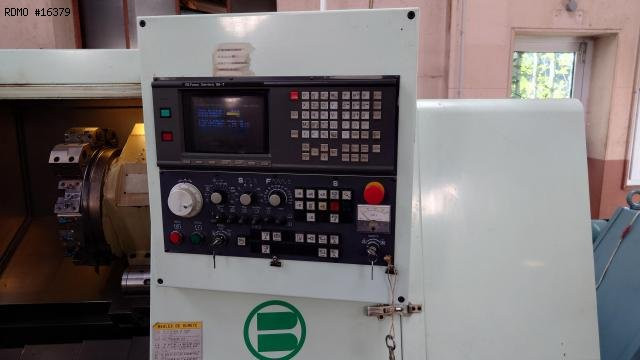

- CNC : Fanuc 18-T
- Coolant tank
- Chips conveyor
- Parts catcher
- Collet chuck
