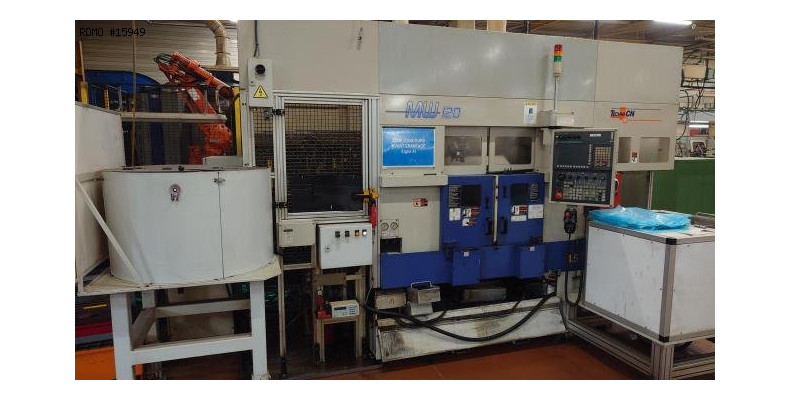

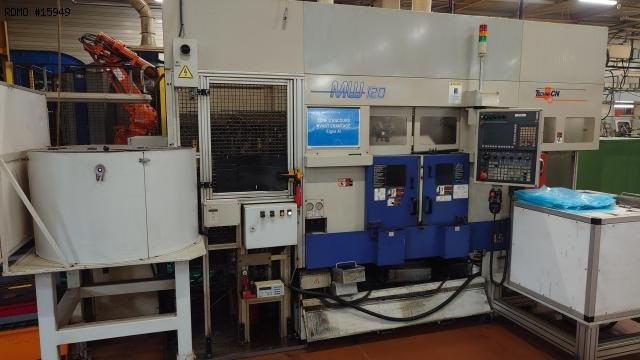

MURATEC MW120 4 axis

Name: CNC lathe MURATEC MW120 4 axes
Brand: MURATEC
Availability: InStock

Turning CNC lathe

15949

PDF datasheet to download:

Brand: MURATEC

Model: MW120

Year: 2011

Serial: 11KX279910001

15949

MURATEC MW120 4 axis

Turning CNC lathe

PDF datasheet to download:

Brand: MURATEC

Model: MW120

Year: 2011

Serial: 11KX279910001

Ask Price

Caracteristics

- Number of axes : 4
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 45 - 4.500 [rpm]
- Max. chuck diameter : 135 [mm]
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 45 - 4.500 [rpm]
- Max. chuck diameter : 135 [mm]

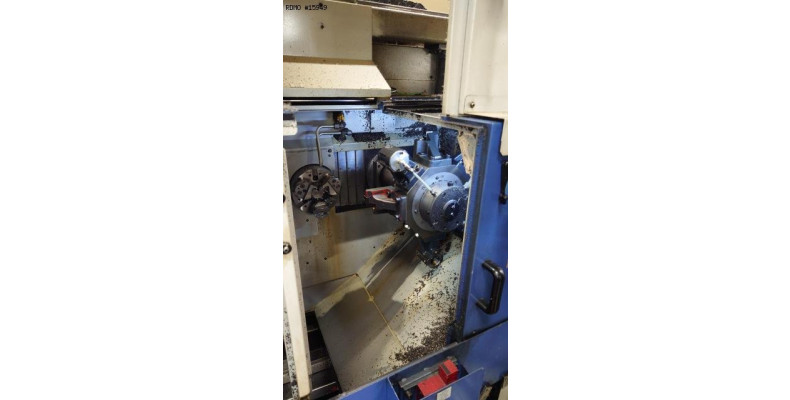

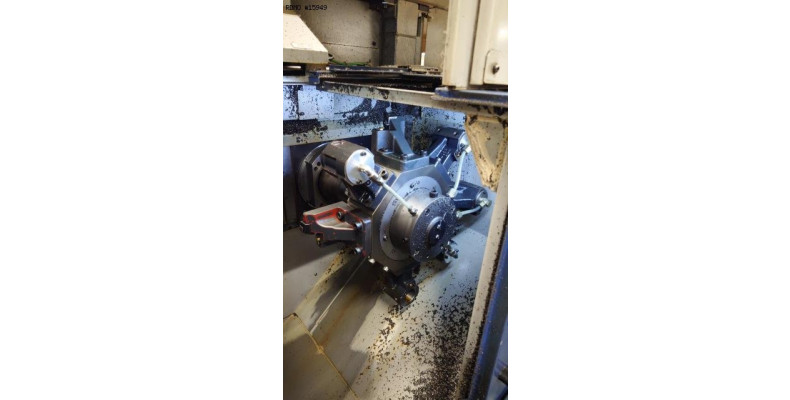

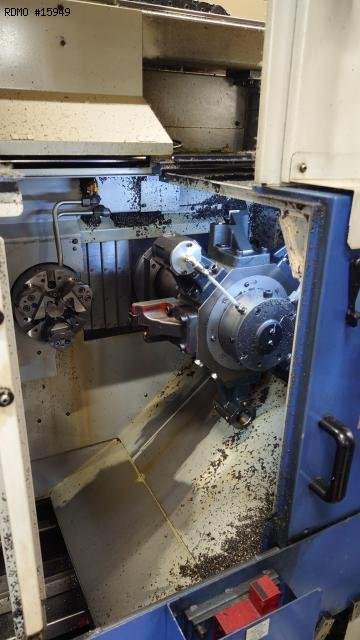

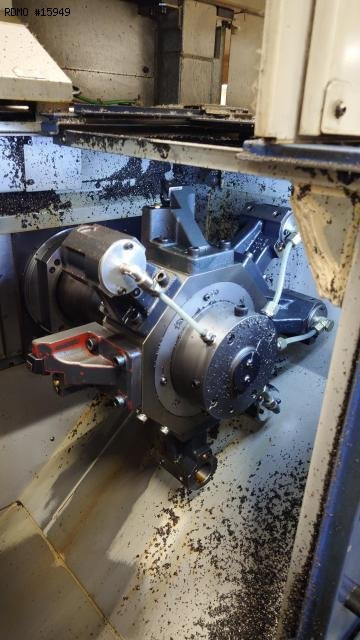

TURRET 1
- Number of positions : 8
- X/Z stroke : 130 / 145 [mm]
TURRET 2
- Number of positions : 8
- X/Z stroke : 130 / 145 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 32 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.800 x 1.875 [mm]
- Machine height : 2.420 [mm]
- Machine weight : 4.600 [kg]
MACHINE HOURS
- Number of hours under power : 10842 [h]

Equipment

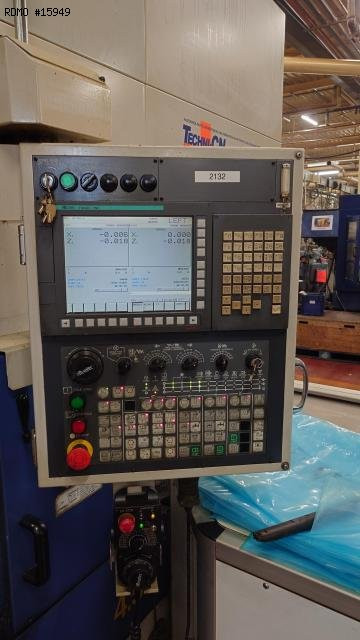

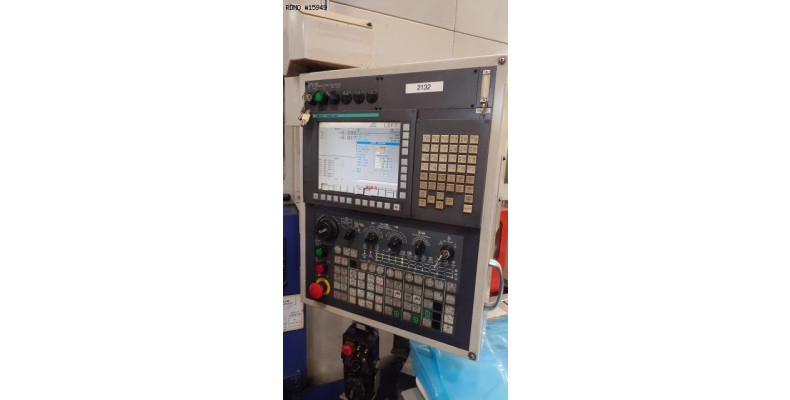

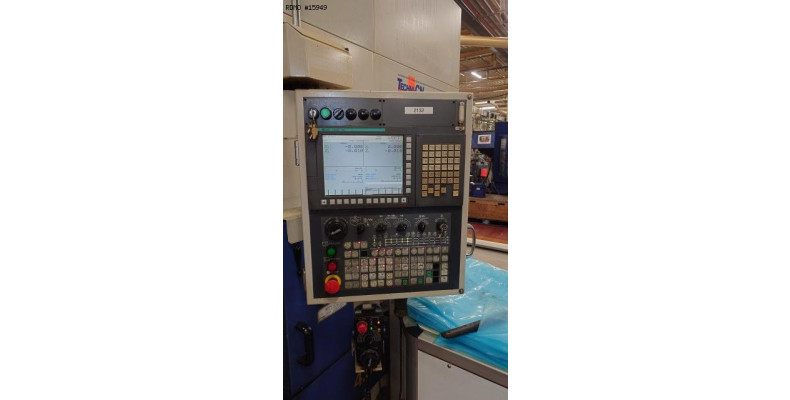

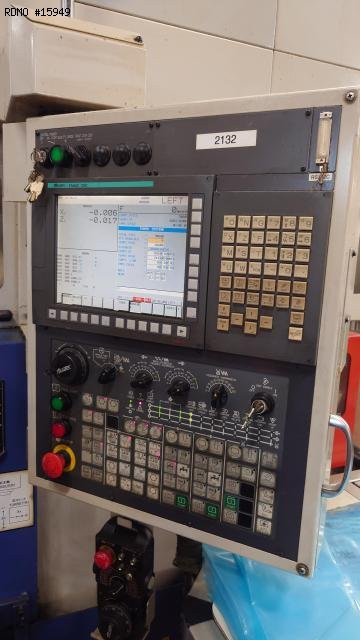

- CNC : Fanuc
- 3 colors status lamp
- Coolant tank
- Chips conveyor : ARRIERE
- Parts catcher
- Workpiece loading robot
* Max. chuck diameter : 165 [mm]
