CMZ TA 30 Y 4 axis

Turning CNC lathe
15936
PDF datasheet to download:
Brand: CMZ
Model: TA 30 Y
Year: 2014
Serial: 126
15936

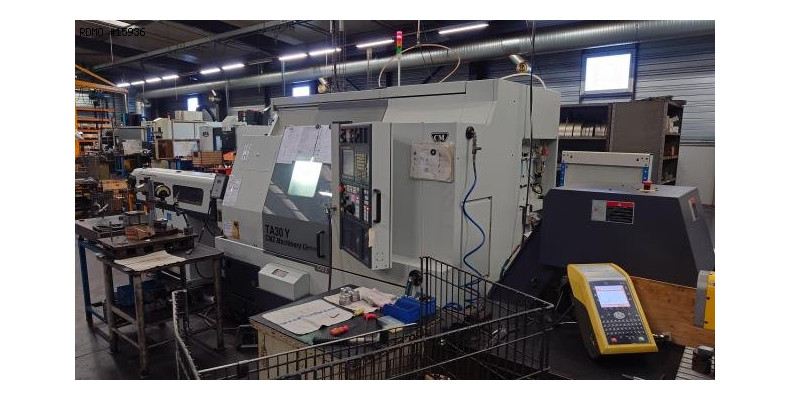

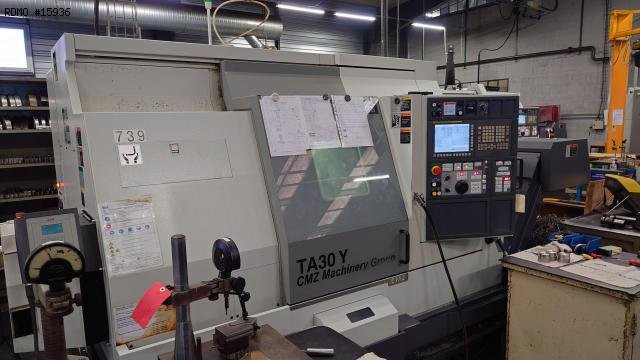

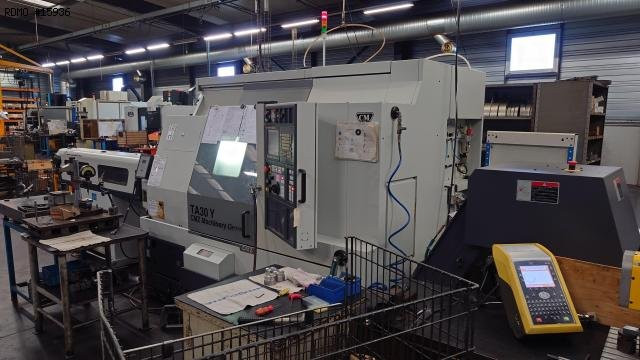

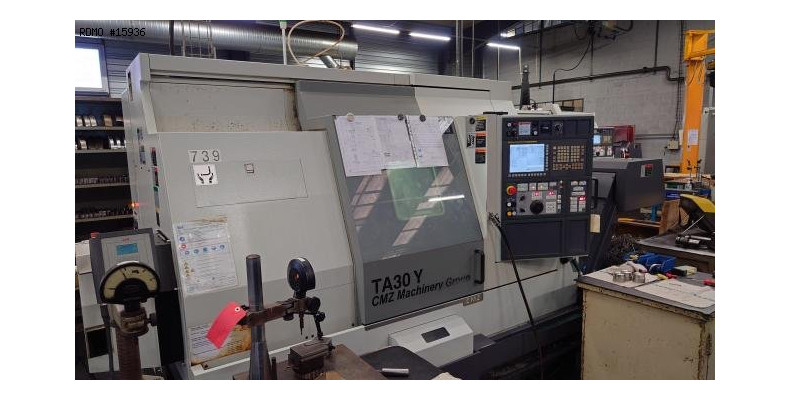

CMZ TA 30 Y 4 axis
PDF datasheet to download:
Brand: CMZ
Model: TA 30 Y
Year: 2014
Serial: 126
Ask Price

Caracteristics & Equipment

Caracteristics
- Number of axes : 3

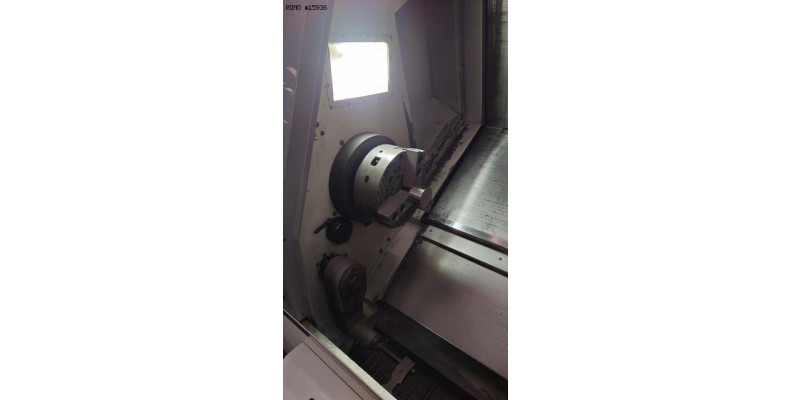

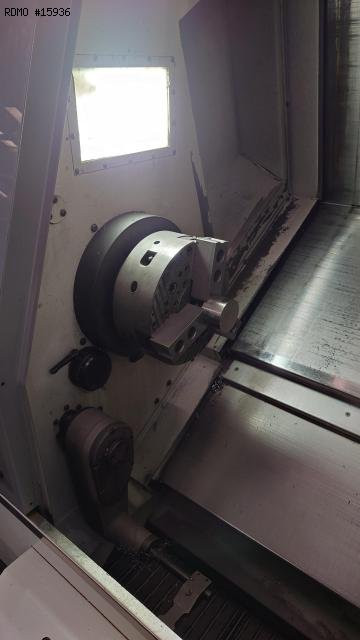

MAIN SPINDLE
- Spindle power : 42 [kW]
- Spindle speeds : 3500 [rpm]
- Maximum diameter of rotation on the bench : 760 [mm]
- Maximum rotation diameter on the carriage : 600 [mm]
- Max. turning diameter : 460 [mm]
- Max. chuck diameter : 250 / 315 [mm]
- C axis indexing precision : 0.001 [°]

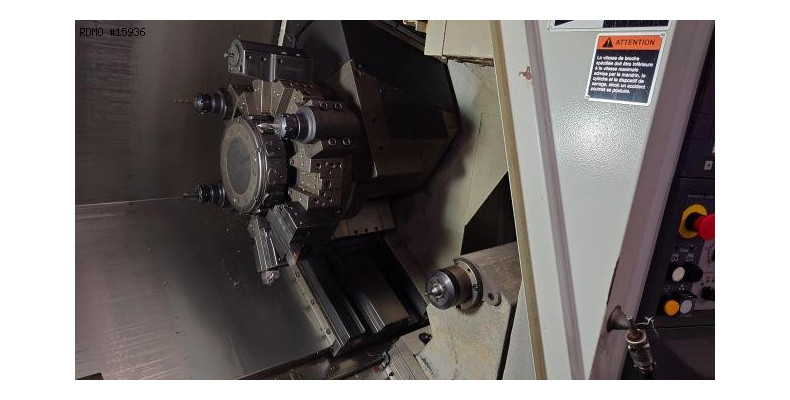

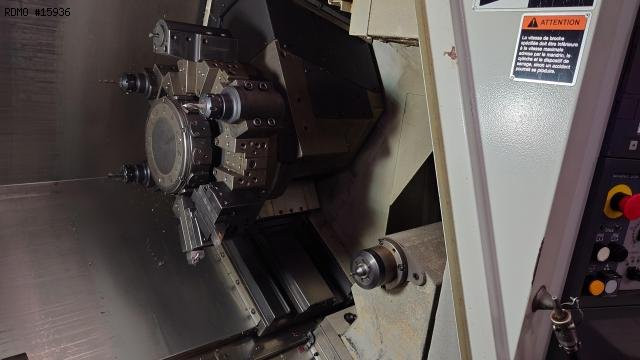

TURRET
- Number of positions : 12
- X/Z stroke : 310 / 640 [mm]

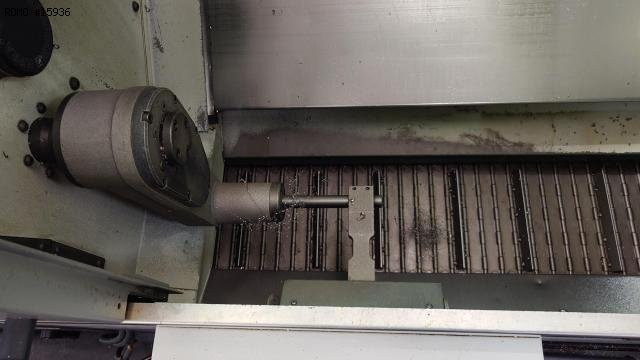

TAILSTOCK

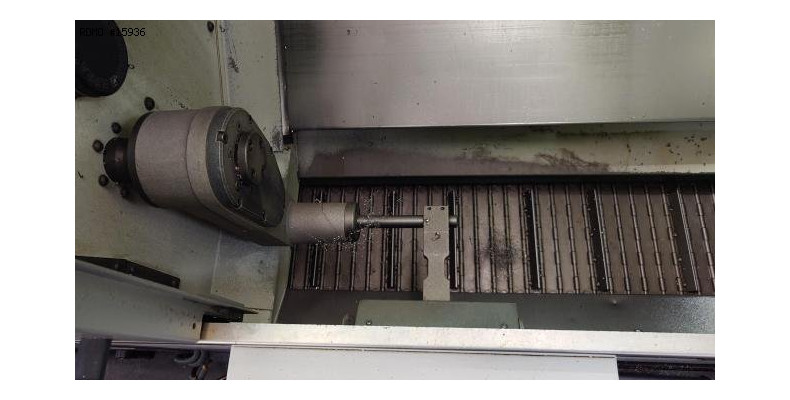

- Distance between spindle and tailstock centre : 689 [mm]
WEIGHT & DIMENSIONS
- Machine floor space : 2.540 x 1.760 [mm]
- Machine height : 1.880 [mm]
- Machine weight : 6600 [kg]
Equipment

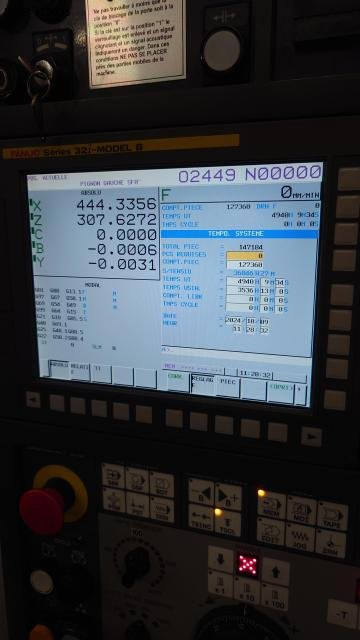

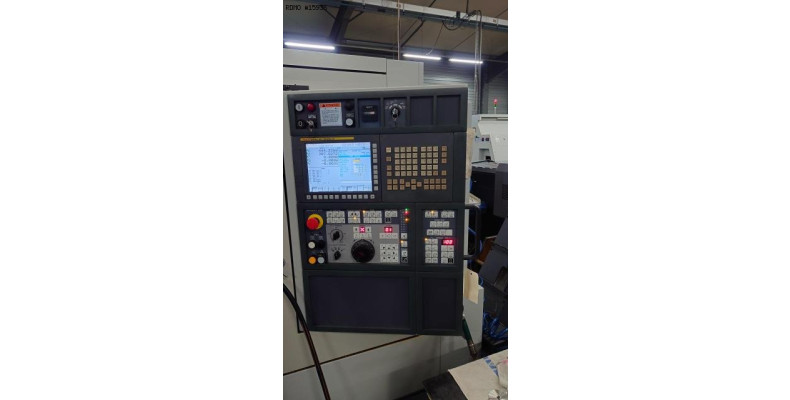

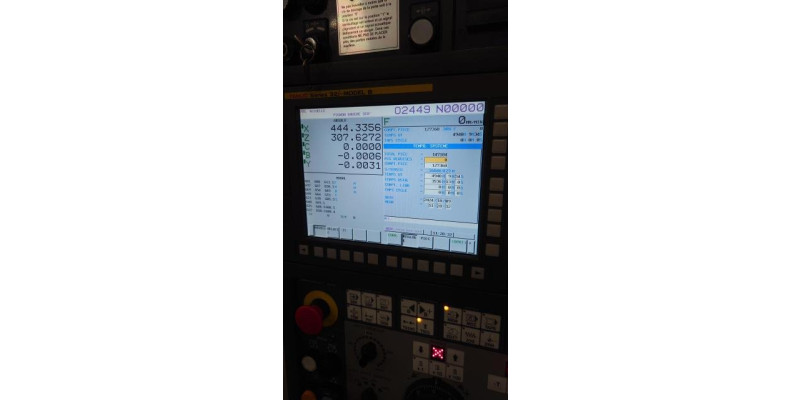

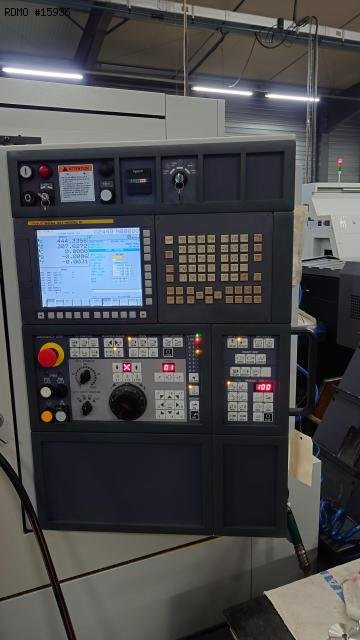

- CNC : Fanuc Series 32i Model B
- Coolant tank

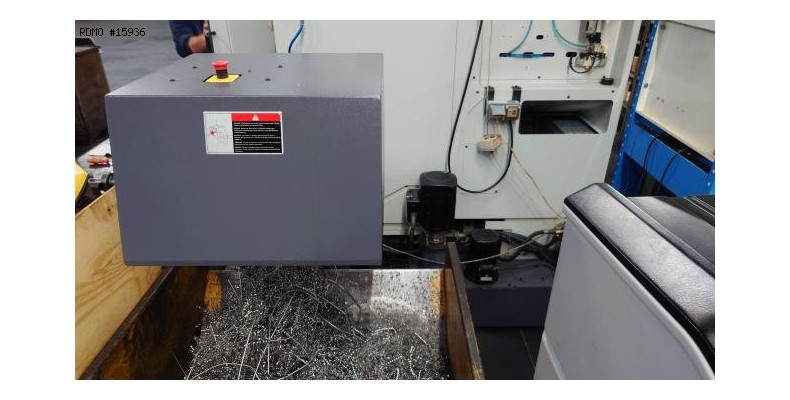

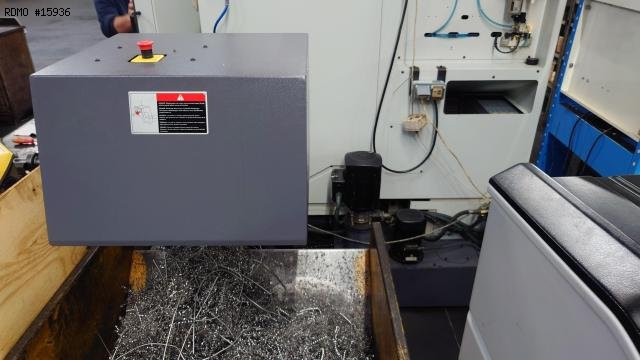

- Chips conveyor
- Tool probe : Renishaw

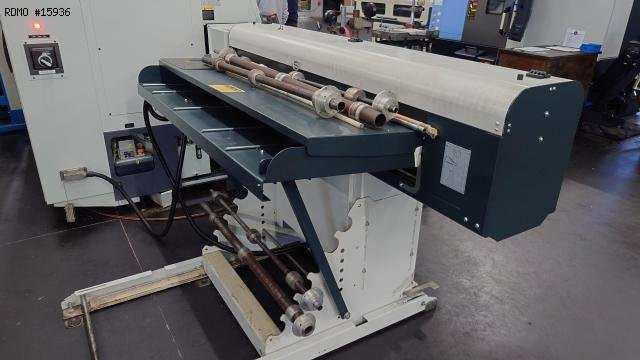

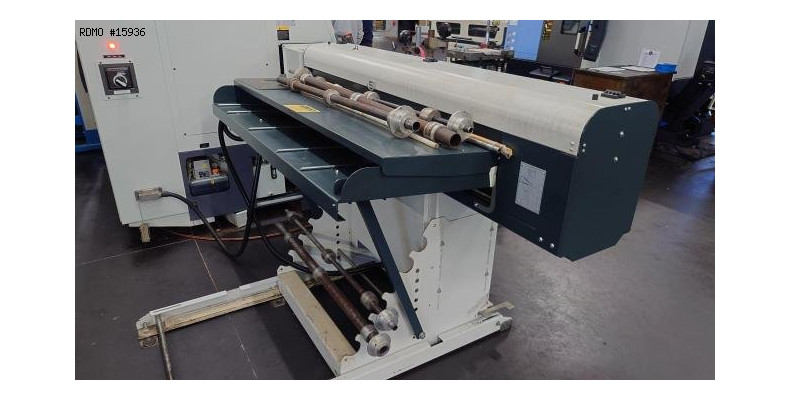

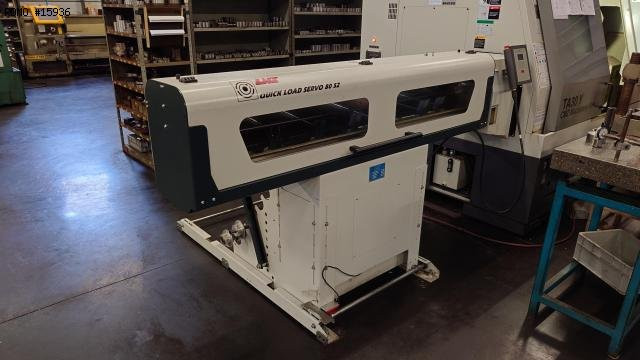

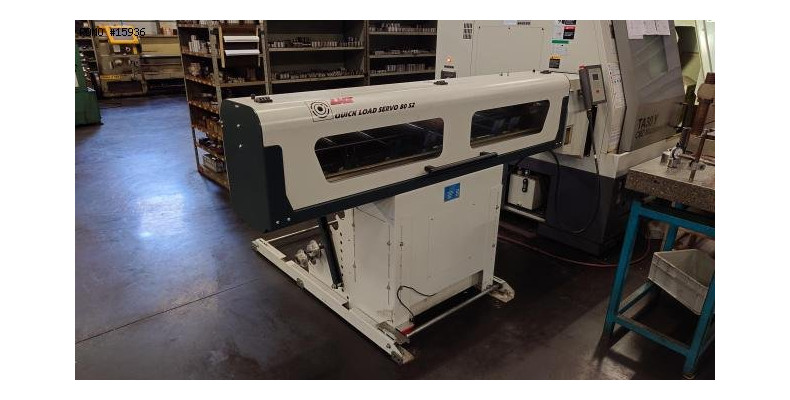

- Bar loader : LNS Quick Load Servo 80 S2

Datasheet

PDF datasheet to download:

Description
