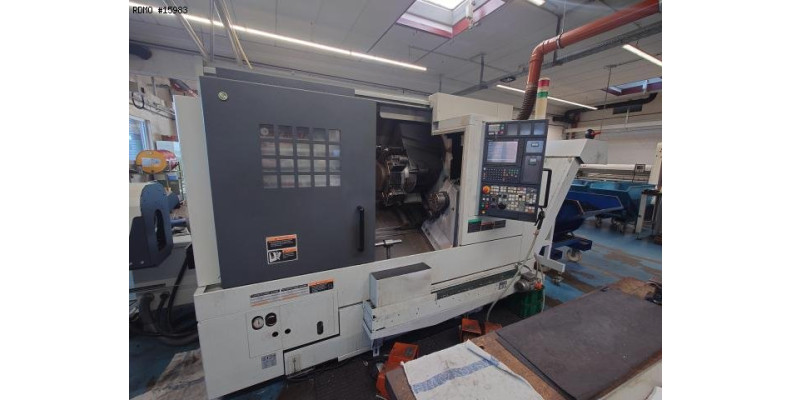

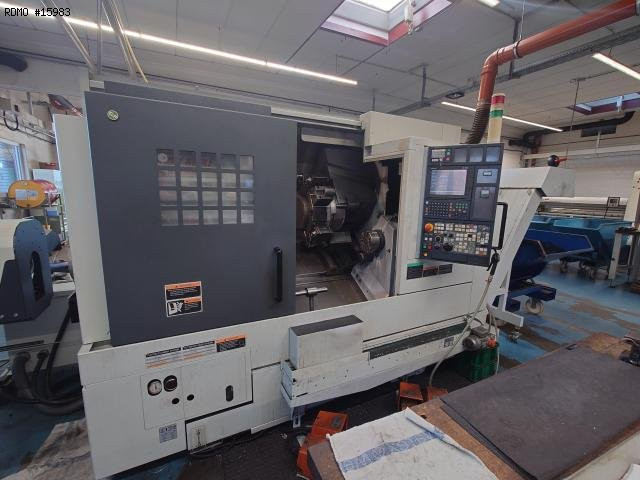

MORI SEIKI NL 2500SY/700 6 axis

- Number of spindles : 2
- Number of turrets : 1
- Number of axes : 6
MAIN SPINDLE
- Spindle nose : A2-8
- Max. bar diameter : 80 [mm]
- Spindle power : 18,5 [kW]
- Spindle speeds : 4.000 [rpm]
- Max. turning diameter : 460 [mm]
- C axis indexing precision : 0,001 [°]

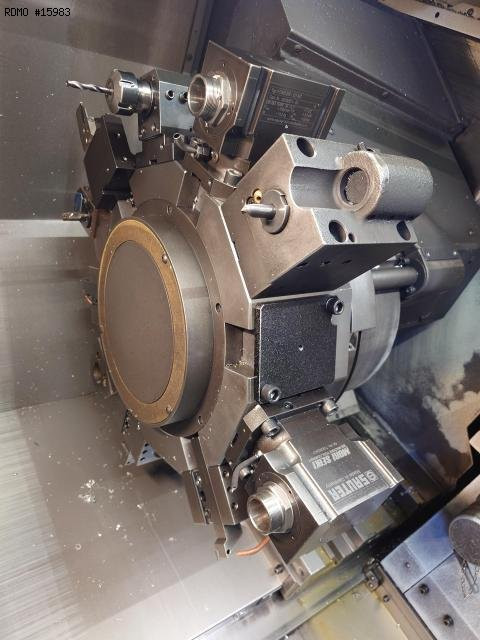

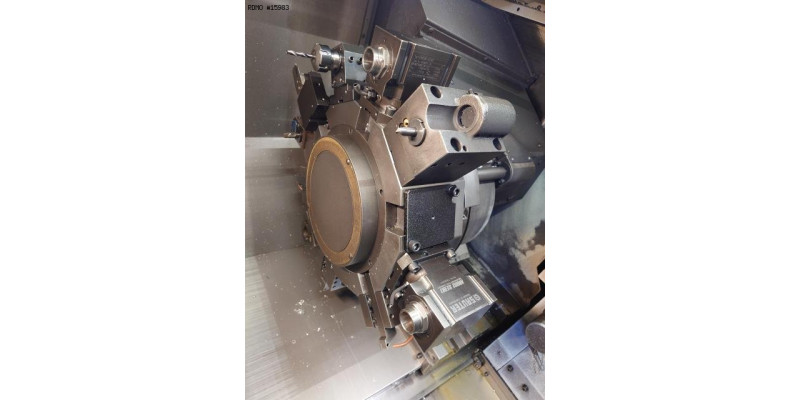

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260 x 795 [mm]
- Y stroke : +/- 50 [mm]
- Live tools speed : 6.000 [rpm]
- Live tools power : 5,5 [kW]

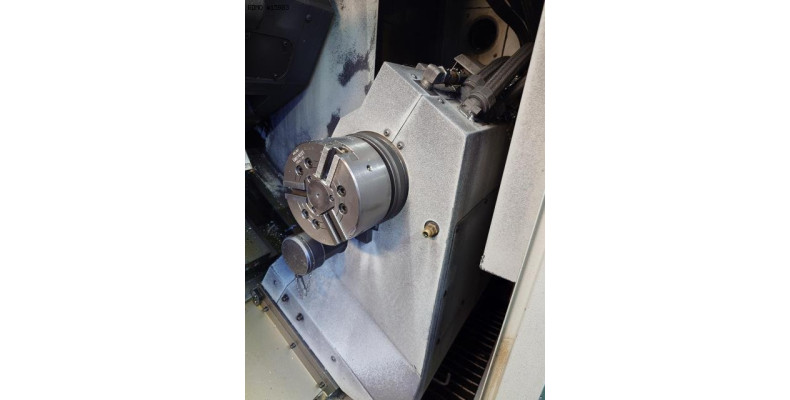

COUNTER-SPINDLE
- Spindle nose : A2-5
- Max. bar diameter : 51 [mm]
- Max. turning diameter : 190 [mm]
- Spindle power : 11 [kW]
- Spindle speeds : 6.000 [rpm]
- C axis indexing precision : 0,001 [°]
- Travel : 760 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 42 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4.414 x 2.370 [mm]
- Machine height : 2.115 [mm]
- Machine weight : 6.200 [kg]

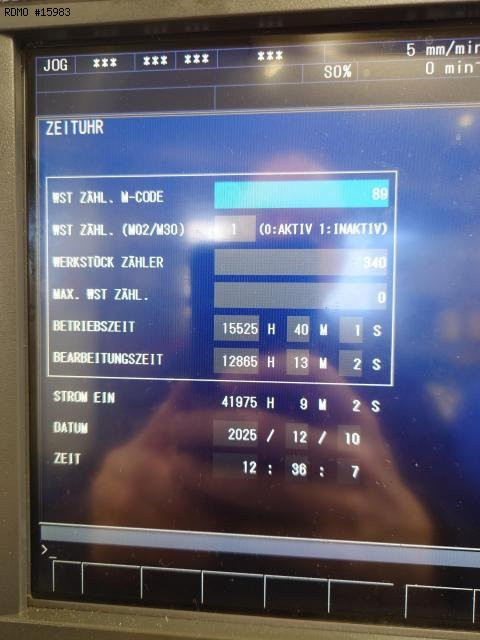

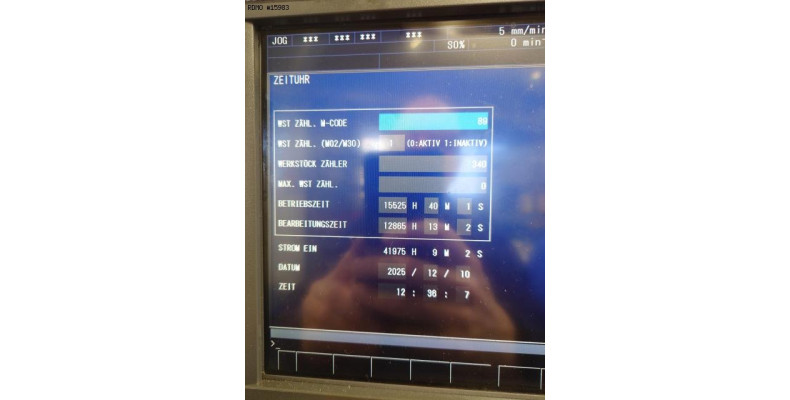

MACHINE HOURS
- Number of hours under power : 15525 [h]
- Number of working hours : 12865 [h]

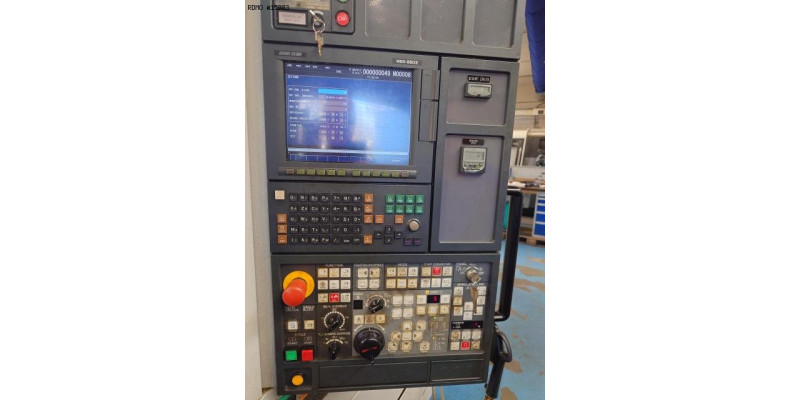

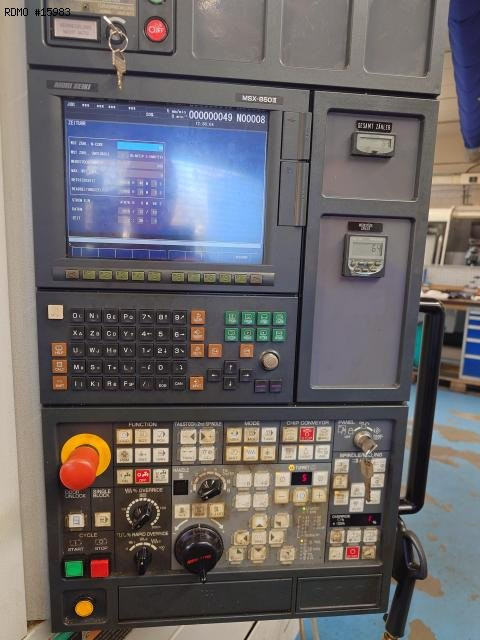

- CNC : Mitsubishi MSX-850II
- Interactive programming : MAPPS III
- Interface : USB / PCMCIA / RJ45

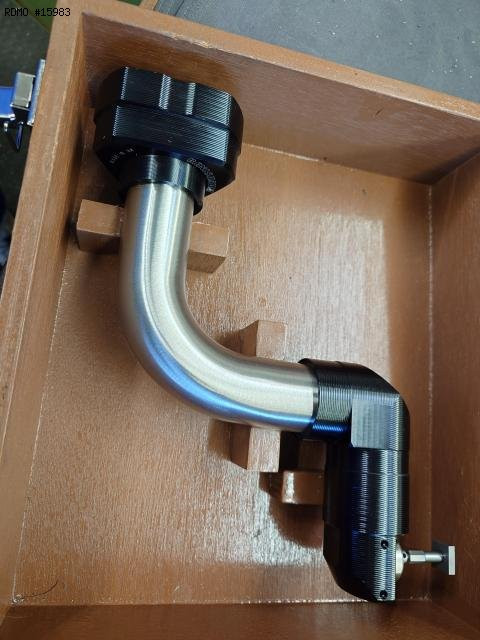

- Tool probe : Renishaw
- 3 colors status lamp
- Tailstock function
- Coolant tank

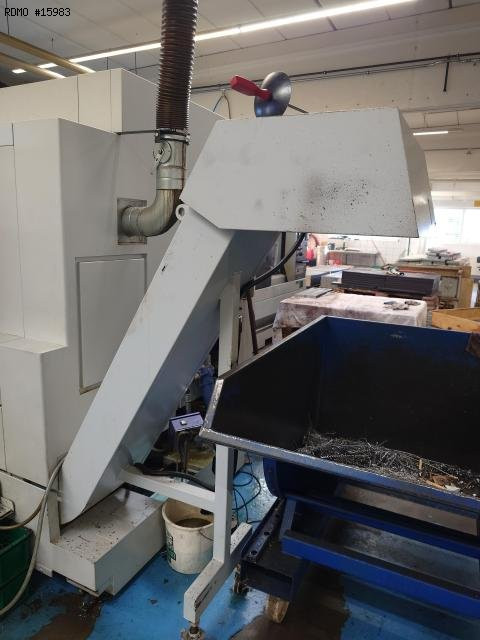

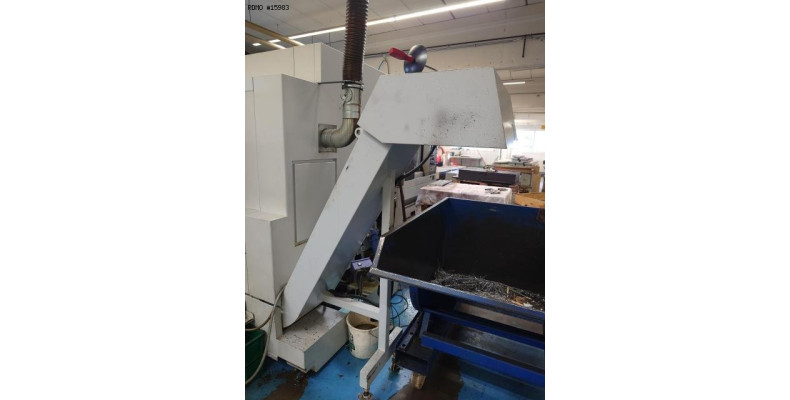

- Chips conveyor : Droite
- Spindle cooling unit
- Parts catcher

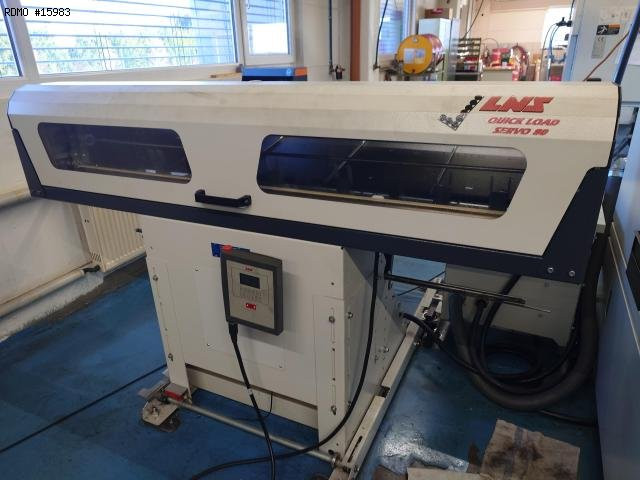

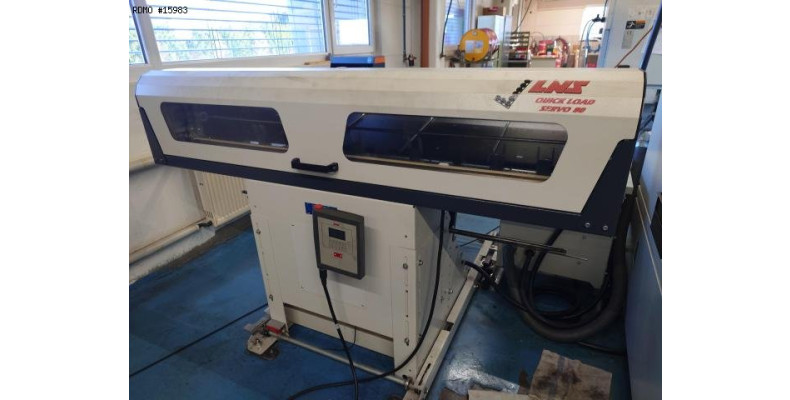

- Bar loader : LNS Quick LoadSERVO 80
- Parts conveying strip
- Number of turning tool holders : 2
- Number of fixed tool holders : 10

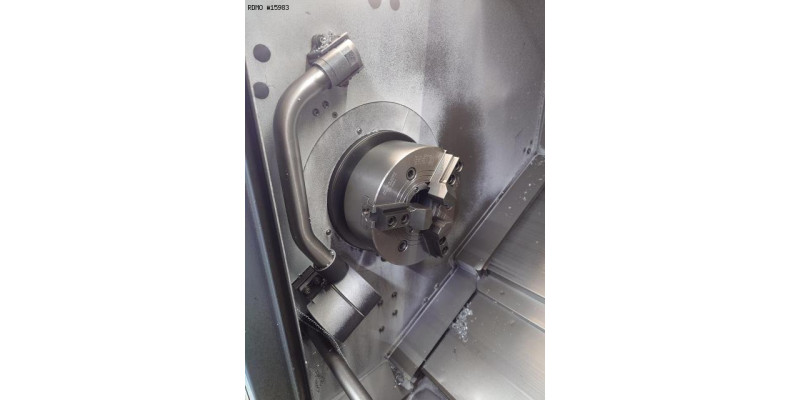

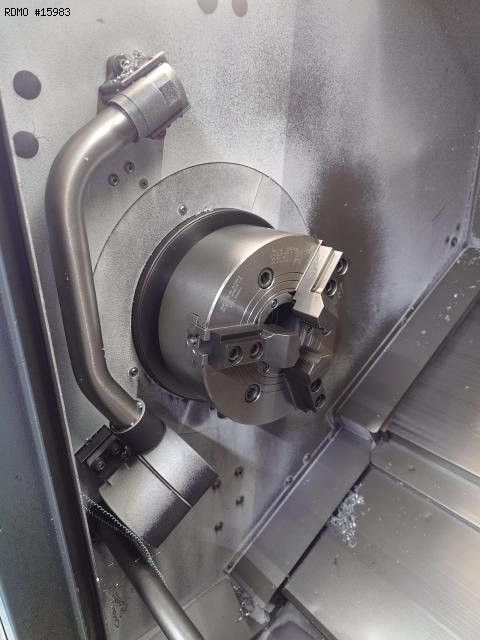

- Chuck 3 jaws
