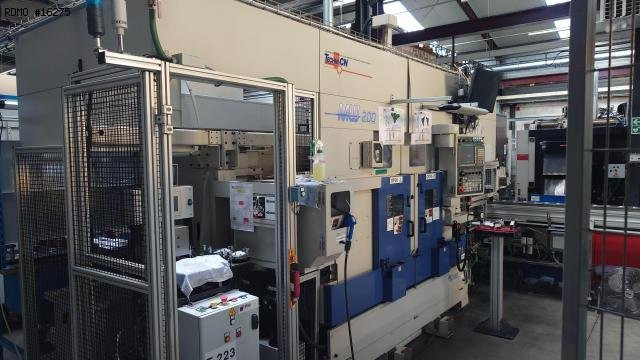

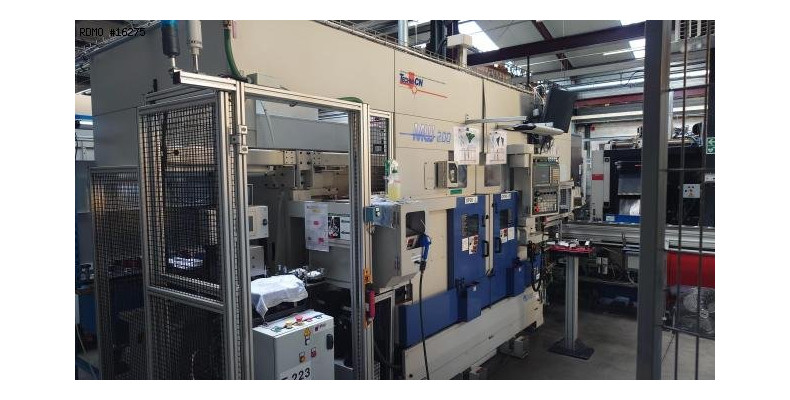

MURATEC MW200 4 axis

Name: CNC lathe MURATEC MW200 4 axes
Brand: MURATEC
Availability: InStock

Turning CNC lathe

16275

PDF datasheet to download:

Brand: MURATEC

Model: MW200

Year: 2017

Serial: 17KX283250001

16275

MURATEC MW200 4 axis

Turning CNC lathe

PDF datasheet to download:

Brand: MURATEC

Model: MW200

Year: 2017

Serial: 17KX283250001

Ask Price

Caracteristics

- Number of axes : 4
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-6"
- Spindle power : 15 [kW]
- Spindle speeds : 45 - 3500 [rpm]
- Max. chuck diameter : 210 [mm]
MAIN SPINDLE
- Spindle nose : A2-6"
- Spindle power : 15 [kW]
- Spindle speeds : 45 - 3500 [rpm]
- Max. chuck diameter : 210 [mm]

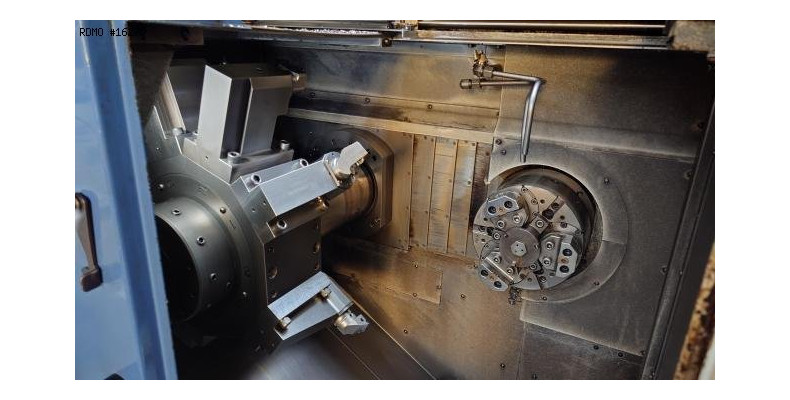

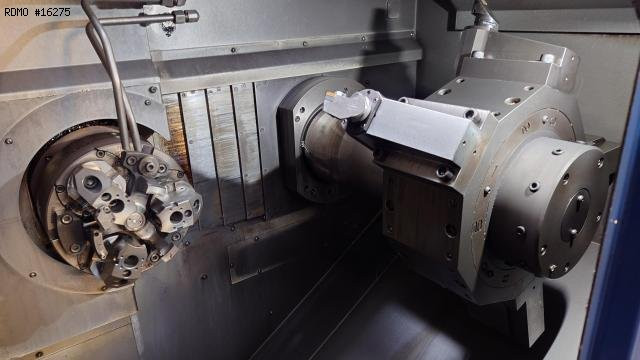

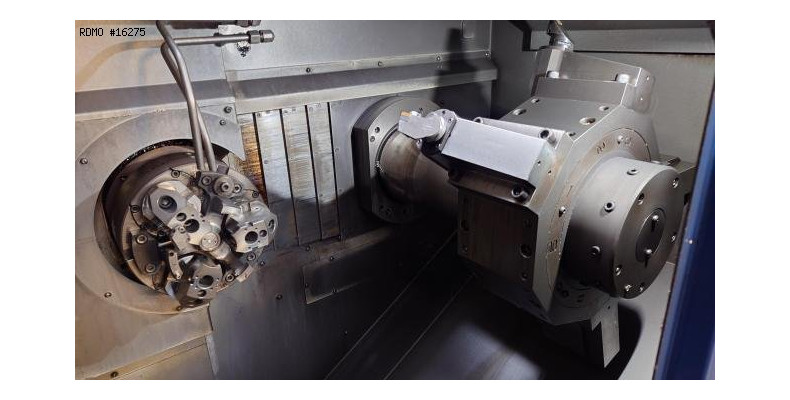

TURRET 1
- Number of positions : 10
- X/Z stroke : 190 / 170 [mm]
TURRET 2
- Number of positions : 10
- X/Z stroke : 190 / 170 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 73 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3900 x 2130 [mm]
- Machine height : 2350 [mm]
- Machine weight : 7200 [kg]

Equipment

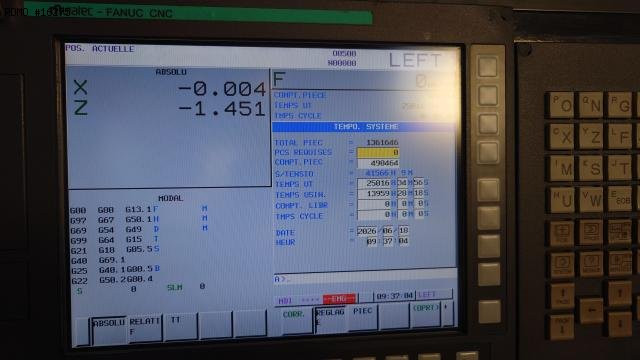

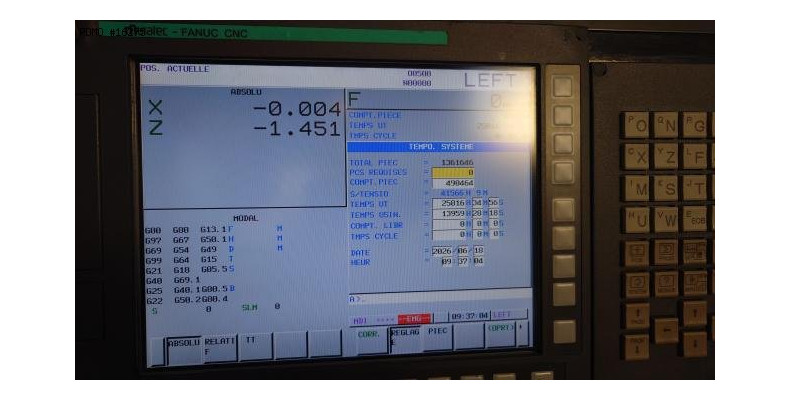

- CNC : Fanuc 32i
- Interface : USB / PCMCIA
- 3 colors status lamp
- Tool monitoring
- Coolant tank
* with high-pressure pump : 15 [bars]
- Chips conveyor : DROITE
- Electric transformer
