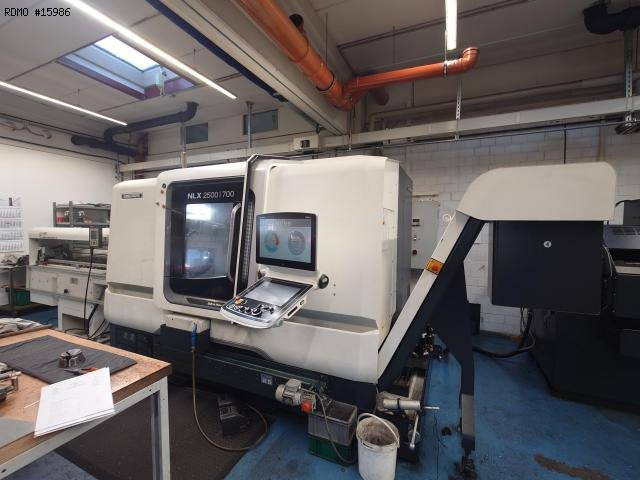

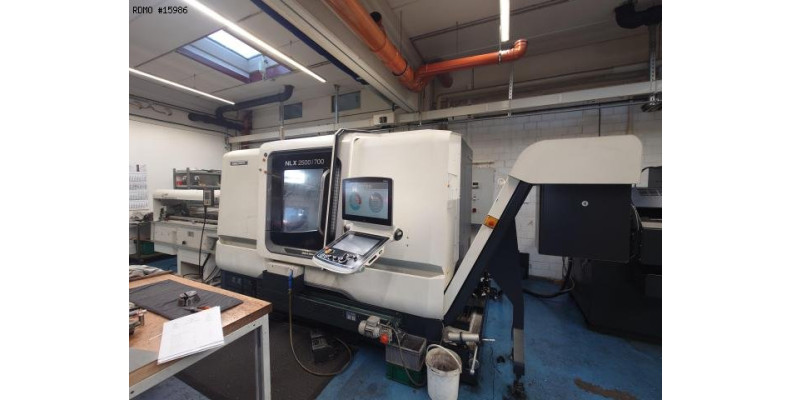

DMG MORI NLX 2500SY/700 6 axis

- Number of axes : 6
- Number of spindles : 2
- Number of turrets : 1

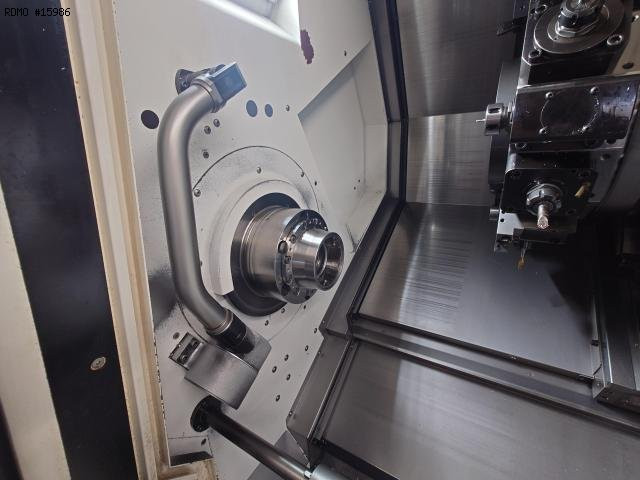

MAIN SPINDLE
- Spindle nose : A2-8"
- Spindle power : 18.5 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 90 [mm]
- Max. turning diameter : 460 [mm]
- C axis indexing precision : 0.001 [°]

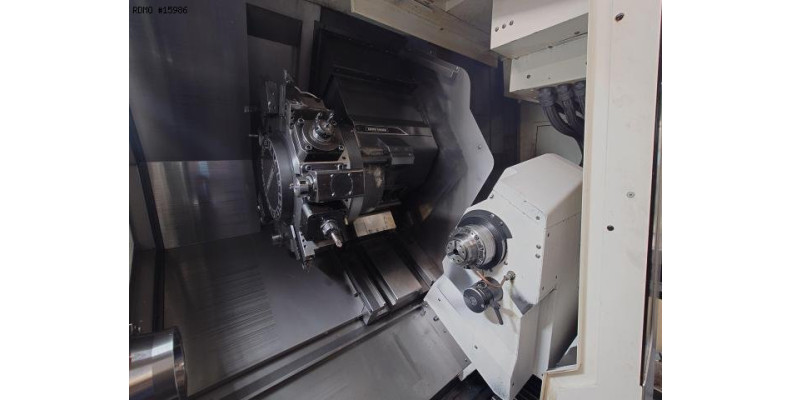

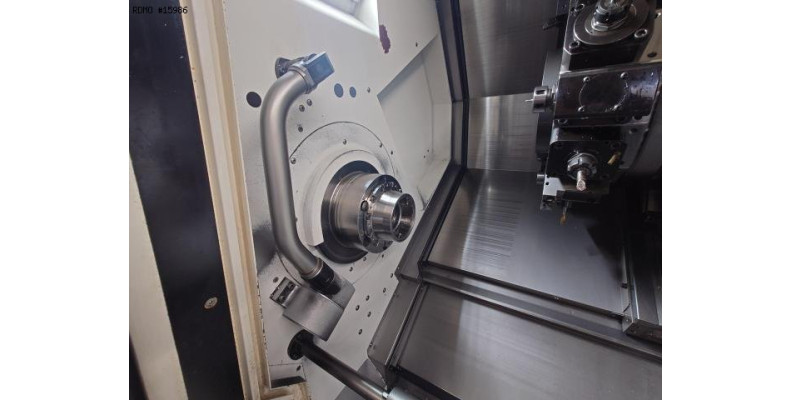

COUNTER-SPINDLE
- Spindle nose : A2-6"
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- C axis indexing precision : 0.001 [°]

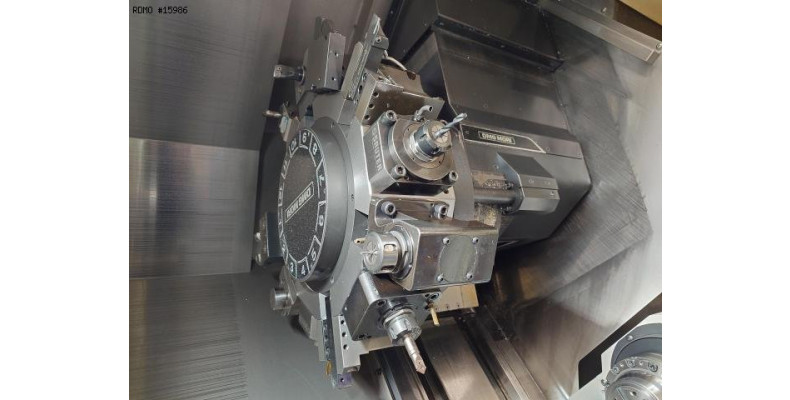

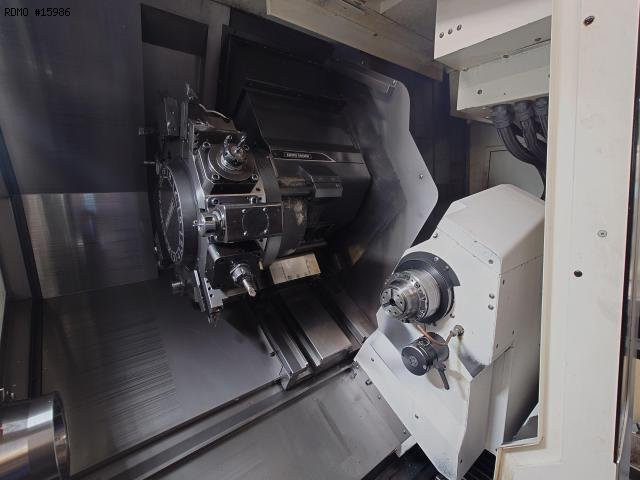

TURRET 1
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260/795 [mm]
- Y stroke : +/-50 [mm]
- Tool type : BMT
- Live tools speed : 10000 [rpm]
- Live tools power : 5.5 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 41 [kW]

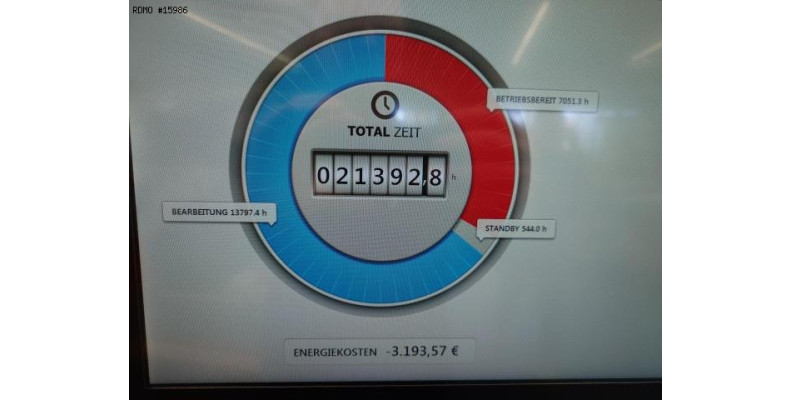

MACHINE HOURS
- Number of hours under power : 21392.8 [h]
- Number of working hours : 13797 [h]

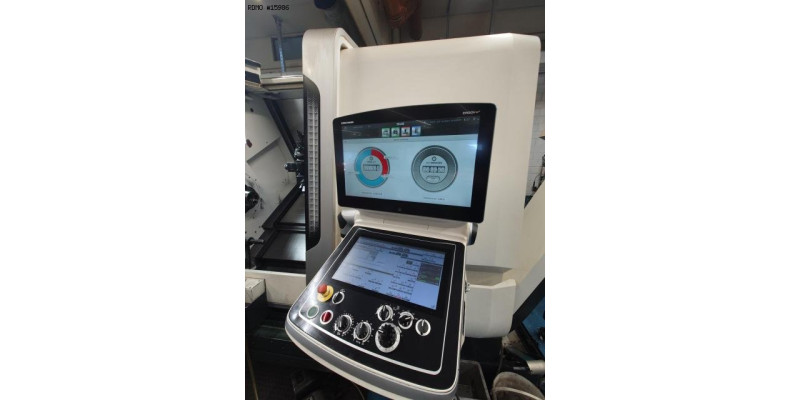

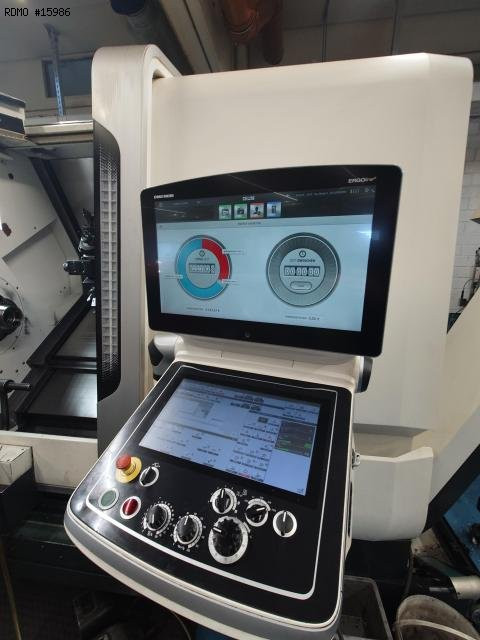

- CNC : CELOS
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming : MAPPS V
- 3 colors status lamp

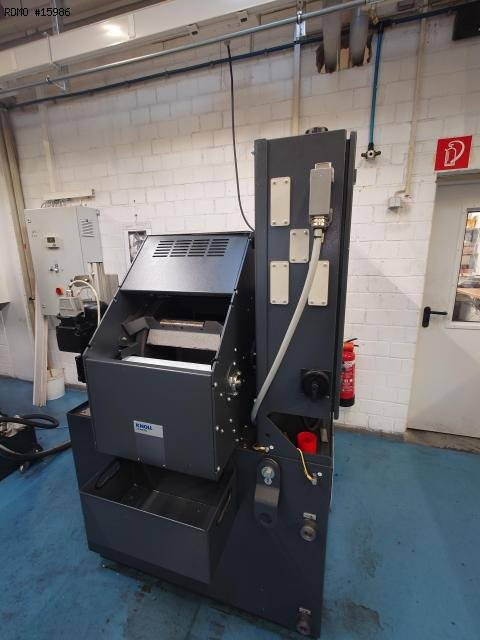

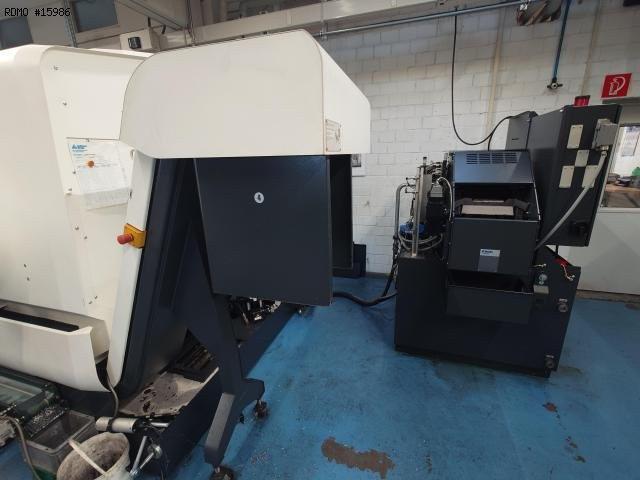

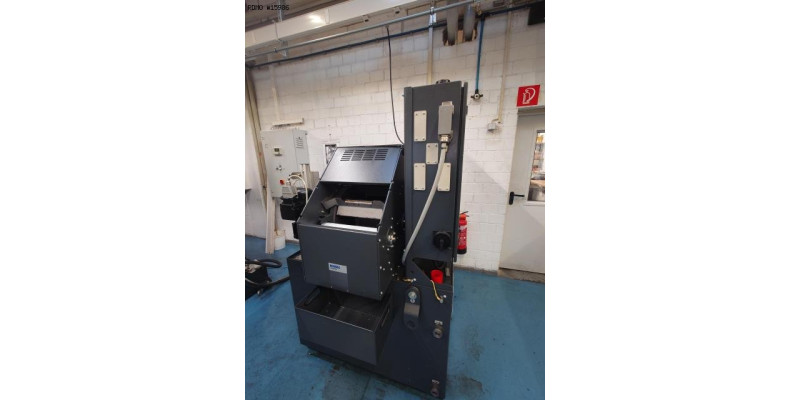

- Coolant tank : KNOLL
* with high-pressure pump : 70 [bars]
* with paper filtering unit
- Tailstock option with counterspindle
- Chips conveyor

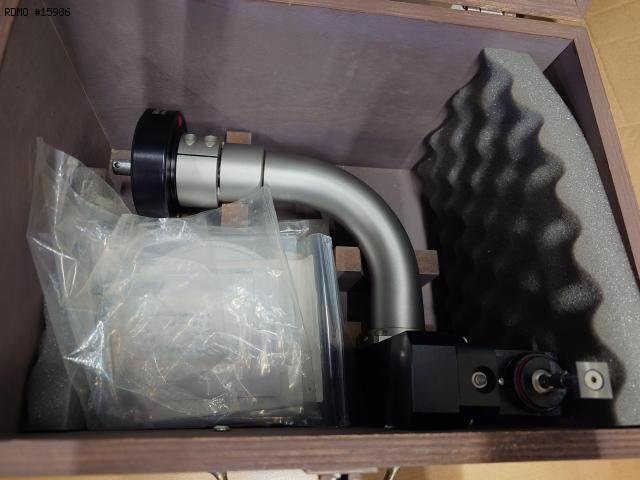

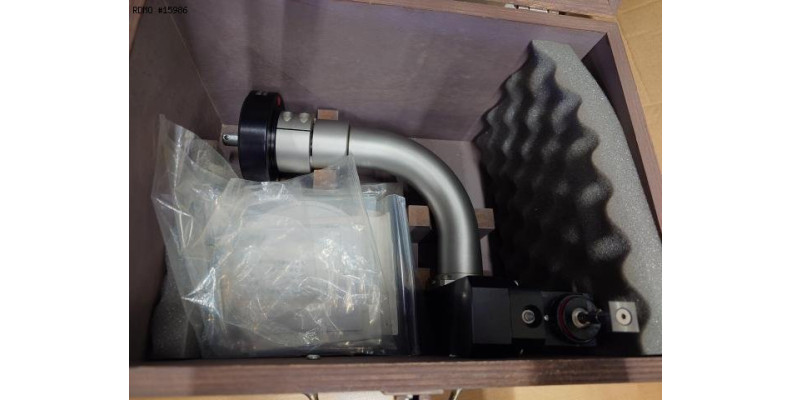

- Tool probe

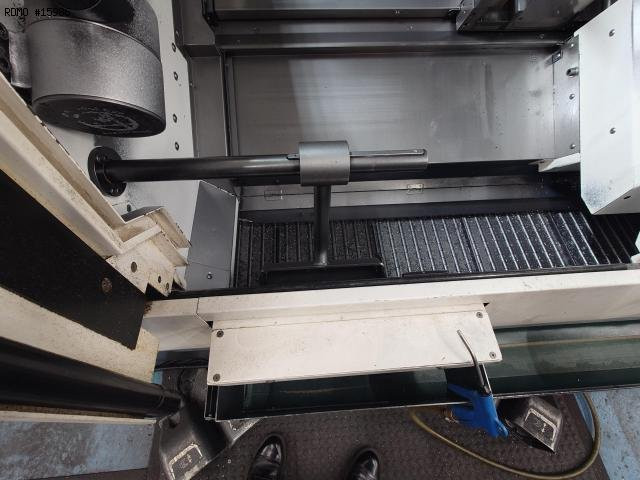

- Parts catcher

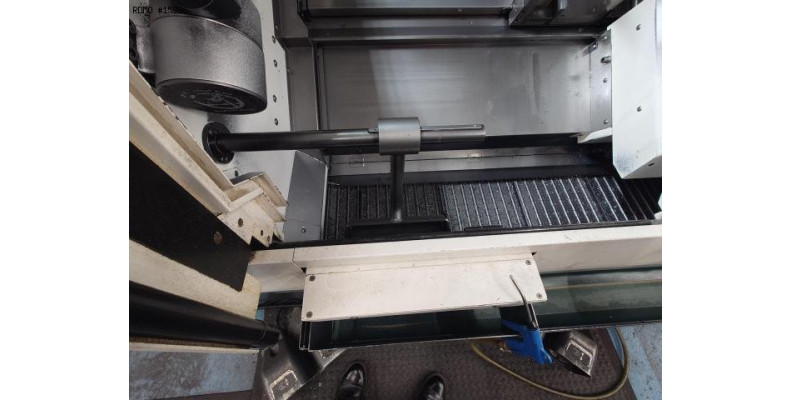

- Parts conveying strip

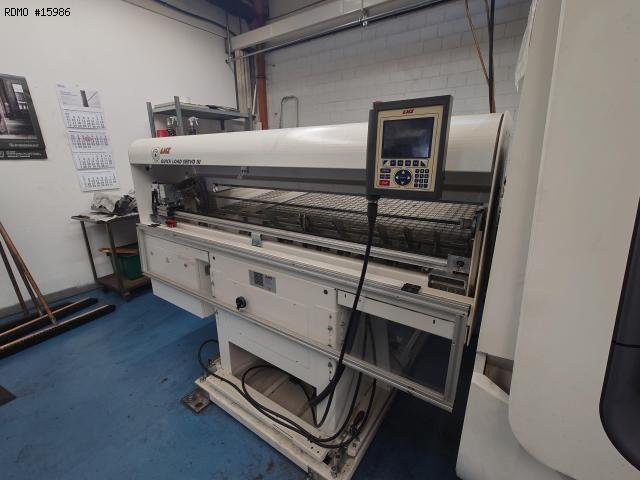

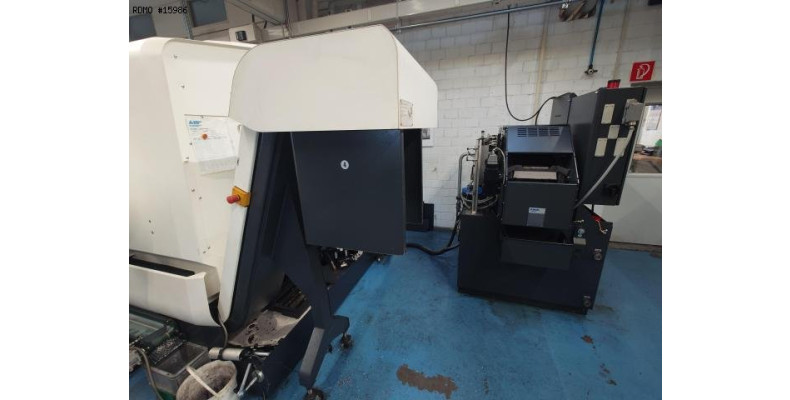

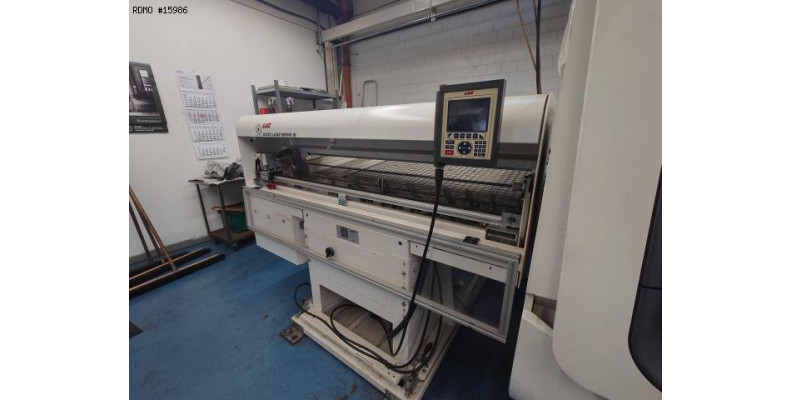

- Bar loader : LNS QUICKLOAD

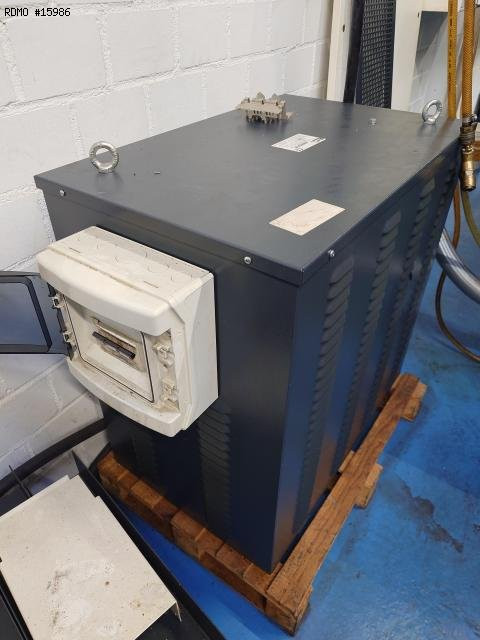

- Electric transformer
- Number of turning tool holders : 2
- Number of fixed tool holders : 10
- Collet chuck
