- Number of spindles : 2
- Number of axes : 6
- Number of turrets : 3
MAIN SPINDLE
- Spindle power : 29 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 60 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 4.2 [kW]
- Spindle speeds : 4500 [rpm]
- C axis indexing precision : 0.001 [°]
- Travel : 280 [mm]

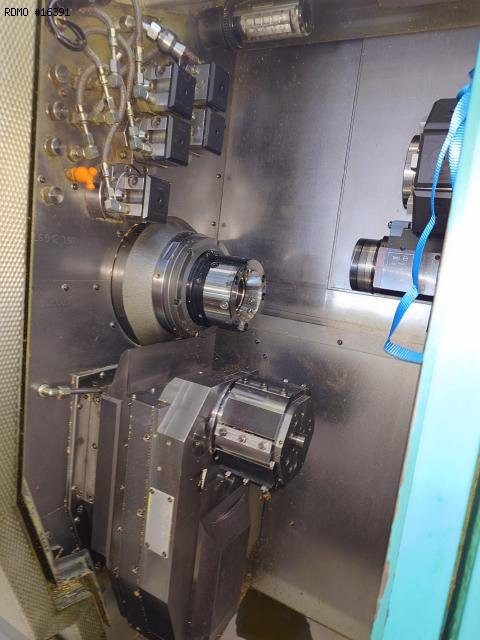

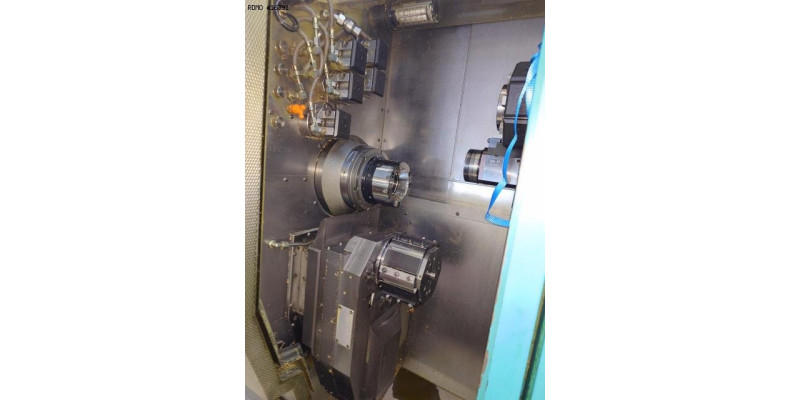

UPPER LEFT TURRET
- Number of positions : 5
- Tool type : VDI25

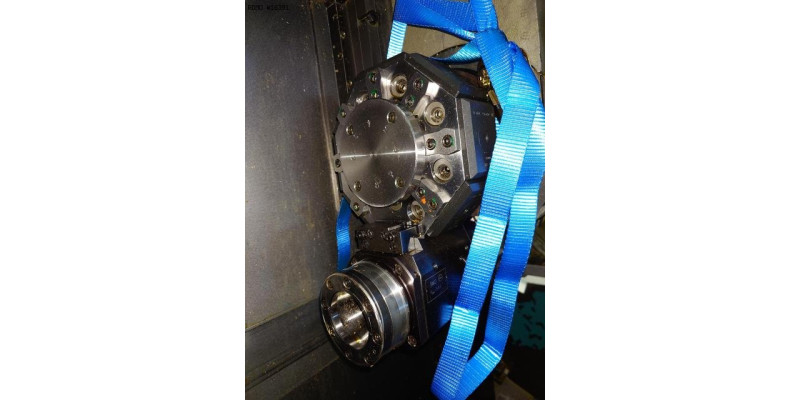

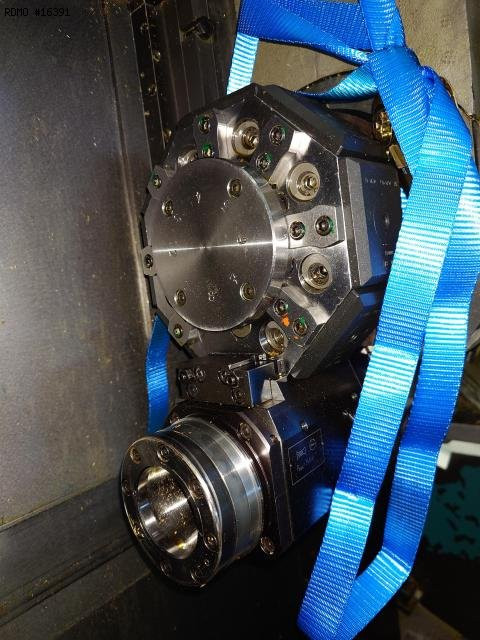

UPPER RIGHT TURRET
- Number of positions : 8
- Number of motorized positions : 8
- X/Z stroke : 90/280 [mm]
- Tool type : VDI25
- Live tools speed : 4500 [rpm]
- Live tools power : 4.2 [kW]
LOWER LEFT TURRET
- Number of positions : 6
- X/Z stroke : 81/80 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 35 [kW]
Equipment

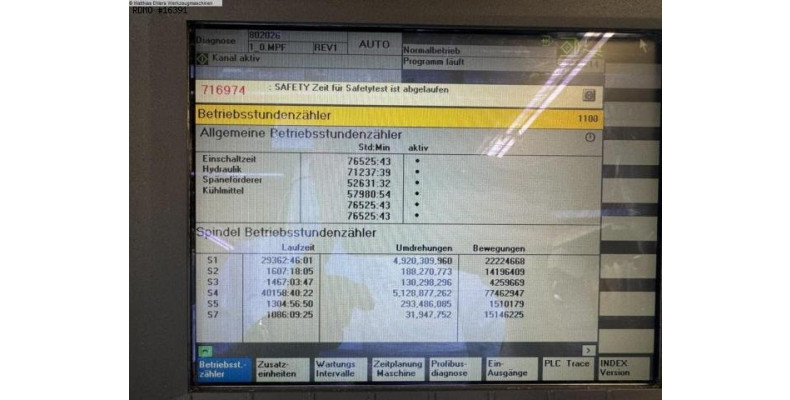

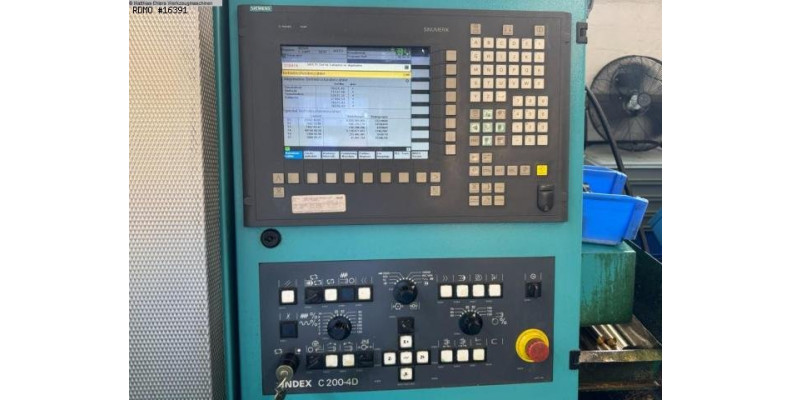

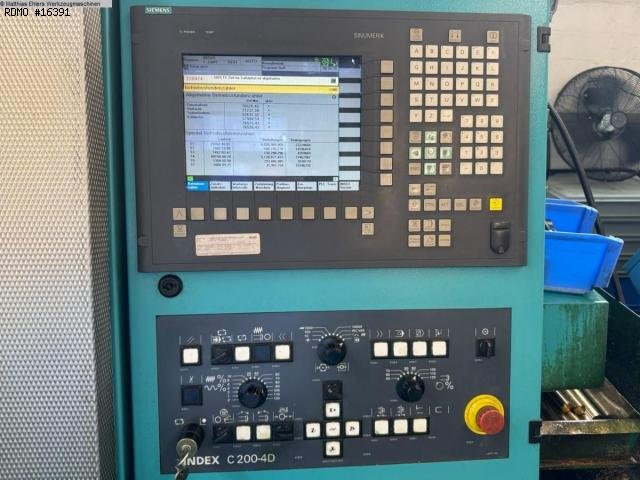

- CNC : INDEX C200-4D
- Coolant tank : KNOLL
* with high-pressure pump : 40 [bars]
* with paper filtering unit

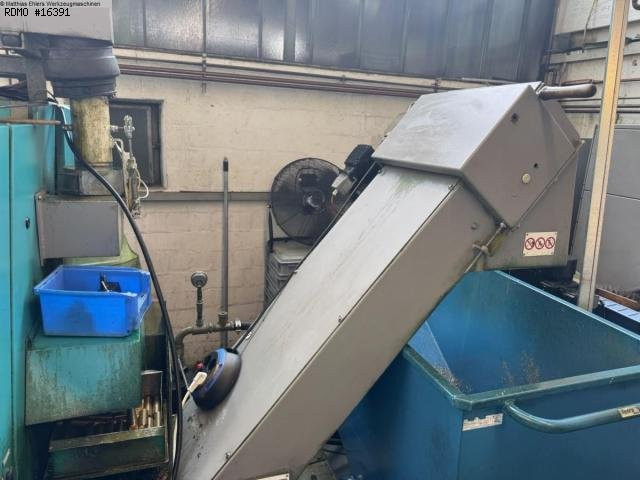

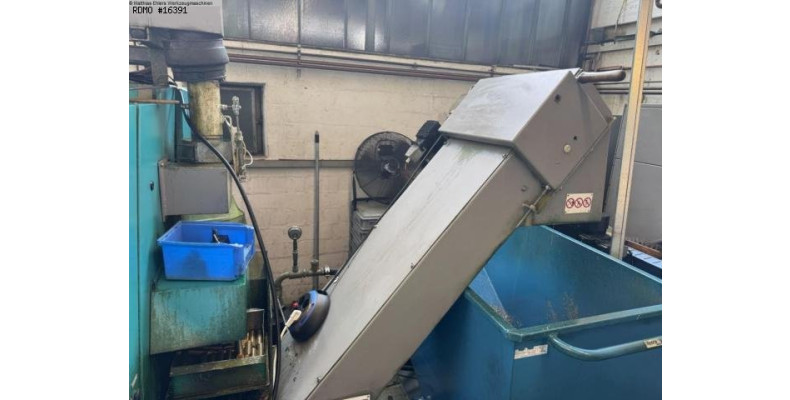

- Chips conveyor
- Oil mist extractor

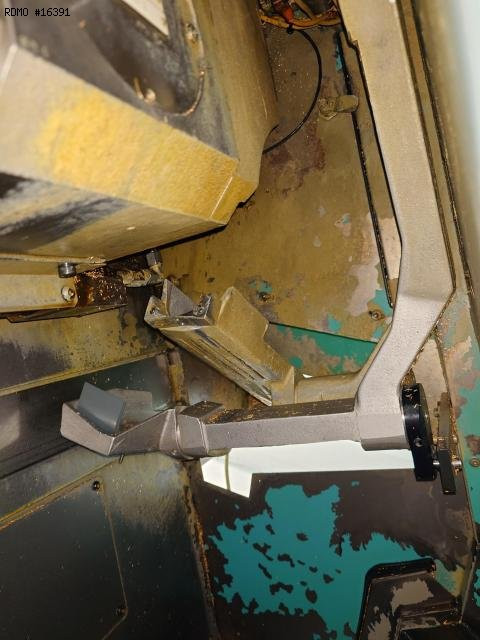

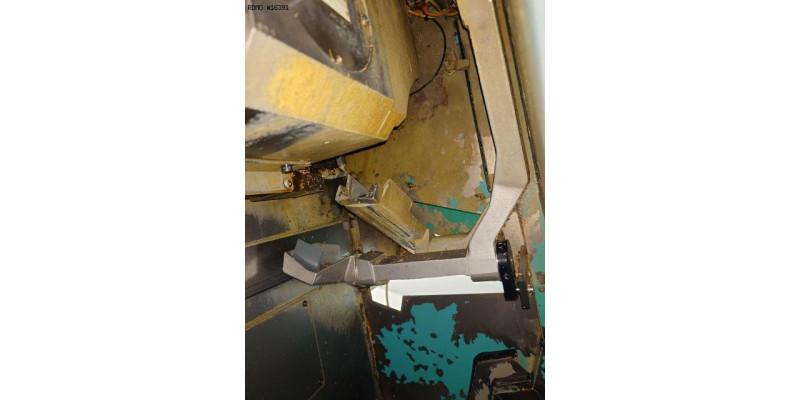

- Parts catcher

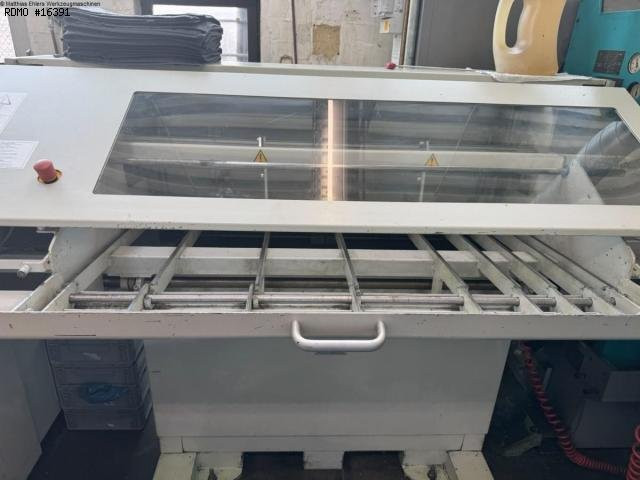

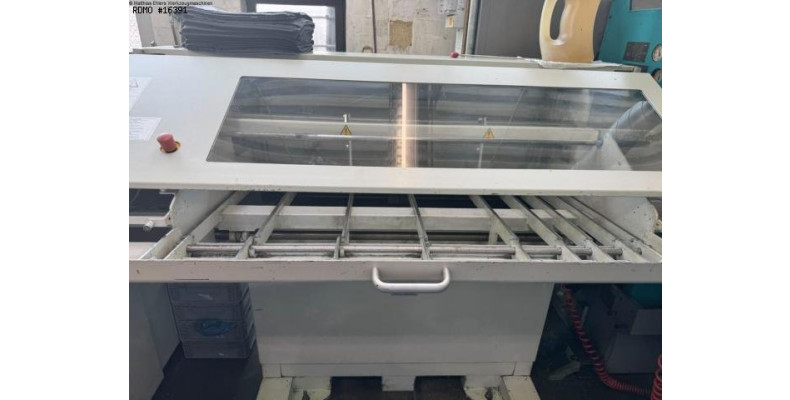

- Parts conveying strip

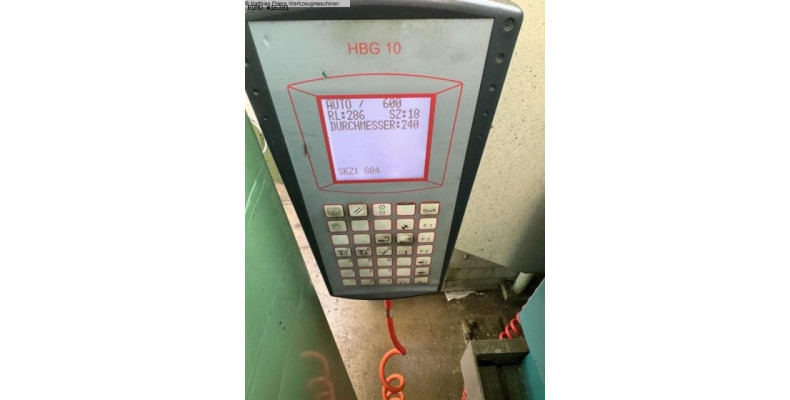

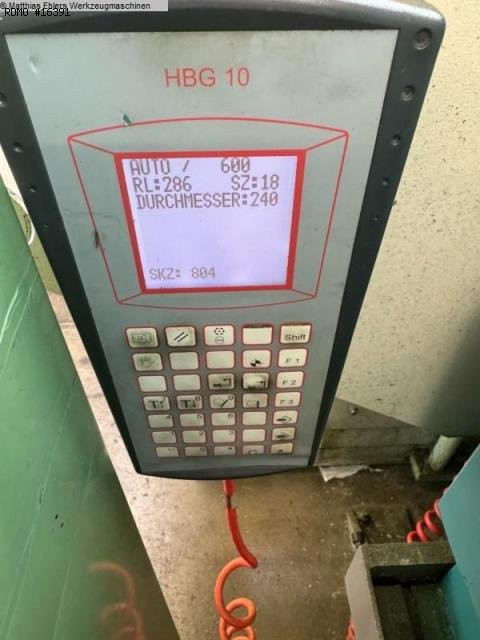

- Bar loader : BREUNIG
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
