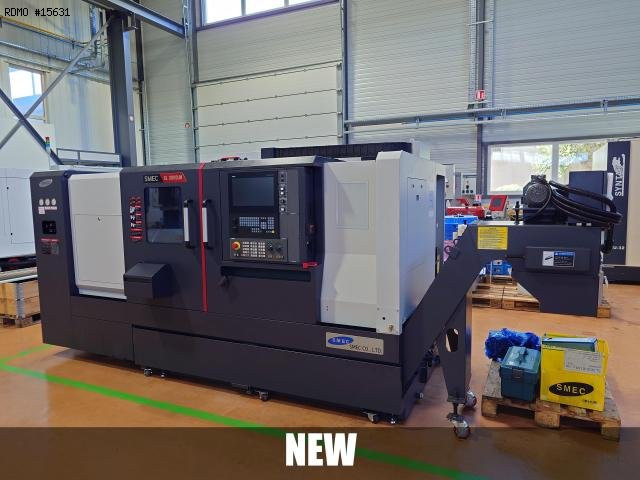

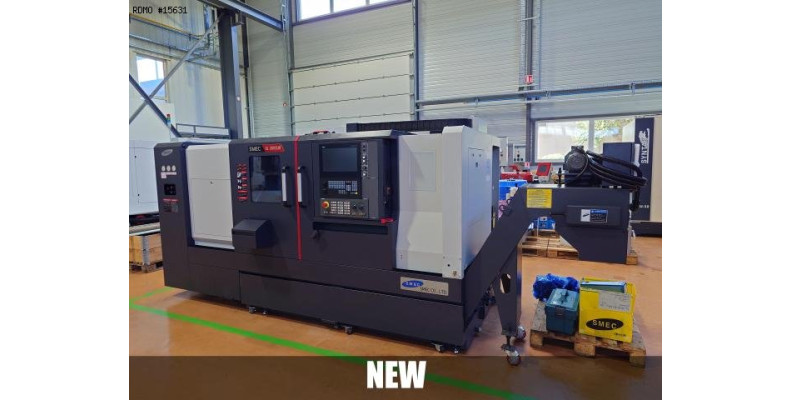

SMEC SL3000 BLM 3 axis

Name: CNC lathe SMEC SL3000 BLM 3 axes
Brand: SMEC
Availability: InStock

Turning CNC lathe

15631

PDF datasheet to download:

Brand: SMEC

Model: SL3000 BLM

Year: 2023

Serial: 0198

15631

SMEC SL3000 BLM 3 axis

Turning CNC lathe

PDF datasheet to download:

Brand: SMEC

Model: SL3000 BLM

Year: 2023

Serial: 0198

Ask Price

Caracteristics

- Number of axes : 3
MAIN SPINDLE
- Spindle nose : A2-8"
- Spindle power : 26 [kW]
- Spindle speeds : 3000 [rpm]
- Max. bar diameter : 91 [mm]
- Max. turning diameter : 430 [mm]
- Max. diameter on bench : 650 [mm]
- C axis indexing precision : 0.001 [°]

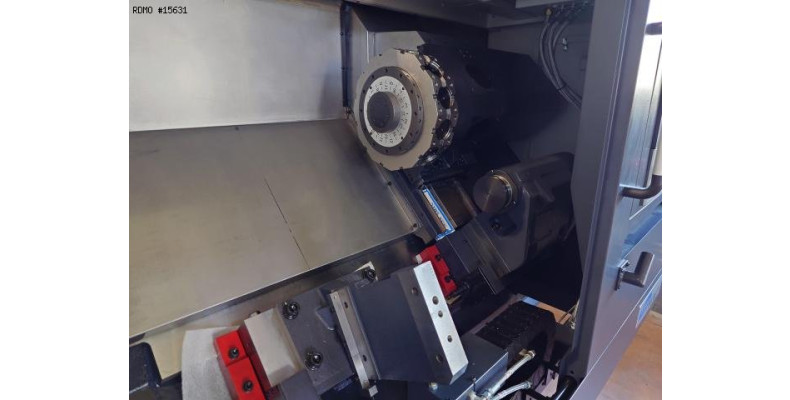

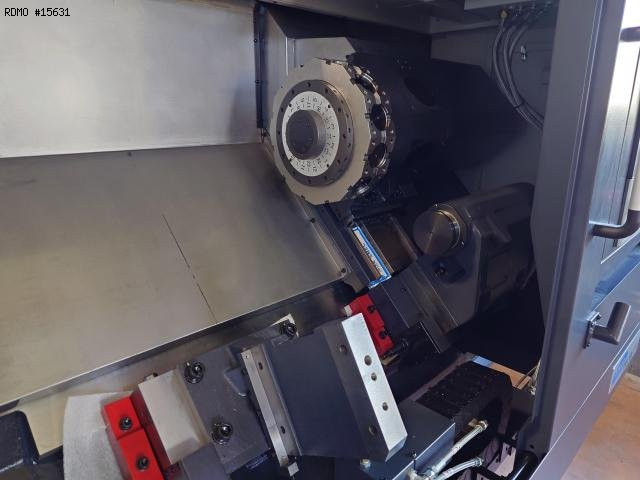

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 245/1040 [mm]
- Tool type : BMT65
- Live tools speed : 5000 [rpm]
- Live tools power : 5.5 [kW]
TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM4
- Tailstock stroke : 966 [mm]
- Quill stroke : 100 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 41 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3780 X 1610 [mm]
- Machine height : 1937 [mm]
- Machine weight : 6500 [kg]
MACHINE HOURS
- Number of working hours : 0 [h]

Equipment

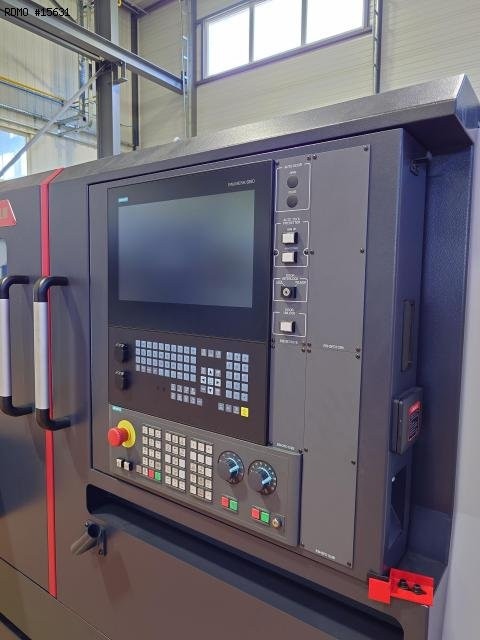

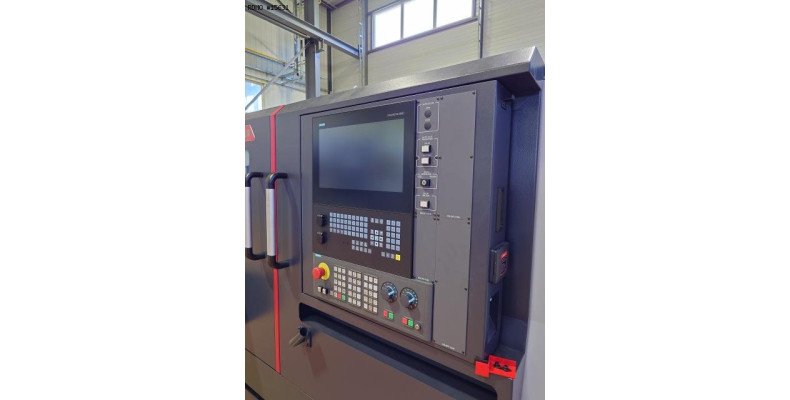

- CNC : Siemens 828D

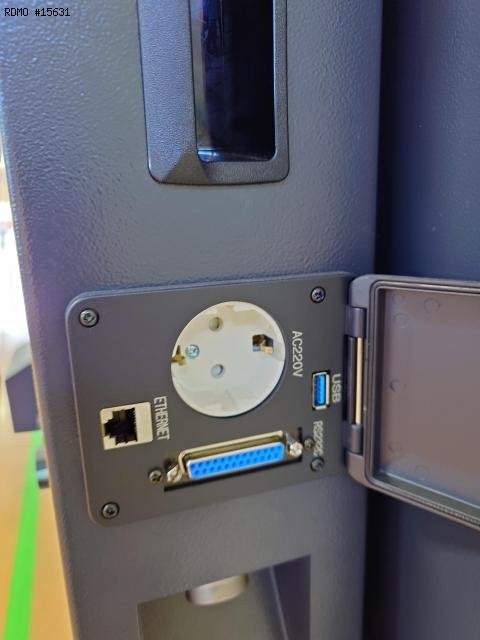

- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming : SHOPTURN
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 10 [bars]
* With washing gun

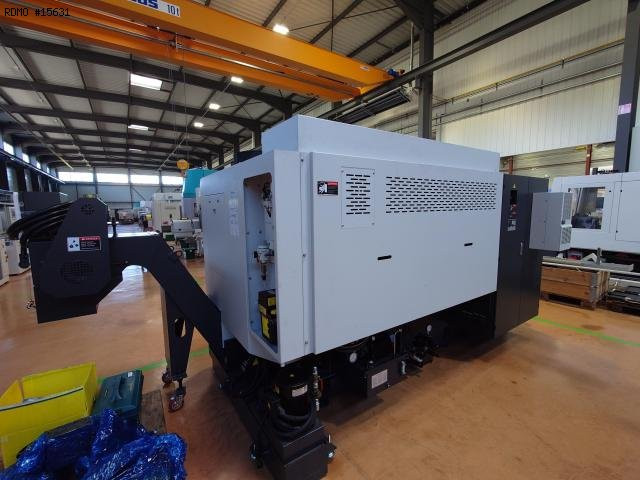

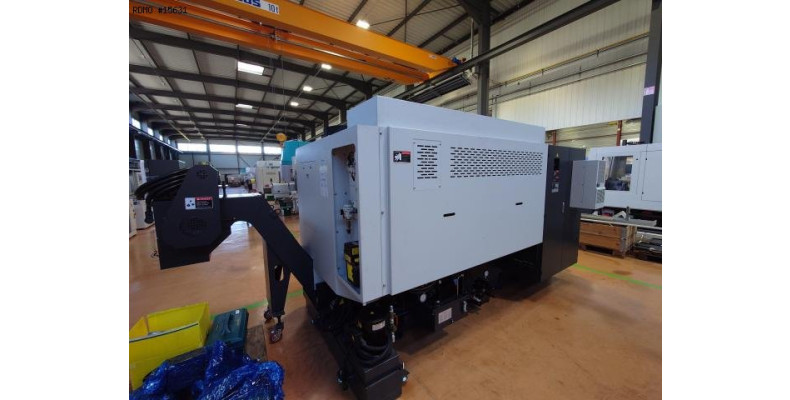

- Chips conveyor
- Tool probe
- Parts catcher
- Predisposition for barfeeder
- Rest predisposition

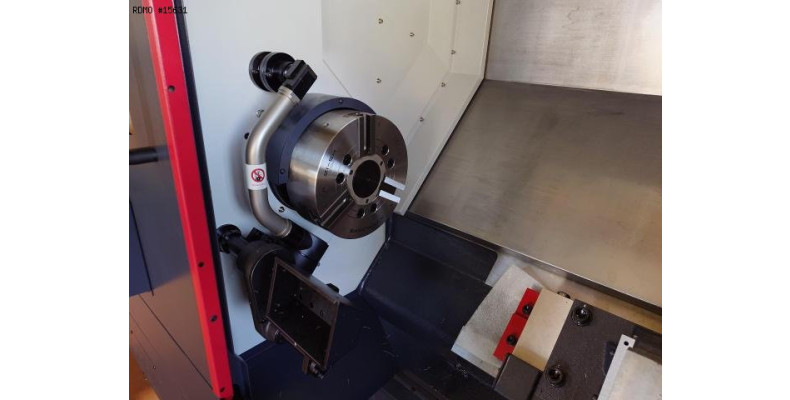

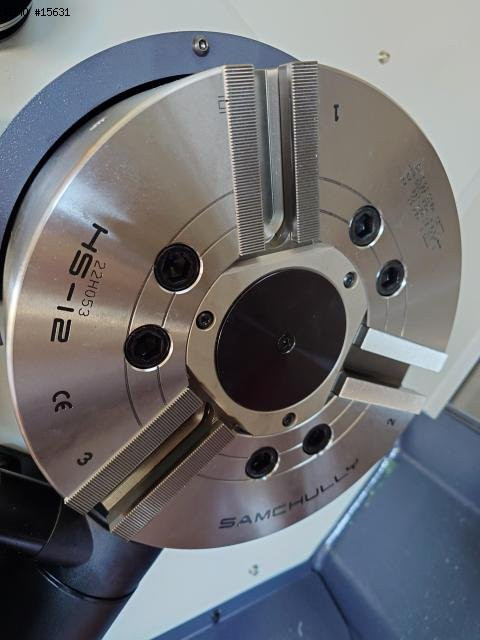

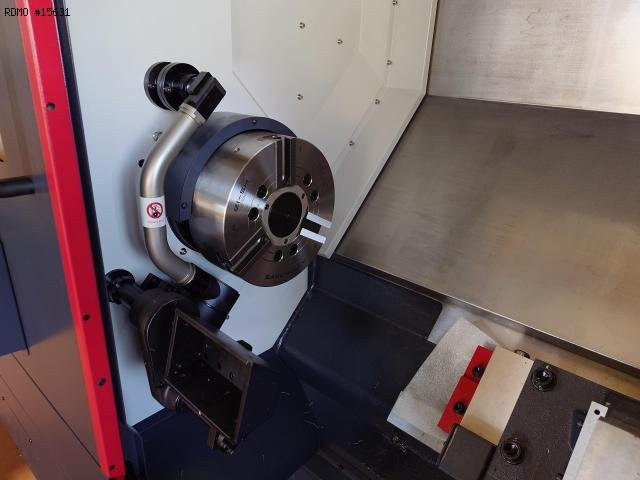

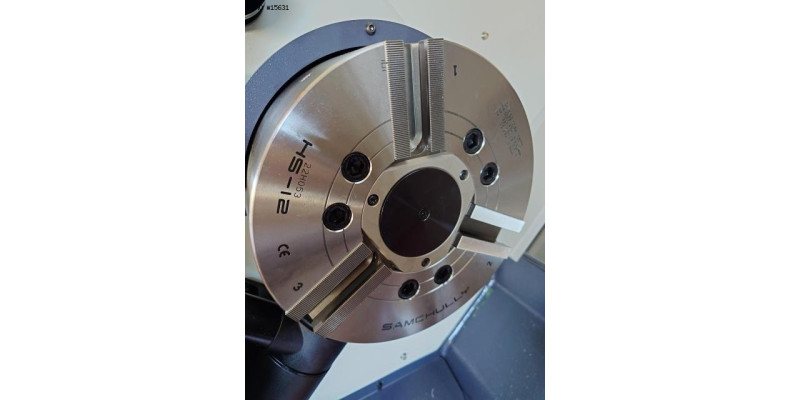

- Chuck 3 jaws : SAMCHULLY 305 (mm)
