DOOSAN PUMA 26005 2 axis

- Number of axes : 2
MAIN SPINDLE
- Spindle nose : A2-8"
- Spindle power : 18.5 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 76 [mm]
- Max. turning diameter : 480 [mm]
- Max. machining length : 760 [mm]
- Max. diameter on bench : 780 [mm]

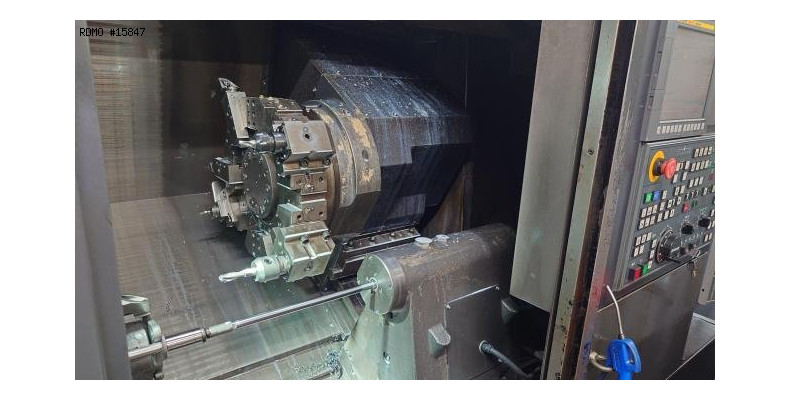

TURRET
- Number of positions : 12
- X/Z stroke : 260 x 830 [mm]
- Rapid traverse rate : 30 [m/min]
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 40.72 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.600 x 1.863 [mm]
- Machine height : 1.900 [mm]
- Machine weight : 5.500 [kg]
MACHINE HOURS
- Number of working hours : 21.818 [h]

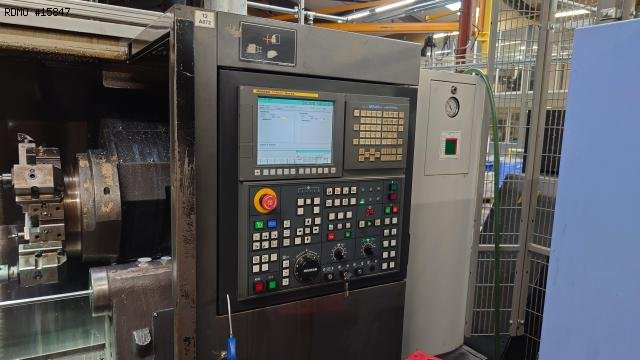

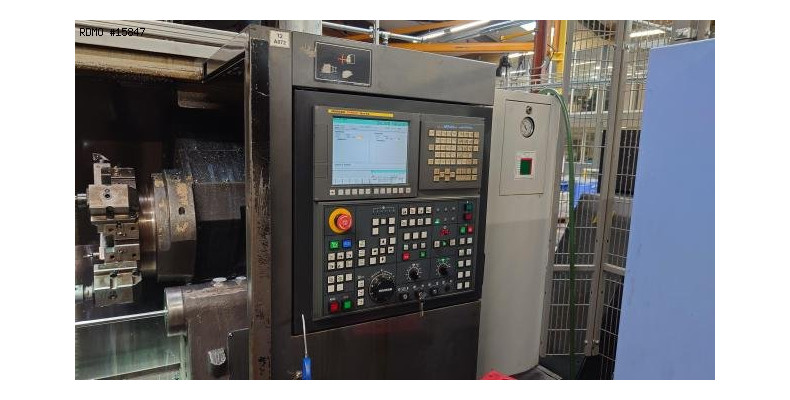

- CNC : Fanuc i Series
- Coolant tank

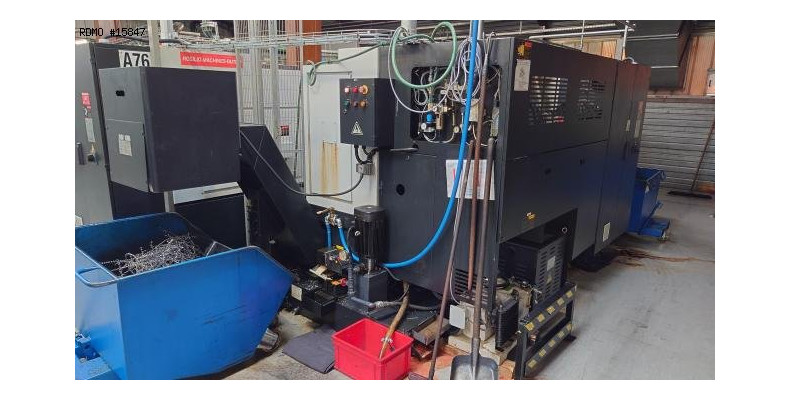

- Chips conveyor : DROITE
- Electric transformer
