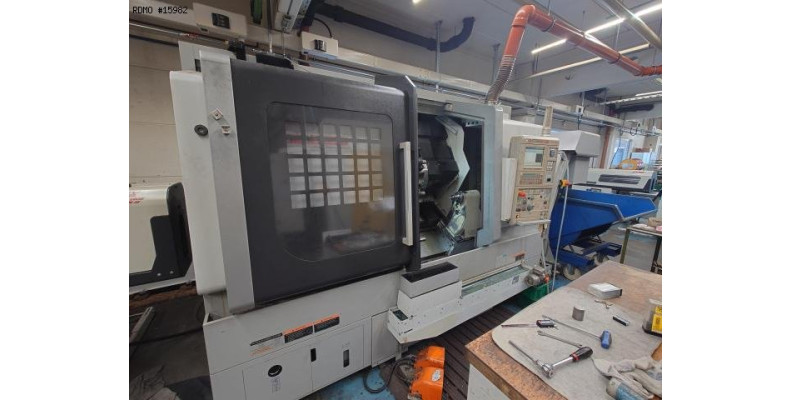

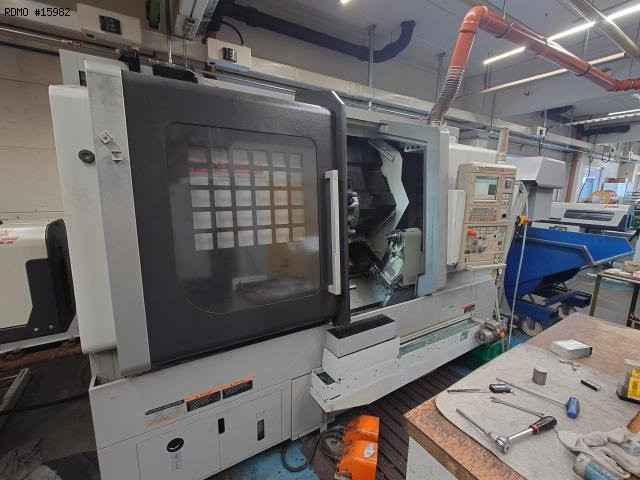

MORI SEIKI NLX 2500Y/700 4 axis

Brand: MORI SEIKI
Model: NLX 2500Y/700
Year: 2011
Serial: NL254KE0139
15982
MORI SEIKI NLX 2500Y/700 4 axis
Brand: MORI SEIKI
Model: NLX 2500Y/700
Year: 2011
Serial: NL254KE0139

Caracteristics & Equipment

Caracteristics
- Number of axes : 4
- Number of spindles : 1
- Number of turrets : 1

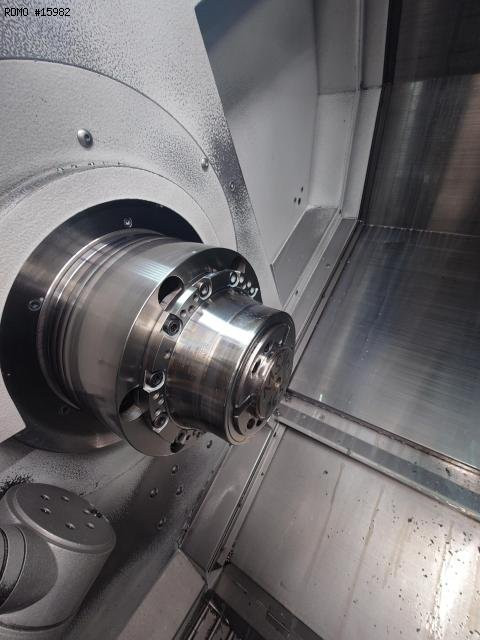

MAIN SPINDLE
- Spindle nose : A2-8
- Spindle power : 18,5 [kW]
- Spindle speeds : 4.000 [rpm]
- Max. bar diameter : 80 [mm]
- Max. diameter on bench : 923 [mm]
- Max. turning diameter : 460 [mm]
- C axis indexing precision : 0,001 [°]

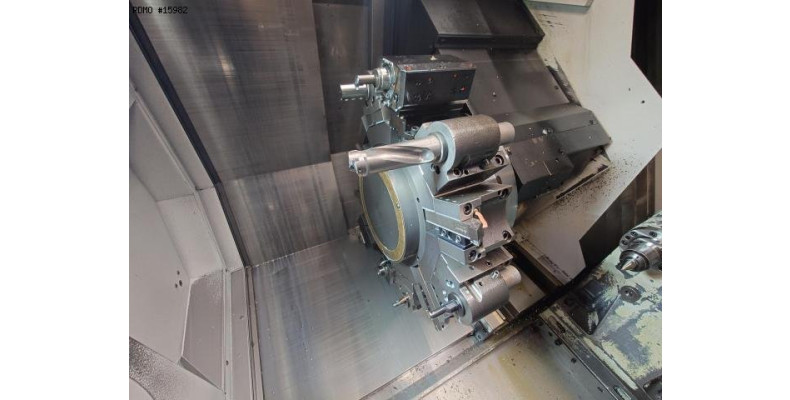

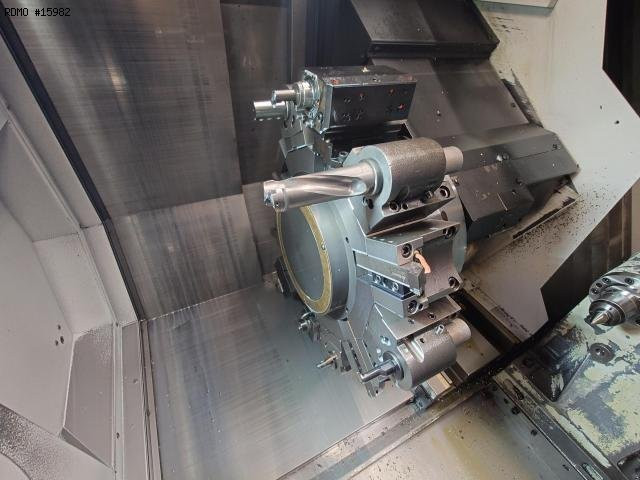

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260/1345 [mm]
- Y stroke : +/- 50 [mm]
- Tool type : BMT
- Live tools speed : 10000 [rpm]

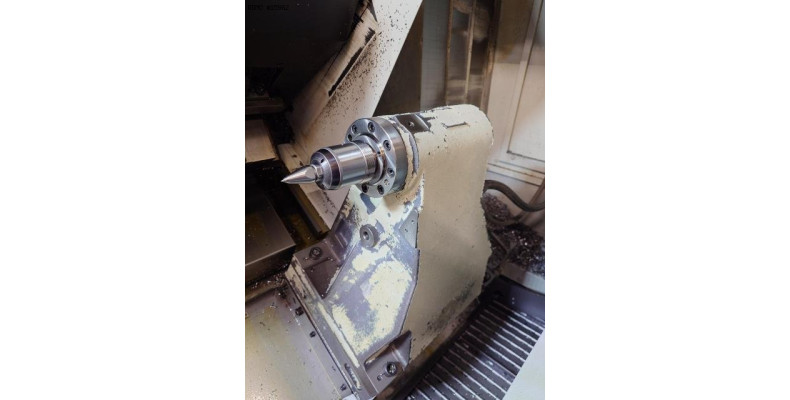

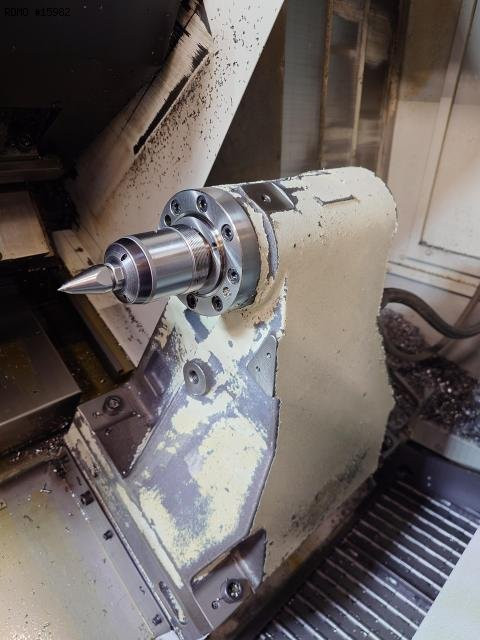

TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM5
- Distance between centers : 1255 [mm]
- Tailstock stroke : 734 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 39 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.110 x 1.922 [mm]
- Machine height : 2.120 [mm]
- Machine weight : 6.100 [kg]
MACHINE HOURS
- Number of hours under power : 26654 [h]
- Number of working hours : 15488 [h]
Equipment

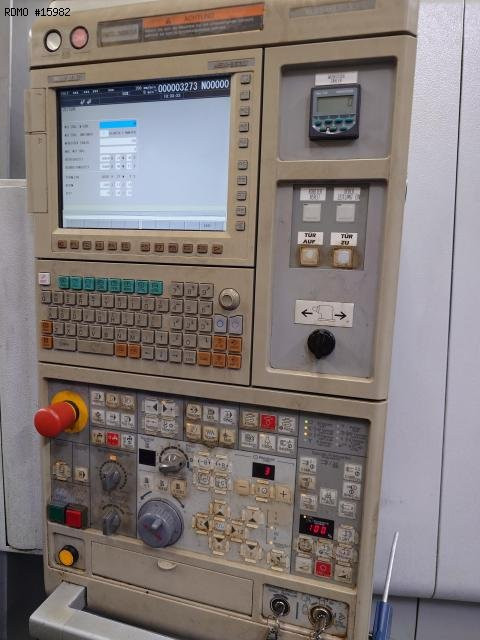

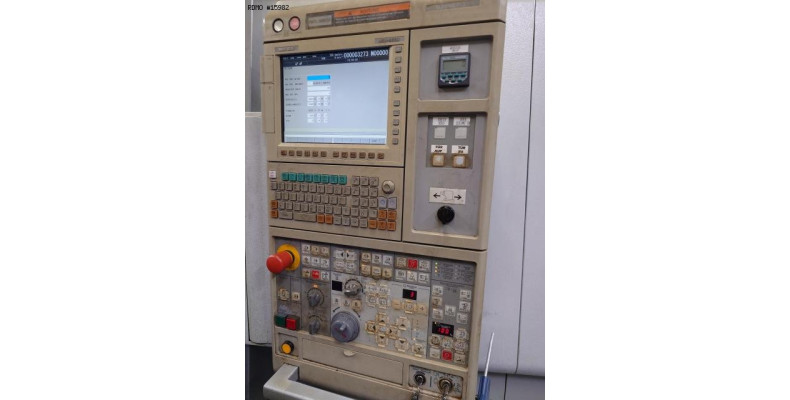

- CNC : CELOS
- Interactive programming : MAPPS 4
- Interface : USB, PCMCIA, RJ45, RS232
- Tool probe : Renishaw
- Coolant tank

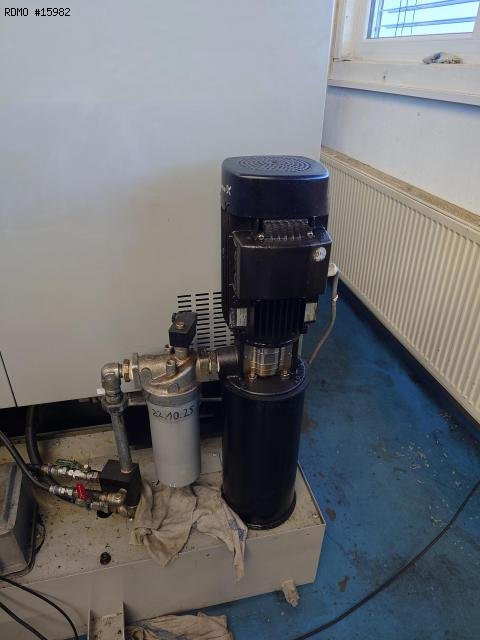

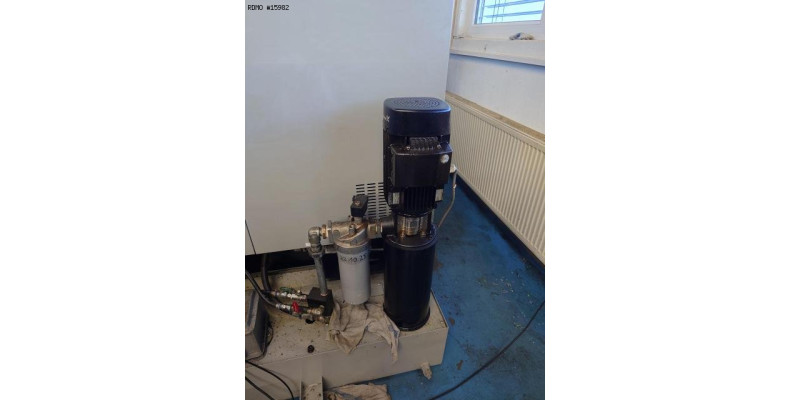

* with high-pressure pump : 15 [bars]

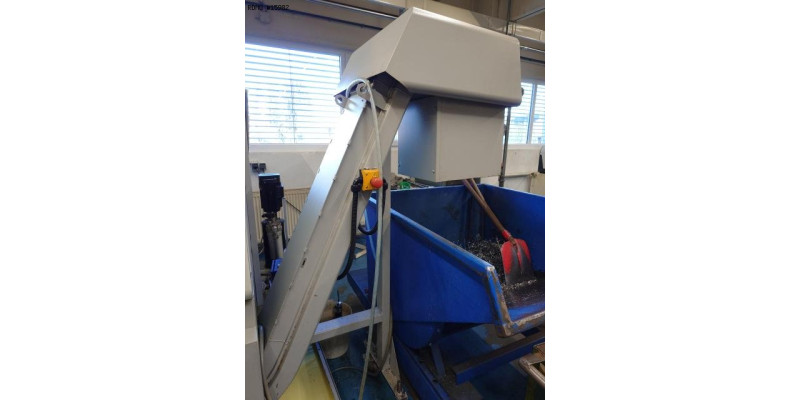

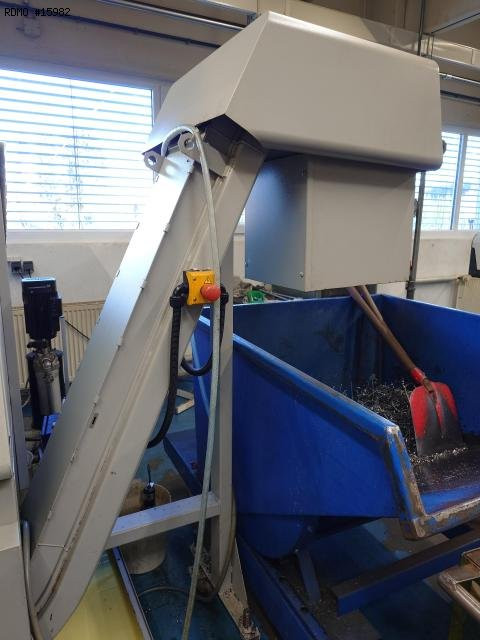

- Chips conveyor
- Tool probe

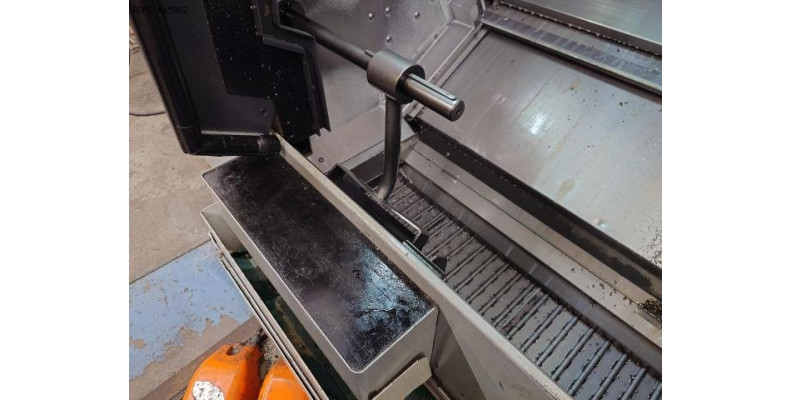

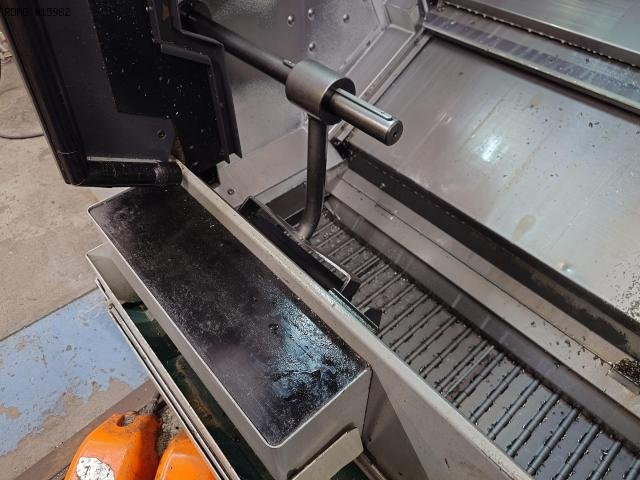

- Parts catcher
- Parts conveying strip

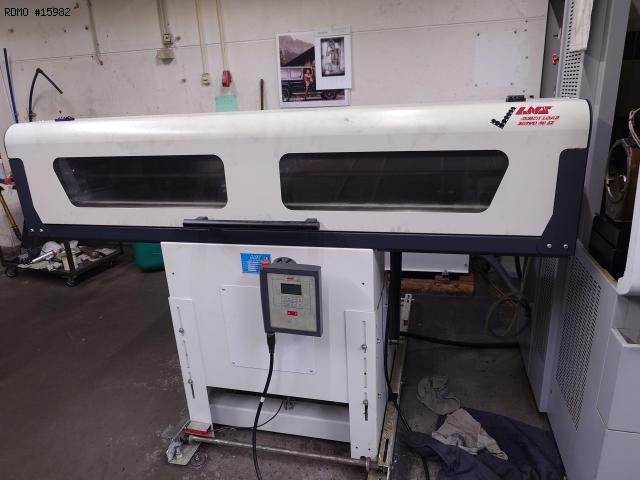

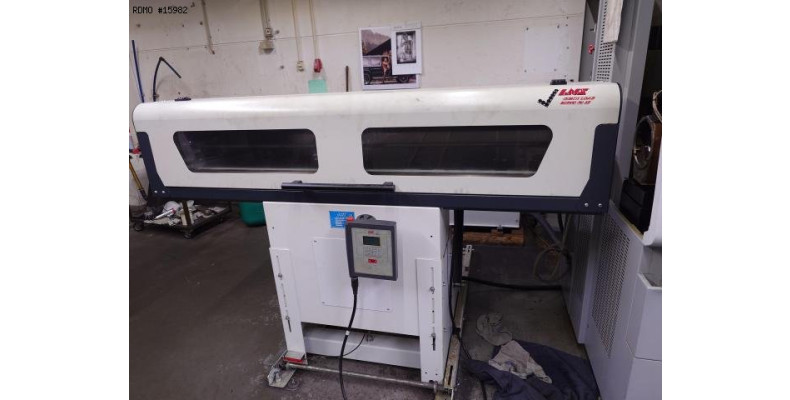

- Bar loader : LNS QUICK LOAD SERVO 80 S2
- Number of fixed tool holders : 10
- Number of turning tool holders : 2
- Electric transformer
- Collet chuck
