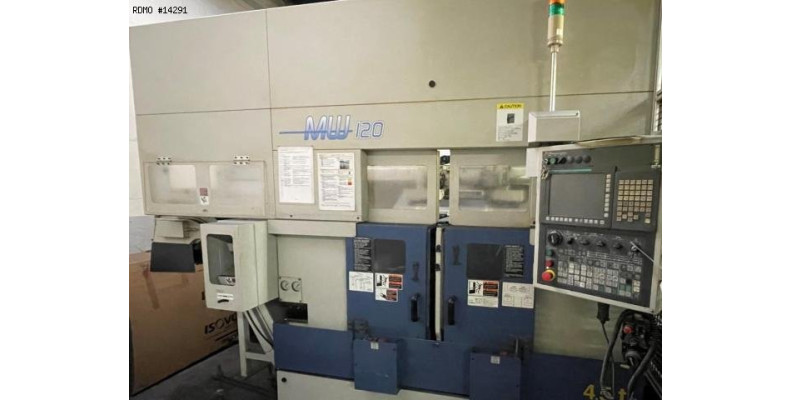

MURATEC MW 120 4 axis

Turning CNC lathe

14291

PDF datasheet to download:

Brand: MURATEC

Model: MW 120

Year: 2011

Serial: 11KX377980001

14291

MURATEC MW 120 4 axis

Turning CNC lathe

PDF datasheet to download:

Brand: MURATEC

Model: MW 120

Year: 2011

Serial: 11KX377980001

Ask Price

Caracteristics

- Number of axes : 4
- Number of spindles : 2

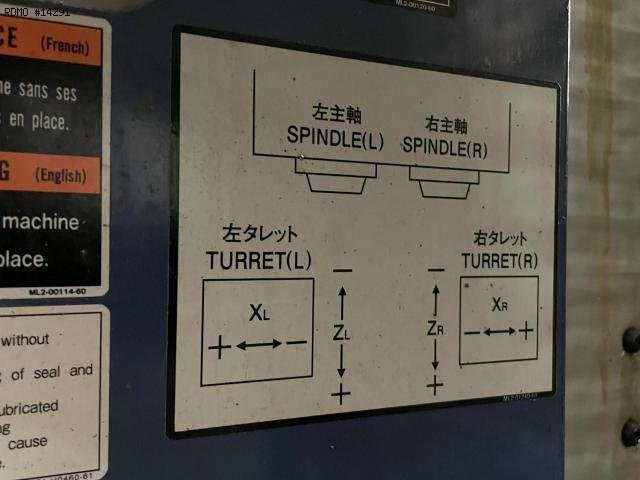

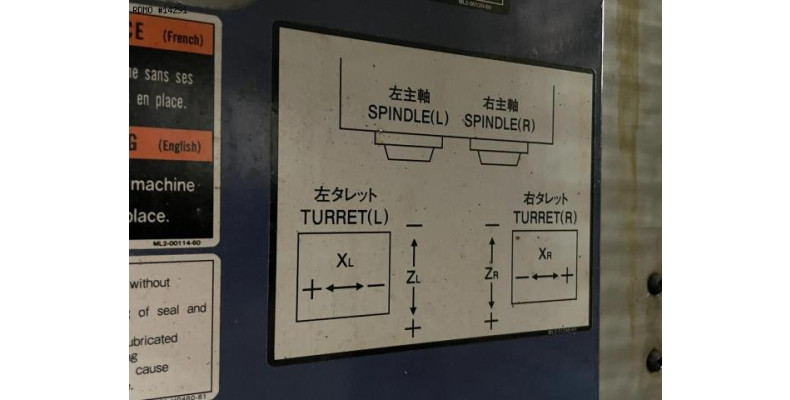

- Number of turrets : 2

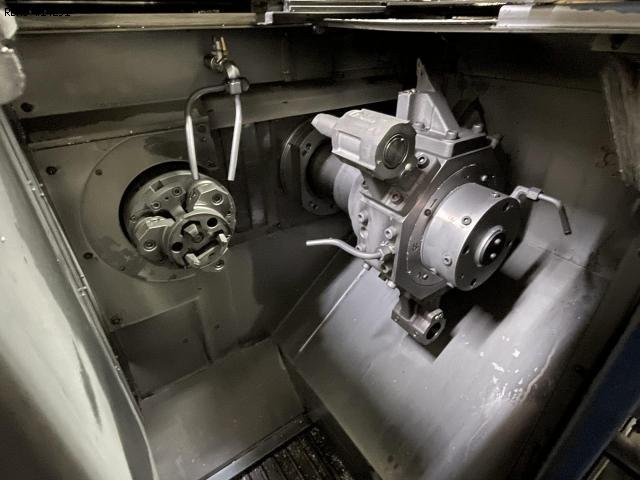

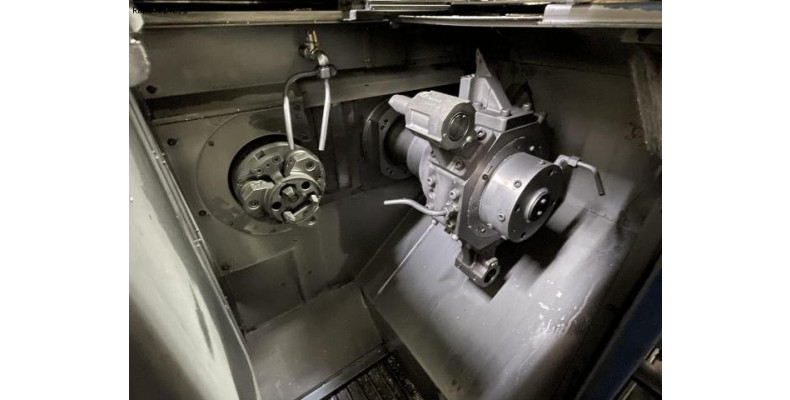

MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 45 - 4.500 [rpm]
- Max. chuck diameter : 135 [mm]
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 45 - 4.500 [rpm]
- Max. chuck diameter : 135 [mm]

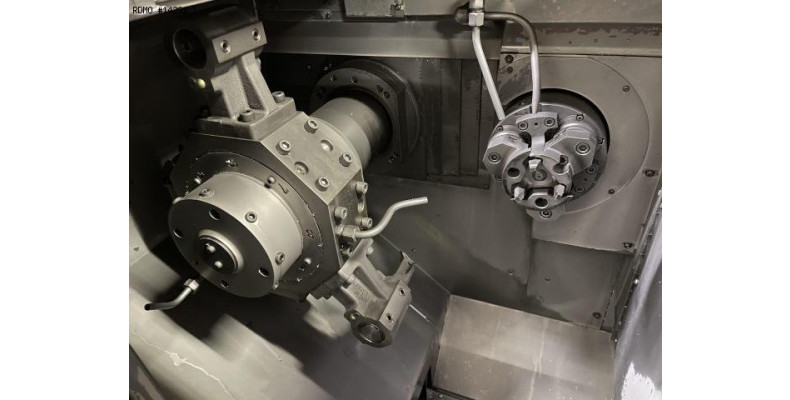

TURRET 1
- Number of positions : 8
- X/Z stroke : 130 / 145 [mm]
TURRET 2
- Number of positions : 8
- X/Z stroke : 130 / 145 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 32 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.800 x 1.875 [mm]
- Machine height : 2.420 [mm]
- Machine weight : 4.600 [kg]
MACHINE HOURS

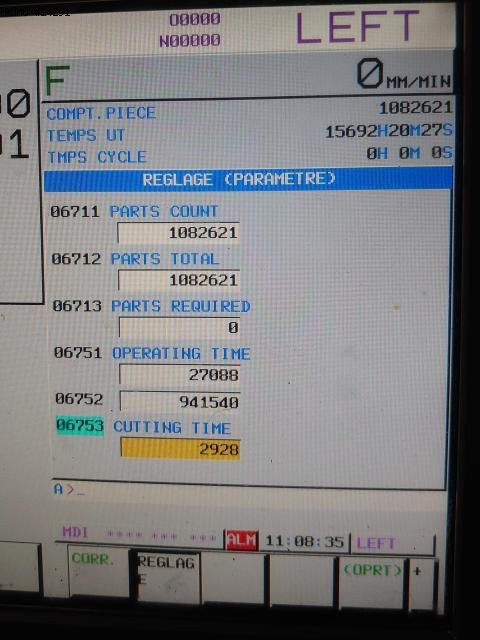

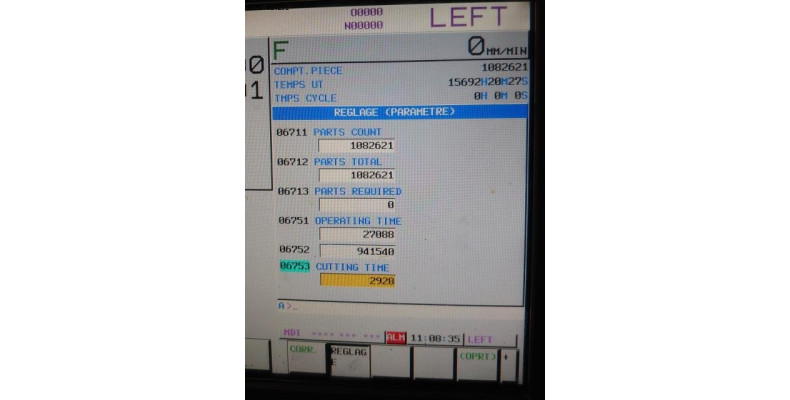

- Number of hours under power : 15.962 [h]

Equipment

- CNC : Fanuc
- 3 colors status lamp
- Coolant tank
* with high-pressure pump

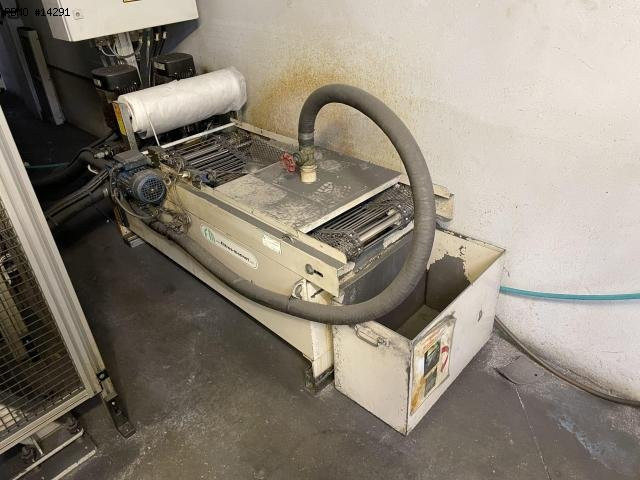

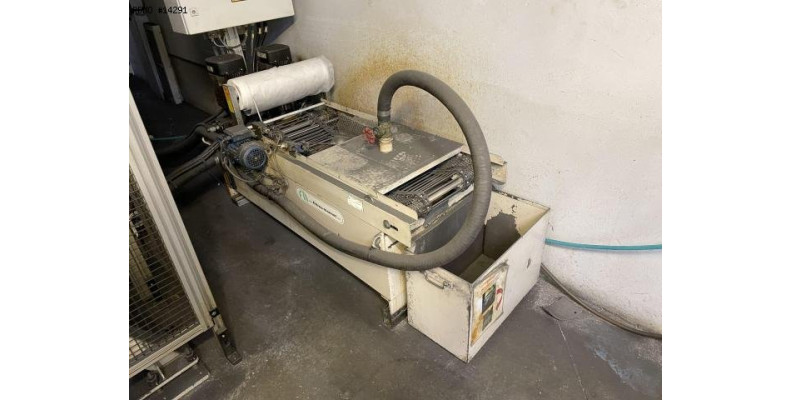

* with paper filtering unit

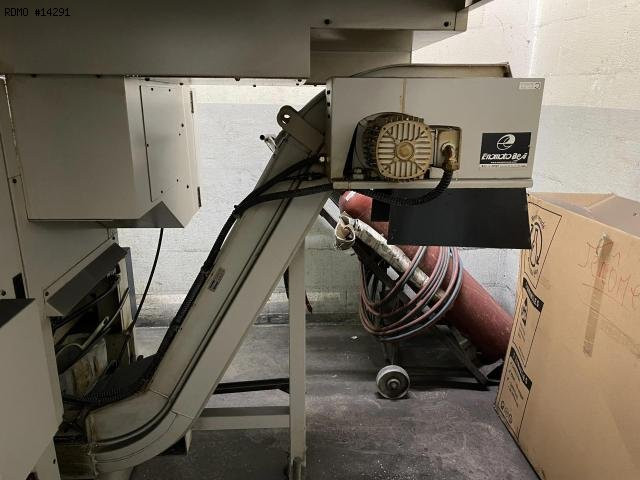

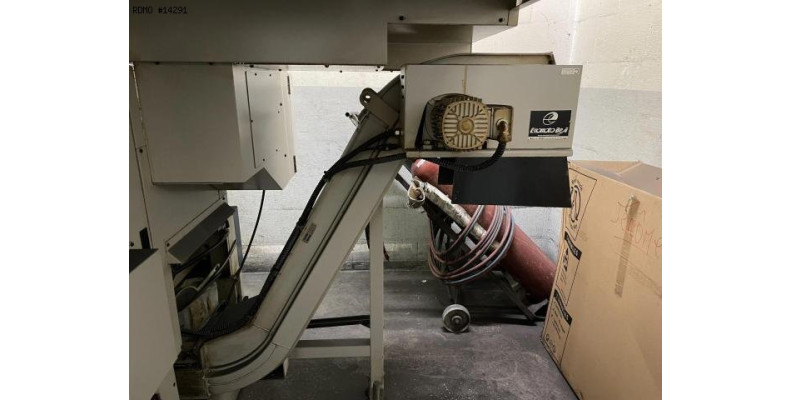

- Chips conveyor : Gauche
- Oil mist extractor
- Parts catcher

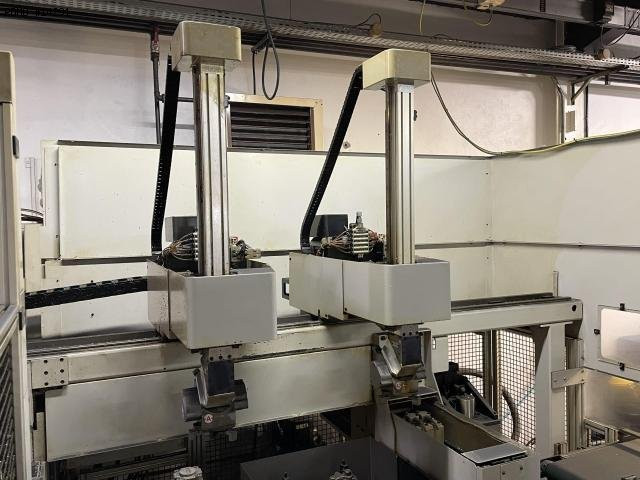

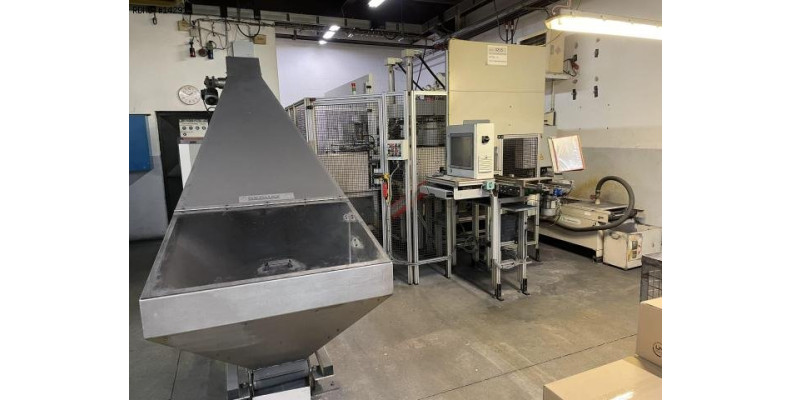

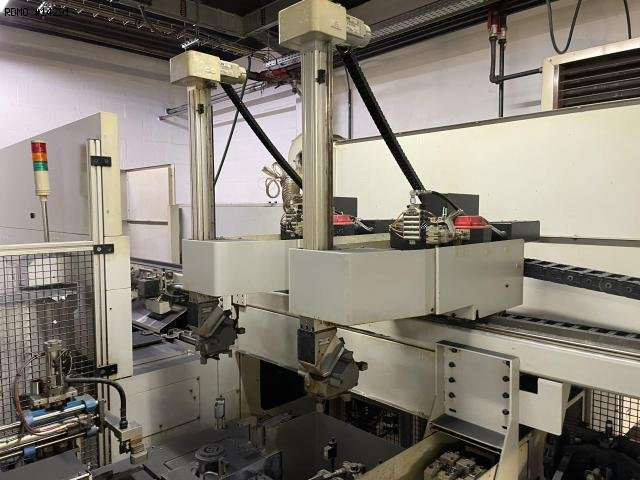

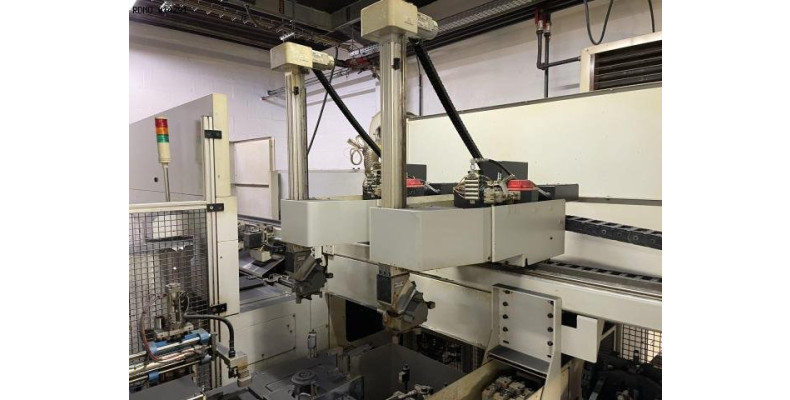

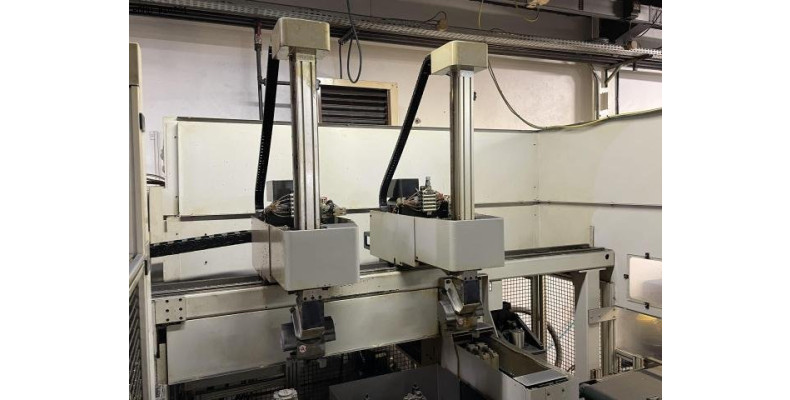

- Workpiece loading robot
* Max. chuck diameter : 165 [mm]
