- Number of axes : 3
MAIN SPINDLE
- Spindle nose : A2-8
- Spindle power : 27 [kW]
- Spindle speeds : 3500 [rpm]
- Maximum diameter of rotation on the bench : 920 [mm]
- Maximum rotation diameter on the carriage : 745 [mm]
- Max. turning diameter : 550 [mm]
- C axis indexing precision : 0.001 [°]

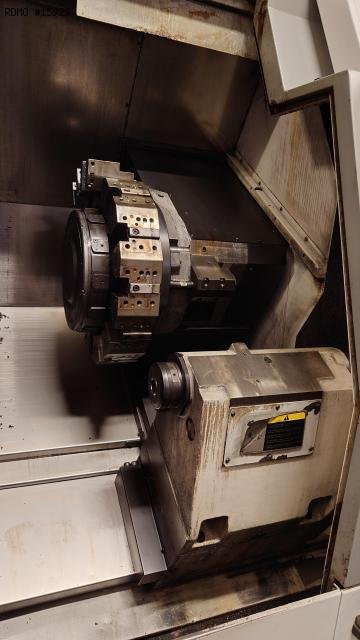

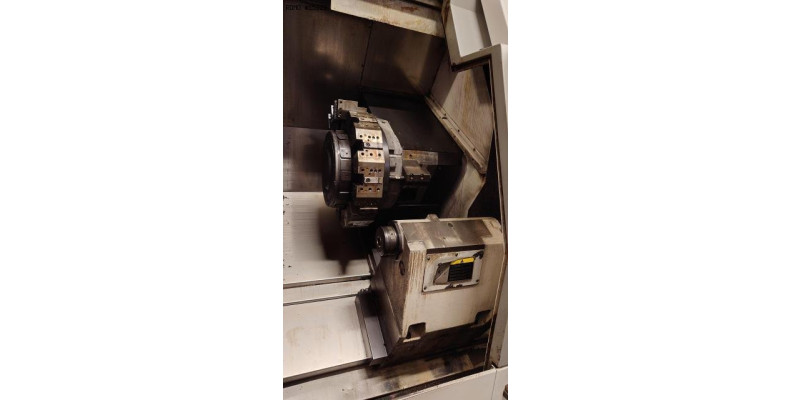

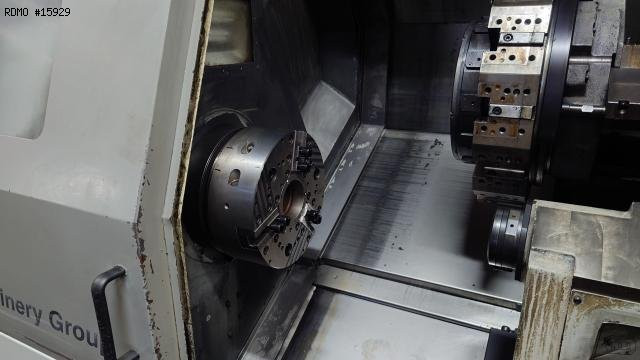

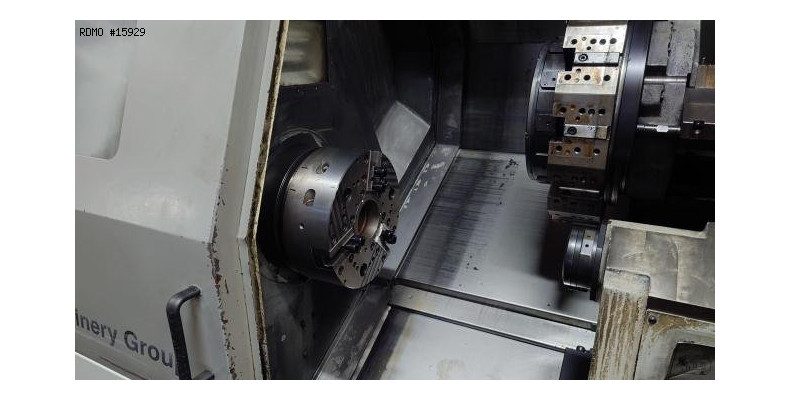

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- Live tools speed : 4000 [rpm]
- Live tools power : 16 [kW]
- X/Z stroke : 315 /1350 [mm]
TAILSTOCK
- Distance between spindle and tailstock centre : 1424 [mm]
POWER SUPPLY
- Supply voltage : 4000 [V]
- Total installed power : 45 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4088 x 2020 [mm]
- Machine height : 2236 [mm]
- Machine weight : 8100 [kg]
MACHINE HOURS
- Number of hours under power : 34000 [h]
Equipment

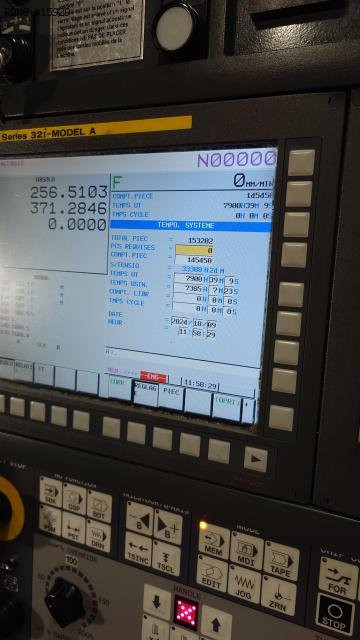

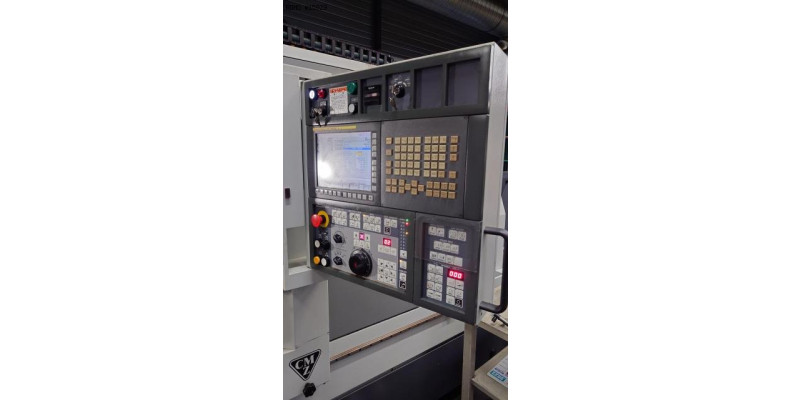

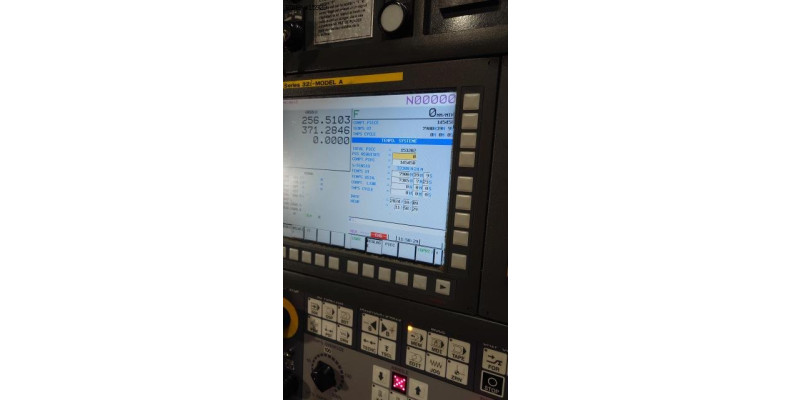

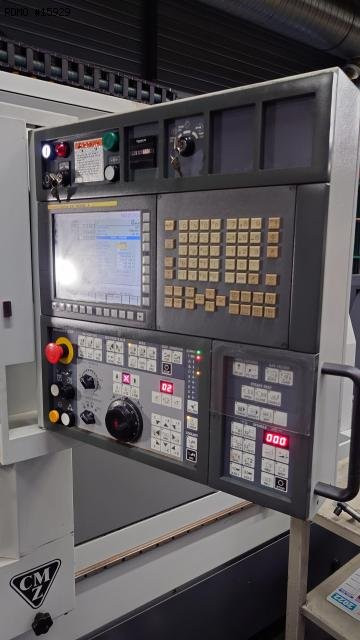

- CNC : Fanuc Series 32i Model A
- 3 colors status lamp
- Coolant tank

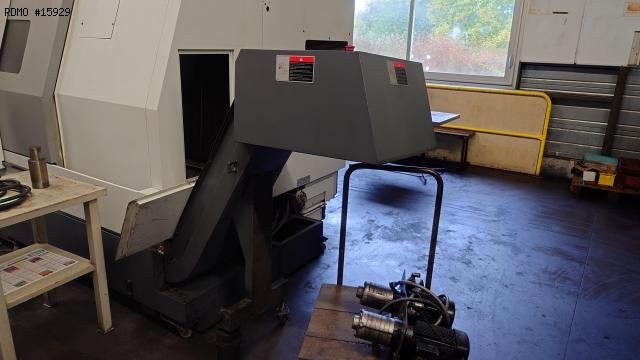

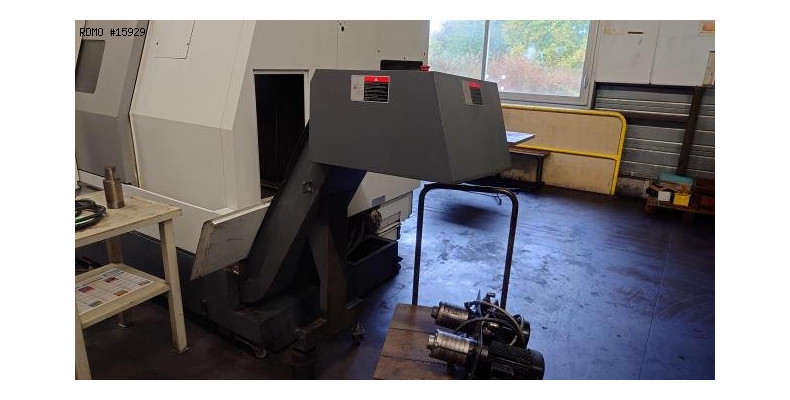

- Chips conveyor

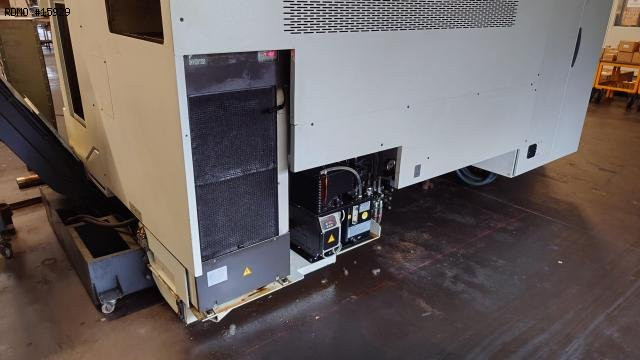

- Spindle cooling unit
