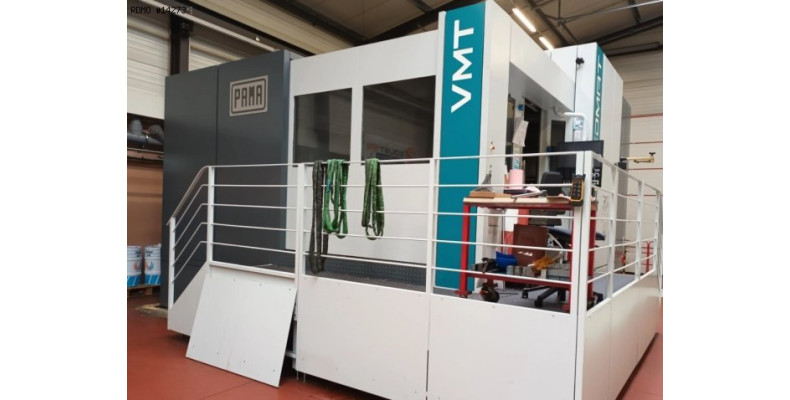

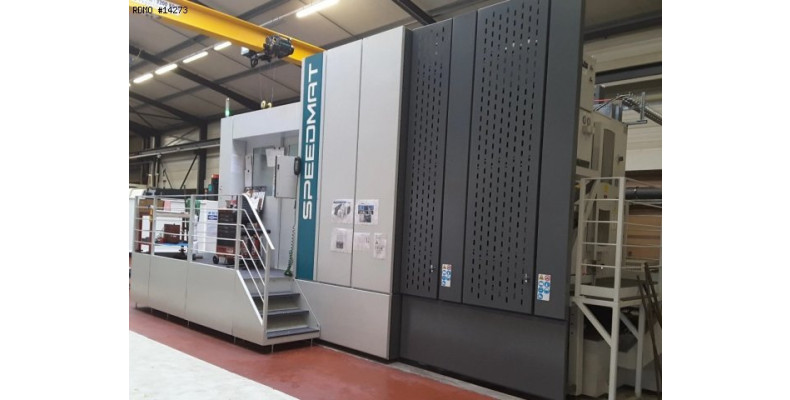

Pama SPEEDMAT VMT2 5 axis

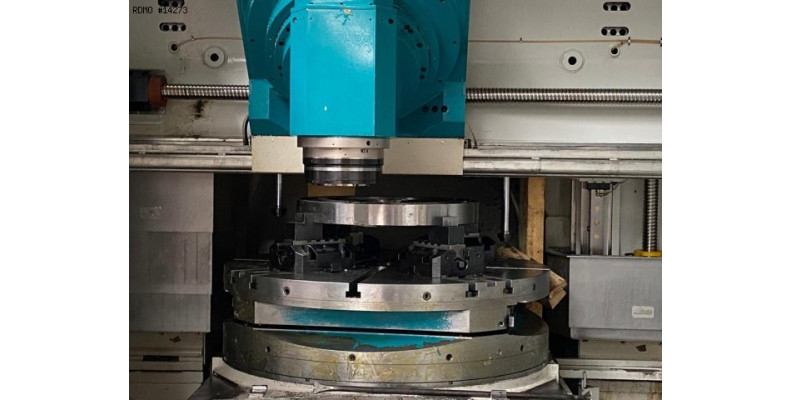

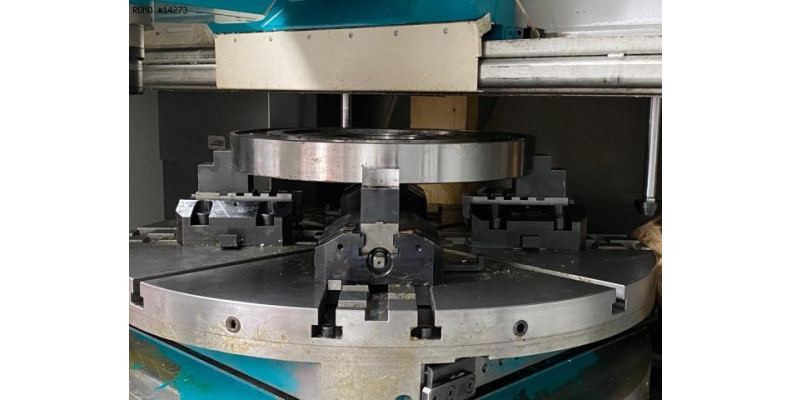

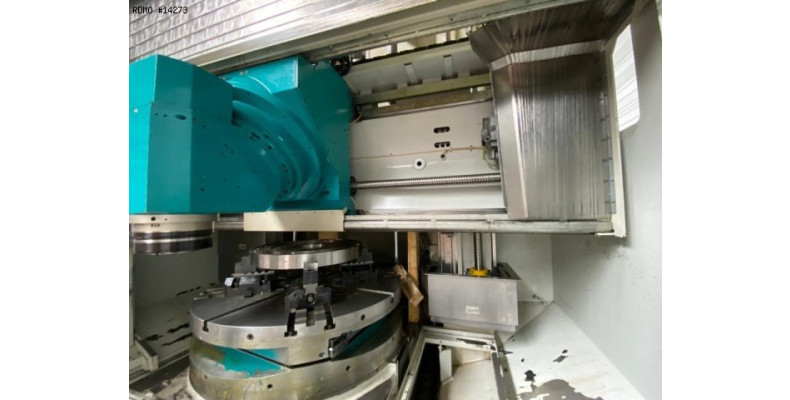

- Number of axes : 5 MILLING SPINDLE - Type of head : HVAT-ES 12.500 - Tool holder type : HSK 100 - Spindle power : 85 [kW] - Spindle speeds : 12 500 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 2000 / 2000 / 1300 [mm] - Rapid traverses rates (X/Y/Z) : 50 / 40 / 40 [m/min] A ROTARY AXIS - Travel : 180 [°] (+/-) - Resolution : 0.001 [°] TABLE - Table type : TVM2 - Table dimensions : Ø1250 [mm] - Maximum weight upon table : 6000 [kg] - Max. workpiece rotation diameter : 2000 [mm] - Max. table rotation speed : 350 [rpm] - Max. turning torque : 5000 [Nm] - Turning power : 50 [kW] TOOL CHANGER - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 100 - Max. tool weight : 20 [kg] - Max. total weight for tools : 650 [kg] - Max. tool length : 500 [mm] - Max. tool diameter : 125 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Power frequency : 50 [Hz]

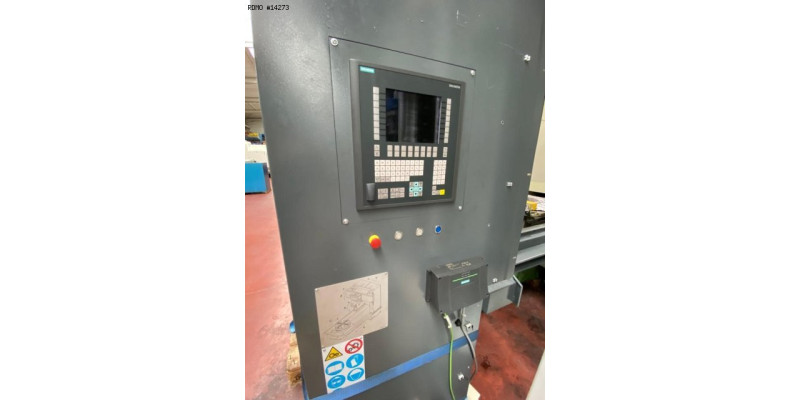

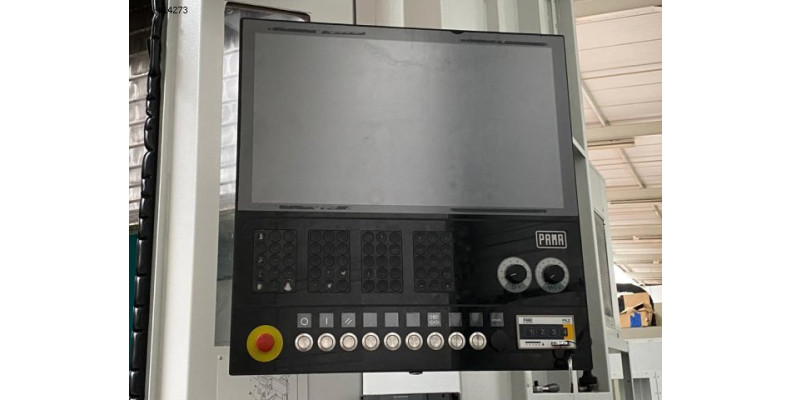

- CNC : SIEMENS SINUMERIK 840D SL * MSM (Machine Sensor Monitoring) * PMP (PAMA Maintenance Program) * PGE (PAMA Global Efficiency) * PAMA ADVANCE MILLING * POWER MONITORING (Adaptive control) * PTB (PAMA Table Balance) * Software package for CNC SIEMENS 840D SL for 5-axis simultaneous machining - Electronic handwheel : SINUMERIK HT2 - COOLANT TANK : 2000 [l] * Spindle centre watering with high pressure pump : 60 [bars] * watering rate : 20 [l/min] * With paper filtering unit * With cooling unit for coolant * part and fairing washing system - Rotoclear S3 - Chips conveyor - Contact tool presetting device : Renishaw TS34 - Workpiece probe : Renishaw RMP60
