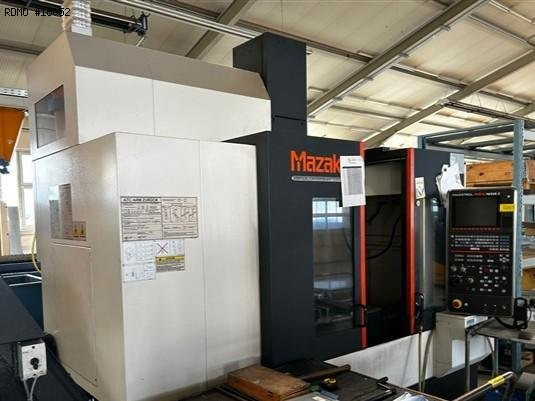

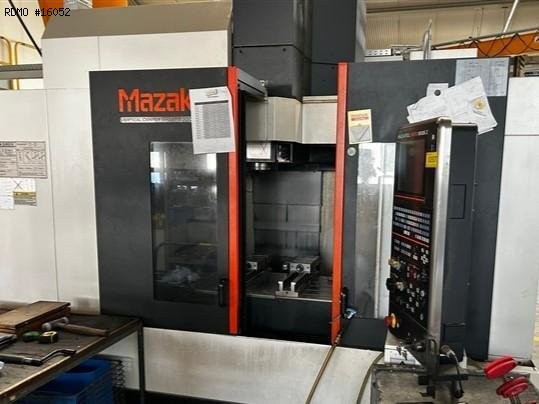

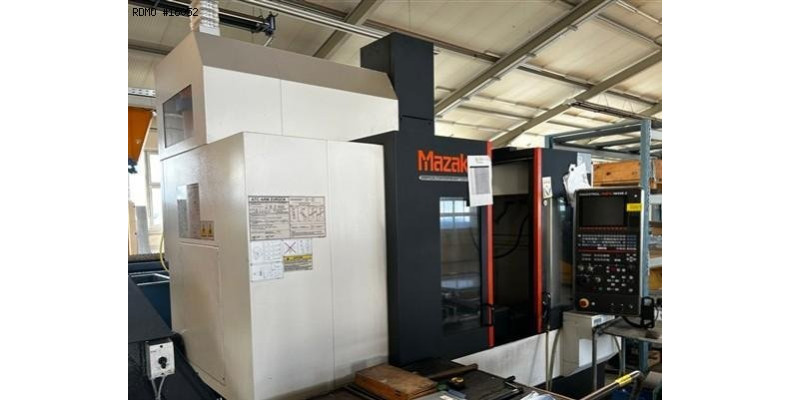

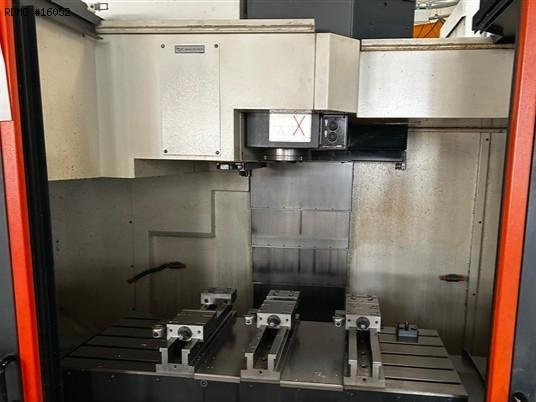

MAZAK VCS 530C 3 axis

Name: Vertical machining center MAZAK VCS 530C 3 axes
Brand: MAZAK
Availability: InStock

Milling Vertical machining center

16052

PDF datasheet to download:

Brand: MAZAK

Model: VCS 530C

Year: 2016

Serial: 270388

16052

MAZAK VCS 530C 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: MAZAK

Model: VCS 530C

Year: 2016

Serial: 270388

Ask Price

Caracteristics

- Number of axes : 3

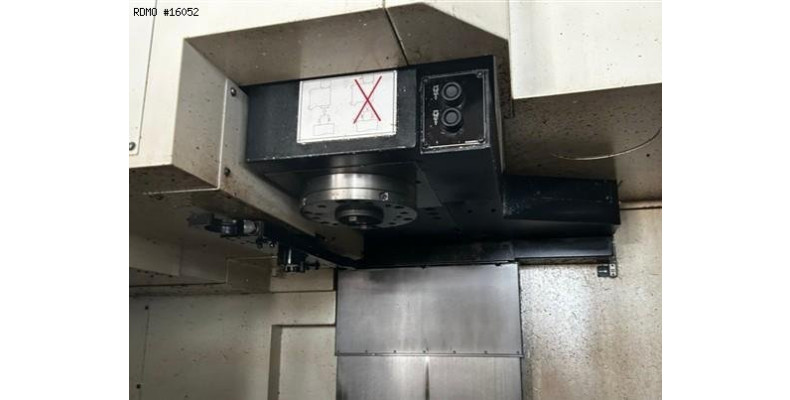

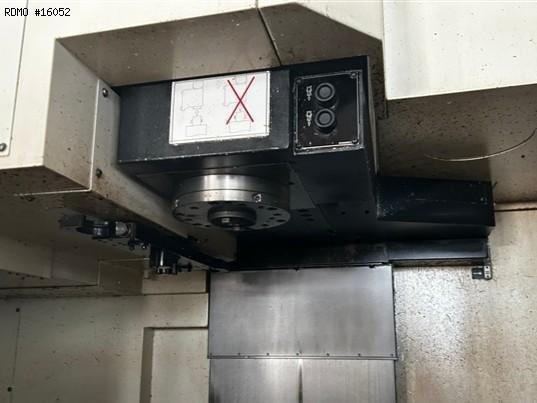

MILLING SPINDLE
- Tool holder type : ISO40
- Spindle speeds : 12.000 [rpm]
- Spindle power : 18,5 [kW]
LINEAR AXES
- Travels on X/Y/Z axes : 1050 / 530 / 510 [mm]
- Rapid traverses rates (X/Y/Z) : 42 [m/min]
- Cutting feed rates (X/Y/Z) : 1 - 8000 [mm/min]

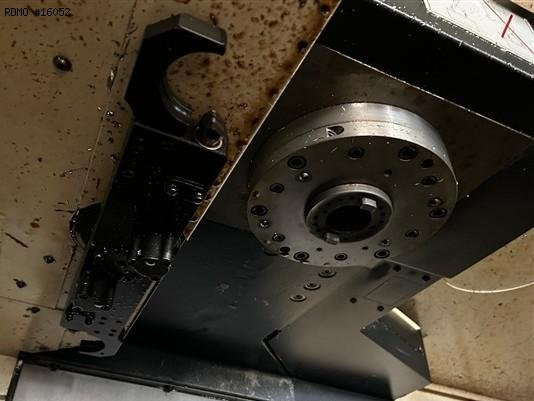

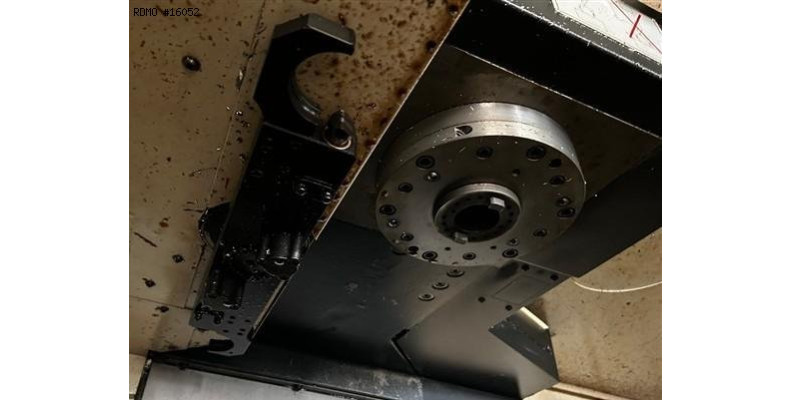

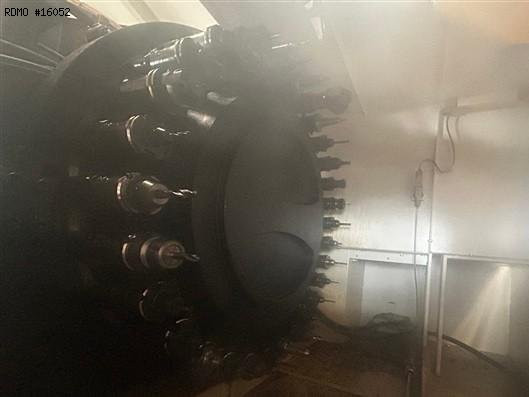

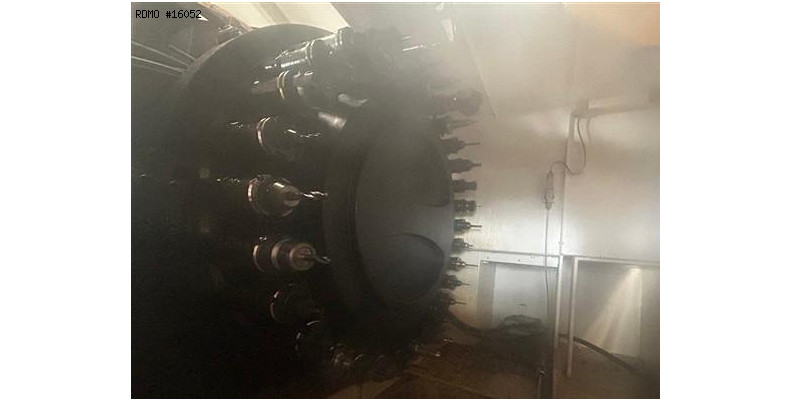

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30

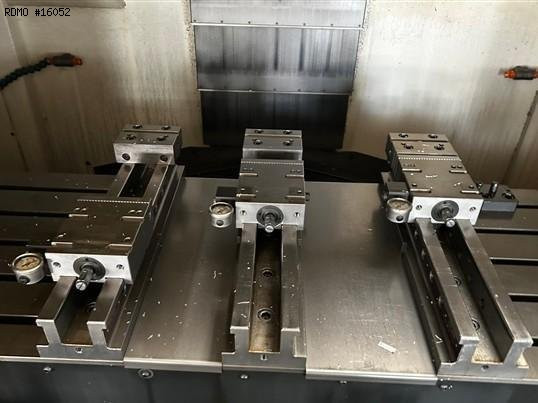

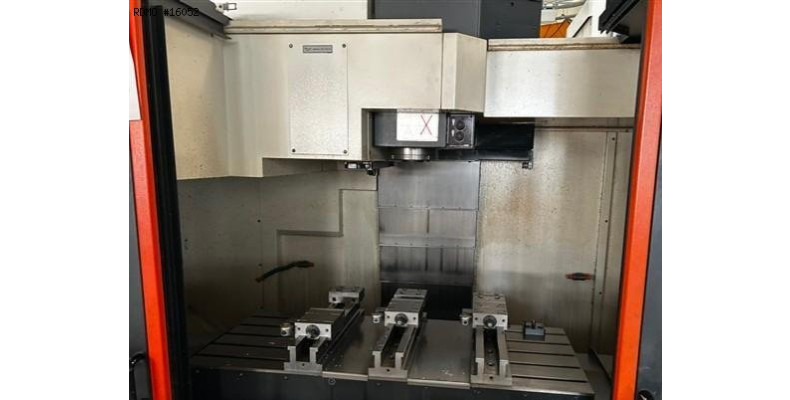

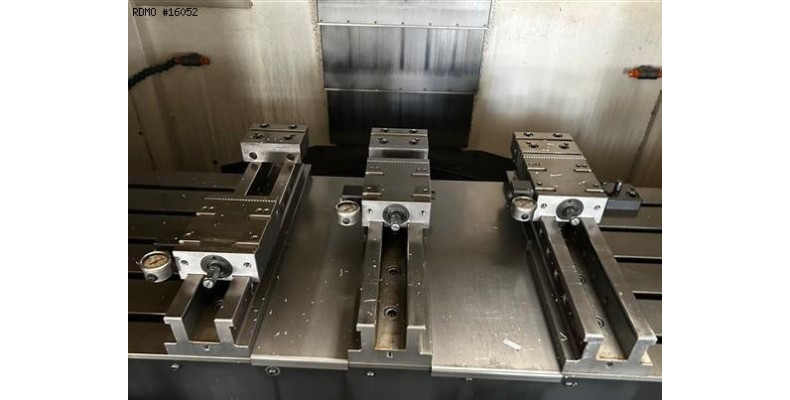

TABLE
- Table dimensions : 1300 x 550 [mm]
- Maximum weight upon table : 1200 [kg]
- Distance table / spindle nose (min./max.) : 150 - 650 [mm]

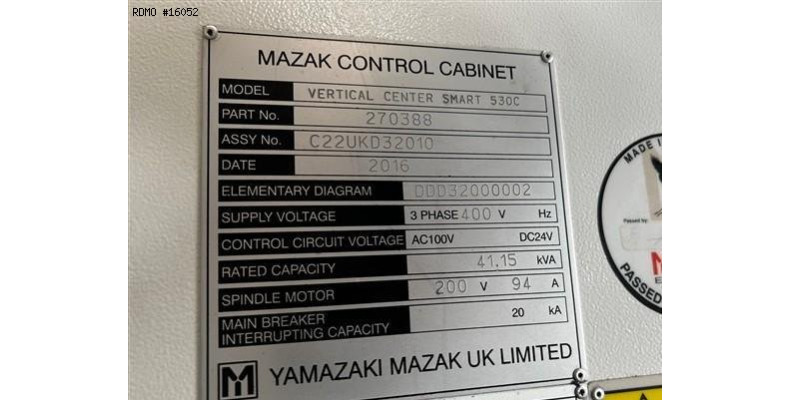

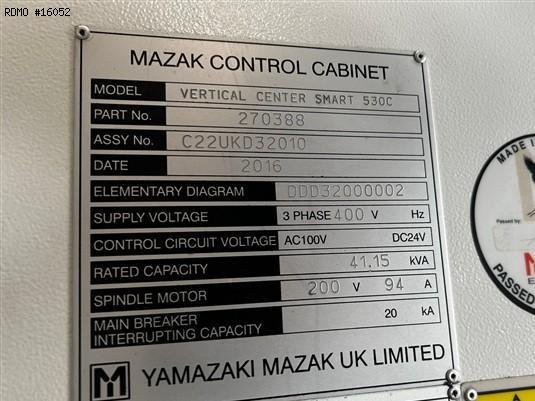

POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 41.15 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.880 x 2.950 [mm]
- Machine height : 2.808 [mm]
- Machine weight : 6800 [kg]

Equipment

- CNC : MAZATROL MATRIX NEXUS 2
- Interface : PCMCIA / RS232
- Electronic handwheel
- 3 colors status lamp

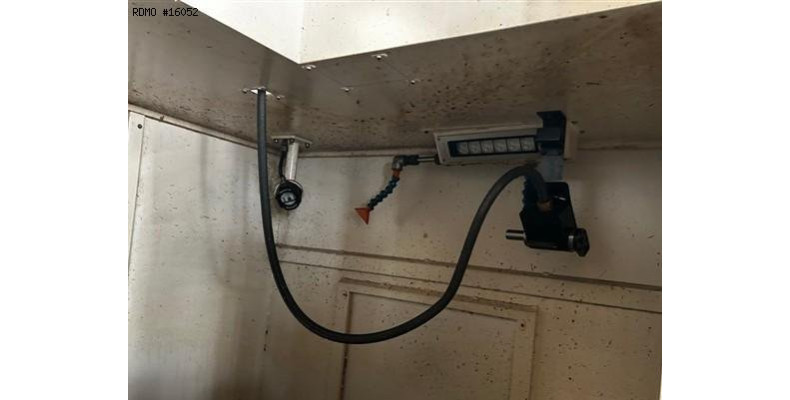

- Coolant tank

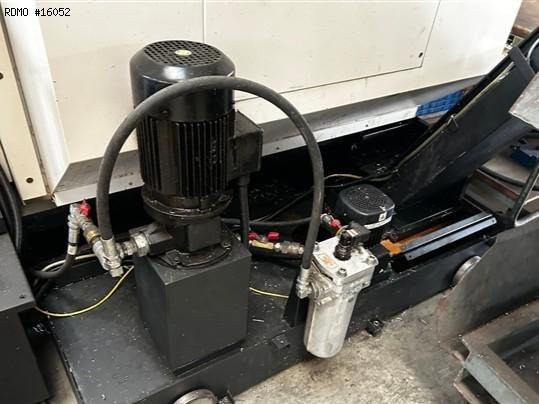

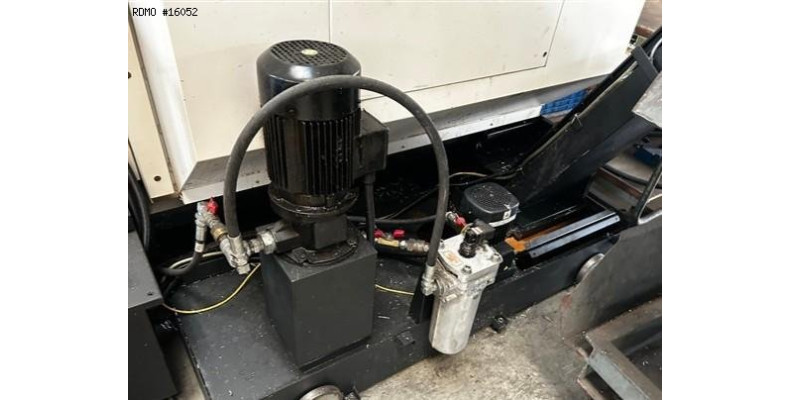

* with high-pressure pump
- Coolant through spindle

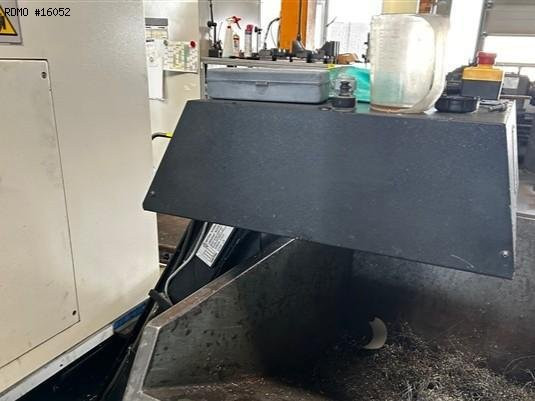

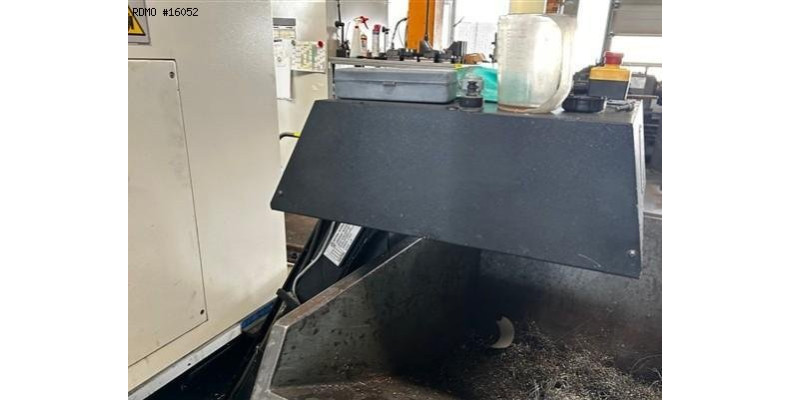

- Chips conveyor
- Tool probe
