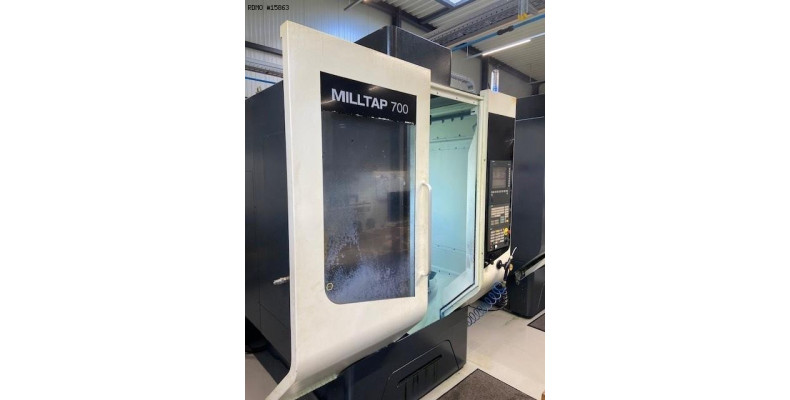

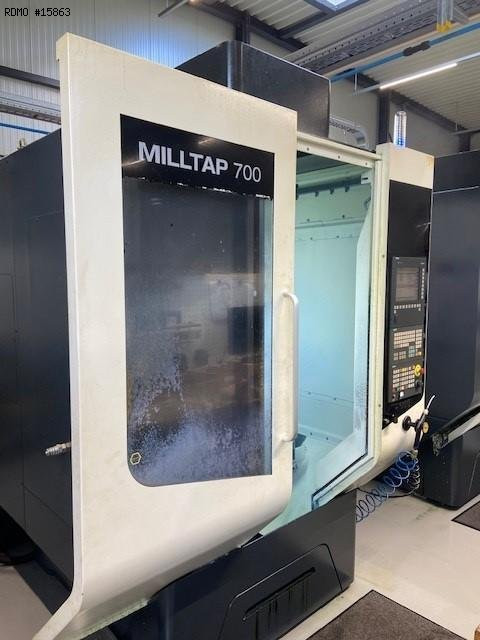

DMG MORI MILLTAP 700 3 axis

- Number of axes : 3
MILLING SPINDLE

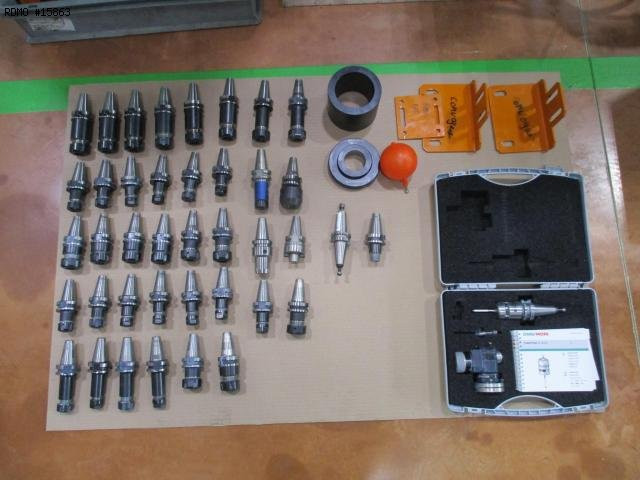

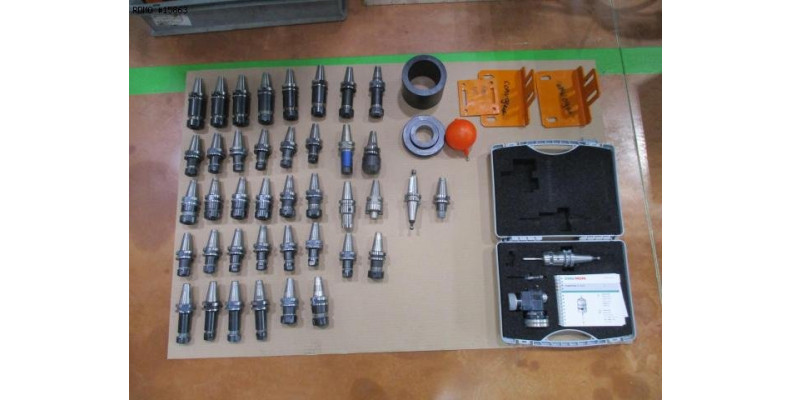

- Tool holder type : BT30
- Spindle power : 20 [kW]
- Spindle speeds : 24000 [rpm]
- Number of spindle hours : 4877 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 700/420/380 [mm]
- Rapid traverses rates (X/Y/Z) : 60 [m/min]

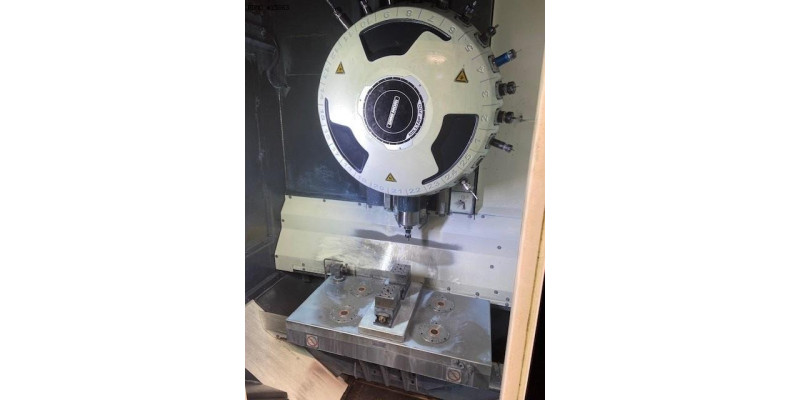

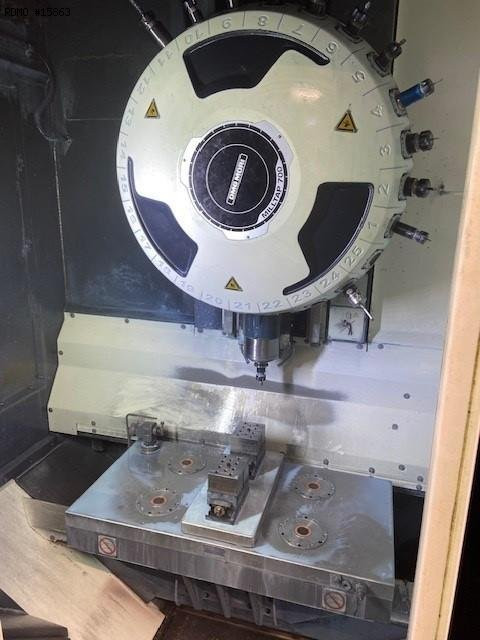

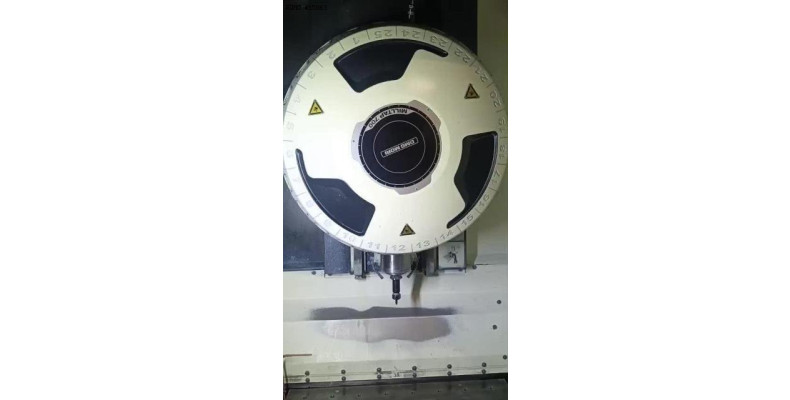

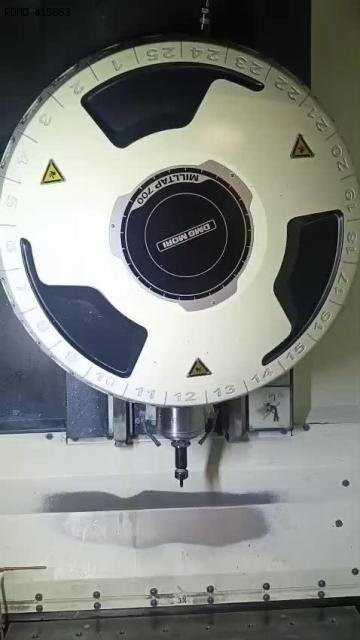

TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 25
- Tool exchange time : 0.9 [sec]
TABLE
- Table dimensions : 840/420 [mm]
- Maximum weight upon table : 400 [kg]
- Distance table / spindle nose (min./max.) : 200-580 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 16 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1650/2950 [mm]
- Machine height : 2550 [mm]
- Machine weight : 3400 [kg]

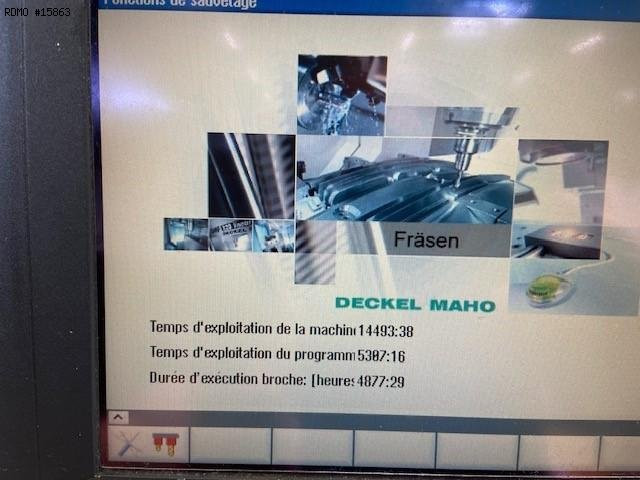

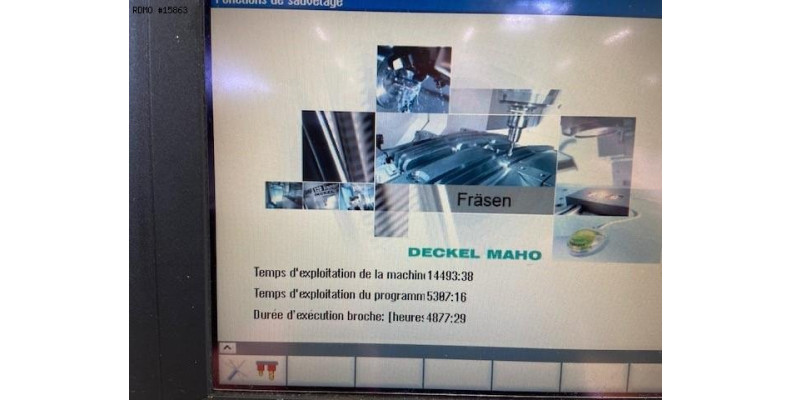

MACHINE HOURS
- Number of hours under power : 14493 [h]
- Number of working hours : 5307 [h]

- CNC : Siemens 840D SL
- Interface : Ethernet / RS232 / USB / PCMCIA
- Rigid tapping
- 3 colors status lamp

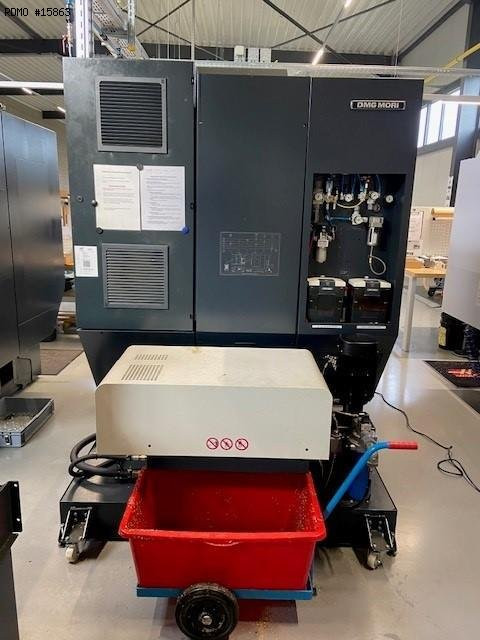

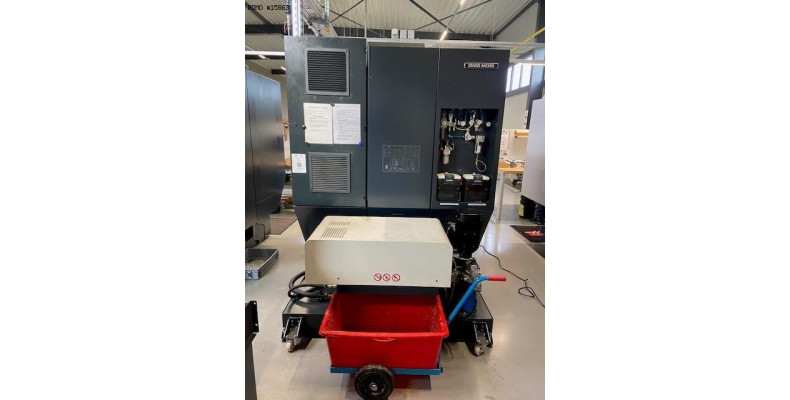

- Coolant tank
* with high-pressure pump : 15 [bars]
- Coolant through spindle
- Chips conveyor
- Tool probe : Renishaw OTS
- Workpiece probe : Renishaw OMP40-2
- Electric transformer
