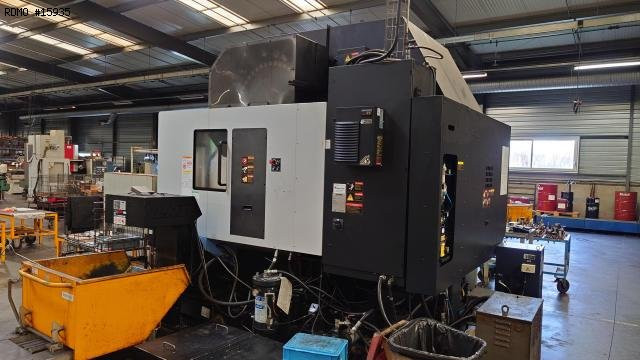

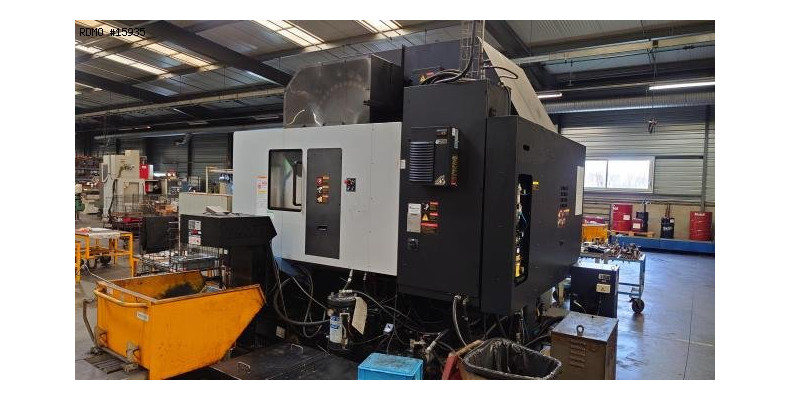

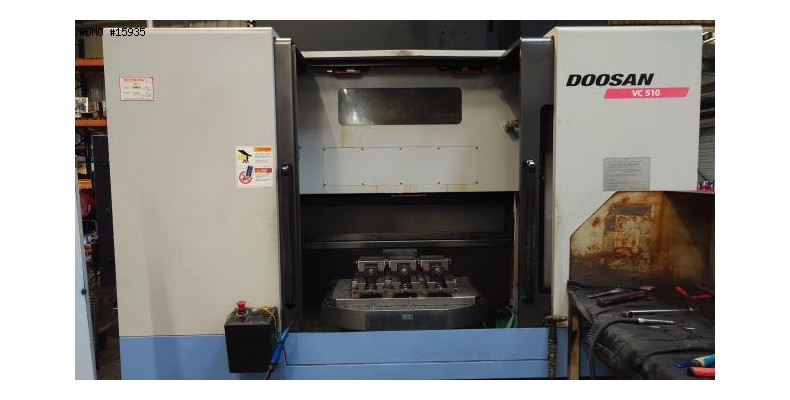

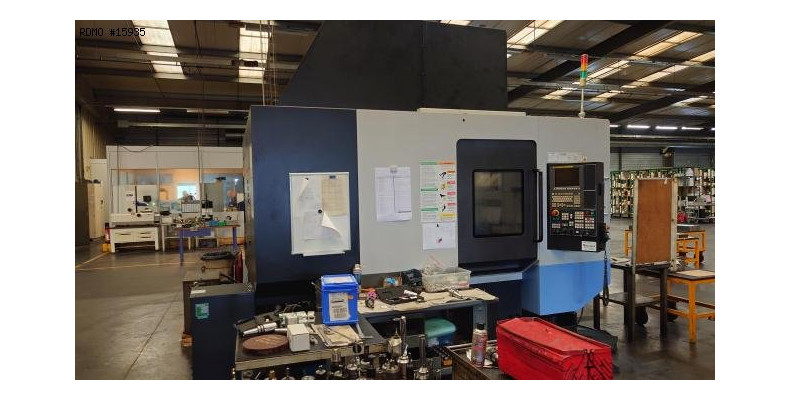

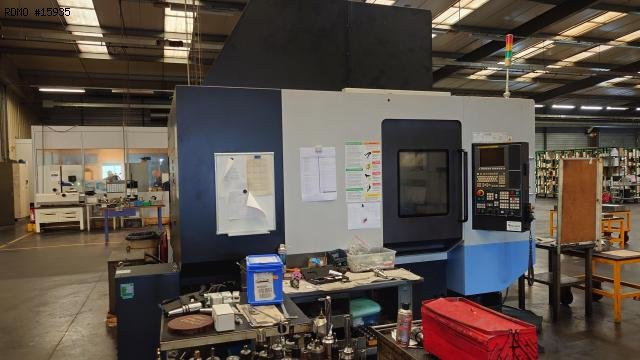

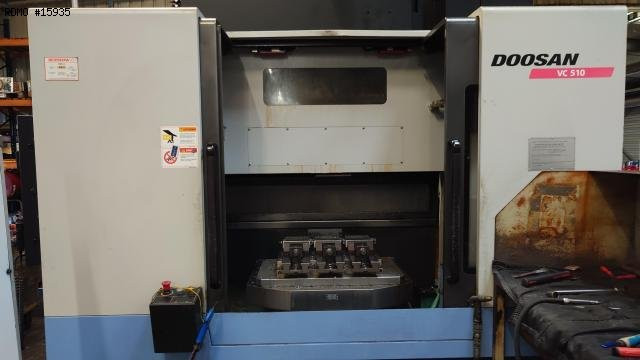

DOOSAN VC 510 3 axis

Name: Vertical machining center DOOSAN VC 510 3 axes
Brand: DOOSAN
Availability: InStock

Milling Vertical machining center

15935

PDF datasheet to download:

Brand: DOOSAN

Model: VC 510

Year: 2015

Serial: MV0061-000392

15935

DOOSAN VC 510 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: DOOSAN

Model: VC 510

Year: 2015

Serial: MV0061-000392

Ask Price

Caracteristics

- Number of axes : 3
MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 15 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 762 x 516 x 570 [mm]
- Rapid traverses rates (X/Y/Z) : 40 / 40 / 36 [m/min]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30
- Tool exchange time : 1,3 [sec]

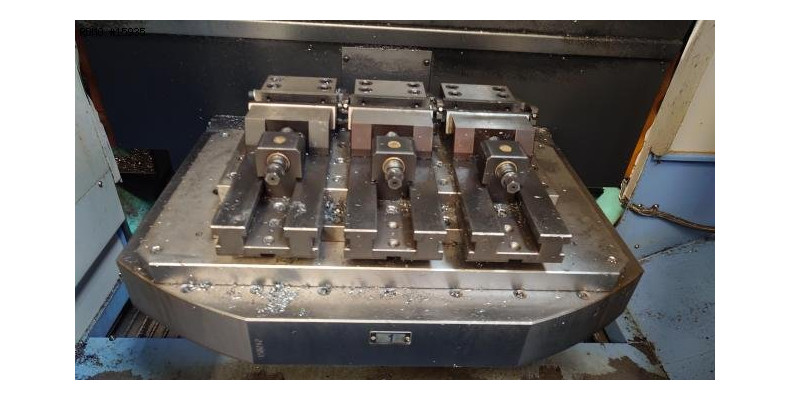

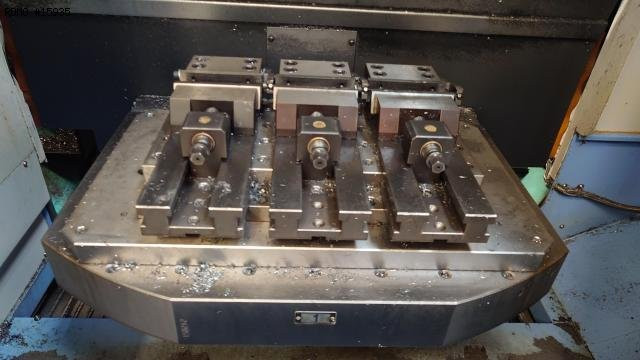

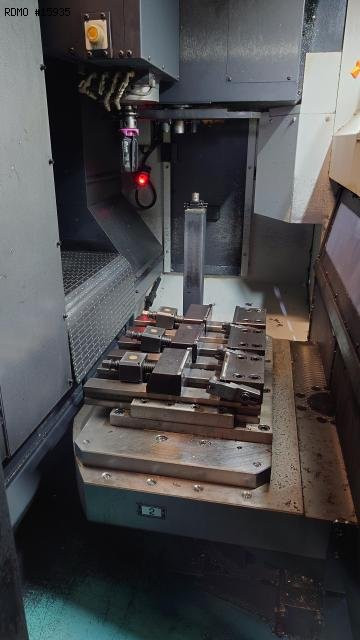

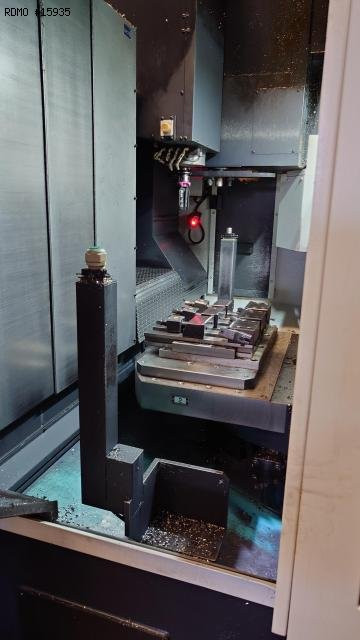

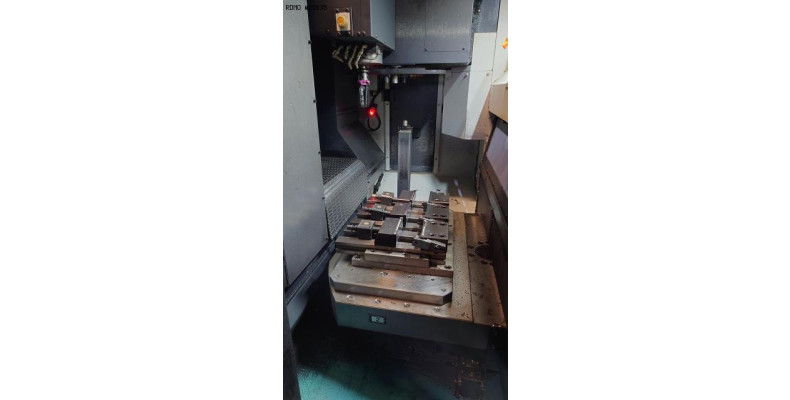

PALLET CHANGER
- Pallet size : 860 x 570 [mm]
- Pallets number : 2
- Pallet exchange time : 5 [sec]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 40,25 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3130x3260 [mm]
- Machine height : 3130 [mm]
- Machine weight : 9200 [kg]

Equipment

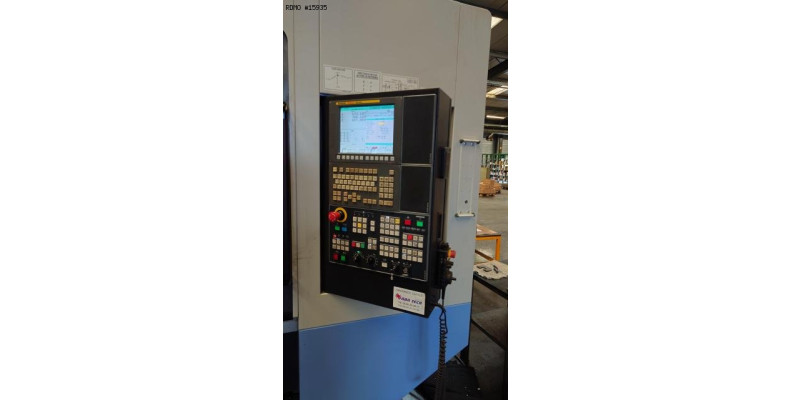

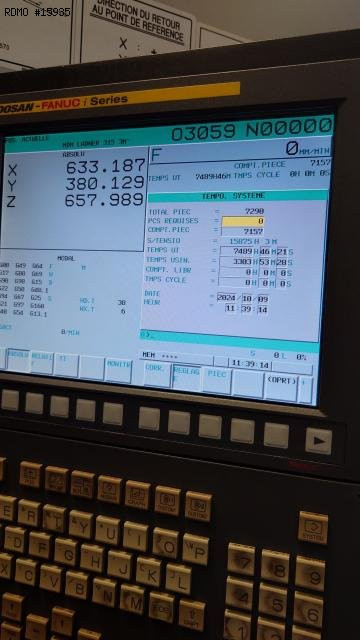

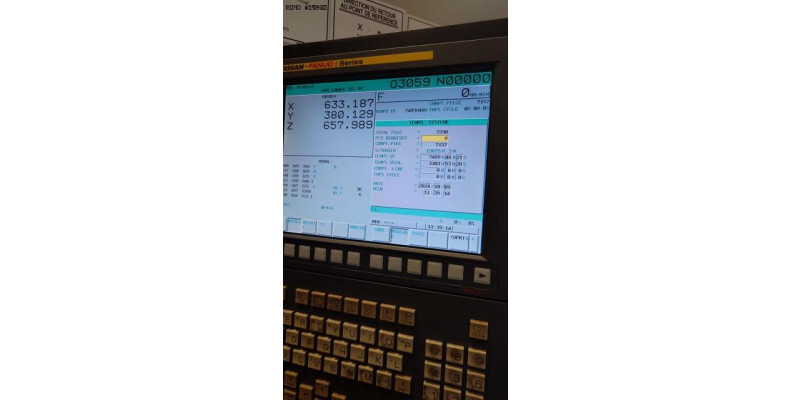

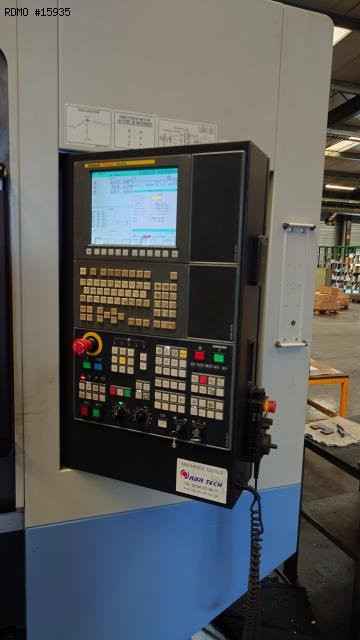

- CNC : Fanuc 0i-MD
Interface : PCMCIA, RS232 / RJ45
- 3 colors status lamp

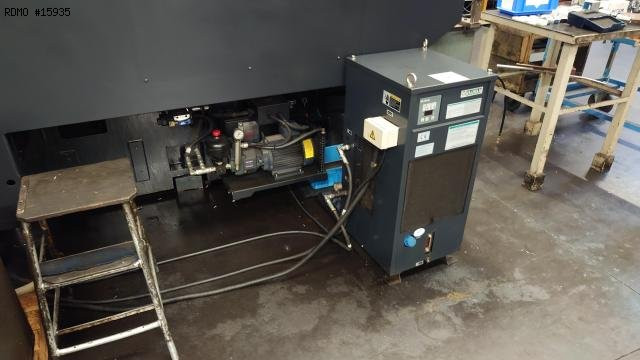

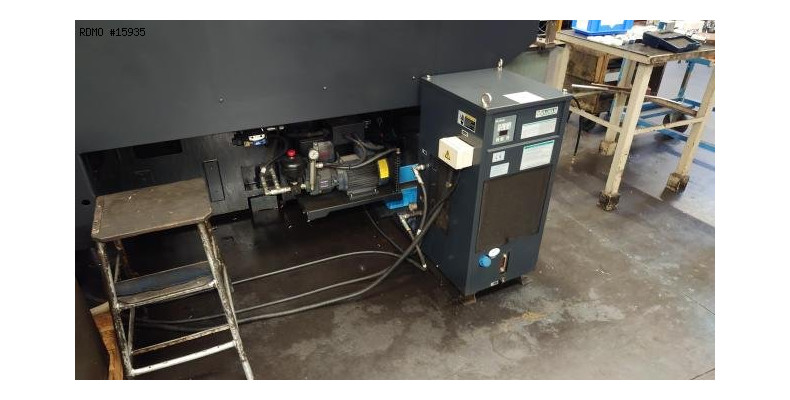

- Coolant tank
* with high-pressure pump : 20 [bars]
- Coolant through spindle
- Spindle cooling unit
- Chips conveyor
- Electric transformer
