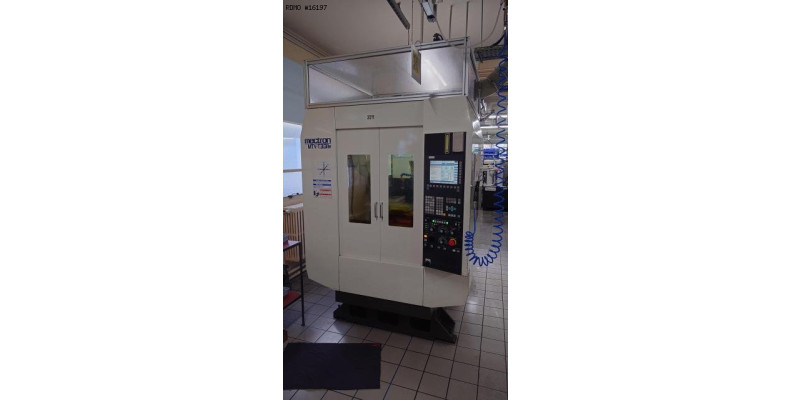

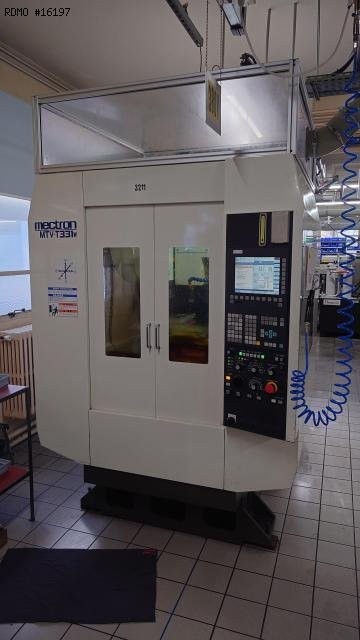

MECTRON MTV-T331M 5 axis

Name: Vertical machining center MECTRON MTV-T331M 5 axes
Brand: MECTRON
Availability: InStock

Milling Vertical machining center

16197

PDF datasheet to download:

Brand: MECTRON

Model: MTV-T331M

Year: 2012

Serial: MTVT331W0121

16197

MECTRON MTV-T331M 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: MECTRON

Model: MTV-T331M

Year: 2012

Serial: MTVT331W0121

Ask Price

Caracteristics

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BT30
- Spindle power : 5.5 [kW]
- Spindle speeds : 20000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/380/320 [mm]
- Rapid traverses rates (X/Y/Z) : 48 [m/min]
- Distance table / spindle nose (min./max.) : 305-665 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 25
- Tool exchange time : 0.7 [sec]
TABLE
- Table dimensions : 510X385 [mm]
- Maximum weight upon table : 200 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 11.2 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1500X2075 [mm]
- Machine height : 2400 [mm]
- Machine weight : 2600 [kg]

Equipment

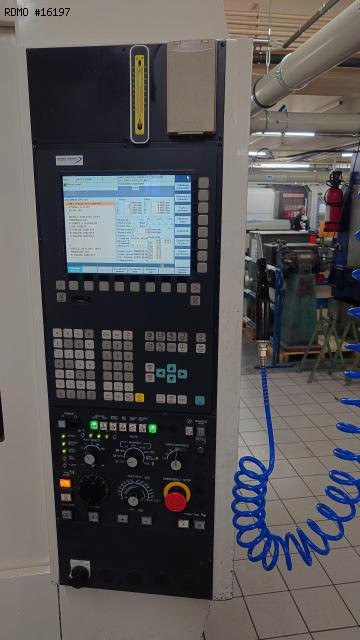

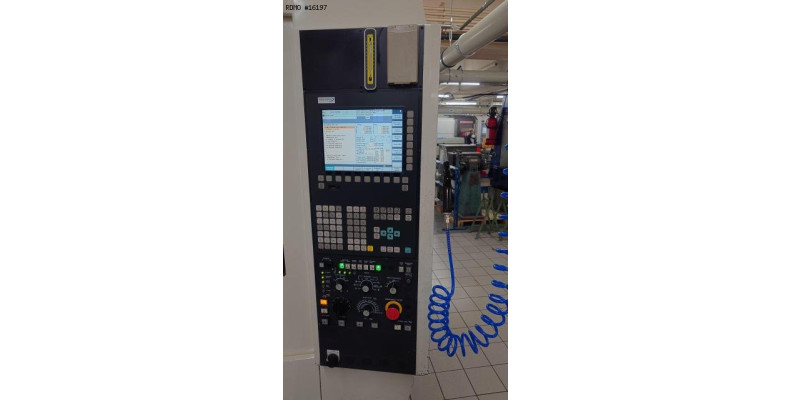

- CNC : YASKAWA SIEMENS YS840DI
- Interactive programming : Shopmill
- 3 colors status lamp

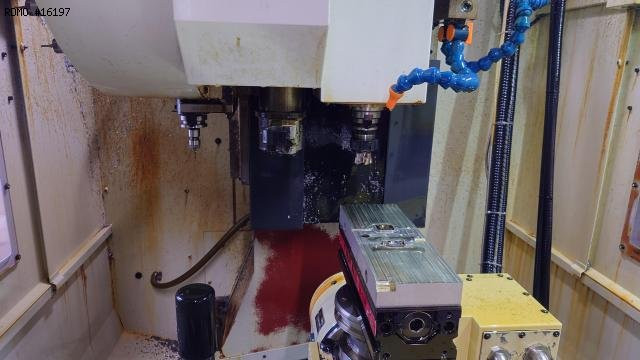

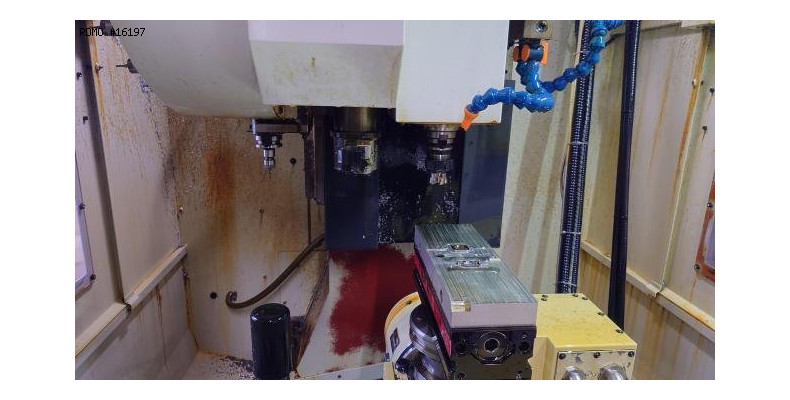

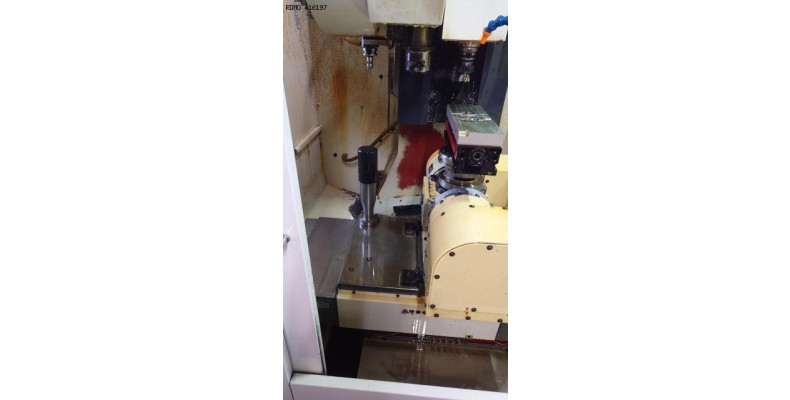

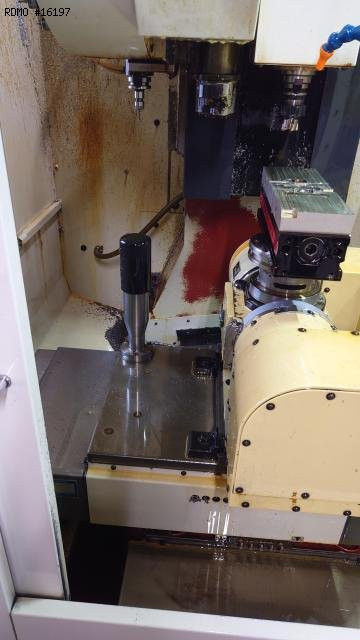

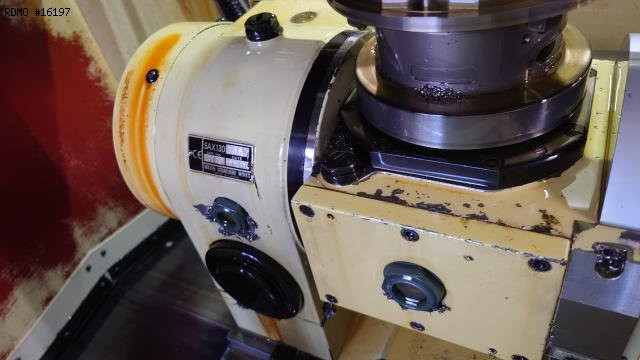

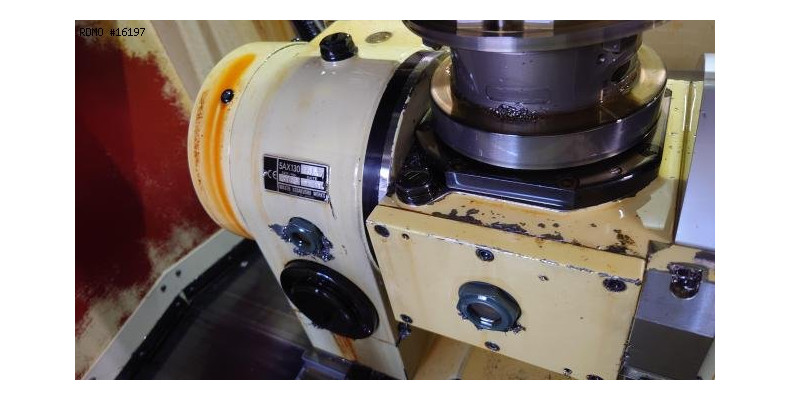

- Type of divisor : 4e-5e axe intégré
* manufacturer : NIKKEN
* model : 5AX130-HYA (2011)
* travel 4th axis : -120°/+30° [°]
* indexing precision 4th axis : 0.001 [°]
* travel 5th axis : 360 [°]
* indexing precision 5th axis : 0.001 [°]
* clamping diameter : 130 [mm]
- Coolant tank
- Electric transformer
