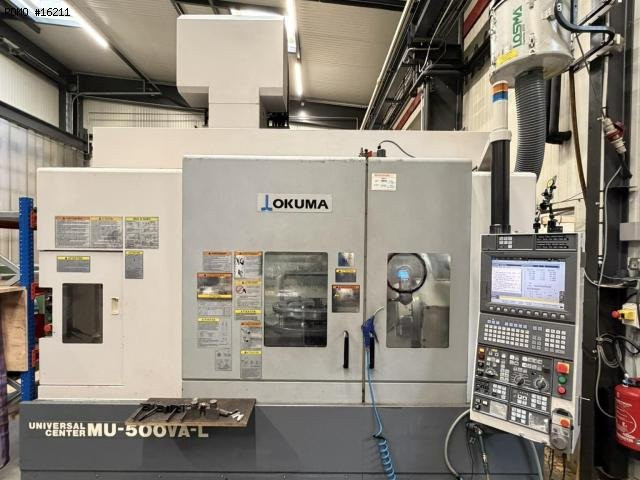

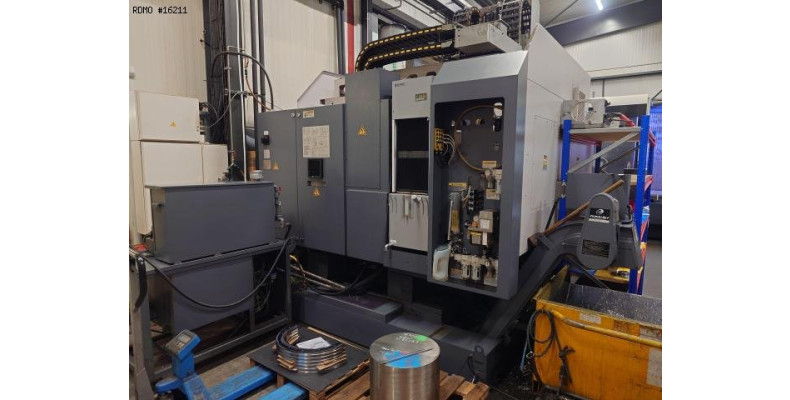

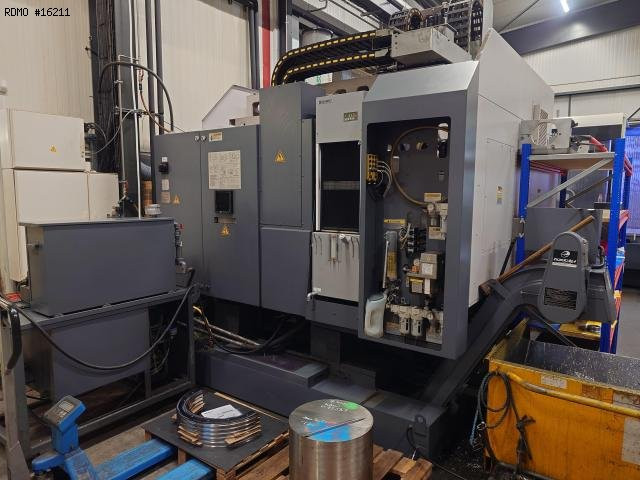

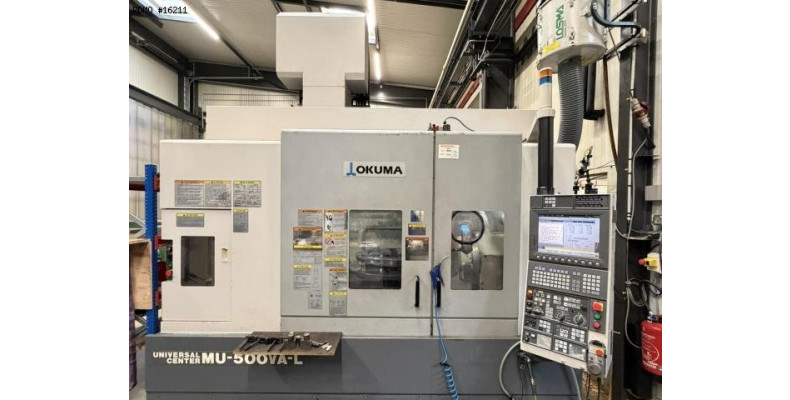

OKUMA MU-500VA-L 5 axis

Name: Vertical machining center OKUMA MU-500VA-L 5 axes
Brand: OKUMA
Availability: InStock

Milling Vertical machining center

16211

PDF datasheet to download:

Brand: OKUMA

Model: MU-500VA-L

Year: 2010

Serial: 151198

16211

OKUMA MU-500VA-L 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: OKUMA

Model: MU-500VA-L

Year: 2010

Serial: 151198

Ask Price

Caracteristics

- Number of axes : 5

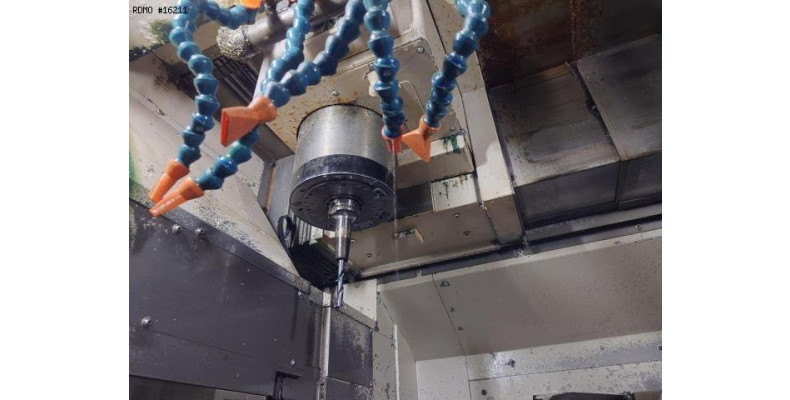

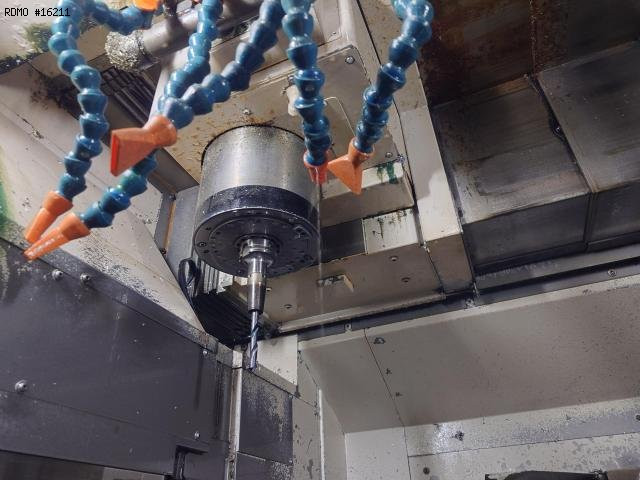

MILLING SPINDLE
- Tool holder type : HSK63
- Spindle power : 22 [kW]
- Spindle speeds : 12000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1250 / 660 / 540 [mm]
- Rapid traverses rates (X/Y/Z) : 40 / 40 / 32 [mm/min]
- Cutting feed rates (X/Y/Z) : 32 [m/min]
A ROTARY AXIS
- Travel : +20 / -110 [°]
- C ROTARY AXIS
- Speed : 1000 [rpm]
- Travel : 360 [°]

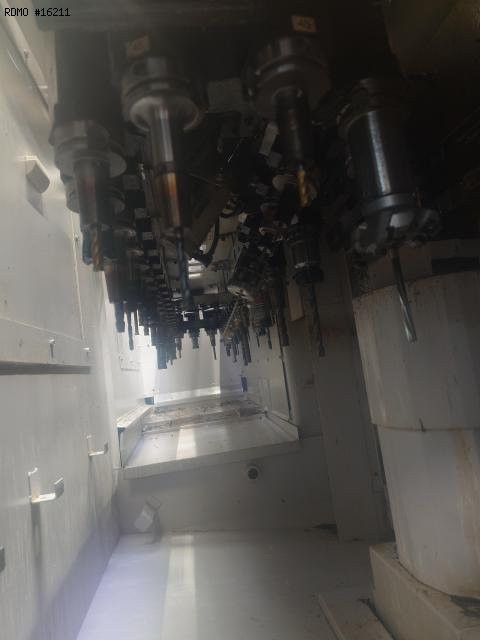

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 48

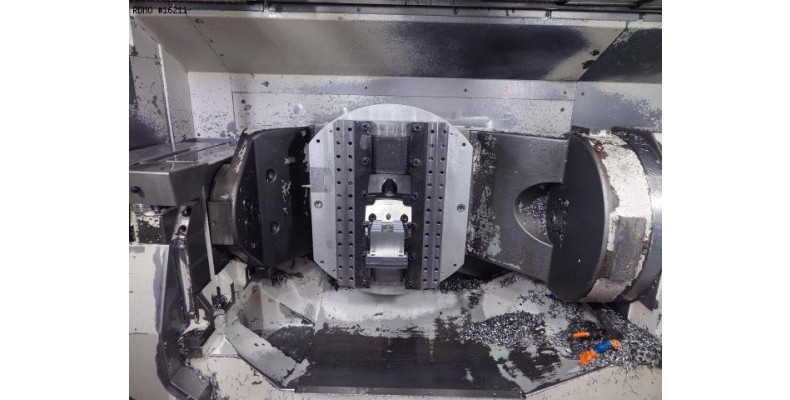

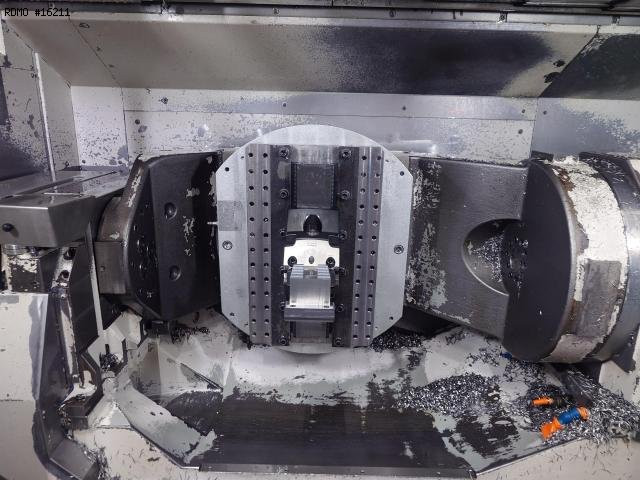

TABLE
- Maximum workpiece diameter : 730 x 500 [mm]
- Maximum weight upon table : 500 [kg]
- Distance table / spindle nose (min./max.) : 127 - 660 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2.940 x 3.367 [mm]
- Machine height : 3.541 [mm]
- Machine weight : 13.000 [kg]

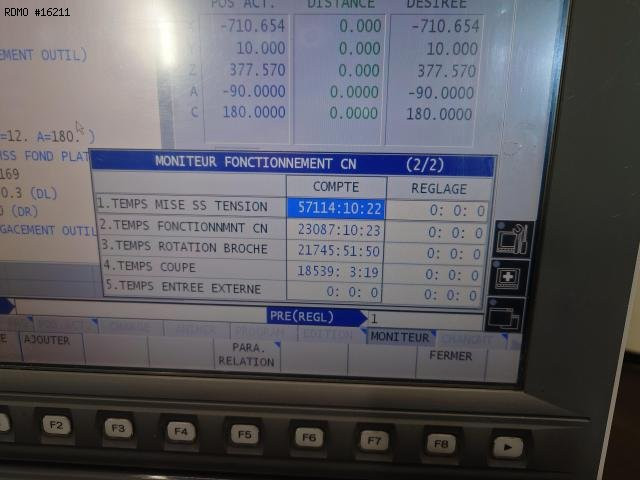

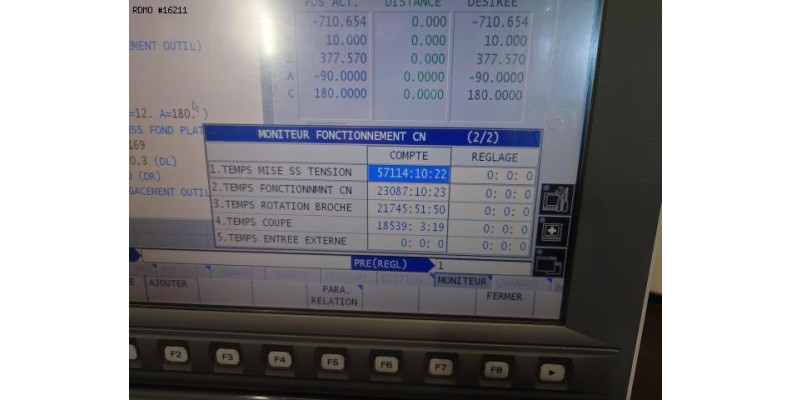

MACHINE HOURS
- Number of hours under power : 57.114 [h]
- Number of working hours : 23.087 [h]

Equipment

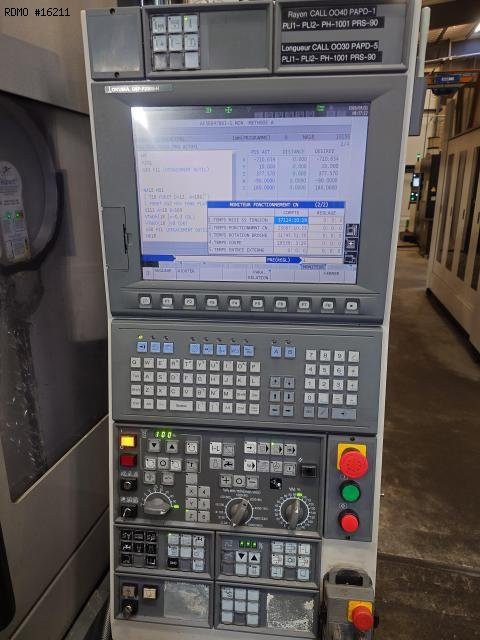

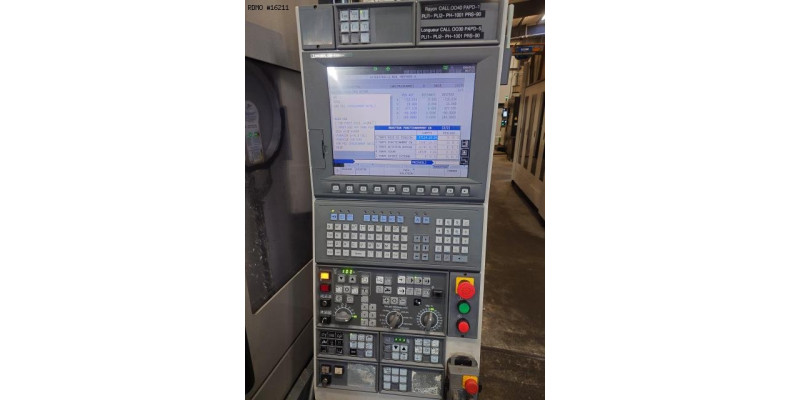

- CNC : OSP-P200M
- Turning option

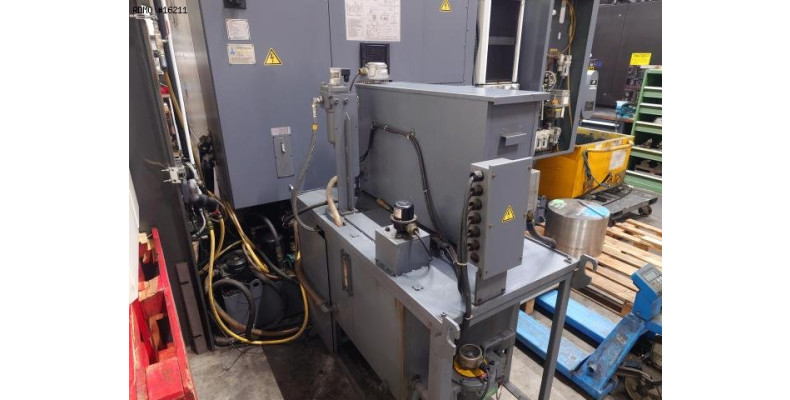

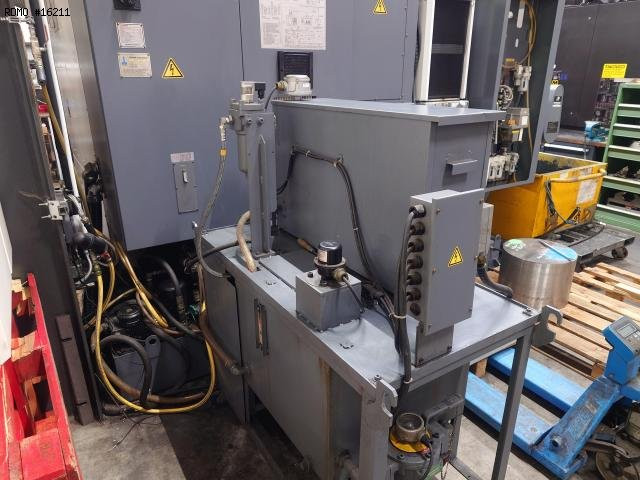

- Coolant tank
* with paper filtering unit
- Coolant through spindle
- Chips conveyor

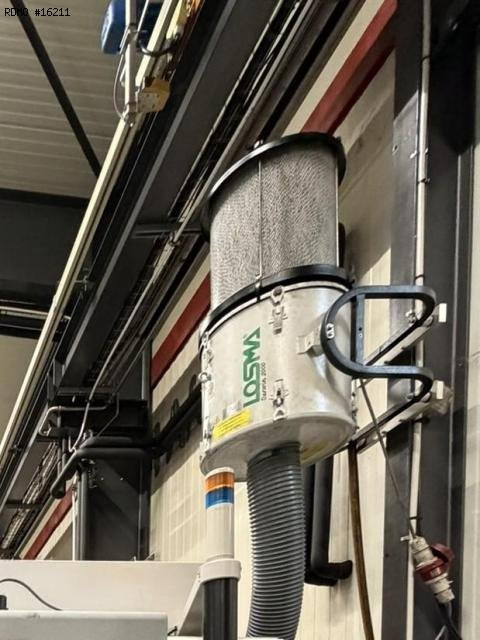

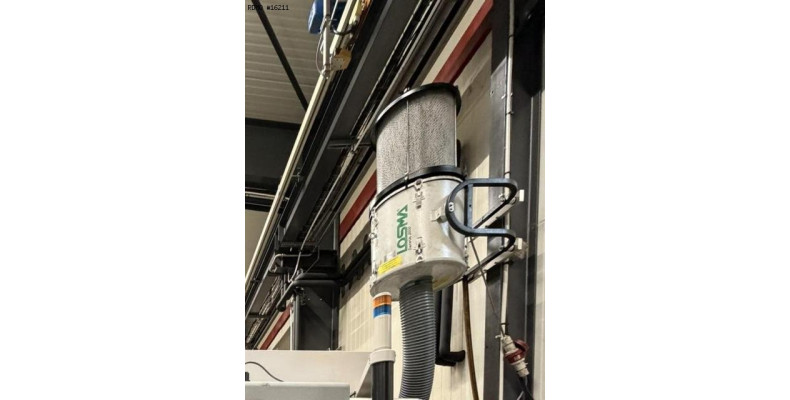

- Oil mist extractor : LOSMA

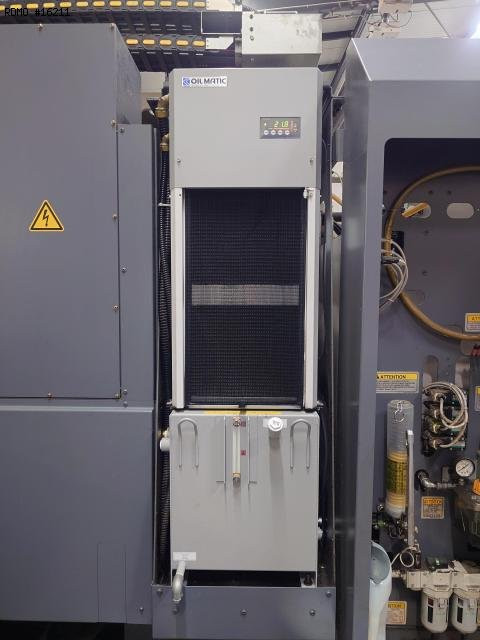

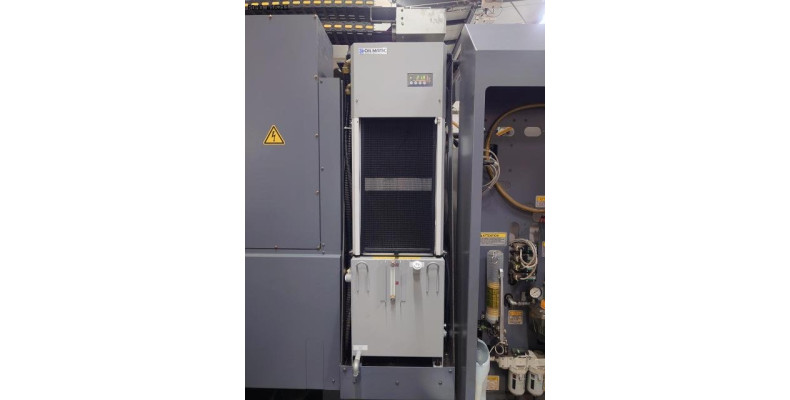

- Spindle cooling unit

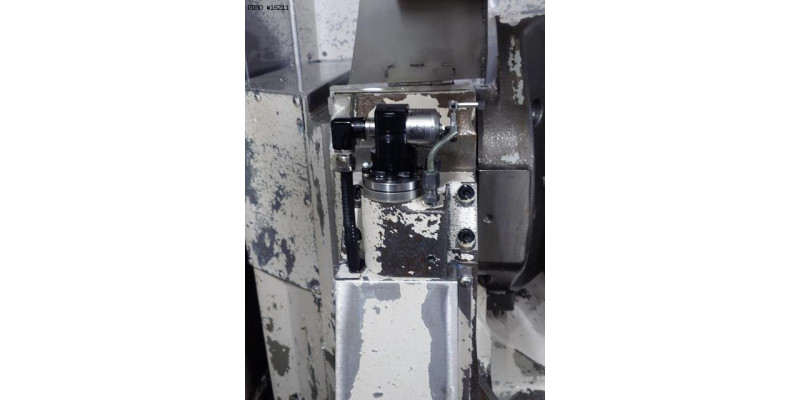

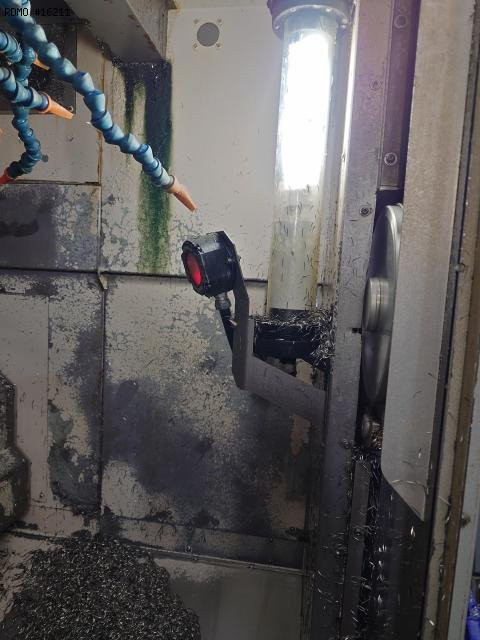

- Tool probe : RENISHAW TS27R
- Workpiece probe : RENISHAW OMP60
