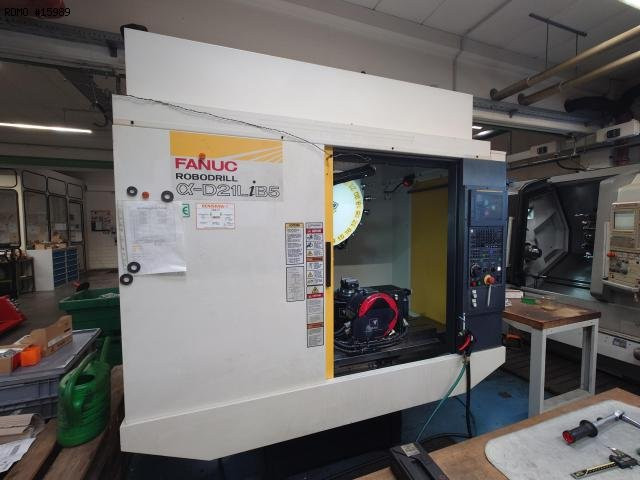

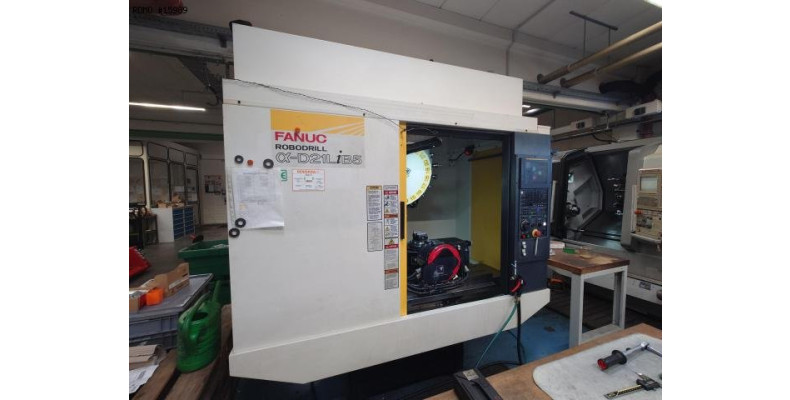

FANUC Robodrill Alpha-D21LiB5 5 axis

Name: Vertical machining center FANUC Robodrill Alpha-D21LiB5 5 axes
Brand: FANUC
Availability: InStock

Milling Vertical machining center

15989

PDF datasheet to download:

Brand: FANUC

Model: Robodrill Alpha-D21LiB5

Year: 2019

Serial: P198ZH173

15989

FANUC Robodrill Alpha-D21LiB5 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: FANUC

Model: Robodrill Alpha-D21LiB5

Year: 2019

Serial: P198ZH173

Ask Price

Caracteristics

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BBT 30 (Big-Plus)
- Spindle power : 12 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES

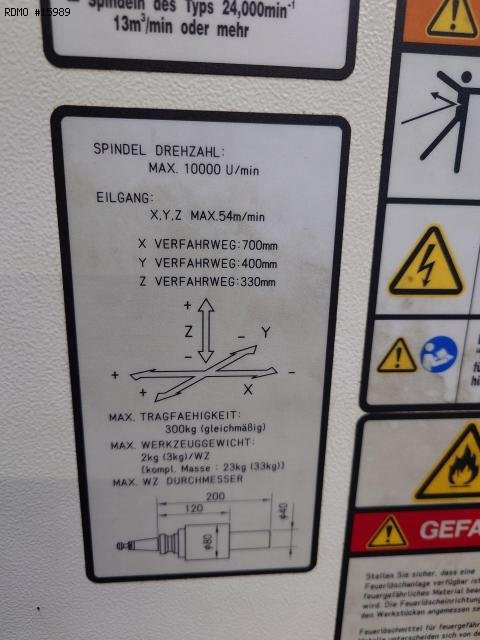

- Travels on X/Y/Z axes : 700/400/330 [mm]
- Rapid traverses rates (X/Y/Z) : 54 [m/min]
- Cutting feed rates (X/Y/Z) : 1-30000 [mm/min]

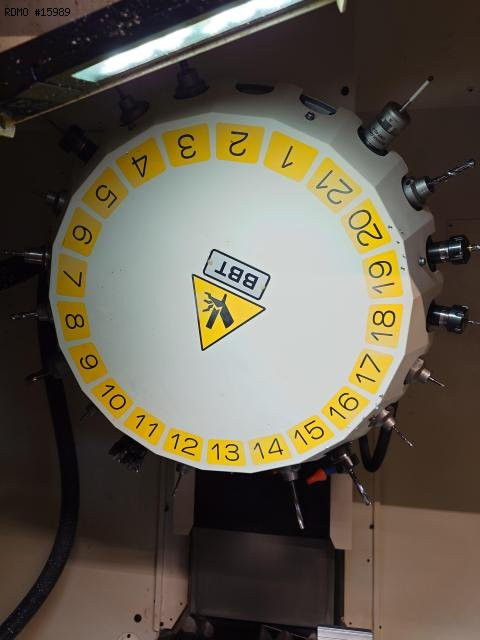

TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
TABLE
- Table dimensions : 850 x 410 [mm]
- Maximum weight upon table : 300 [kg]
- Distance table / spindle nose (min./max.) : 250-580 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2165 X 2087 [mm]
- Machine height : 2345 [mm]
- Machine weight : 2000 [kg]

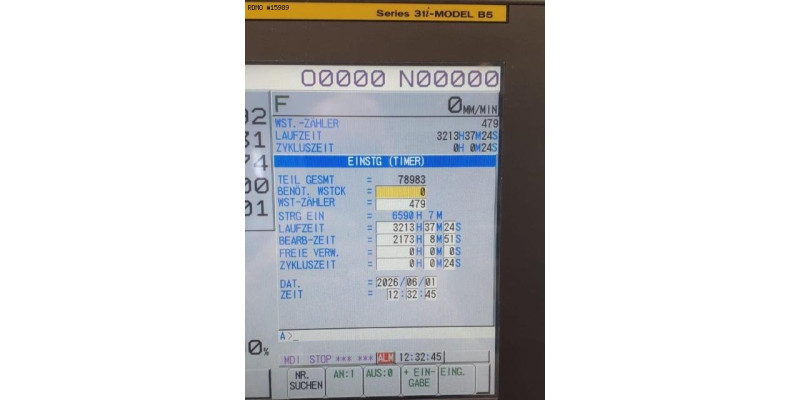

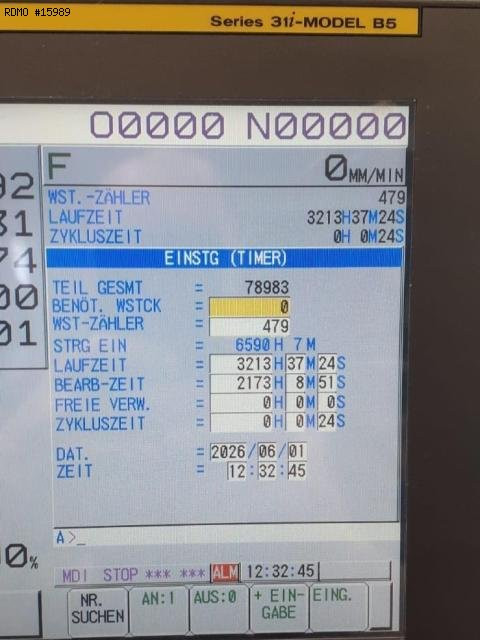

MACHINE HOURS
- Number of working hours : 3207 [h]

Equipment

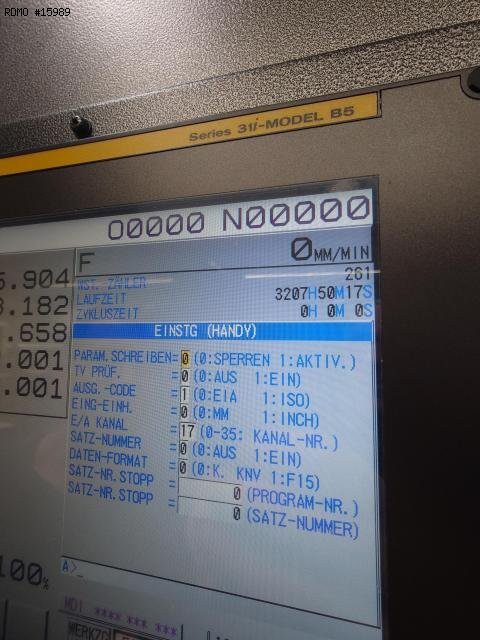

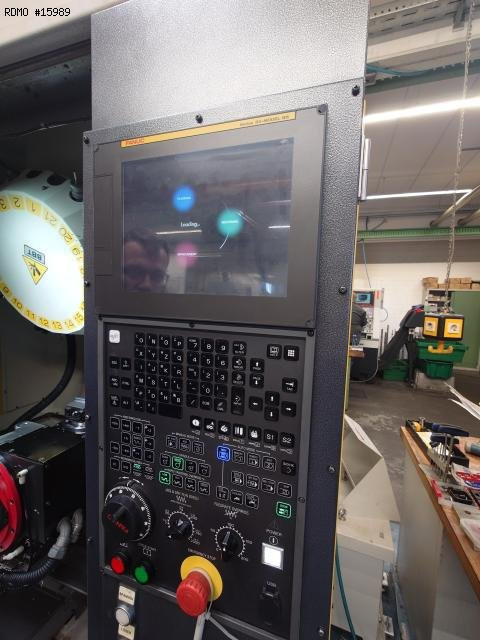

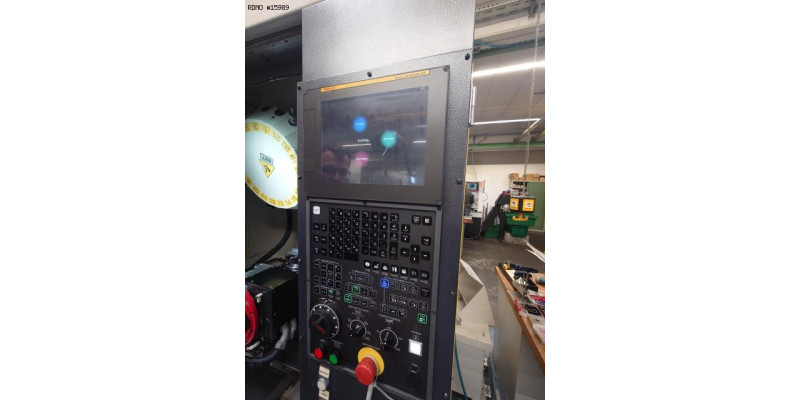

- CNC : Fanuc 31i model B5
- 3 colors status lamp

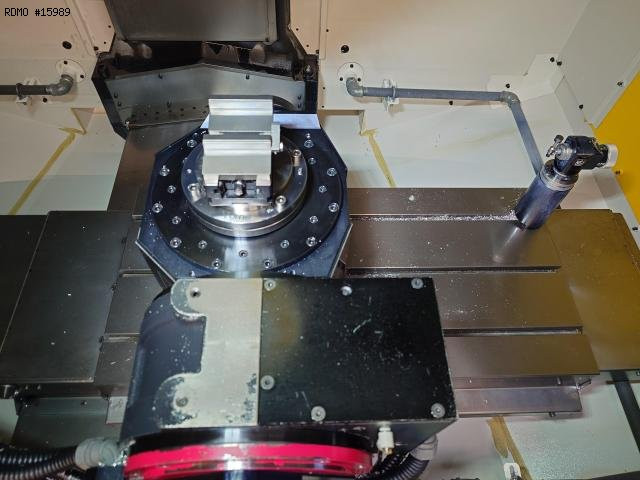

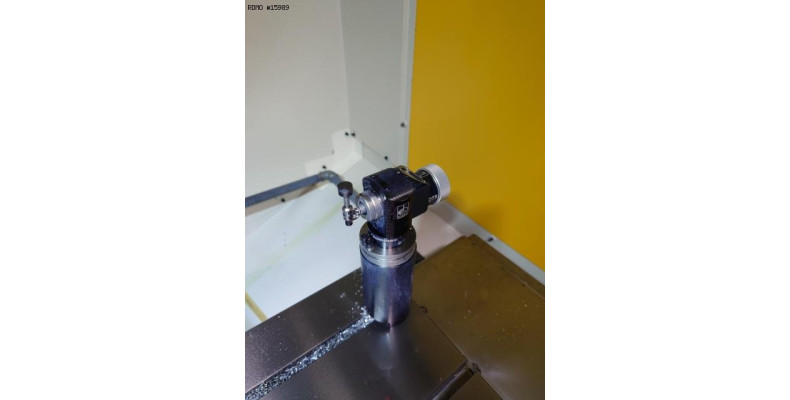

DIVIDING UNIT
* manufacturer : Häberle
* model : DTTiB
* travel 4th axis : 360 [°]
* indexing precision 4th axis : 0.001 [°]
* travel 5th axis : -7/+100 [°]
* indexing precision 5th axis : 0.001 [°]

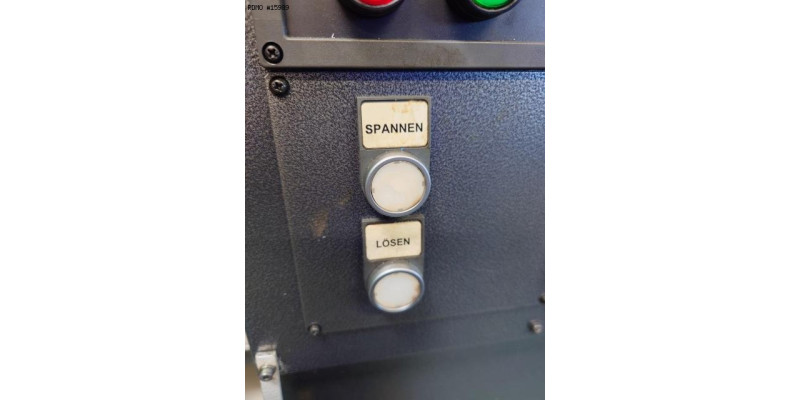

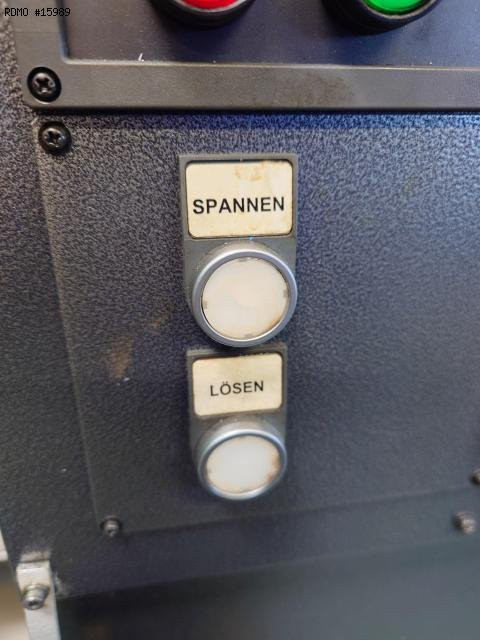

* tightening type : Pneumatique
- Coolant tank
* with high-pressure pump : 15 [bars]
- Coolant through spindle

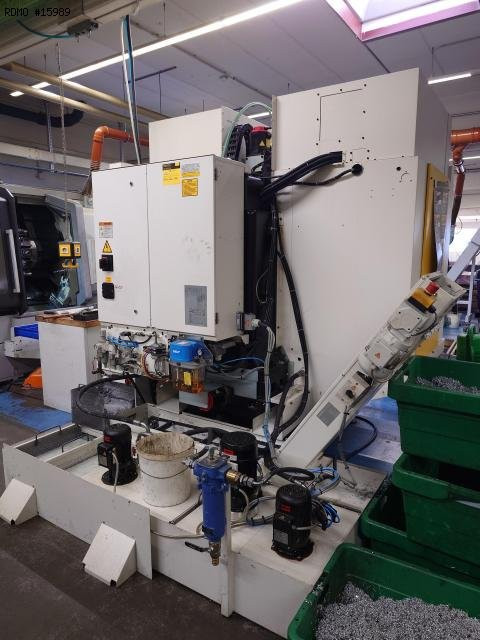

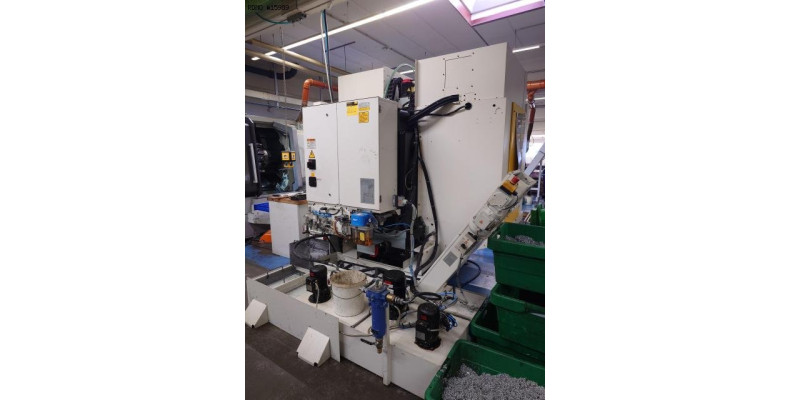

- Chips conveyor : ARRIERE

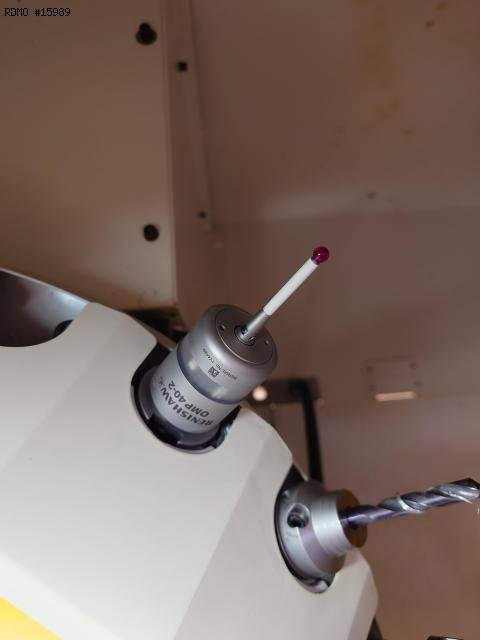

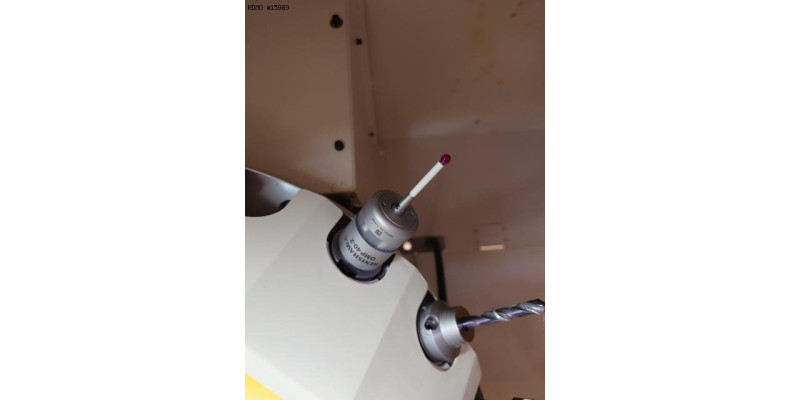

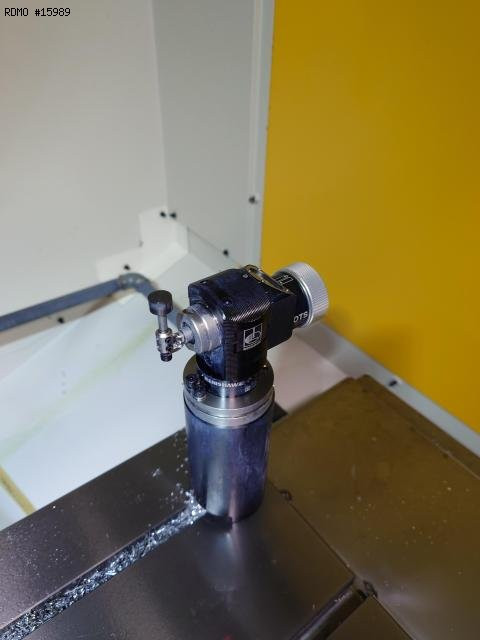

- Tool probe : Renishaw
- Workpiece probe : Renishaw
- Electric transformer
- Milling vice
- Tool-holders
