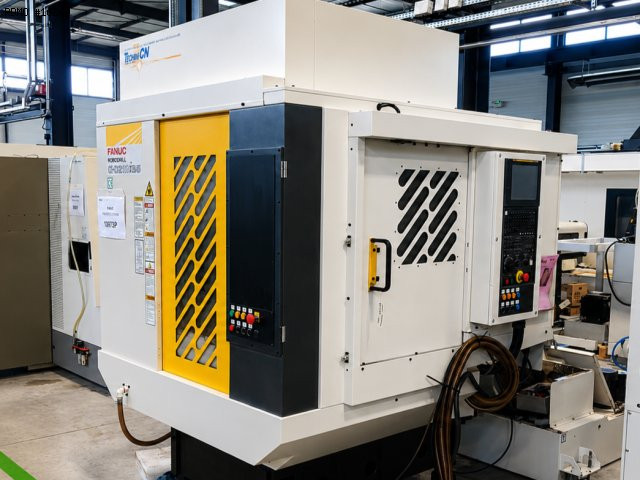

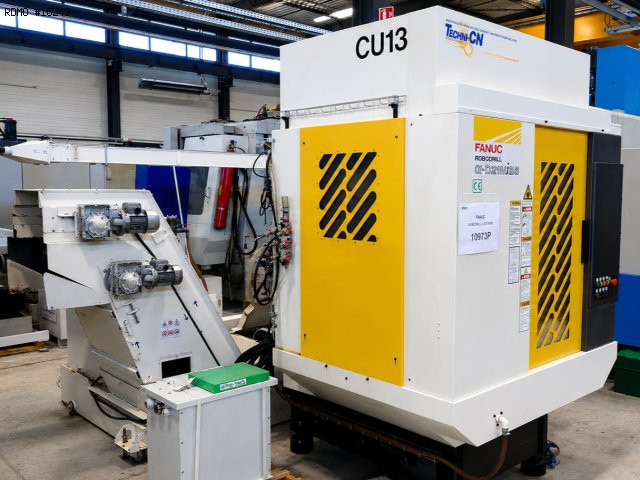

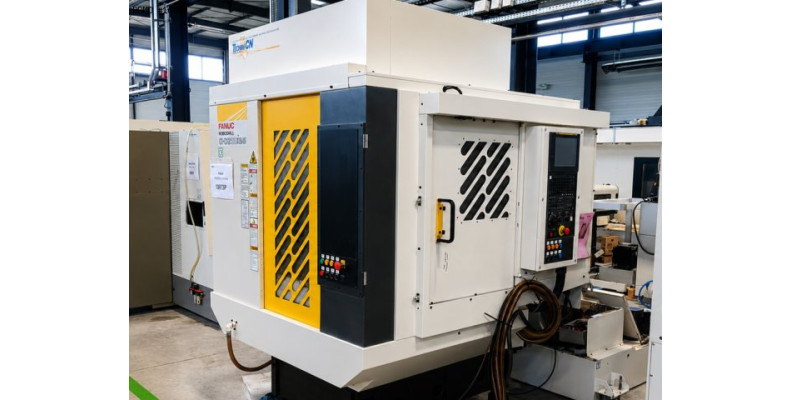

FANUC ROBODRILL α-D21MiB5 4 axis

- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BBT 30 (Big-Plus)
- Spindle power : 12 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/400/330 [mm]
- Rapid traverses rates (X/Y/Z) : 54 [m/min]
- Cutting feed rates (X/Y/Z) : 1-30.000 [mm/min]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
TABLE
- Table dimensions : 650 x 400 [mm]
- Maximum weight upon table : 300 [kg]
- Distance table / spindle nose (min./max.) : 250-580 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 11 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1565 X 2027 [mm]
- Machine height : 2325 [mm]
- Machine weight : 2200 [kg]
MACHINE HOURS

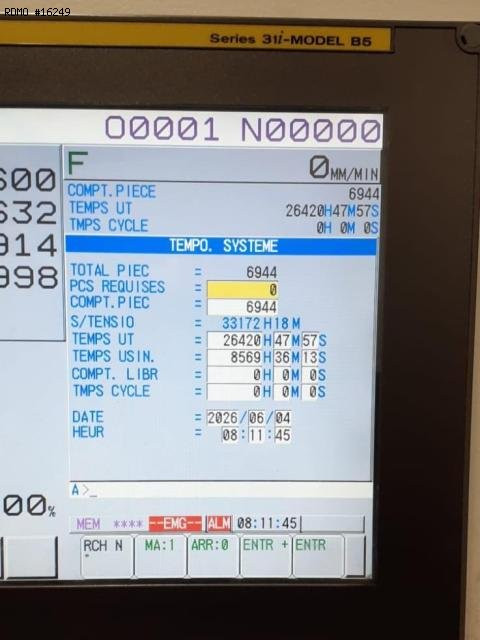

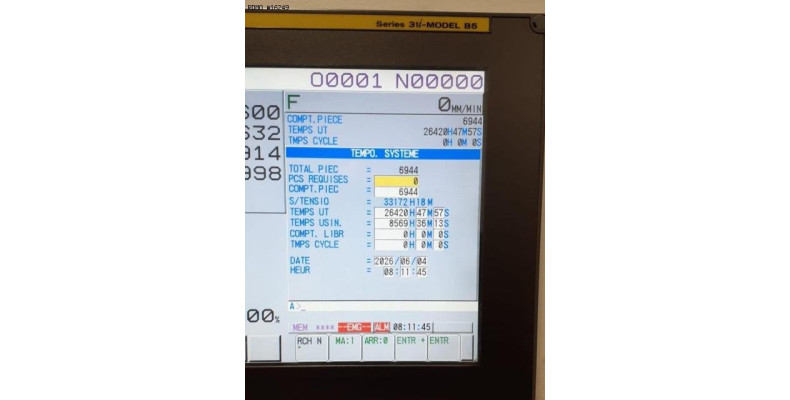

- Number of hours under power : 33172 [h]
- Number of working hours : 8569 [h]

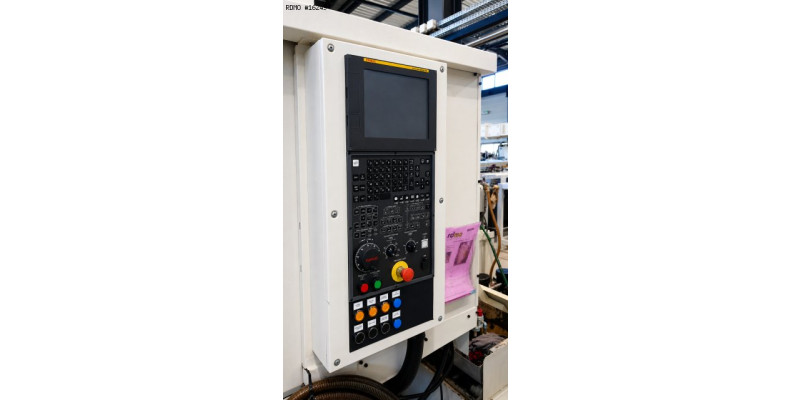

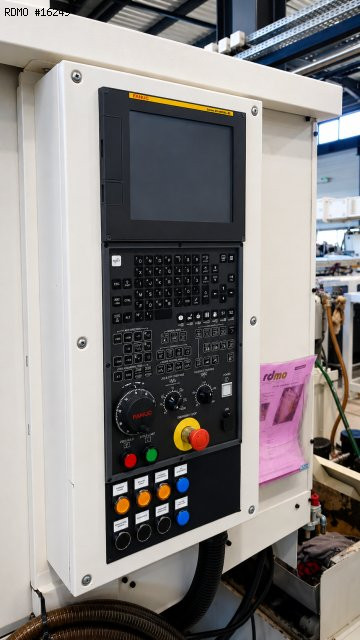

- CNC : Fanuc 31i-Model B5
- 3 colors status lamp

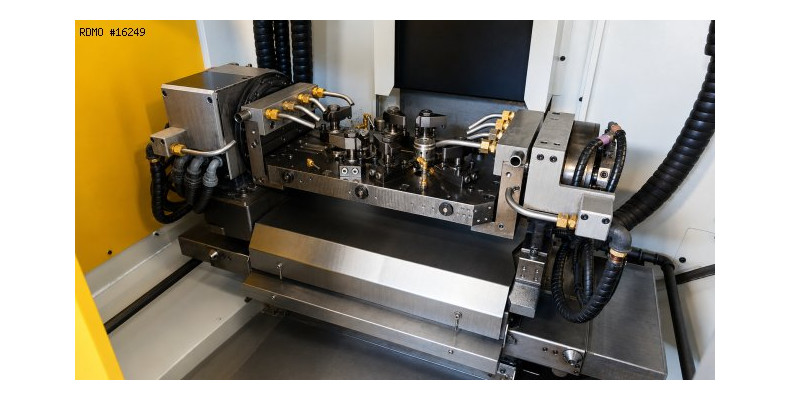

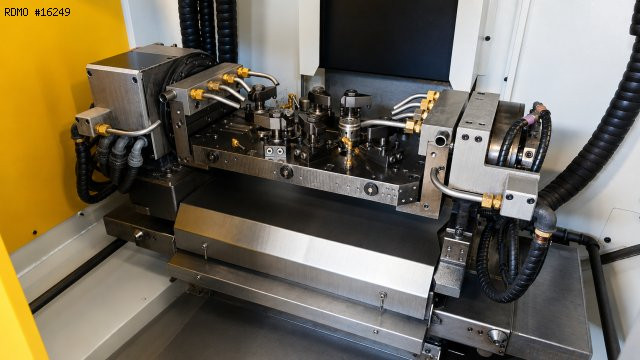

- Type of divisor : 4e axe CNC intégré

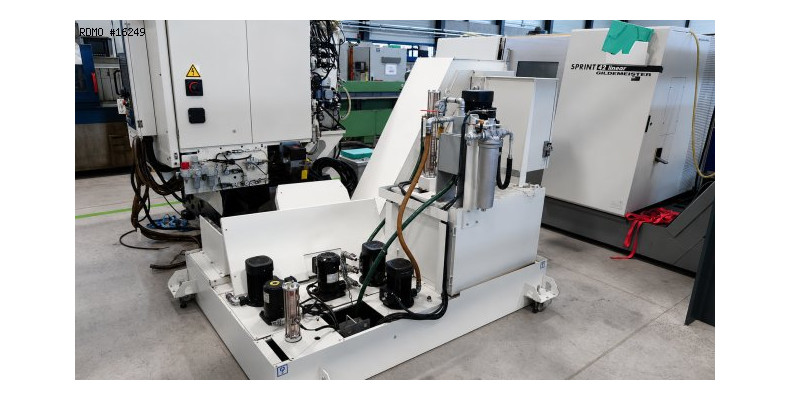

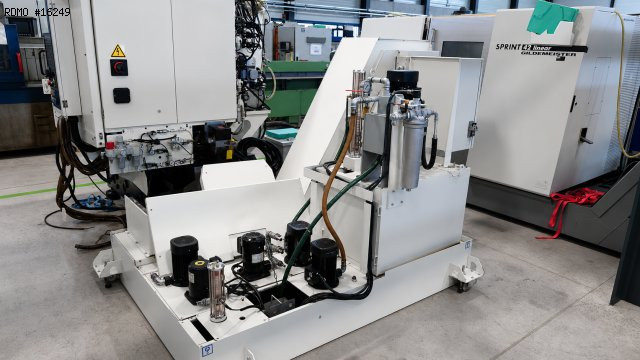

- Coolant tank
- Coolant through spindle

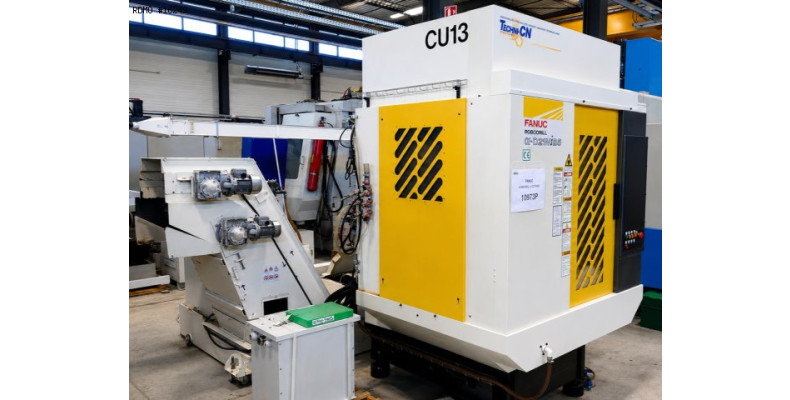

- Chips conveyor : ARRIERE
- Oil mist extractor
