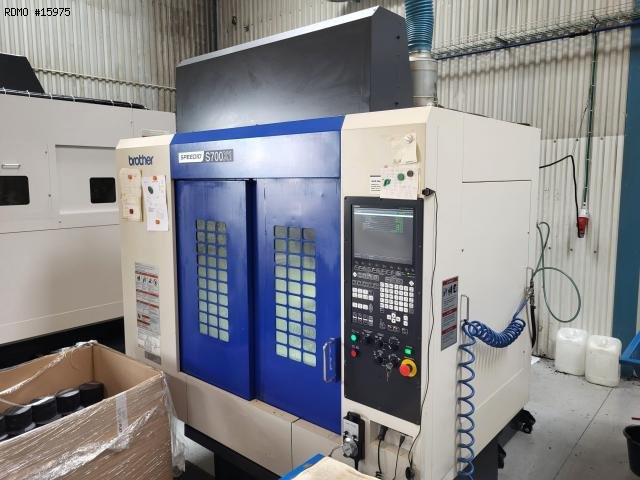

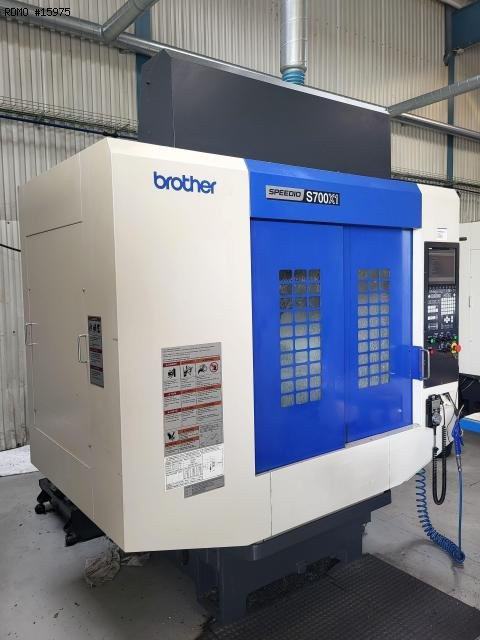

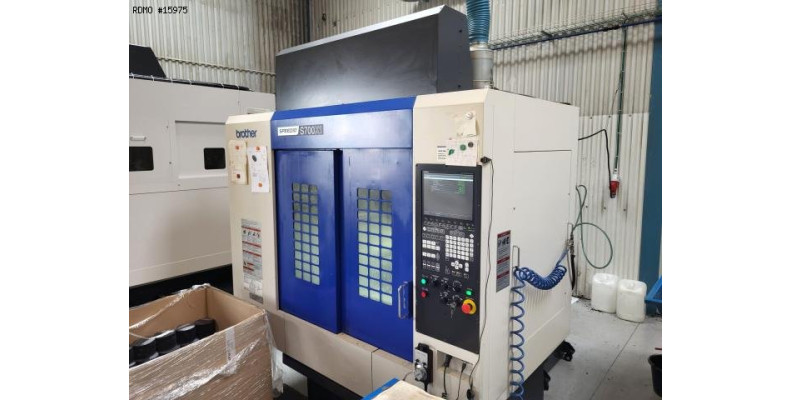

BROTHER Speedio S700 X1 4 axis

- Number of axes : 4

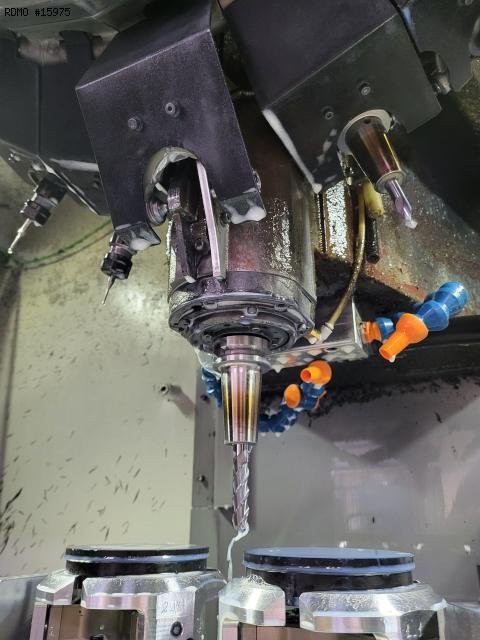

MILLING SPINDLE
- Tool holder type : BT30
- Spindle power : 4,9 [kW]
- Spindle speeds : 16.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 700 x 400 x 300 [mm]
- Rapid traverses rates (X/Y/Z) : 50 / 50 /56 [m/min]
- Cutting feed rates (X/Y/Z) : 1 - 30.000 [mm/min]
- Distance table / spindle nose (min./max.) : 330 - 630 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
- Tool exchange time : 0,8 [sec]
TABLE
- Table dimensions : 800 x 400 [mm]
- Maximum weight upon table : 250 [kg]
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 9,5 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.050 x 2.220 [mm]
- Machine height : 2.497 [mm]
- Machine weight : 2.400 [kg]
MACHINE HOURS
- Number of hours under power : 23.456 [h]
- Number of working hours : 16.703 [h]

- CNC : Brother CNC-C00
- Interface : Ethernet / USB
- Electronic handwheel
- CNC option : extanded Memory 500 Mo
- CNC option : High accuracy mode BⅡ

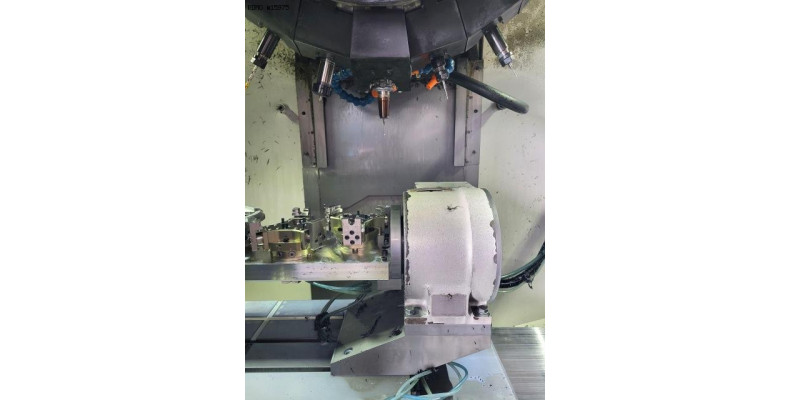

- Type of divisor : 4e axe CNC intégré
* manufacturer : YUKIWA
* model : DRC170-EU
* travel 4th axis : 360 [°]
* indexing precision 4th axis : 0,001 [°]
* clamping diameter : 140 [mm]
* center height : 135 [mm]
* with counter bearing
* Coolant tank : 150 [l]
* with high-pressure pump : 15 [bars]
* With cabin washing
- Coolant through spindle
- Tool probe
- Electric transformer
