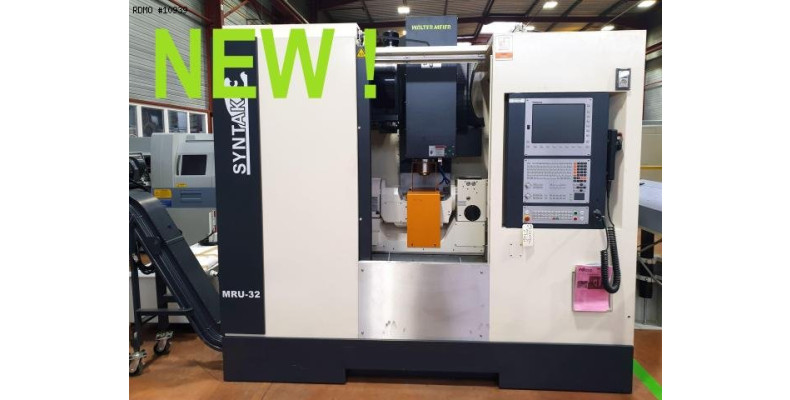

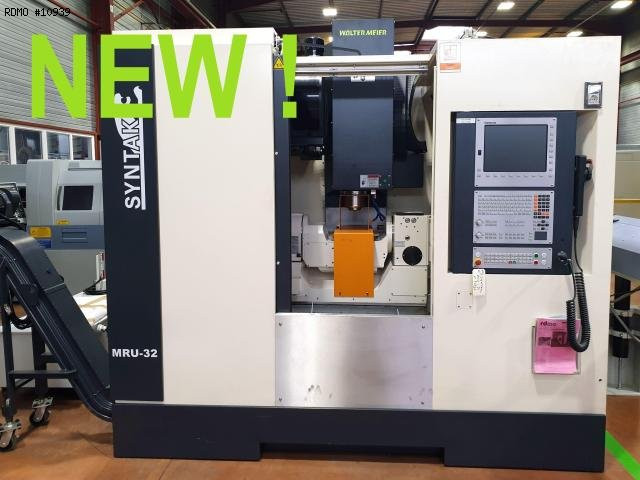

SYNTAK MRU-32 5 axis

Milling Vertical machining center

10939

PDF datasheet to download:

Brand: SYNTAK

Model: MRU-32

Year: 2014

Serial: SYN-036

10939

SYNTAK MRU-32 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: SYNTAK

Model: MRU-32

Year: 2014

Serial: SYN-036

Ask Price

Caracteristics

- Number of axes : 5

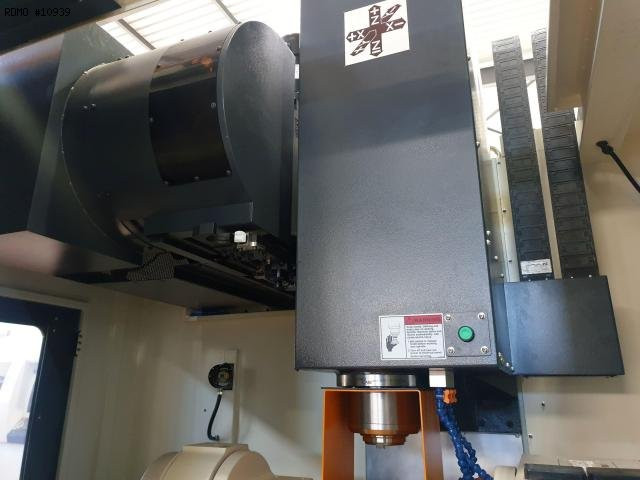

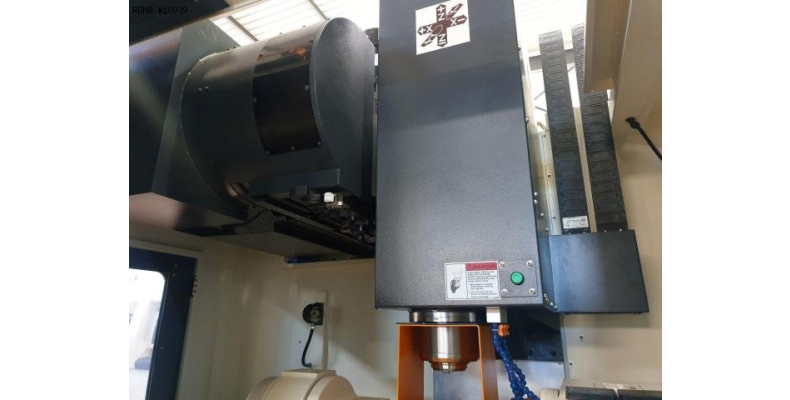

MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 18,5 [kW]
- Spindle speeds : 12.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 700/600/500 [mm]
- Rapid traverses rates (X/Y/Z) : 30 [m/min]

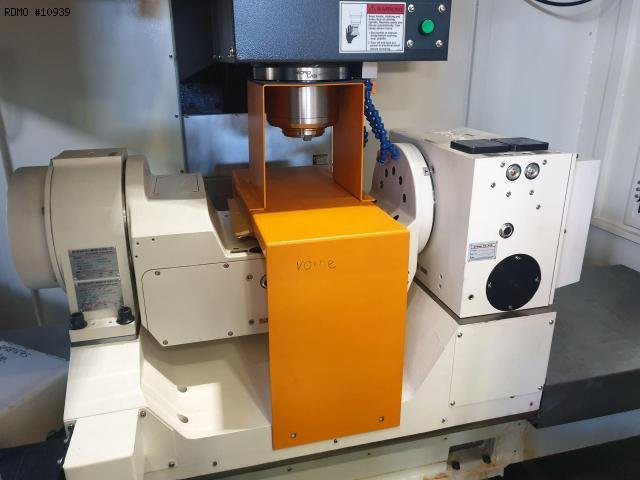

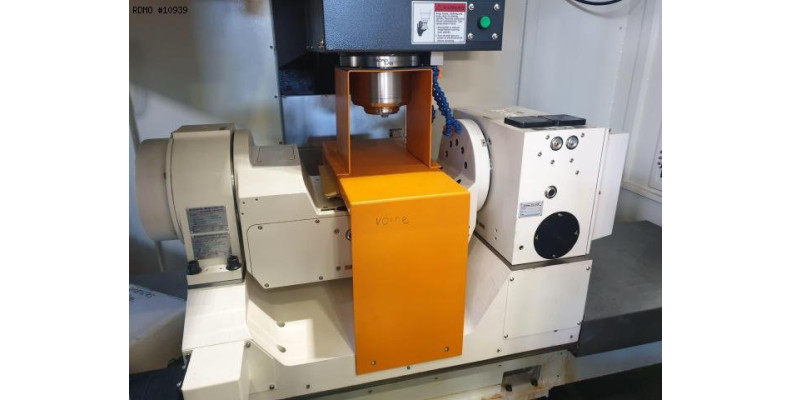

A ROTARY AXIS
- Travel : -120/+30 [°] (+/-)
- Indexing precision : 0.001 [°]
B ROTARY AXIS
- Travel : 360 [°] (+/-)
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 40
TABLE
- Table dimensions : 320 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2650X2200 [mm]
- Machine height : 2500 [mm]
- Machine weight : 6500 [kg]

Equipment

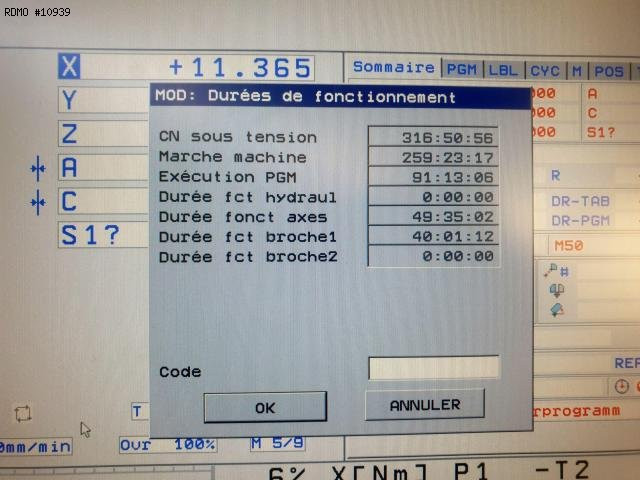

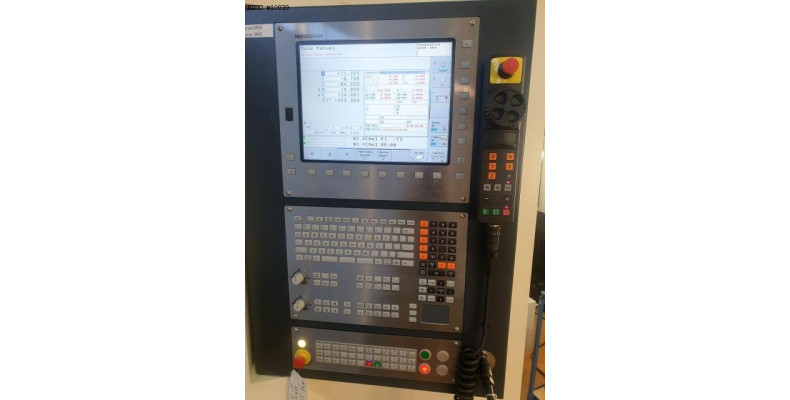

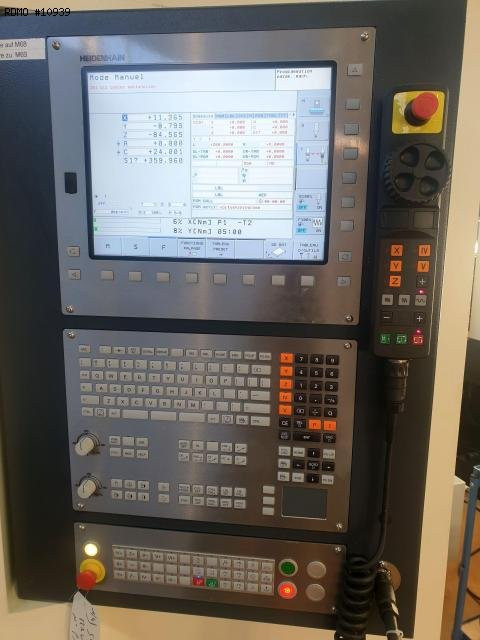

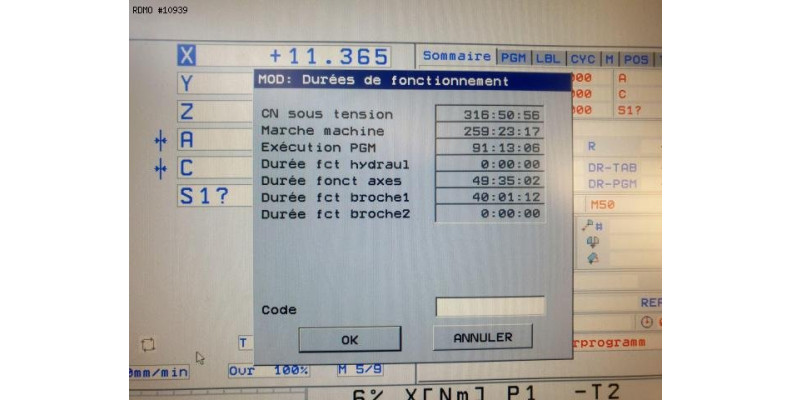

- CNC : Heidenhain iTNC-620
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp

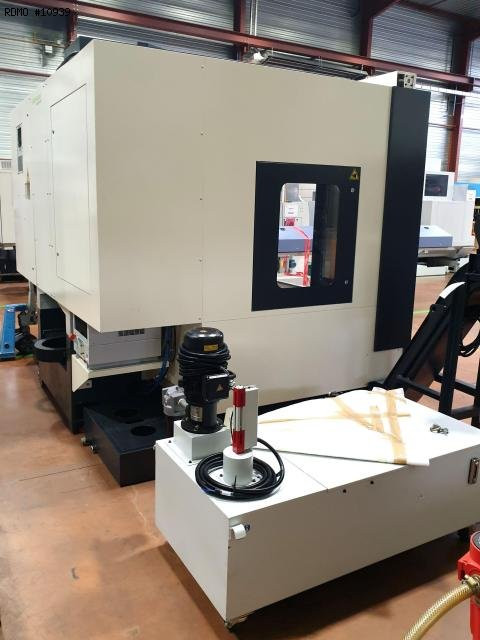

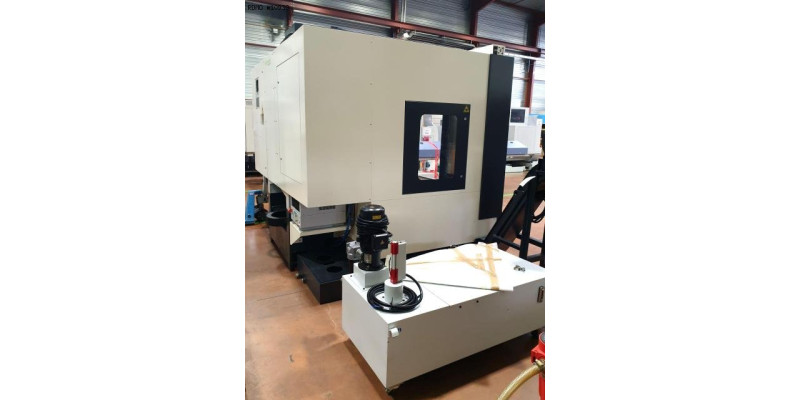

- Coolant tank
* with high-pressure pump : 20 [bars]
- Coolant through spindle
- Chips conveyor

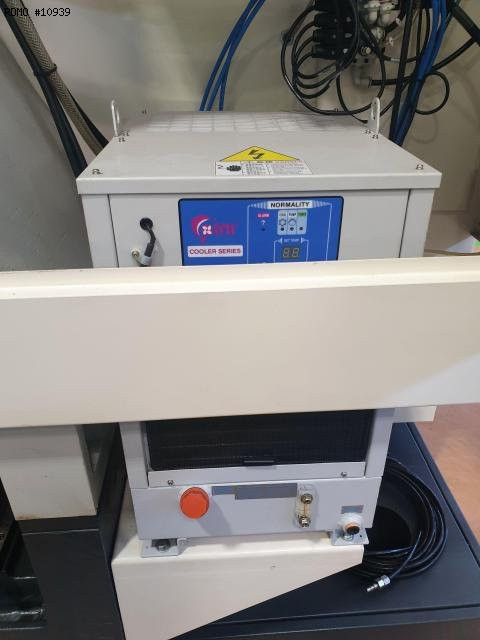

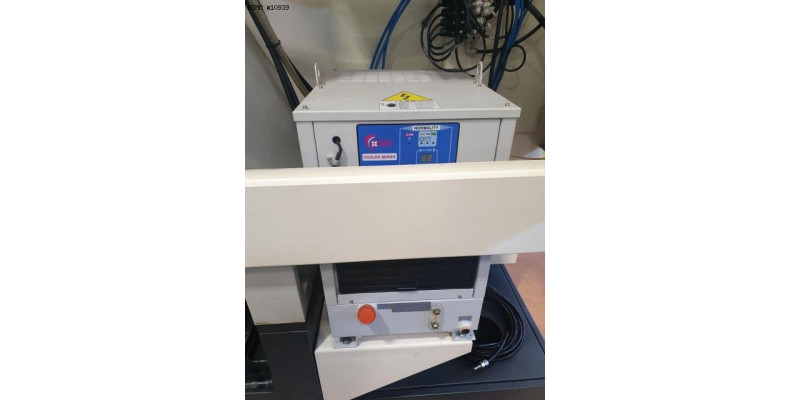

- Spindle cooling unit

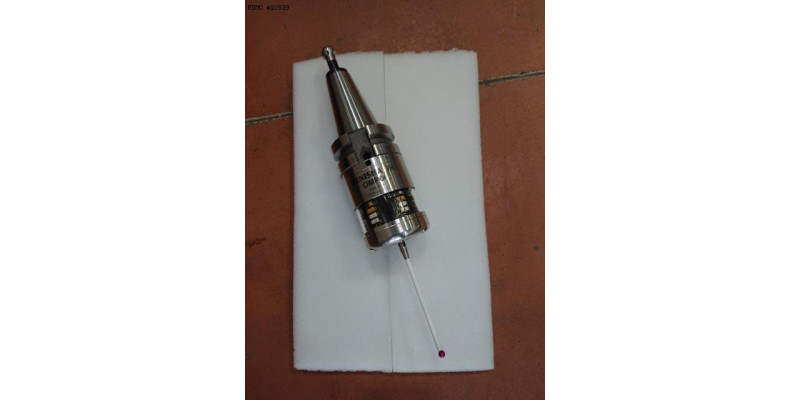

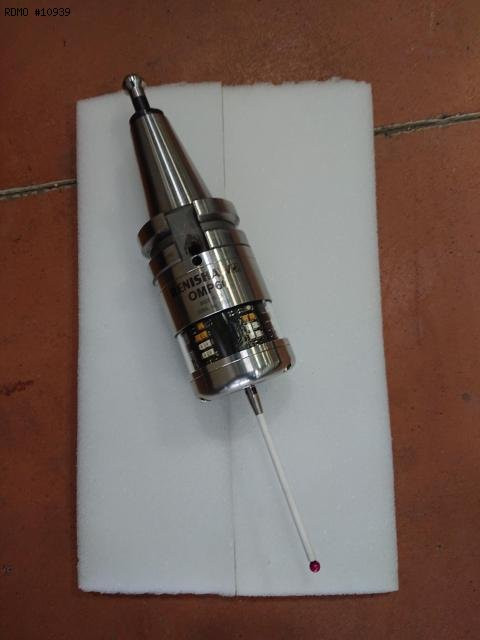

- Workpiece probe : Renishaw OMP 60
