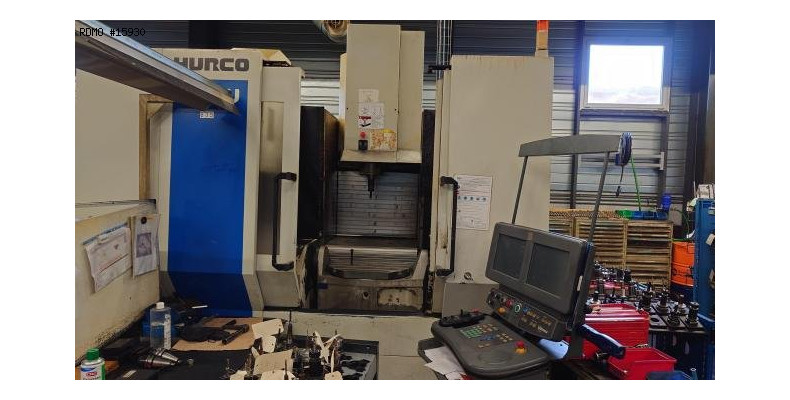

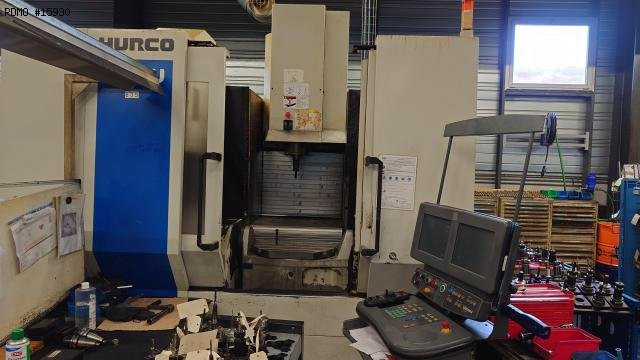

HURCO VTXU 5 axis

Name: Vertical machining center HURCO VTXU 5 axes
Brand: HURCO
Availability: InStock

Milling Vertical machining center

15930

PDF datasheet to download:

Brand: HURCO

Model: VTXU

Year:

Serial: MU43-01402047AGC

15930

HURCO VTXU 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: HURCO

Model: VTXU

Year:

Serial: MU43-01402047AGC

Ask Price

Caracteristics

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BT40
- Spindle speeds : 12000 [rpm]
- Spindle power : 18 [kW]
LINEAR AXES
- Travels on X/Y/Z axes : 800 / 700 / 510 [mm]
- Rapid traverses rates (X/Y/Z) : 35 / 35 / 35 [mm/min]
A ROTARY AXIS
- Travel : -110 / +30 [°]
- C ROTARY AXIS
- Travel : 360 [°]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 32
TABLE
- Table dimensions : 610 x 530 [mm]
- Maximum weight upon table : 350 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4.000 x 2.700 [mm]
- Machine height : 2.600 [mm]

Equipment

- CNC : Hurco Ultimax
- Interactive programming
- Electronic handwheel
- Coolant tank
