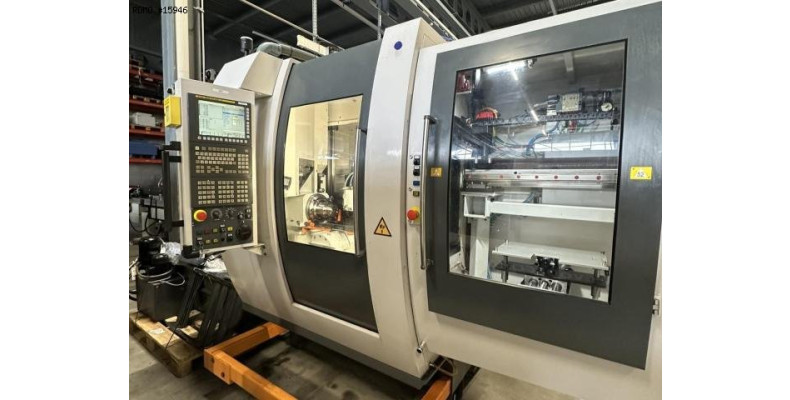

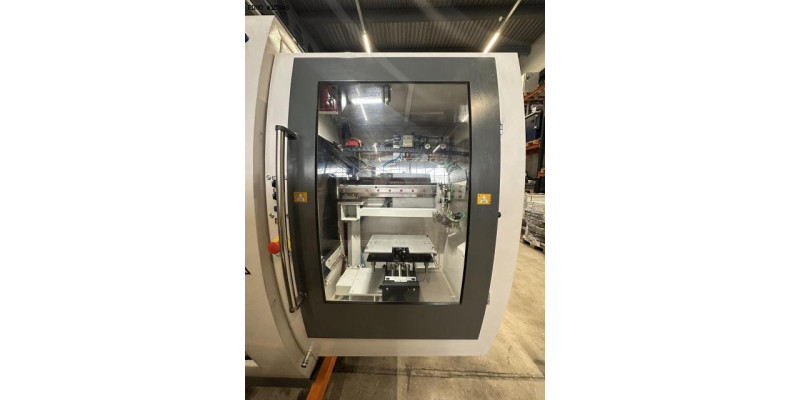

WILLEMIN MACODEL W 508 MT

- Number of axes : 5

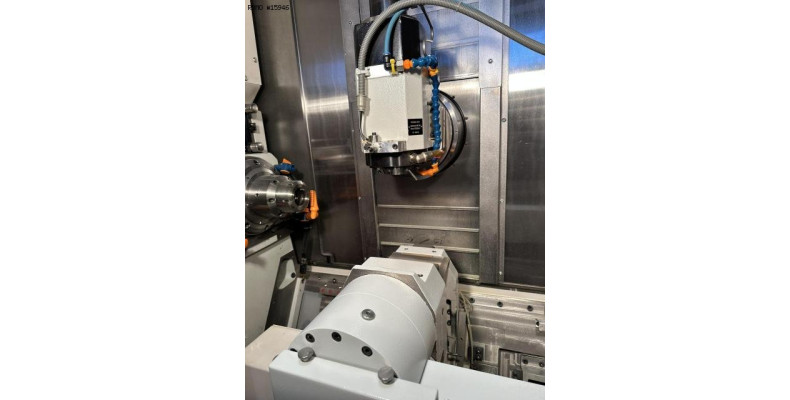

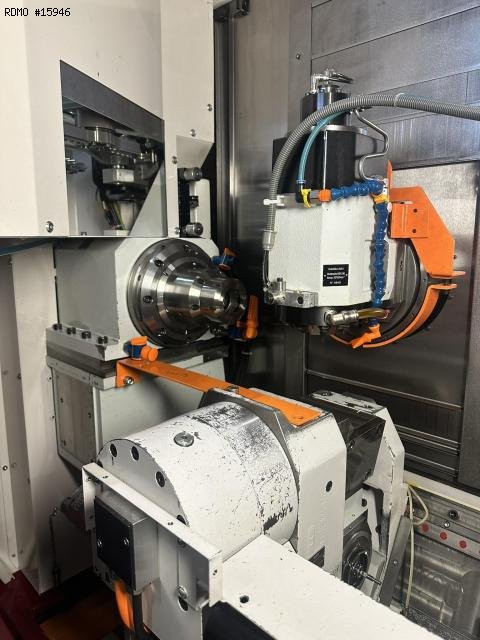

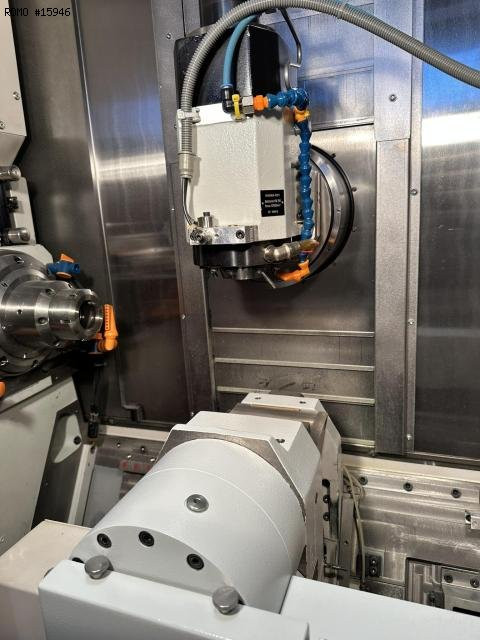

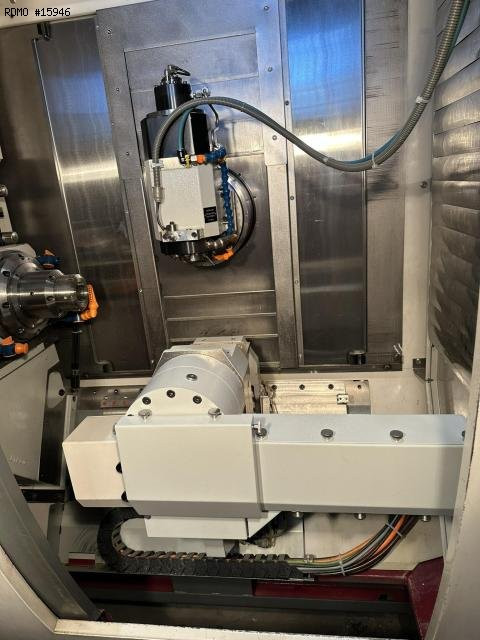

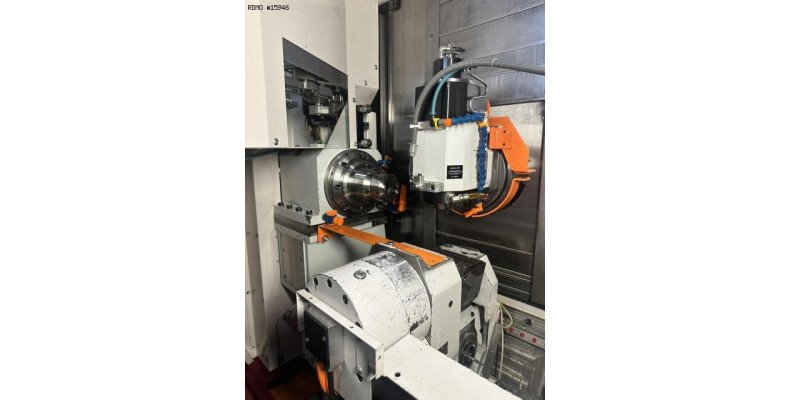

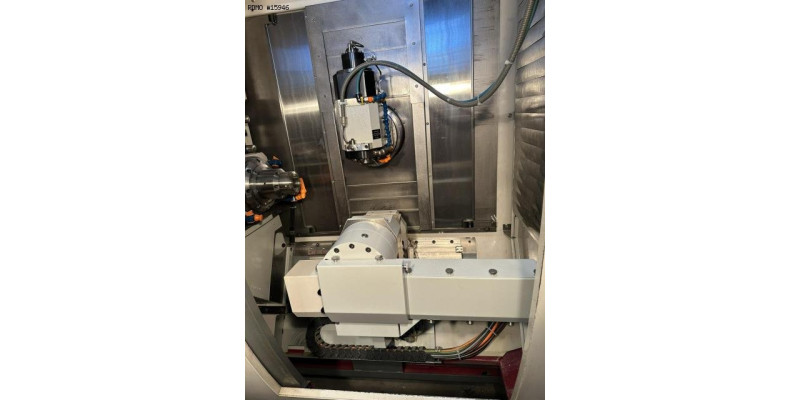

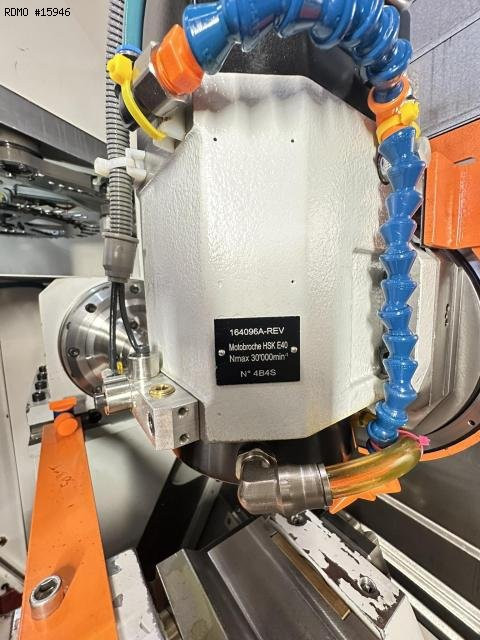

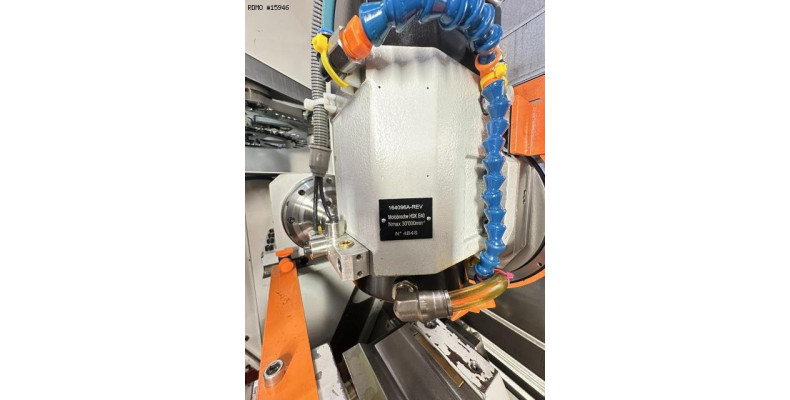

MILLING SPINDLE
- Tool holder type : HSK-E40
- Spindle power : 10/15 [kW]
- Spindle speeds : 30000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 450/200/425 [mm]
- Rapid traverses rates (X/Y/Z) : 40 [m/min]
B ROTARY AXIS
- Travel : -15/+100 [°]
- Indexing precision : 0.0001 [°]

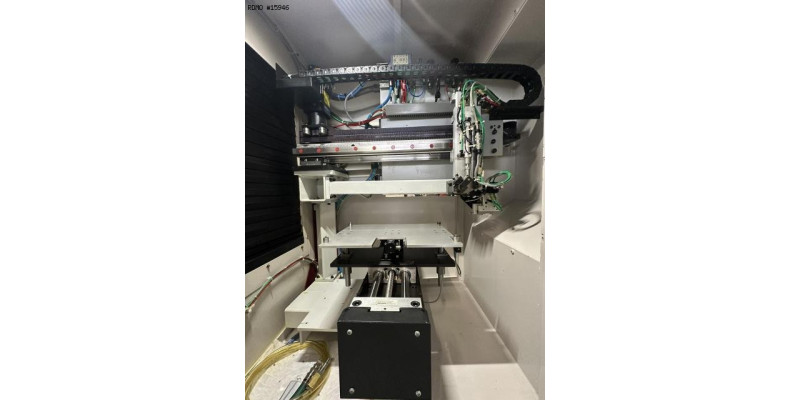

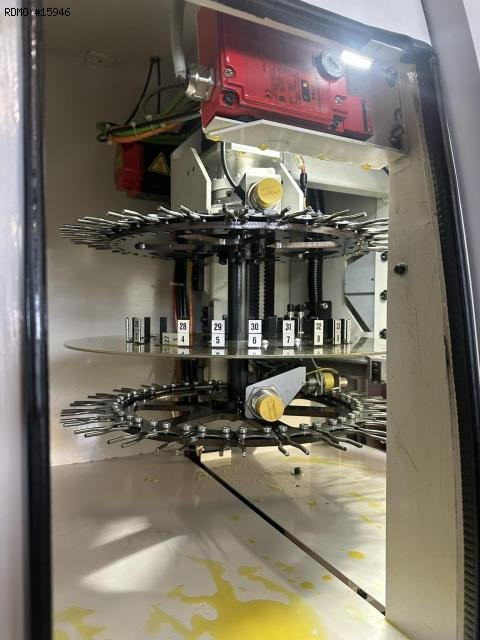

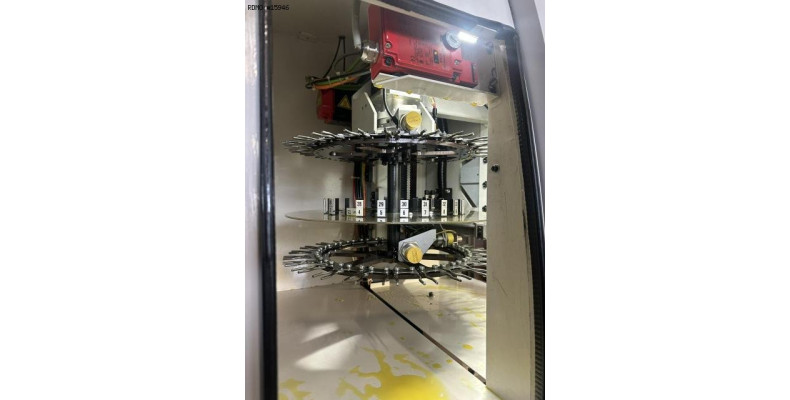

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 48

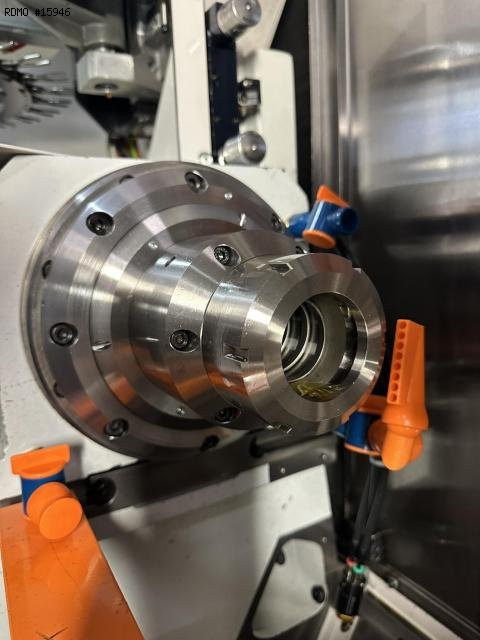

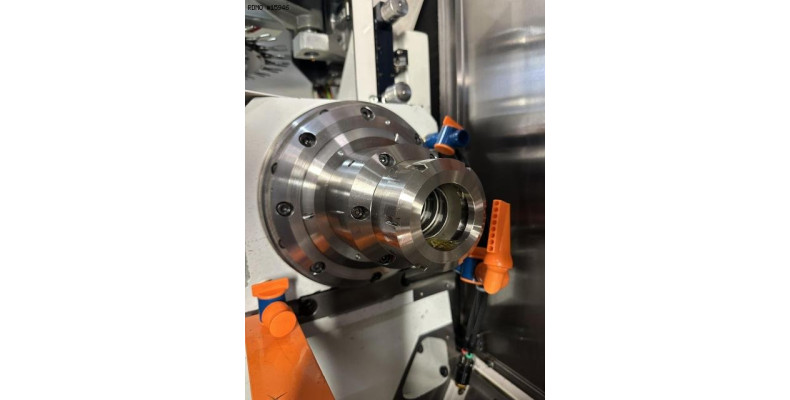

TURNING SPINDLE
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 42 [mm]
WEIGHT & DIMENSIONS
- Machine floor space : 3150 x2650 [mm]
- Machine height : 2600 [mm]
- Machine weight : 2500 [kg]
MACHINE HOURS
- Number of working hours : 22309 [h]

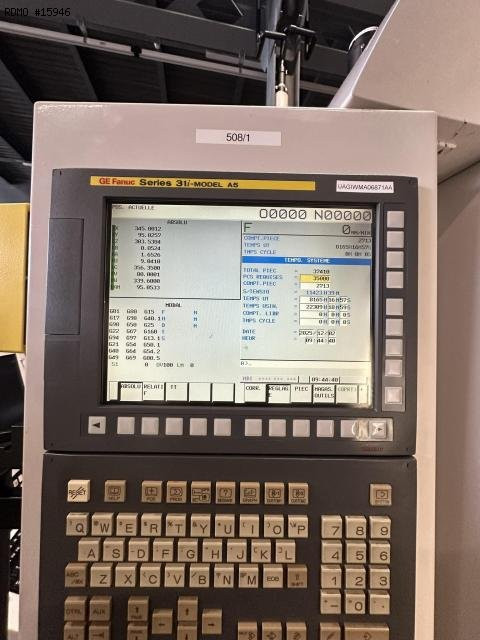

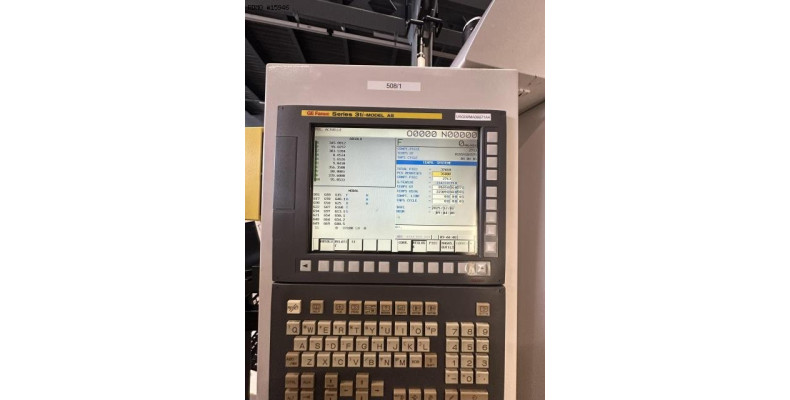

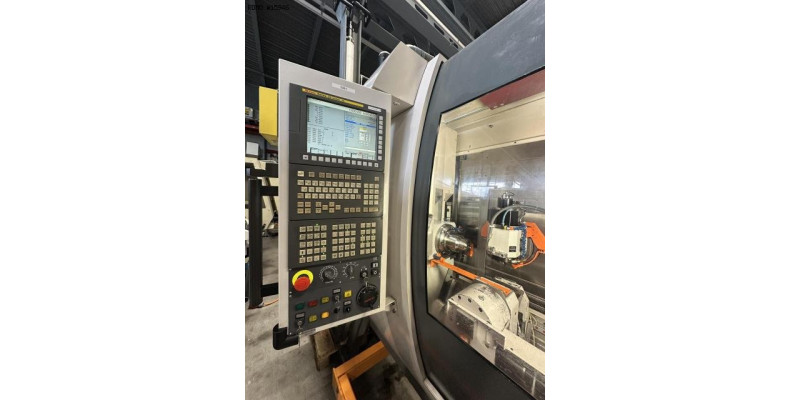

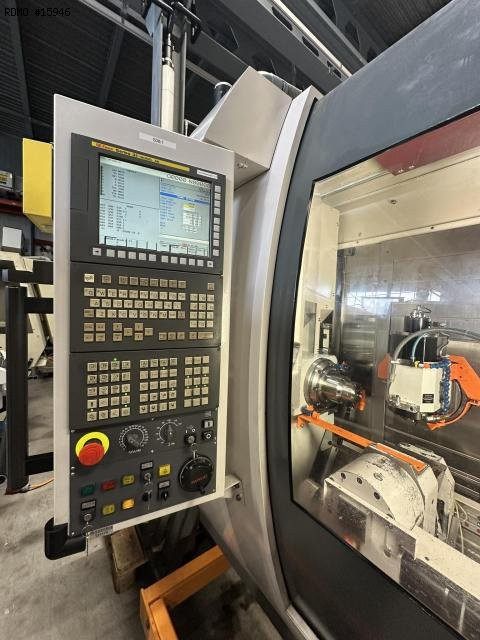

- CNC : Fanuc 31i-Model A5
- 3 colors status lamp

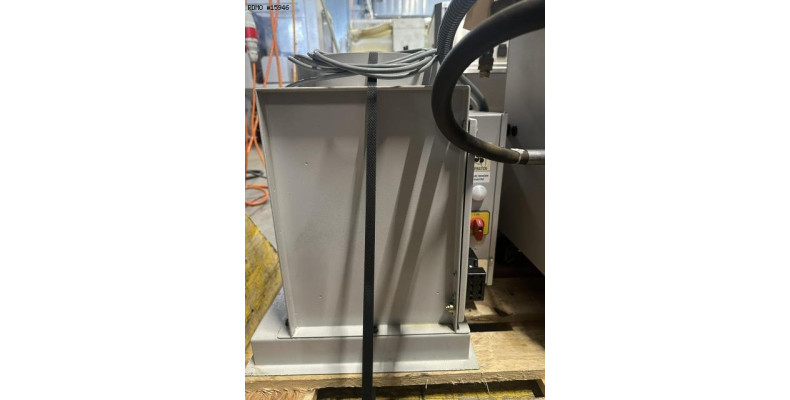

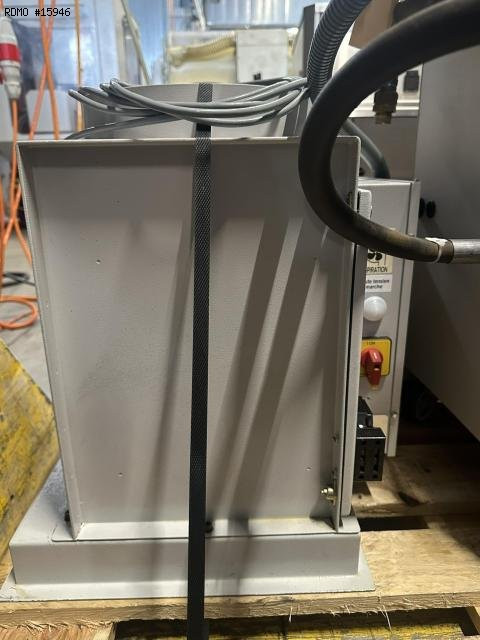

- Coolant tank

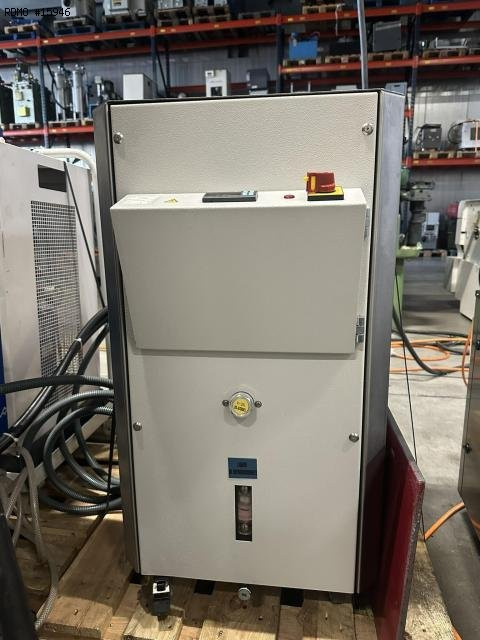

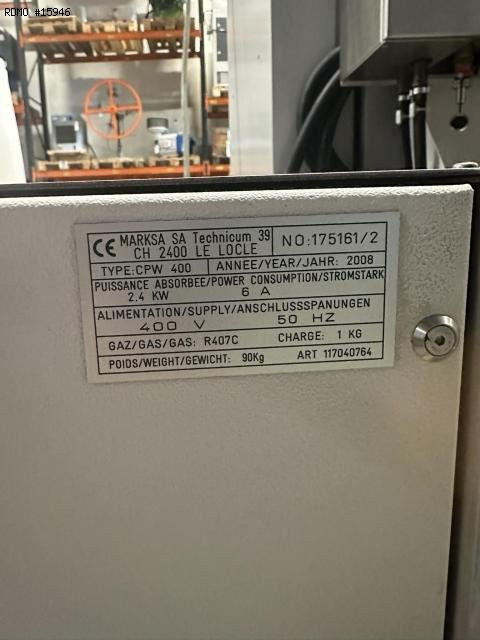

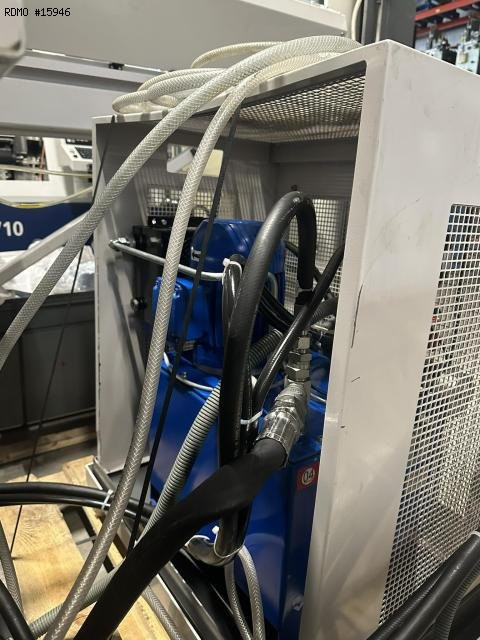

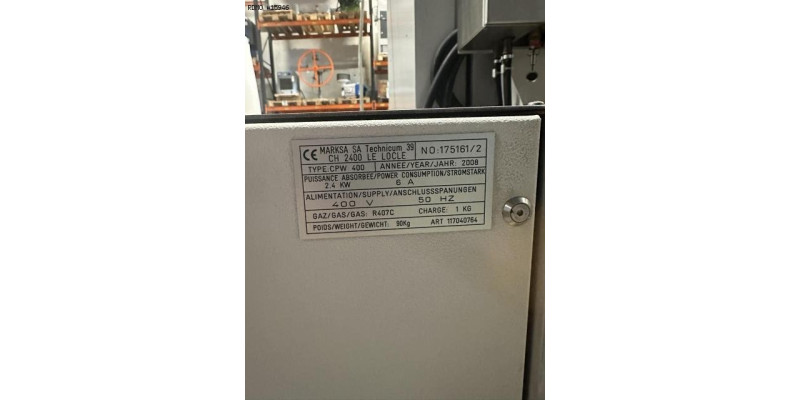

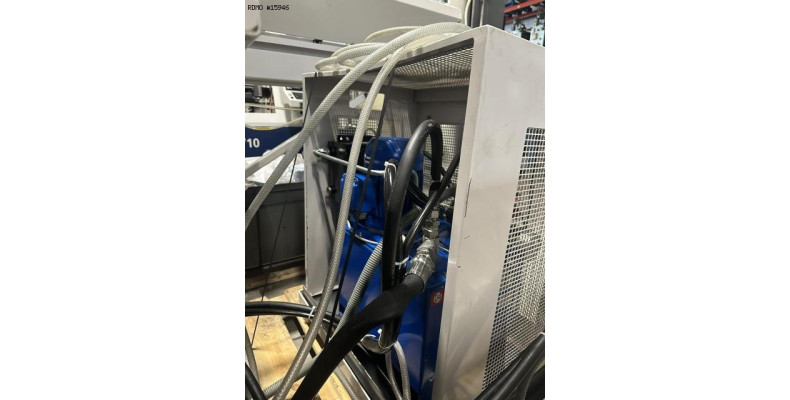

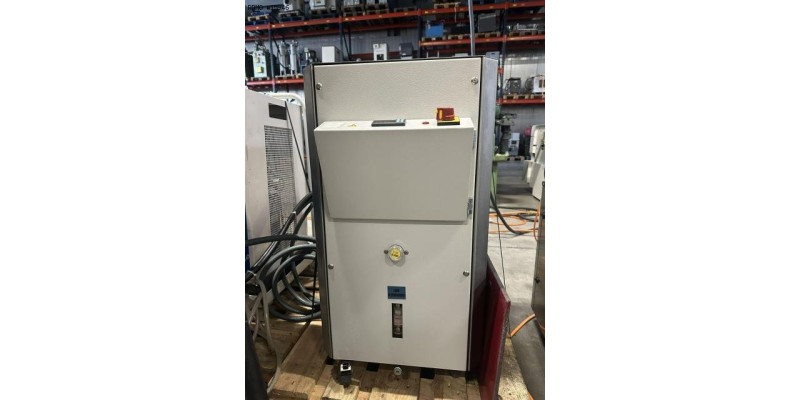

* with cooling unit for coolant
- Oil mist extractor

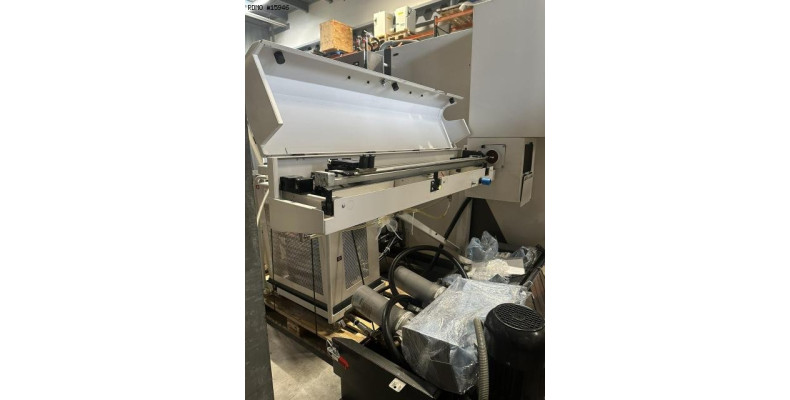

- Bar loader : -
