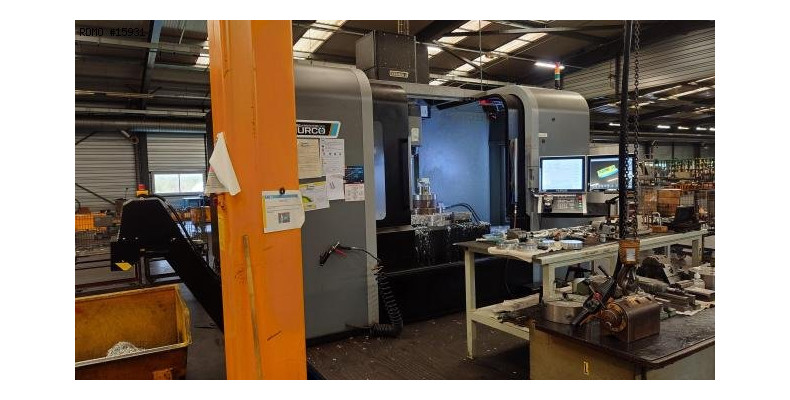

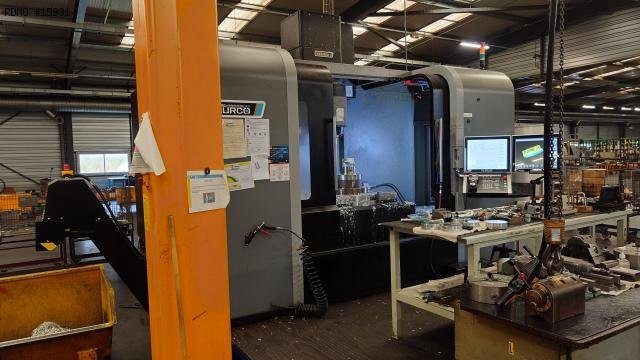

HURCO VMX 60 SRTI 5 axis

Name: Vertical machining center HURCO VMX 60 SRTI 5 axes
Brand: HURCO
Availability: InStock

Milling Vertical machining center

15931

PDF datasheet to download:

Brand: HURCO

Model: VMX 60 SRTI

Year: 2018

Serial: SX44T-1640188DFBCH

15931

HURCO VMX 60 SRTI 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: HURCO

Model: VMX 60 SRTI

Year: 2018

Serial: SX44T-1640188DFBCH

Ask Price

Caracteristics

- Number of axes : 5

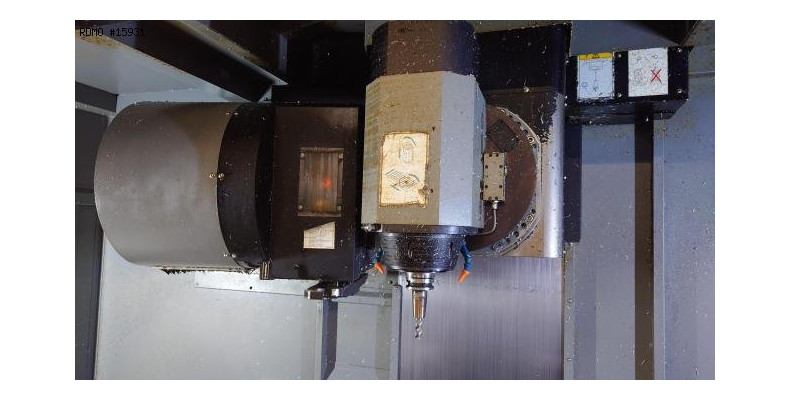

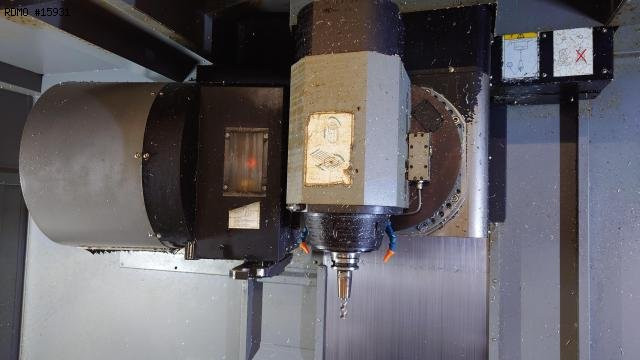

MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 36.5 [kW]
- Spindle speeds : 12000 [rpm]
- B Rotary Axis : 90 [°] (+/-)
LINEAR AXES
- Travels on X/Y/Z axes : 1525 / 660 / 610 [mm]
- Rapid traverses rates (X/Y/Z) : 32 / 32 / 24 [mm/min]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 40

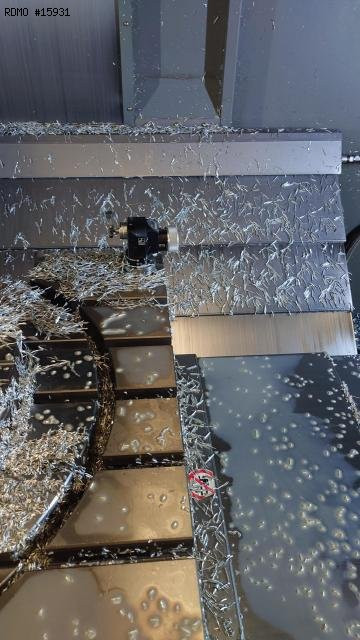

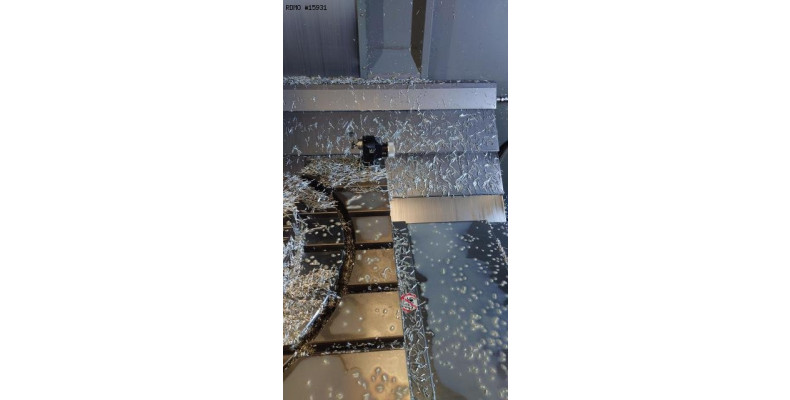

TABLE
- Table dimensions : 1680 x 660 [mm]
- Distance table / spindle nose (min./max.) : 12.7 - 622.3 [mm]
- Maximum weight upon table : 1360 [kg]

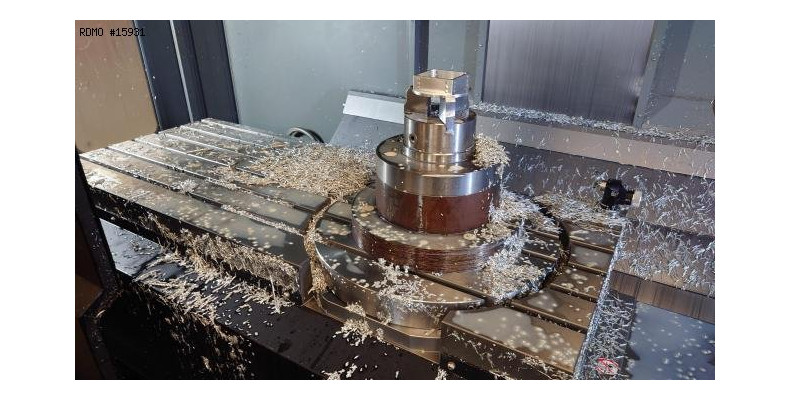

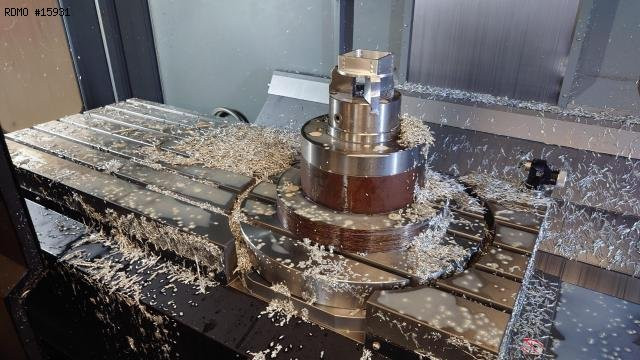

- Diameter of the C-type rotary table : 600 [mm]
- Travel : 360 [°]
- Maximum load on the rotary table : 500 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 69 [kVA]
WEIGHT & DIMENSIONS
- Machine weight : 9.800 [kg]

Equipment

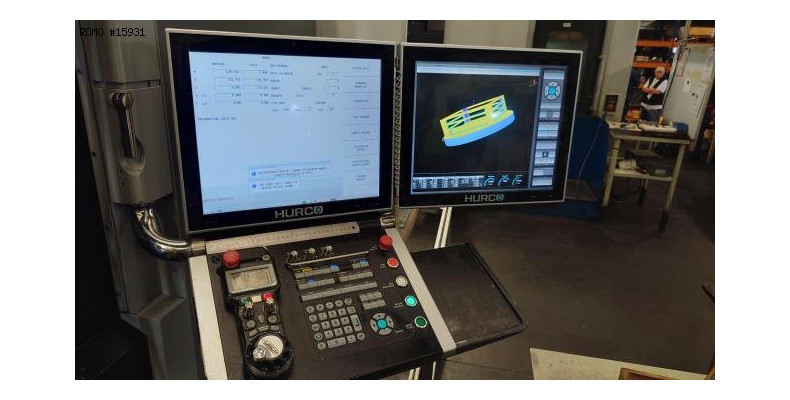

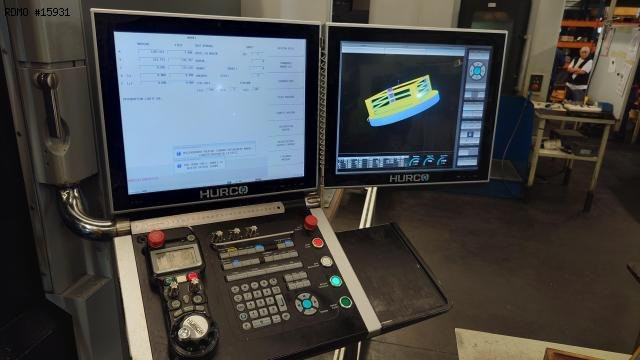

- CNC : WinMax / MAX5
- Electronic handwheel

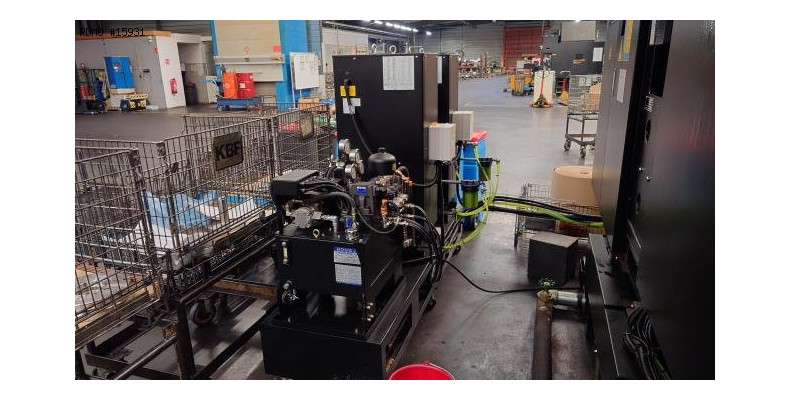

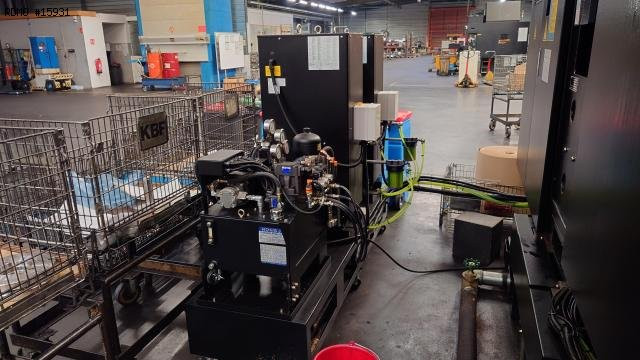

- Coolant tank
* with high-pressure pump
- Coolant through spindle
- Chips conveyor
- Spindle cooling unit
- Tool probe
