Mori Seiki NV5000 alpha 1B/40 5 axis

Milling Vertical machining center

11241

PDF datasheet to download:

Brand: Mori Seiki

Model: NV5000 alpha 1B/40

Year: 2005

Serial: NV501EC2715

11241

Mori Seiki NV5000 alpha 1B/40 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: Mori Seiki

Model: NV5000 alpha 1B/40

Year: 2005

Serial: NV501EC2715

Ask Price

Caracteristics

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : CA40 (Big+)
- Spindle power : 22 [kW]
- Spindle speed : 14000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1020 x 510 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 42/42/42 [m/min]
TOOL CHANGER
- Tool magazine capacity : 60

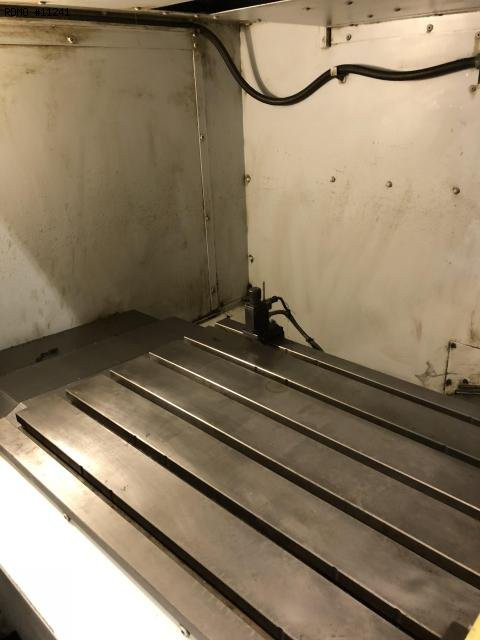

TABLE
- Table dimensions : 1320 x 660 [mm]
- Distance table / spindle nose (min./max.) : 150-660 [mm]
- Maximum weight upon table : 1200 [kg]
WEIGHT & DIMENSIONS
- Machine floor space : 2788 x 3040 [mm]
- Machine height : 2603 [mm]
- Machine weight : 8600 [kg]
MACHINE HOURS
- Number of hours under power : 14466 [h]
- Number of working hours : 2962 [h]

Equipment

- CNC : FANUC 18iMB5
- Interactive programming : MAPPS
- 3 colors status lamp
- Type : full 4th-5th axis
* Manufacturer : NIKKEN
* Model : 5AX-130-FA
- COOLANT TANK : KNOLL
* with high-pressure pump : 15 [bars]
* with paper filtering unit : with HP pump 15 bars
- Coolant through spindle : with HP pump 15 bars
- Chips conveyor : right
- Spindle cooling unit
- Tool probe : OMRON

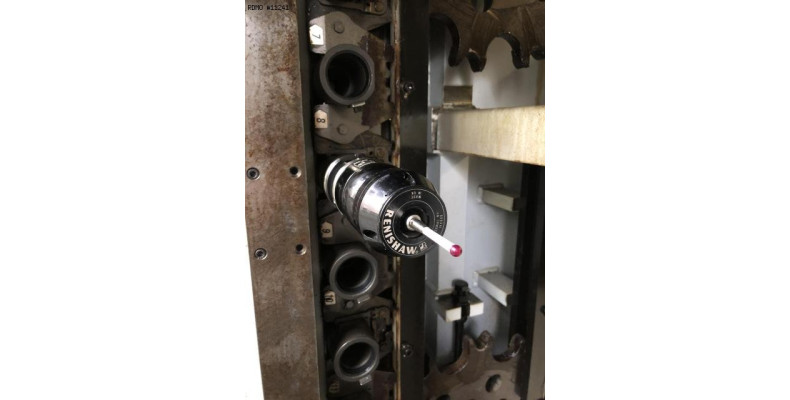

- Workpiece probe : RENISHAW
- Electric transformer
- Electronic handwheel
