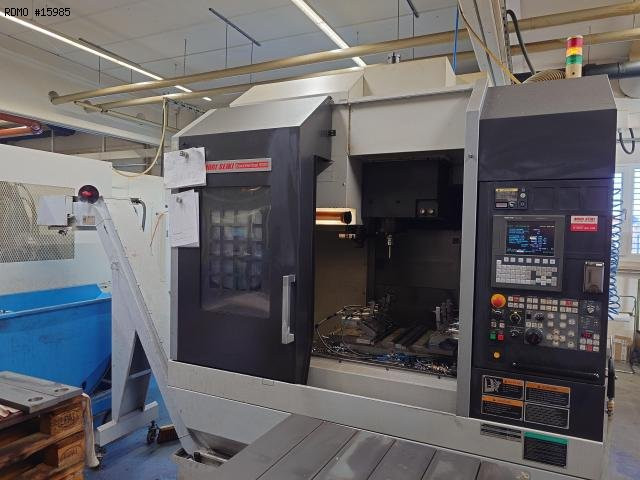

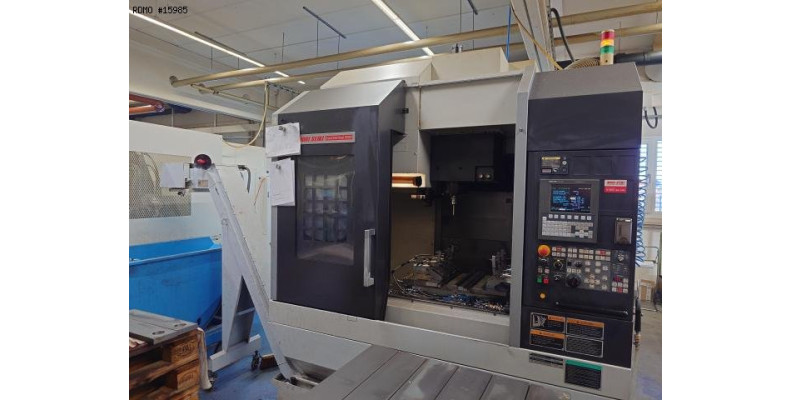

MORI SEIKI DuraVertical 5080 3 axis

Name: Vertical machining center MORI SEIKI DuraVertical 5080 3 axes
Brand: MORI SEIKI
Availability: InStock

Milling Vertical machining center

15985

PDF datasheet to download:

Brand: MORI SEIKI

Model: DuraVertical 5080

Year: 2007

Serial: DV005GA0412

15985

MORI SEIKI DuraVertical 5080 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: MORI SEIKI

Model: DuraVertical 5080

Year: 2007

Serial: DV005GA0412

Ask Price

Caracteristics

- Number of axes : 3

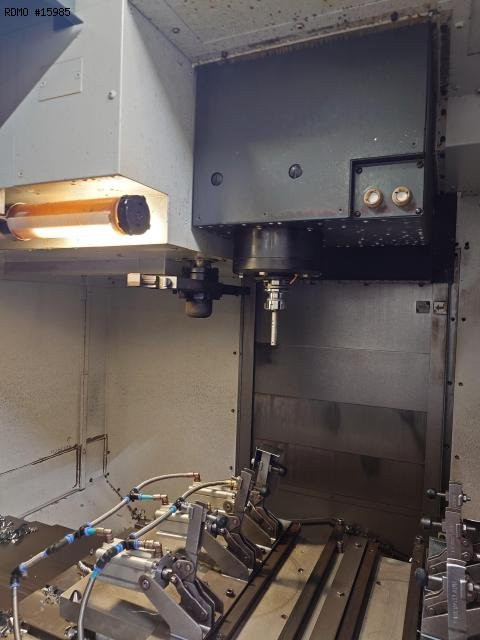

MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 15 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 800/530/510 [mm]

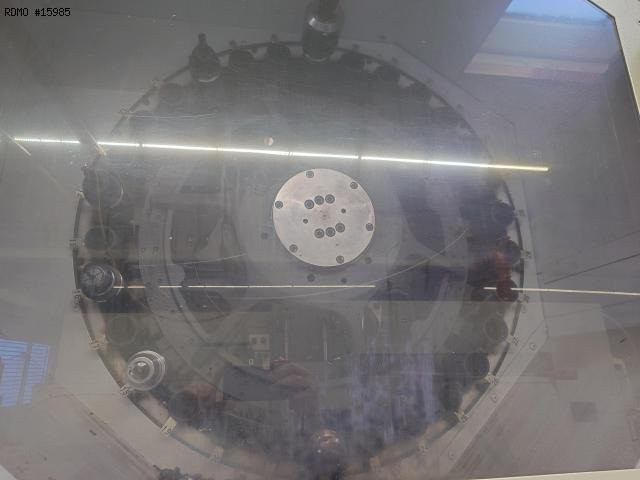

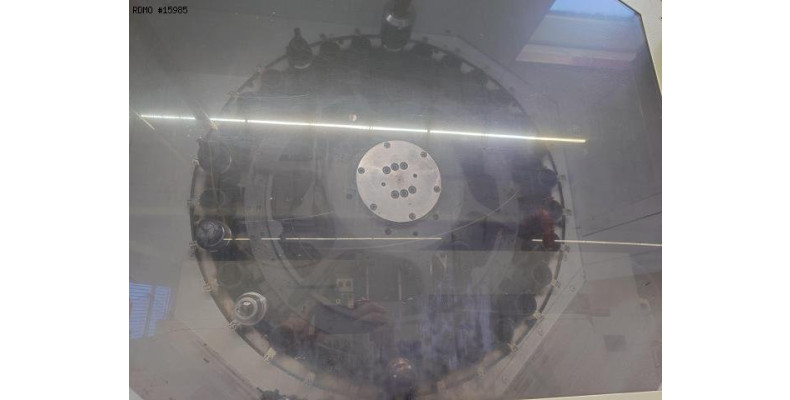

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30
TABLE
- Table dimensions : 1125/600 [mm]
- Maximum weight upon table : 800 [kg]
- Distance table / spindle nose (min./max.) : 150/660 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 27 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 243/2160 [mm]
- Machine height : 2670 [mm]
- Machine weight : 6415 [kg]
MACHINE HOURS
- Number of hours under power : 17322 [h]

Equipment

- CNC : Mori MSC-504
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming : MAPPS
- Rigid tapping
- 3 colors status lamp

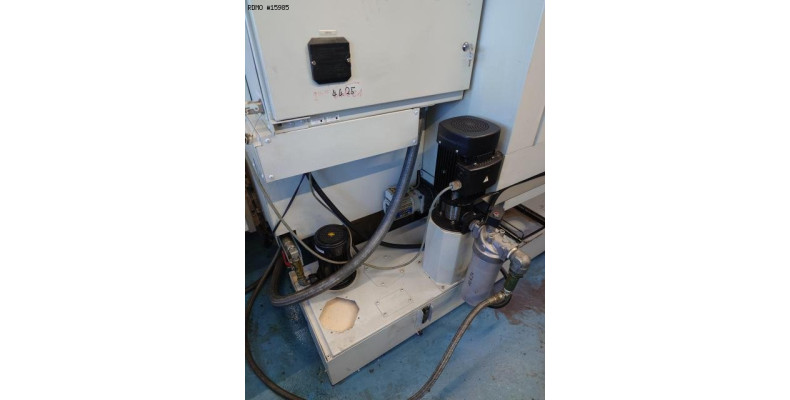

- Coolant tank
* with high-pressure pump : 15 [bars]
- Coolant through spindle
- Chips conveyor : GAUCHE
- Tool probe
- Workpiece probe
