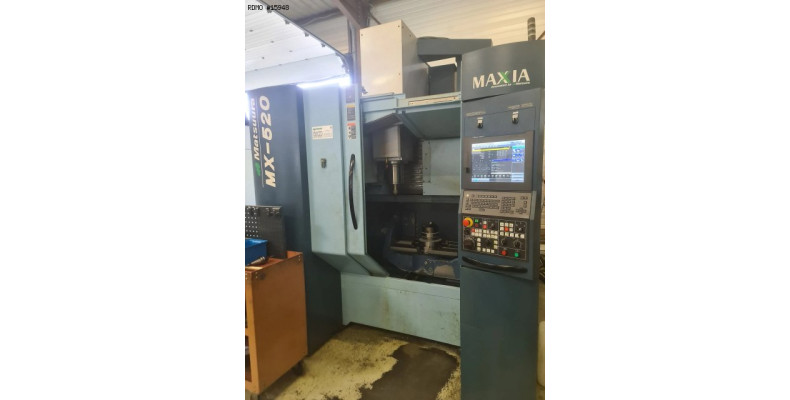

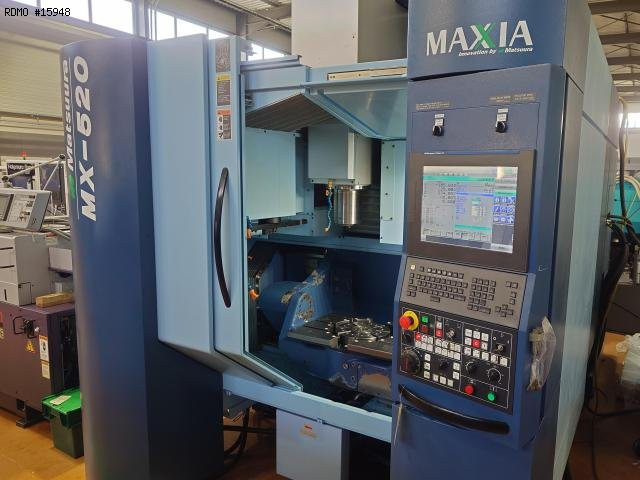

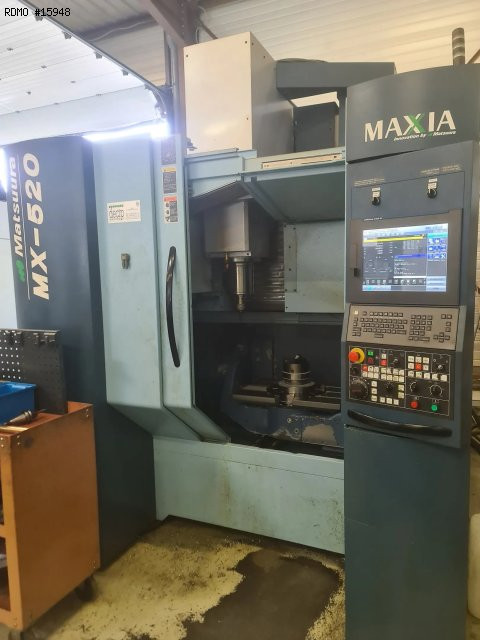

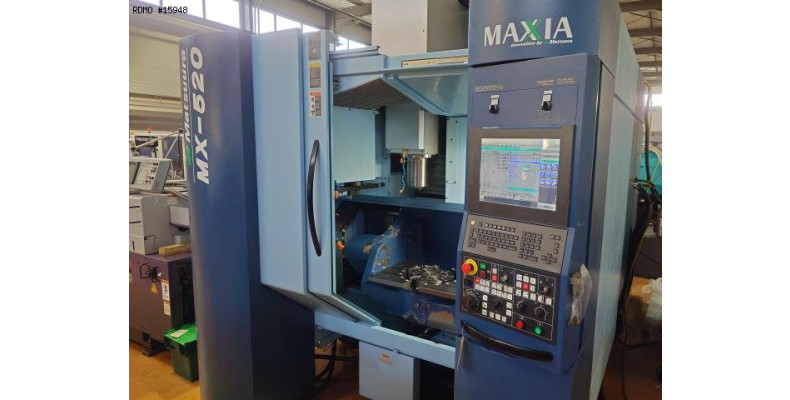

MATSUURA MX-520 5 axis

- Number of axes : 5

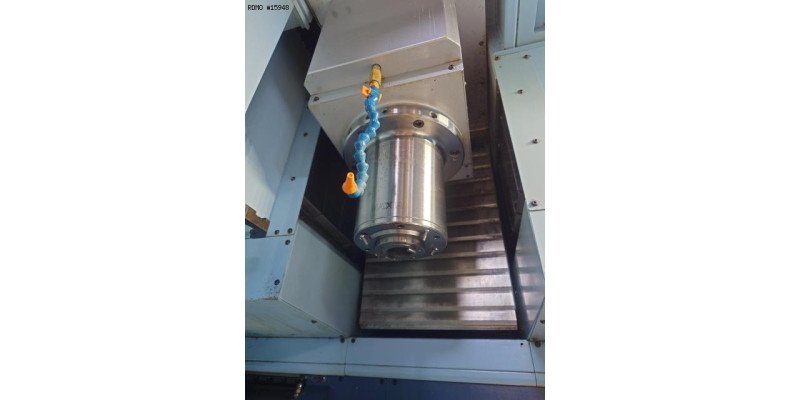

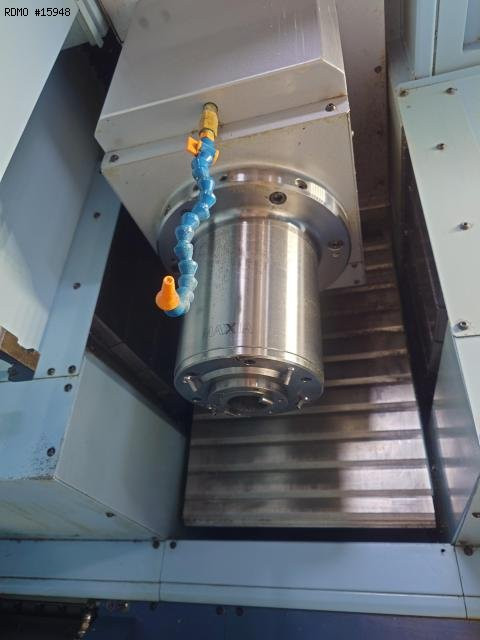

MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 22 [kW]
- Spindle speeds : 12.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 630 x 560 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 40.000 [mm/min]
A ROTARY AXIS
- Travel : -125 / +10 [°]
- Indexing precision : 0,001 [°]
- Rapid traverse rate : 17 [rpm]
- C ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]
- Rapid traverse rate : 33 [rpm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 60

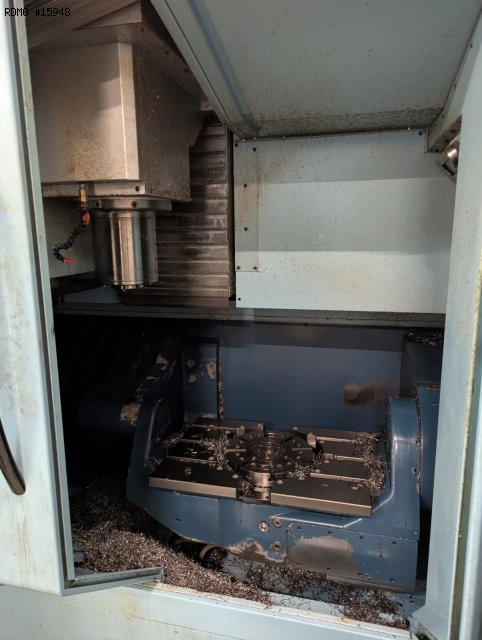

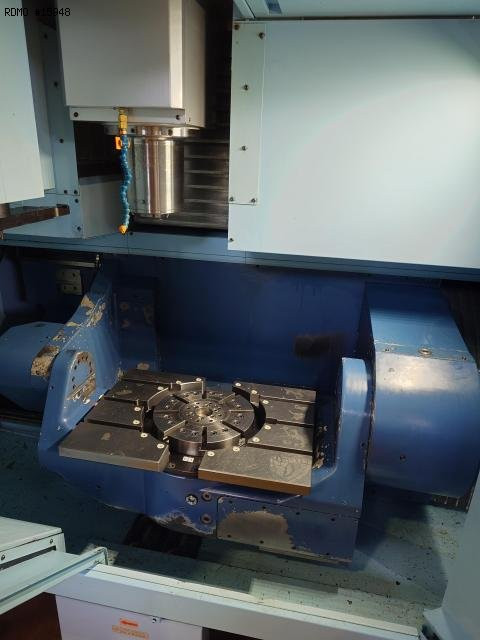

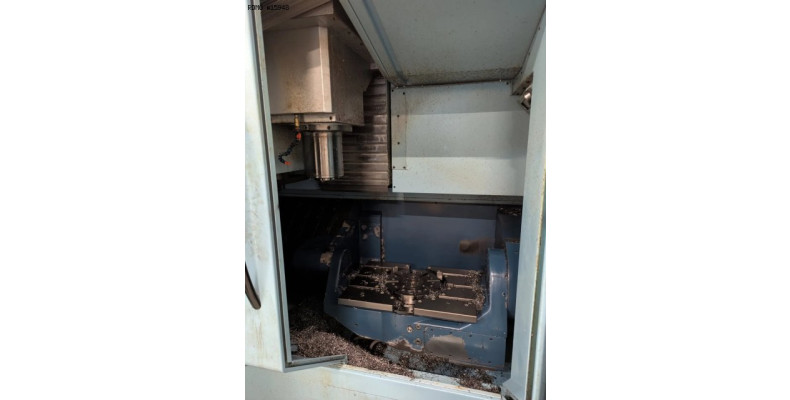

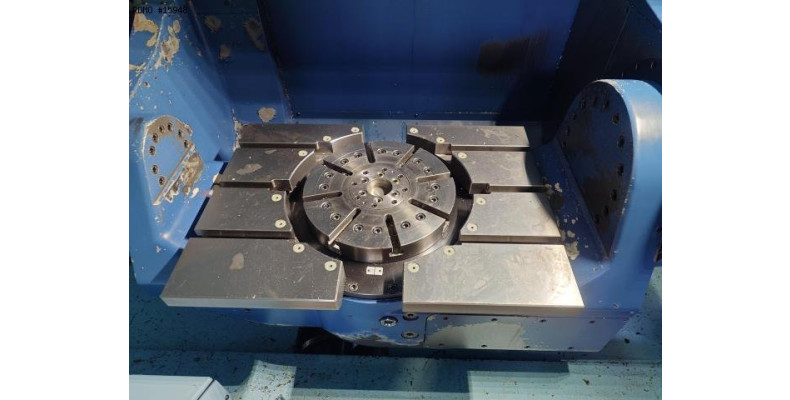

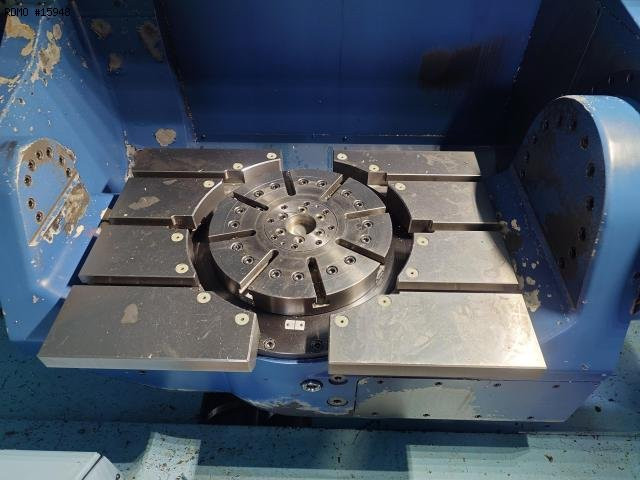

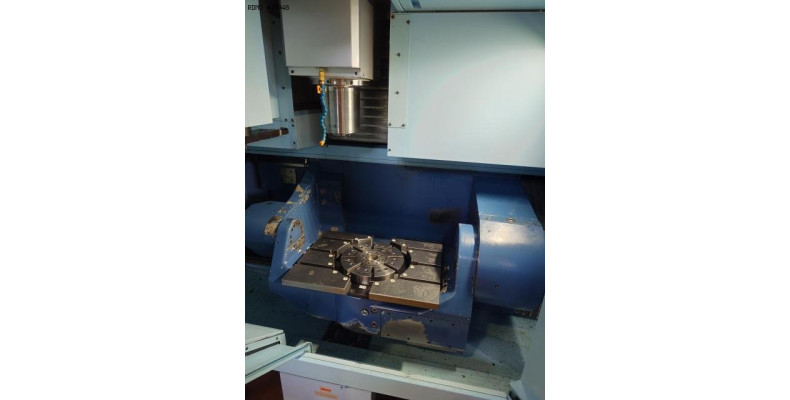

TABLE
- Table dimensions : Ø300 [mm]
- Maximum weight upon table : 200 [kg]
- Max. turning diameter : 520 [mm]
- Max. workpiece height : 350 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 63 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.851 x 2.260 [mm]
- Machine height : 2.950 [mm]
- Machine weight : 9.450 [kg]

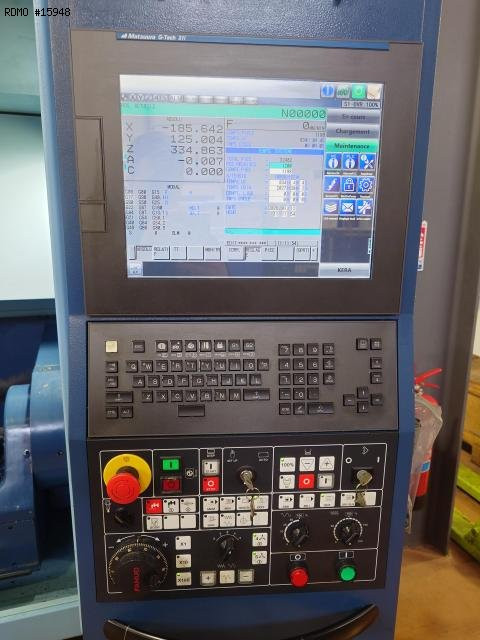

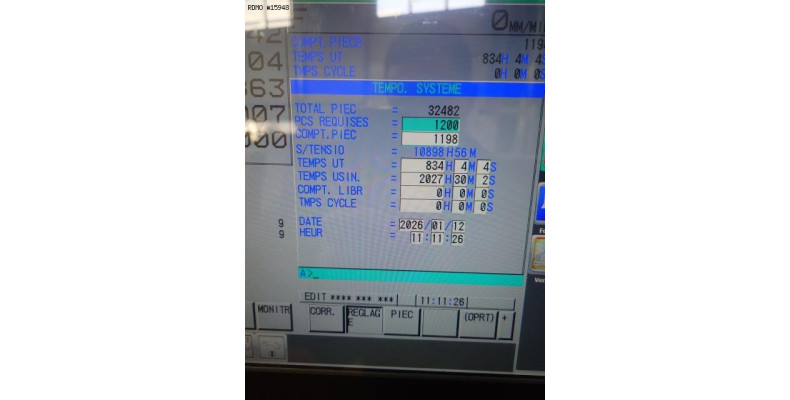

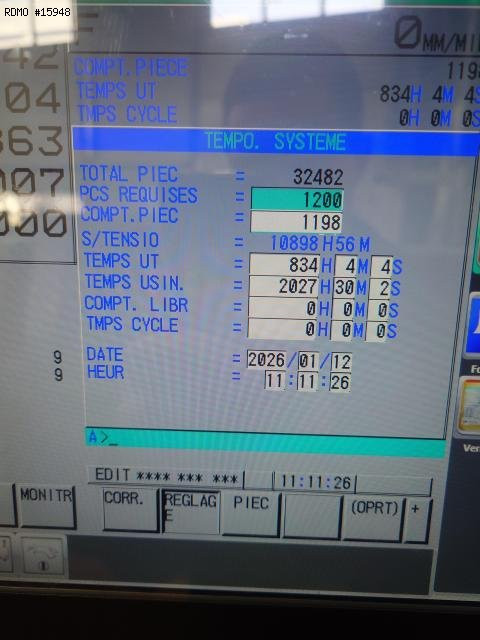

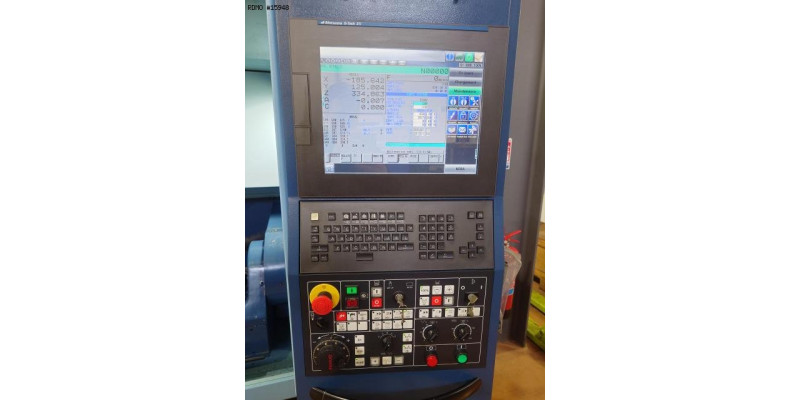

- CNC : Fanuc G-Tech 31iB
- Interactive programming : Manual guide
- Interface : RJ45 / PCMCIA
- Option : 5 axes Package
- Spindle option : POWER UP
- Hydraulic predisposition with 6 channels in the center of the table
- Linear scales
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 20 [bars]
- Coolant through spindle

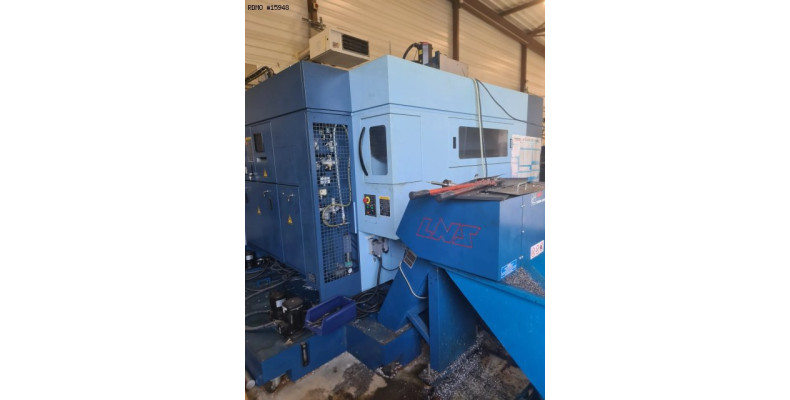

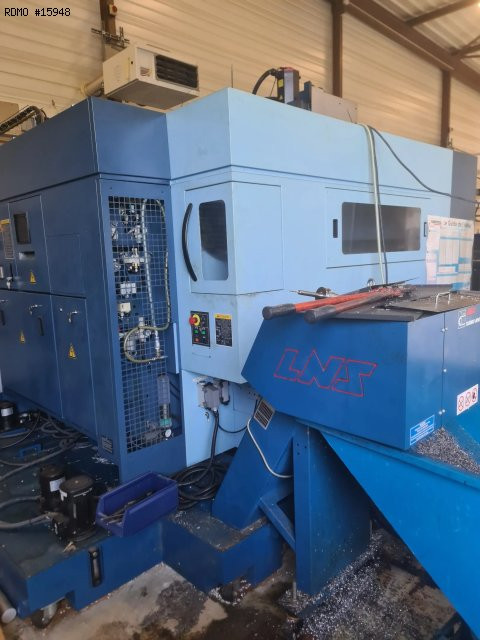

- Chips conveyor : LNS
- Tool probe : BLUM
- Workpiece probe : BLUM

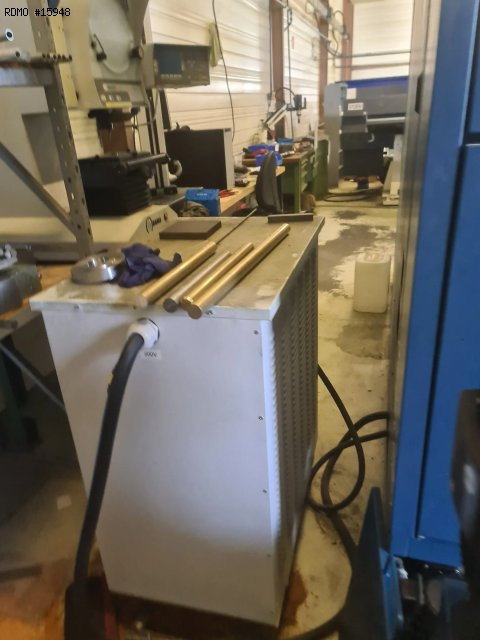

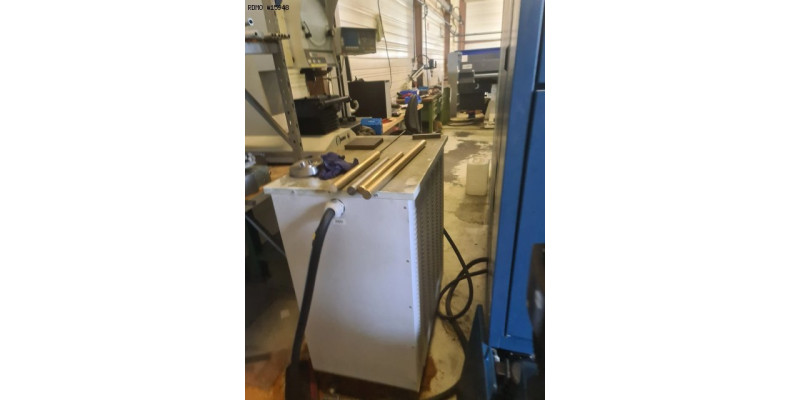

- Electric transformer
