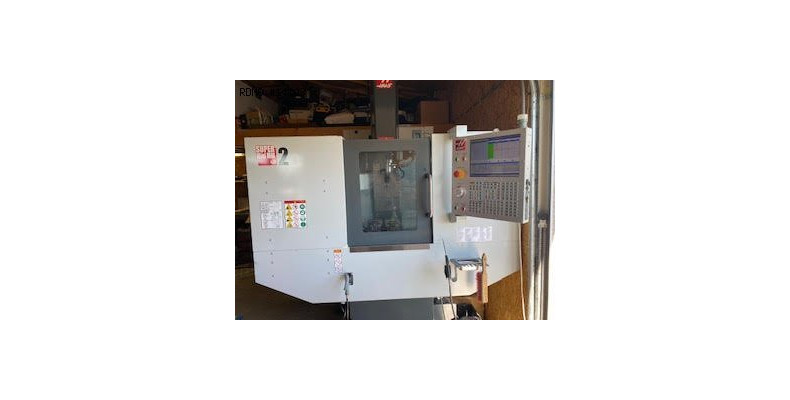

Haas Super mini mill 2 4 axis

14103
Brand: Haas
Model: Super mini mill 2
Year: 2019
Serial: 1165815
14103
Haas Super mini mill 2 4 axis
Brand: Haas
Model: Super mini mill 2
Year: 2019
Serial: 1165815

Caracteristics & Equipment

Caracteristics

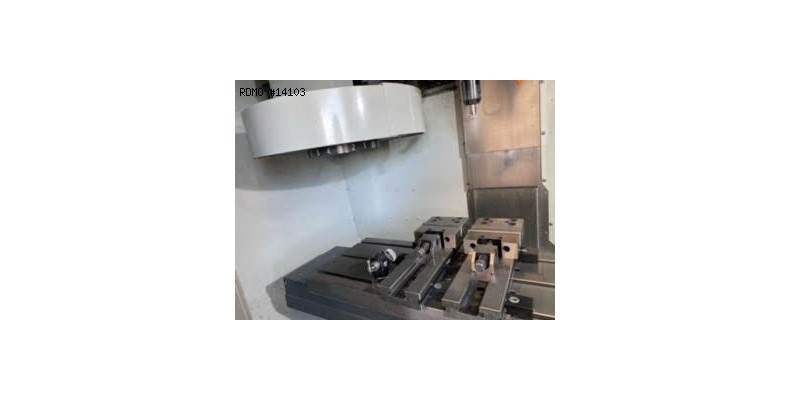

- Number of axes : 3 MILLING SPINDLE - Tool holder type : ISO40 - Spindle power : 11.2 [kW] - Spindle speeds : 10000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 508 / 406 / 356 [mm] - Rapid traverses rates (X/Y/Z) : 30 [m/min] - Cutting feed rates (X/Y/Z) : 21 [m/min] TOOL CHANGER - Auto. Tool Changer type : Umbrella - Tool magazine capacity : 20 - Tool exchange time : 4.2 [sec] TABLE - Table dimensions : 1016 x 356 [mm] - Maximum weight upon table : 227 [kg] - Distance table / spindle nose (min./max.) : 102 / 457 [mm] WEIGHT & DIMENSIONS - Machine floor space : 2320 x 2240 [mm] - Machine height : 2540 [mm] - Machine weight : 2314 [kg]
Equipment

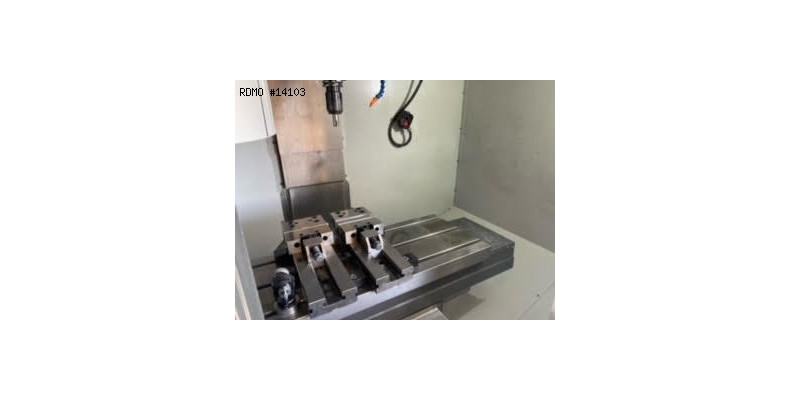

- CNC : HAAS control - Interface : Ethernet / USB - Rigid tapping : oui - 3 colors status lamp : oui - Coolant tank : oui - Coolant through spindle : Pré-disposé - Tool probe : Renishaw - Workpiece probe : Renishaw - Tool breakage detection : oui - 4th axis : prédisposition - Milling vice : 2

Description

4° Axis predisposition, can only receive a HAAS brand 4° axis.
