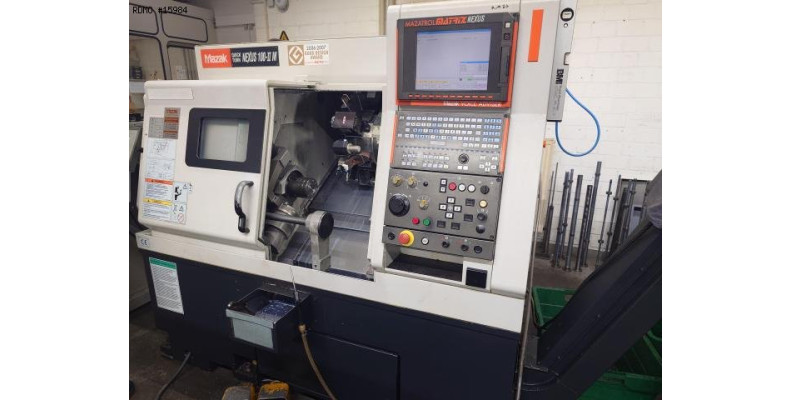

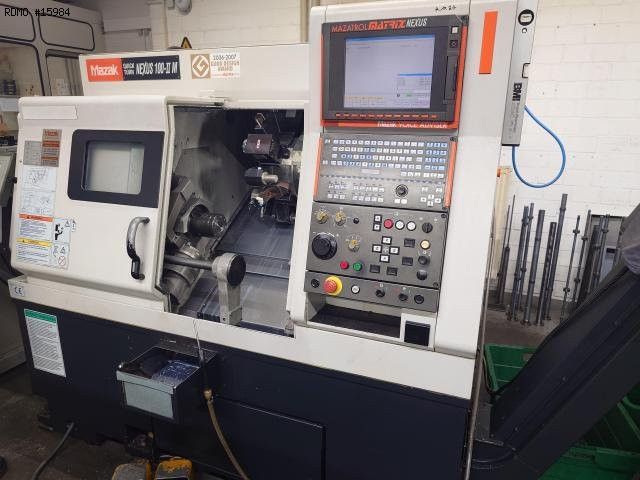

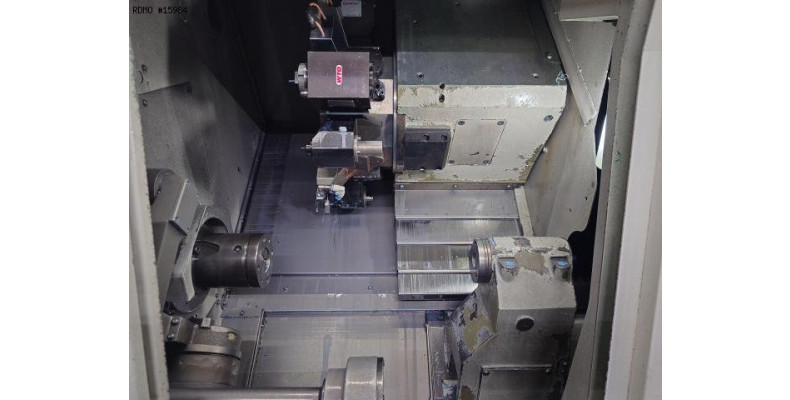

MAZAK QT Nexus 100 II-M 3 axis

Name: CNC lathe MAZAK QT Nexus 100 II-M 3 axes
Brand: MAZAK
Availability: InStock

Turning CNC lathe

15984

PDF datasheet to download:

Brand: MAZAK

Model: QT Nexus 100 II-M

Year: 2007

Serial: 201424

15984

MAZAK QT Nexus 100 II-M 3 axis

Turning CNC lathe

PDF datasheet to download:

Brand: MAZAK

Model: QT Nexus 100 II-M

Year: 2007

Serial: 201424

Ask Price

Caracteristics

- Number of axes : 3
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. turning diameter : 280 [mm]
- Max. chuck diameter : 150 [mm]
TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 185/385 [mm]
- Live tools speed : 4500 [rpm]
- Live tools power : 5.5 [kW]
TAILSTOCK
- Tailstock type : Automatique
- Type of cone : CM4
- Tailstock stroke : 350 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 22.8 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2100/1700 [mm]
- Machine height : 2000 [mm]
- Machine weight : 3800 [kg]
MACHINE HOURS
- Number of hours under power : 57677 [h]
- Number of working hours : 30885 [h]

Equipment

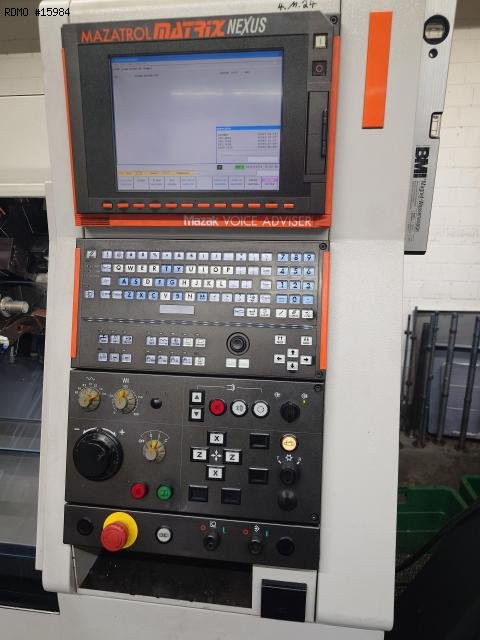

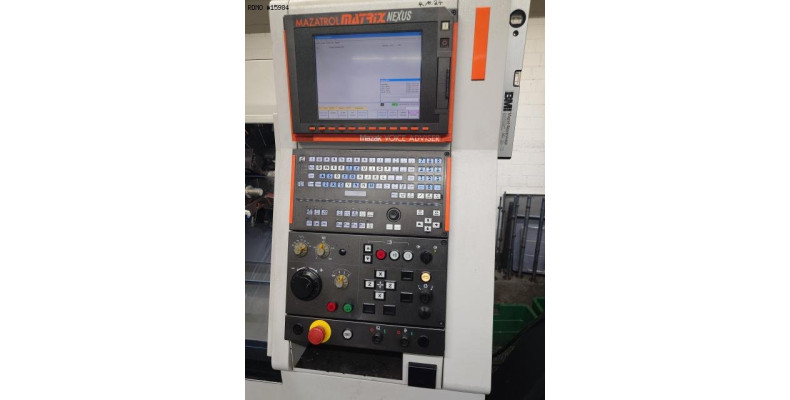

- CNC : MATRIX NEXUS
- Interactive programming
- Coolant tank

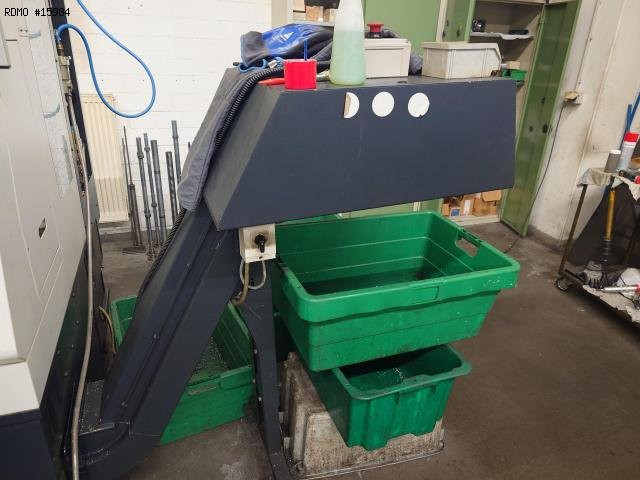

- Chips conveyor
- Tool probe
- Parts catcher

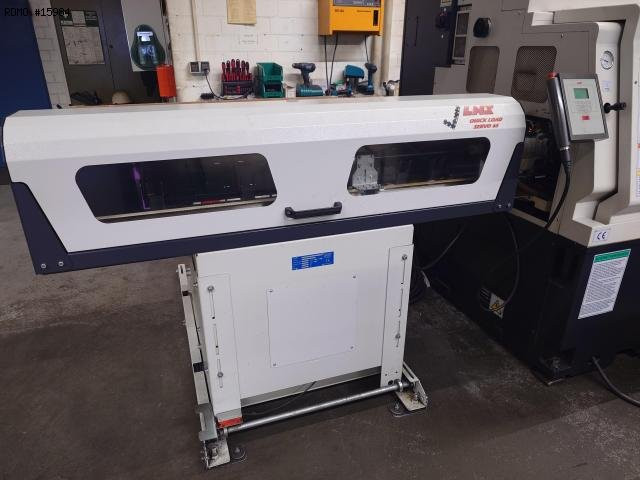

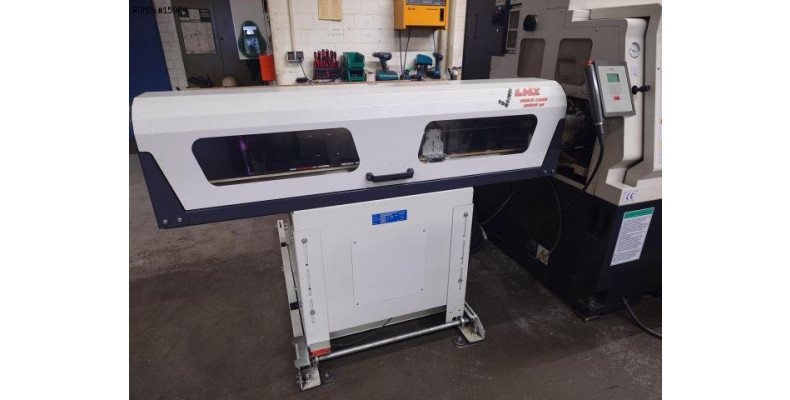

- Bar loader : LNS QUICKLOAD 65
