- Number of axes : 10
- Number of spindles : 2
- Number of turrets : 3
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 22/29 [kW]
- Spindle speeds : 7.000 [rpm]
- Max. bar diameter : 42 [mm]
- Max. chuck diameter : 110 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 16,5/19 [kW]
- Spindle speeds : 7.000 [rpm]
- Max. bar diameter : 42 [mm]
* Max. chuck diameter : 110 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 500 [mm]
- Rapid traverse rate : 60 [m/min]
- Spindle / counter-spindle distance : 515 [mm]

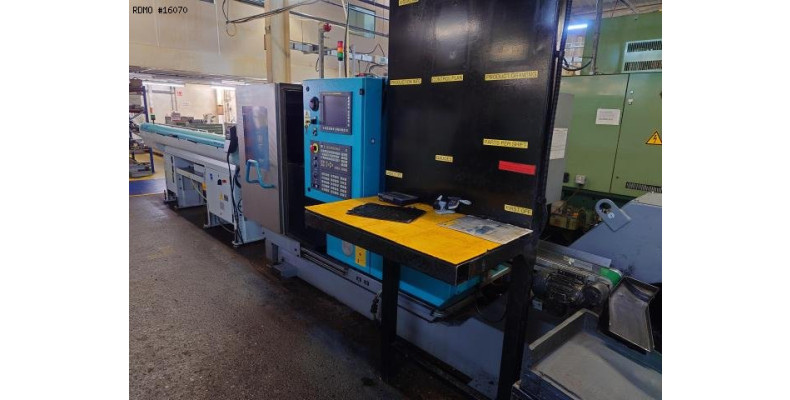

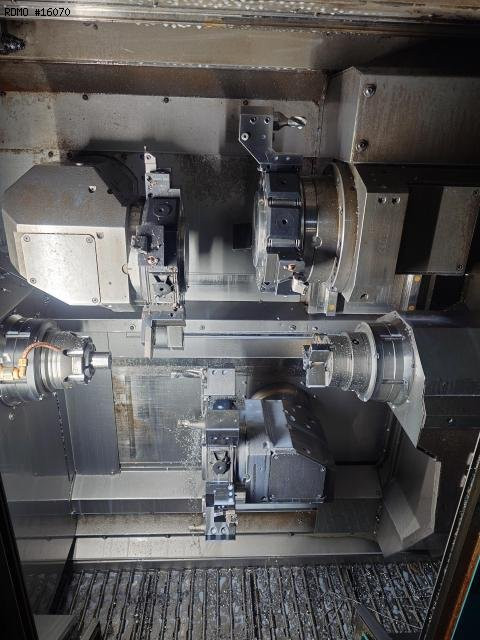

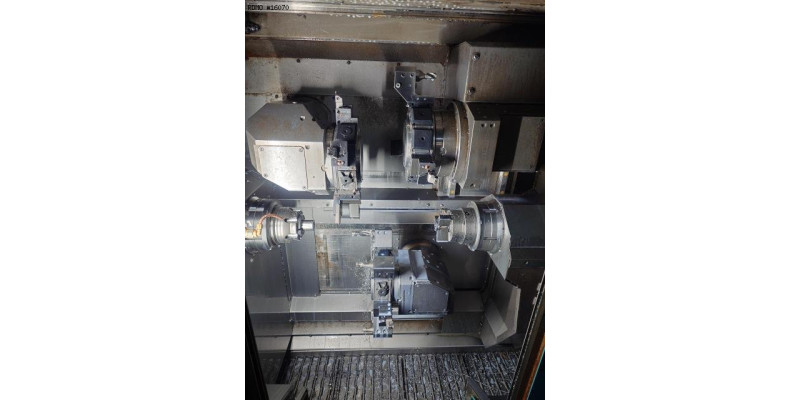

UPPER LEFT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 70 / 250 [mm]
- Y stroke : 70 [mm]
- Tool type : VDI 25
- Live tools speed : 8.000 [rpm]
- Live tools power : 4,2 [kW]
UPPER RIGHT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X stroke : 125 [mm]
- Tool type : VDI 25
- Live tools speed : 8.000 [rpm]
- Live tools power : 4,2 [kW]
LOWER LEFT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 70 / 400 [mm]
- Y stroke : 70 [mm]
- Tool type : VDI 25
- Live tools speed : 8.000 [rpm]
- Live tools power : 4,2 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 37 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 5990 x 1710 [mm]
- Machine height : 2140 [mm]
- Machine weight : 5.500 [kg]
MACHINE HOURS
- Number of working hours : 16759 [h]
Equipment

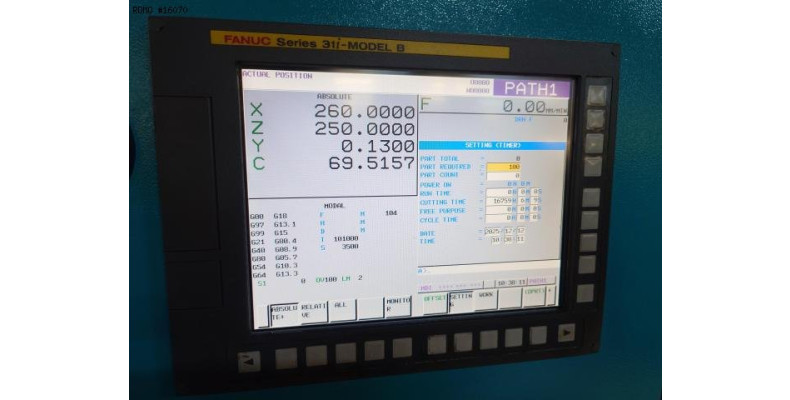

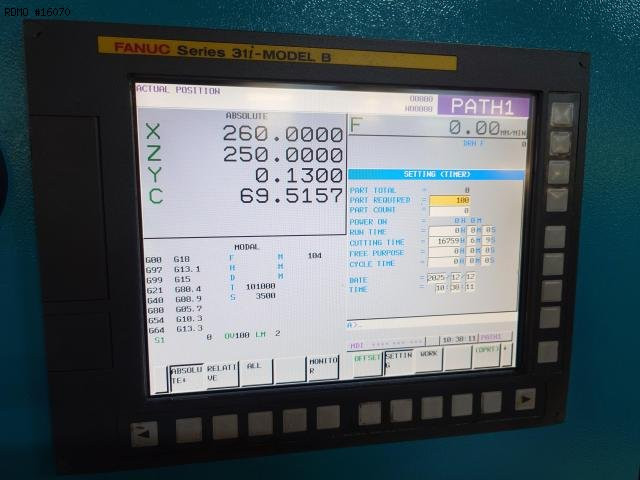

- CNC : Fanuc Series 31i-B
- 3 colors status lamp

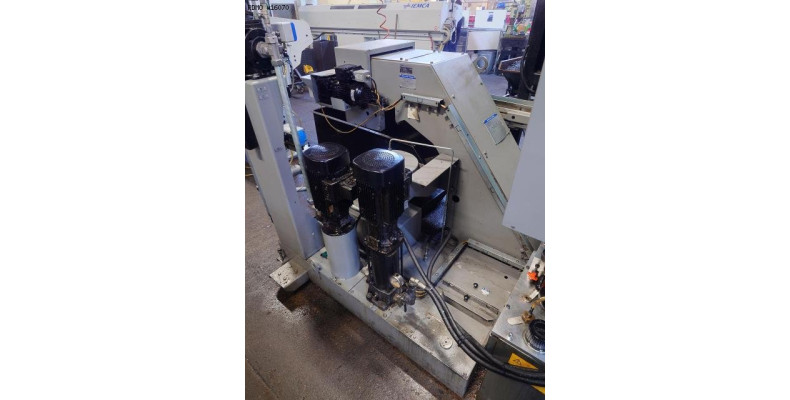

- Coolant tank

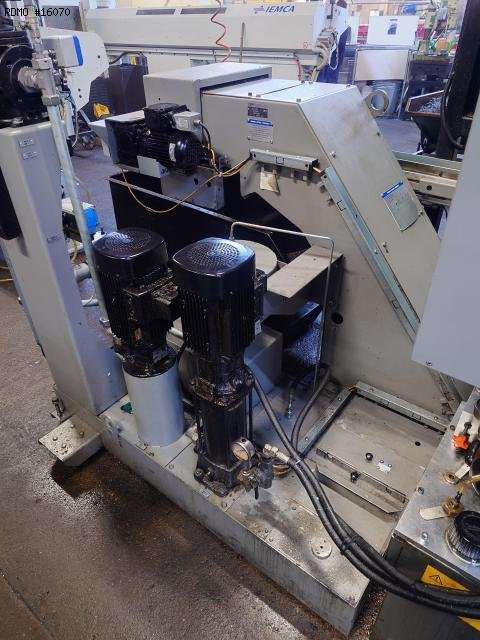

* with high-pressure pump : 25 [bars]
* with paper filtering unit
- Coolant through spindle

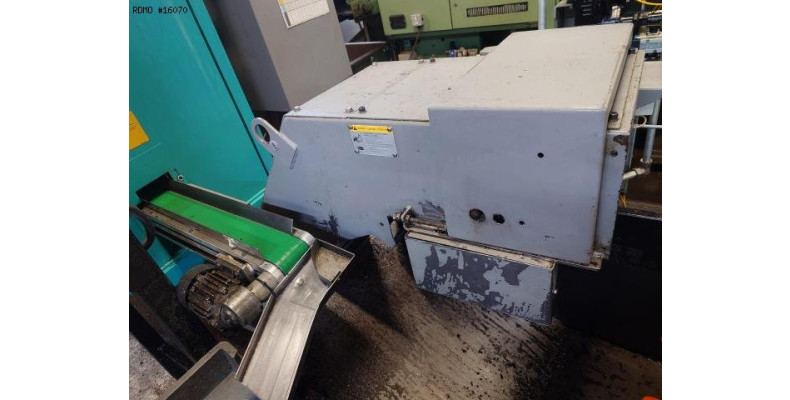

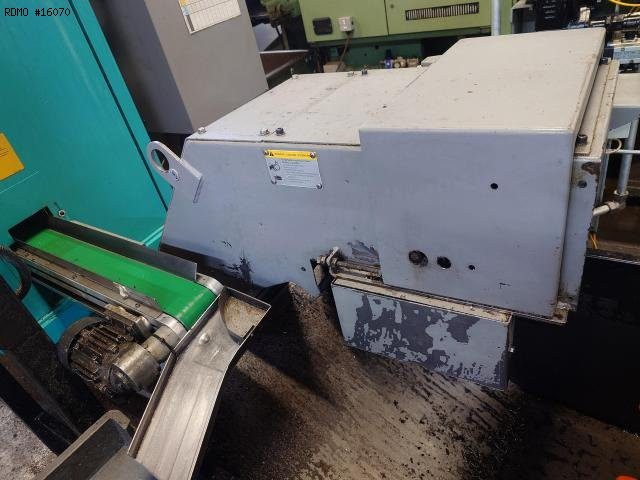

- Chips conveyor : DROITE

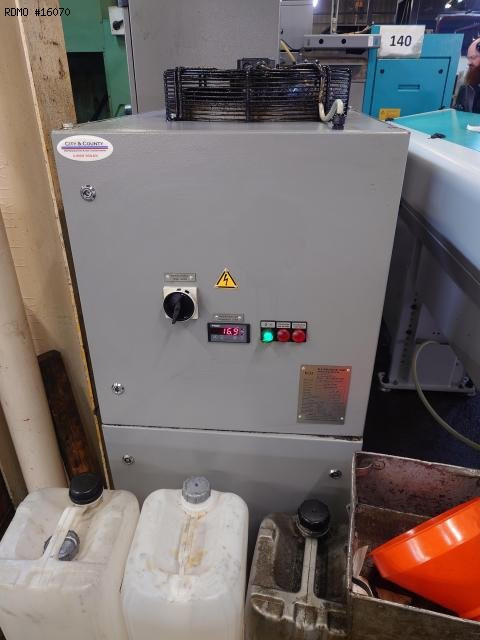

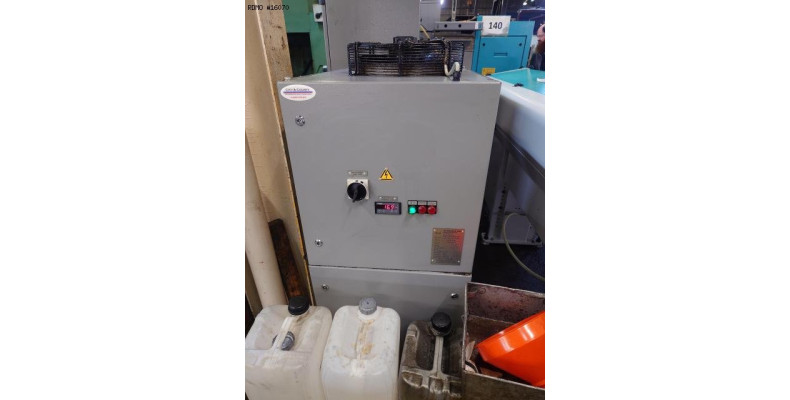

- Cooling unit : KLH
- Parts catcher
- Parts conveying strip
- Bar loader : IEMCA BOSS 552 HD
