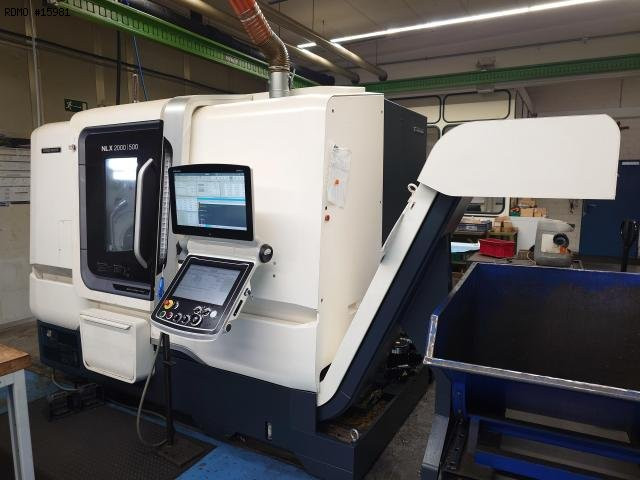

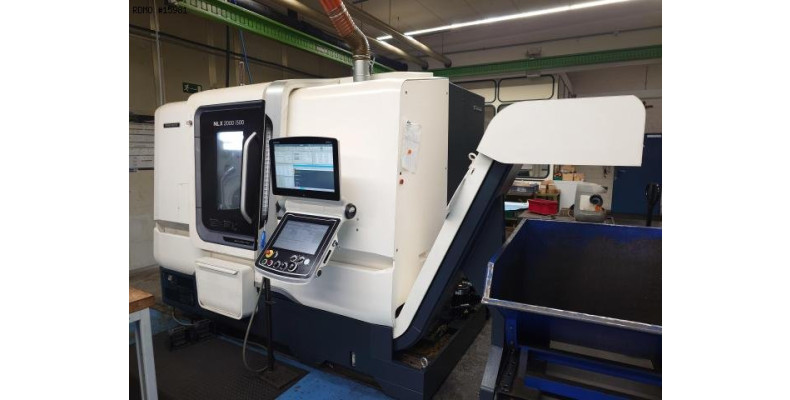

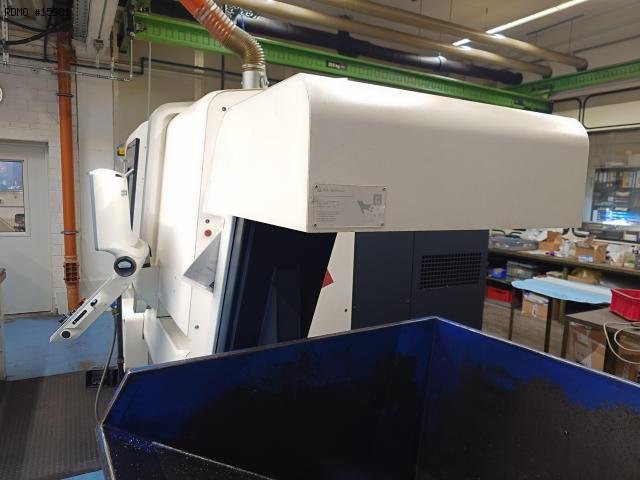

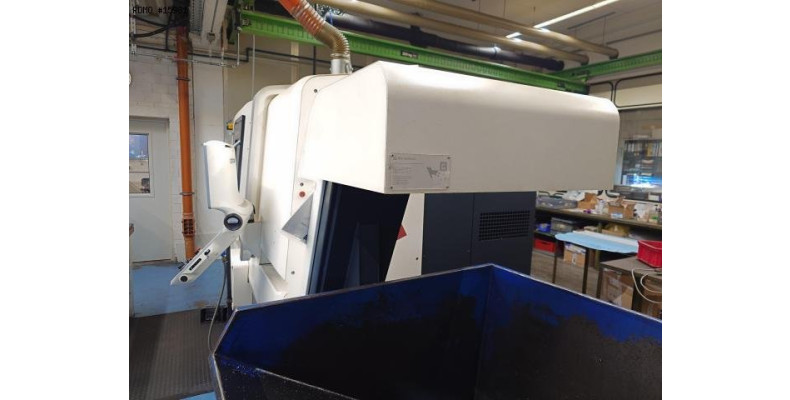

DMG MORI NLX 2000Y/500 4 axis

Brand: DMG MORI
Model: NLX 2000Y/500
Year: 2018
Serial: NL203180946
15981
DMG MORI NLX 2000Y/500 4 axis
Brand: DMG MORI
Model: NLX 2000Y/500
Year: 2018
Serial: NL203180946

Caracteristics & Equipment

Caracteristics
- Number of axes : 4

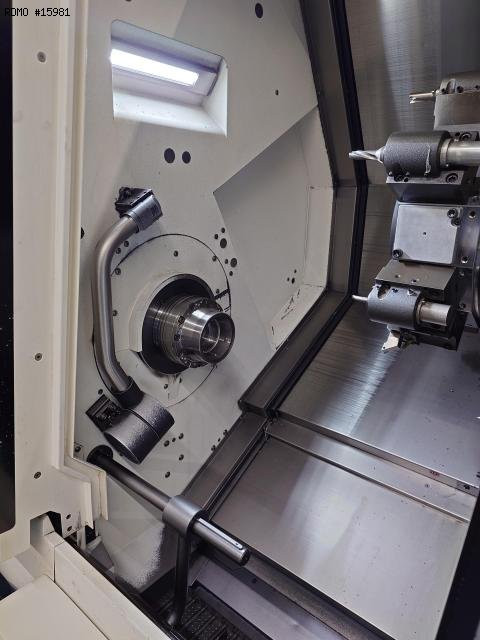

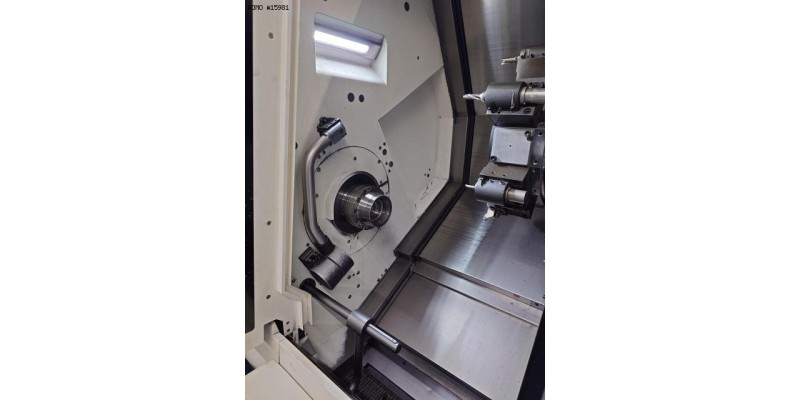

MAIN SPINDLE
- Spindle nose : A2-6"
- Spindle power : 15 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 366 [mm]
- C axis indexing precision : 0.001 [°]

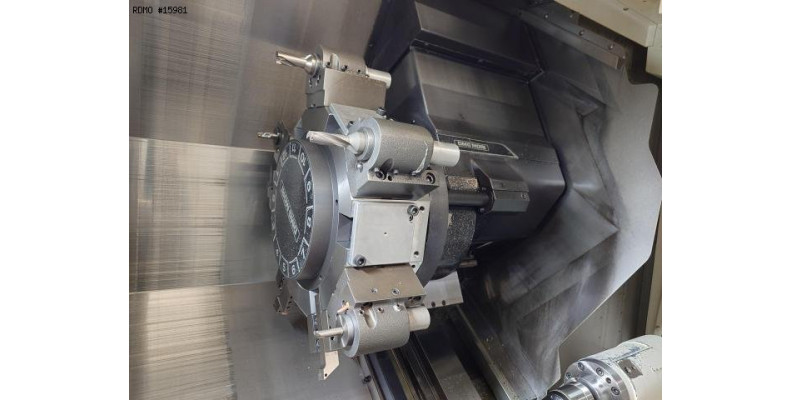

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260/590 [mm]
- Y stroke : +/-50 [mm]
- Tool type : BMT
- Live tools speed : 10000 [rpm]
- Live tools power : 5.5 [kW]

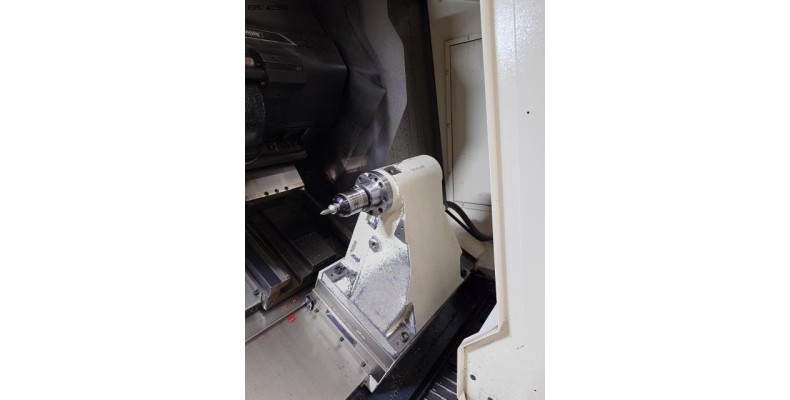

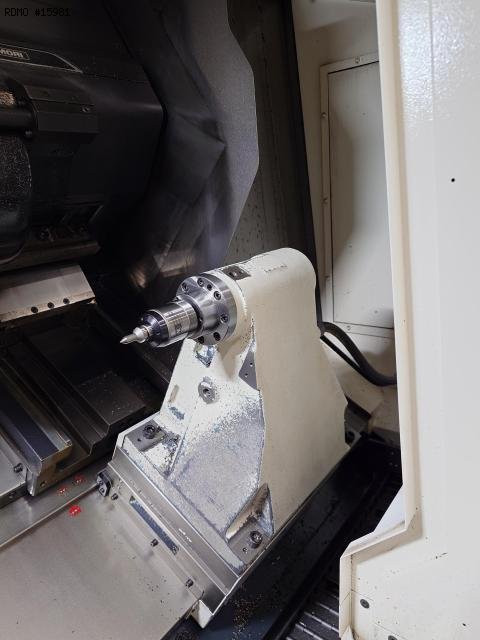

TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM4
- Tailstock stroke : 564 [mm]
- Distance between centers : 510 [mm]
POWER SUPPLY

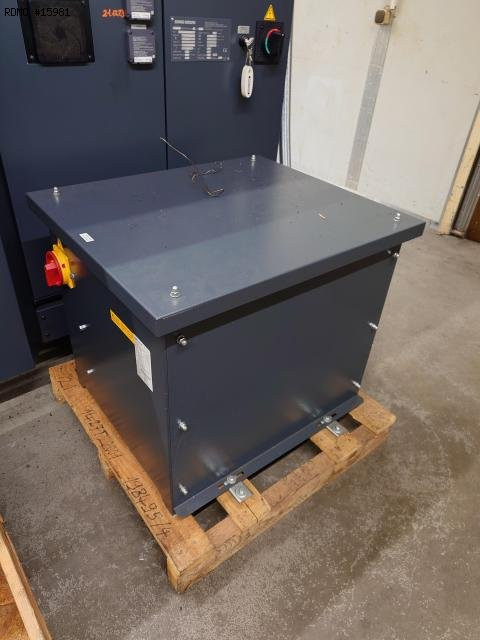

- Supply voltage : 400 [V]

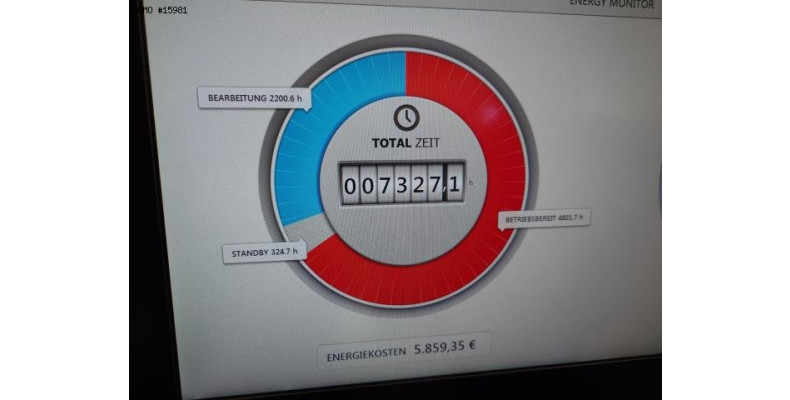

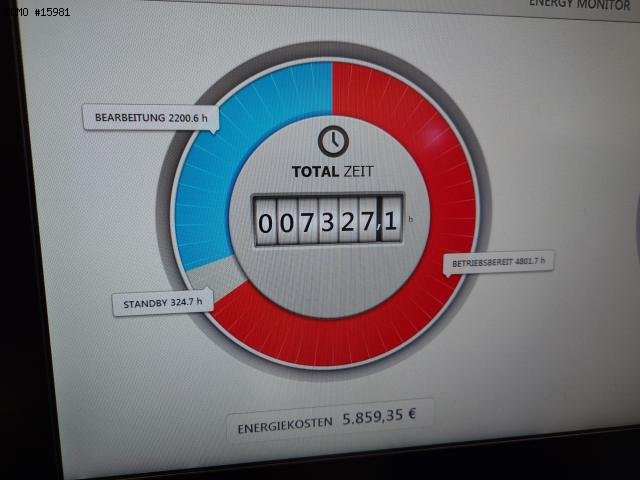

MACHINE HOURS
- Number of hours under power : 7327 [h]
- Number of working hours : 2200 [h]
Equipment

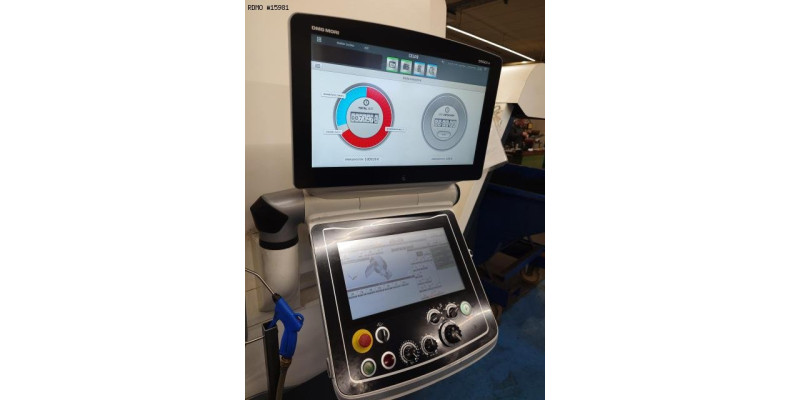

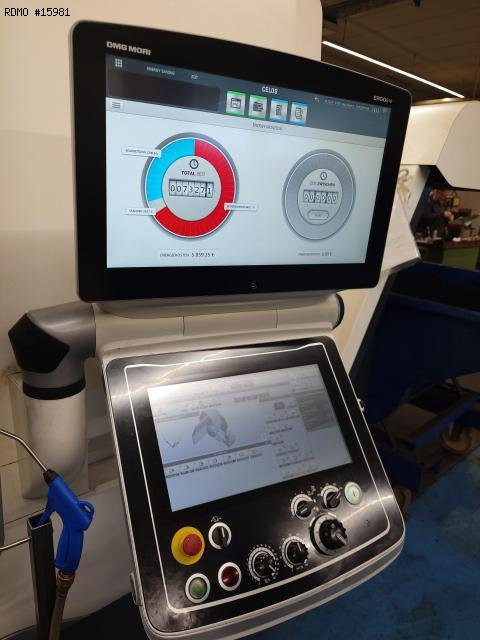

- CNC : CELOS
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming : MAPPS V
- 3 colors status lamp

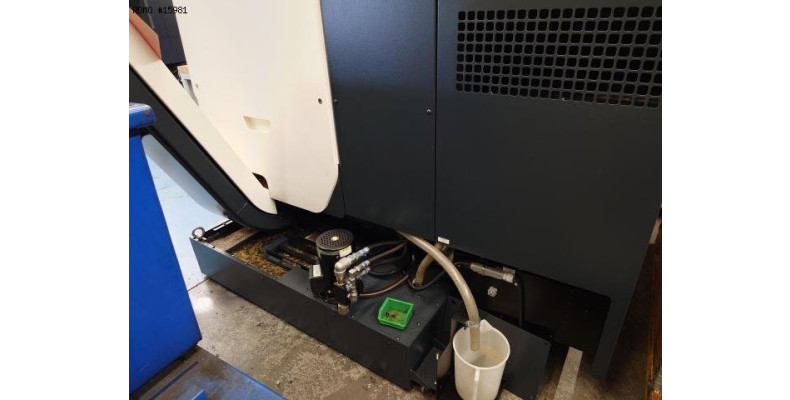

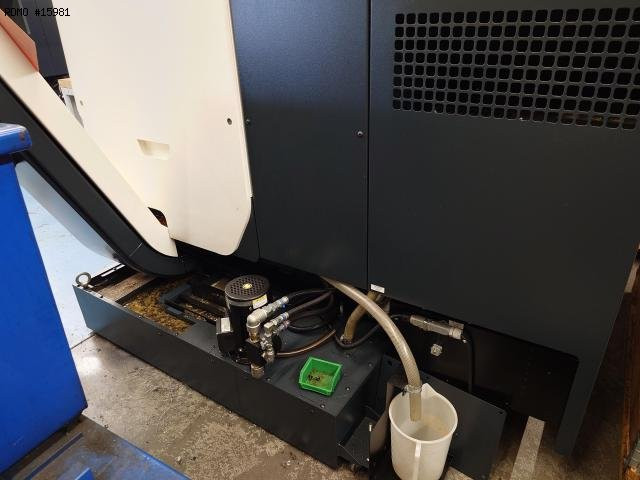

- Coolant tank
- Chips conveyor
- Tool probe

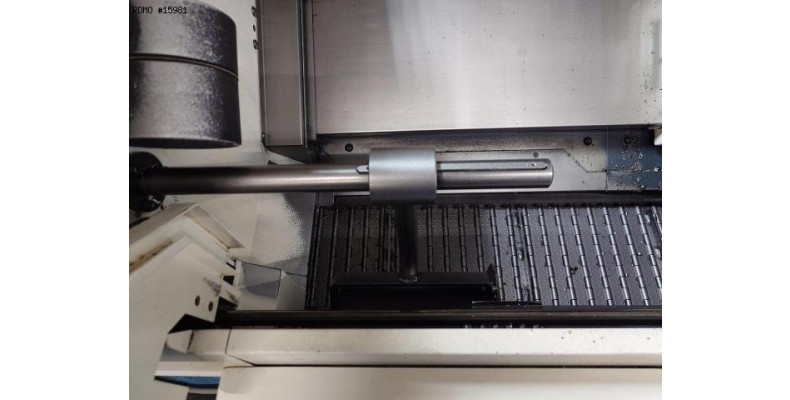

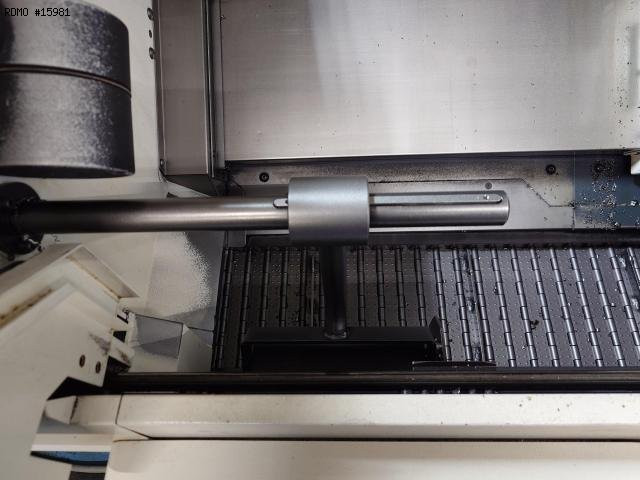

- Parts catcher
- Predisposition for barfeeder
- Number of turning tool holders : 2
- Number of fixed tool holders : 10
- Collet chuck
