Brother TC22B 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: Brother

Model: TC22B

Year: 2006

Serial: 111248

Ask Price

Caracteristics

- Number of axes : 3

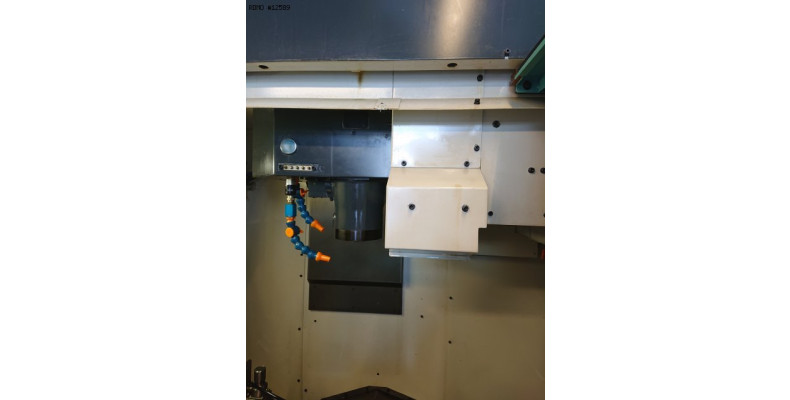

MILLING SPINDLE
- Tool holder type : BT30
- Spindle speeds : 12000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/450/410 [mm]
- Rapid traverses rates (X/Y/Z) : 70 [m/min]

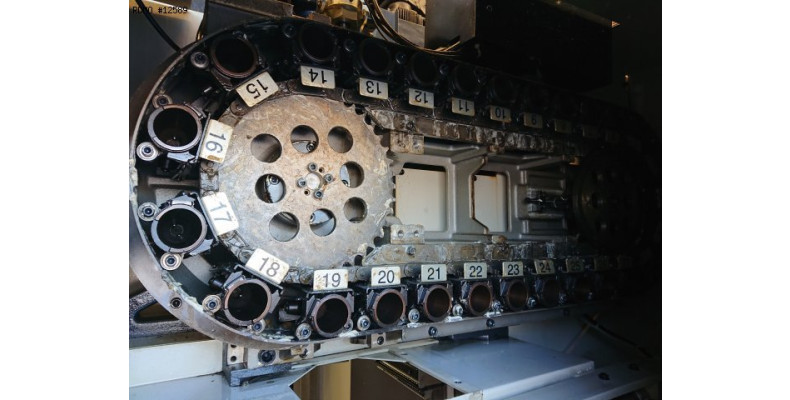

TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 27

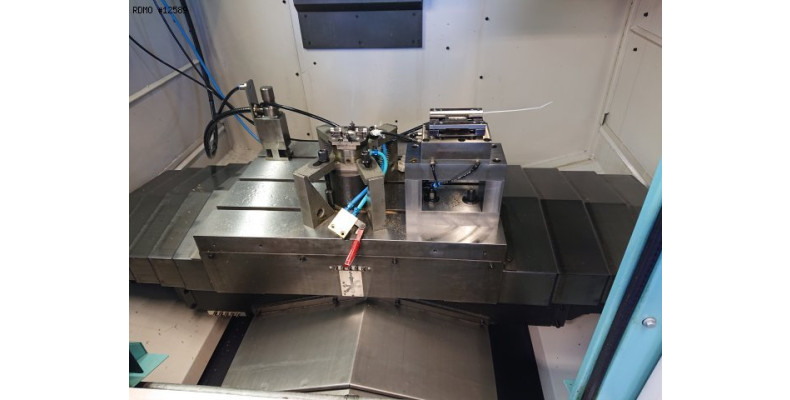

TABLE
- Table dimensions : 650 X 400 [mm]
- Maximum weight upon table : 200 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 11 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1496 X 3102 [mm]
- Machine height : 2274 [mm]
- Machine weight : 2300 [kg]
MACHINE HOURS
- Number of hours under power : 74311 [h]
- Number of working hours : 61115 [h]

Equipment

- CNC : BROTHER CNC B00
- Interface : Ethernet / RS232
- Interactive programming
- Electronic handwheel
- Rigid tapping

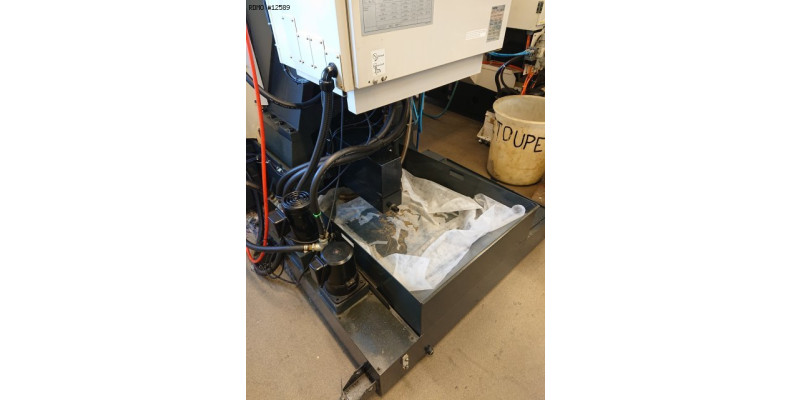

- Coolant tank

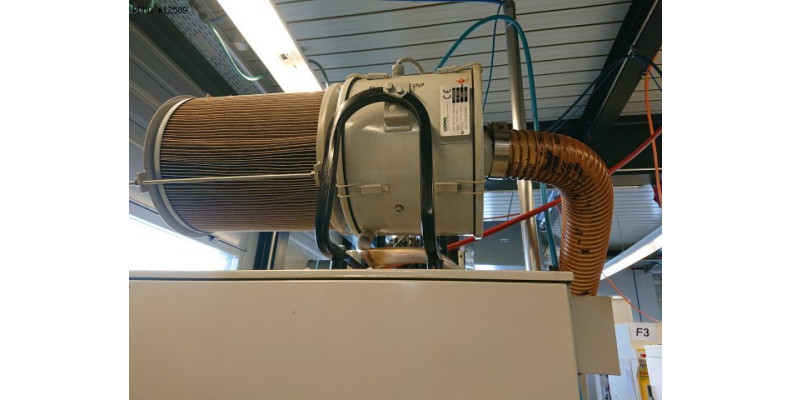

- Oil mist extractor : LOSMA
- Tool probe
- Electric transformer

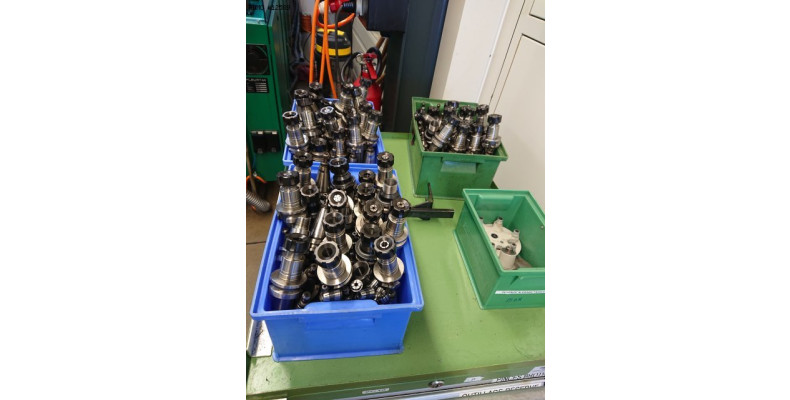

- Tool-holders : 30
