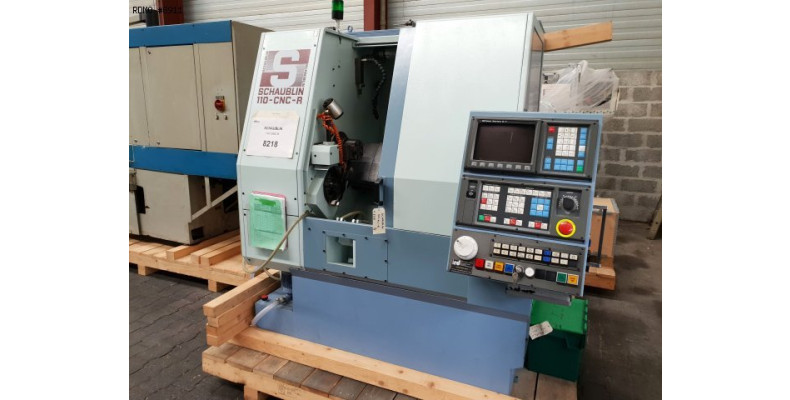

Schaublin 110 CNC-R 4 axis

Brand: Schaublin
Model: 110 CNC-R
Year: 1993
Serial: 333032
8911
Schaublin 110 CNC-R 4 axis
Brand: Schaublin
Model: 110 CNC-R
Year: 1993
Serial: 333032

Caracteristics & Equipment

Caracteristics

- Number of axes : 4
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-4
- Spindle power : 5.5 [kW]
- Spindle speeds : 30/6000 [rpm]
- Max. bar diameter : 32 [mm]
- Max. turning diameter : 115 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-4
TRAVEL
- Z stroke : 295 [mm]
- X stroke : 220 [mm]
- Rapid traverse rate : 10/6 [m/min]

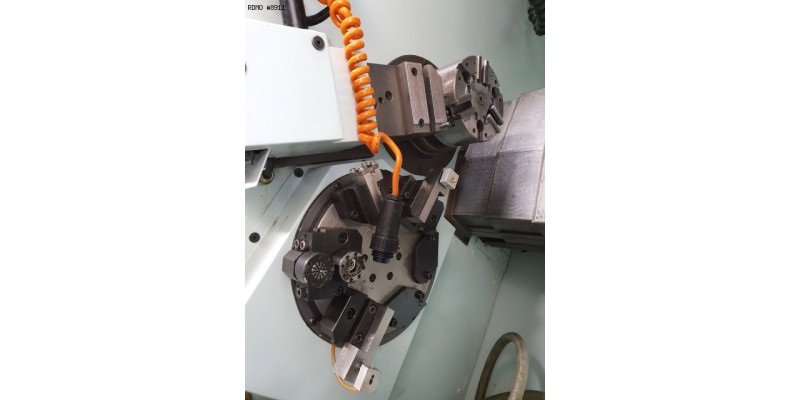

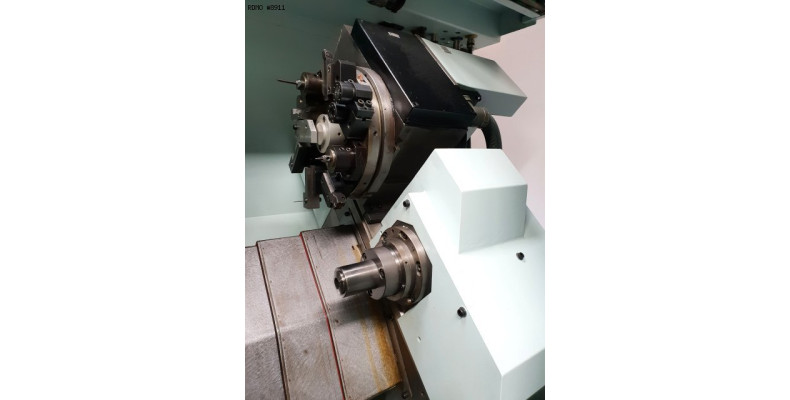

TURRET 1
- Number of positions : 8
- Number of motorized positions : 4 radial / 8 front
- Live tools speed : 5000 [rpm]
- Live tools power : 1.2 [kW]
TURRET 2
- Number of positions : 6
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 18 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2830 x 2610 [mm]
- Machine height : 1860 [mm]
- Machine weight : 1800 (cabinet 400) [kg]
Equipment

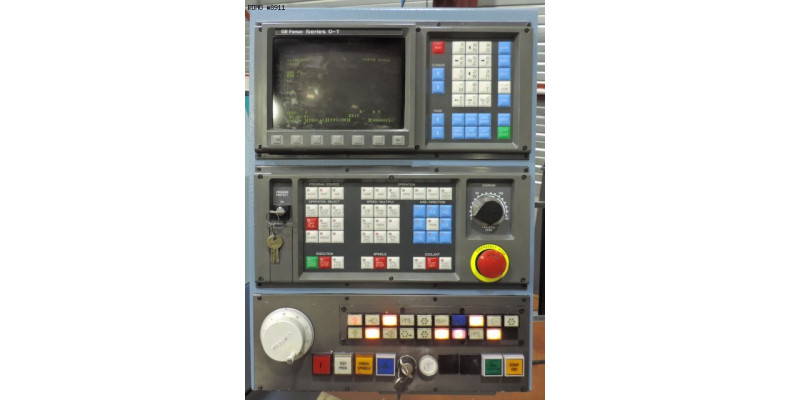

- CNC : Fanuc O-T
- Coolant tank
- Parts catcher
- Predisposition for barfeeder

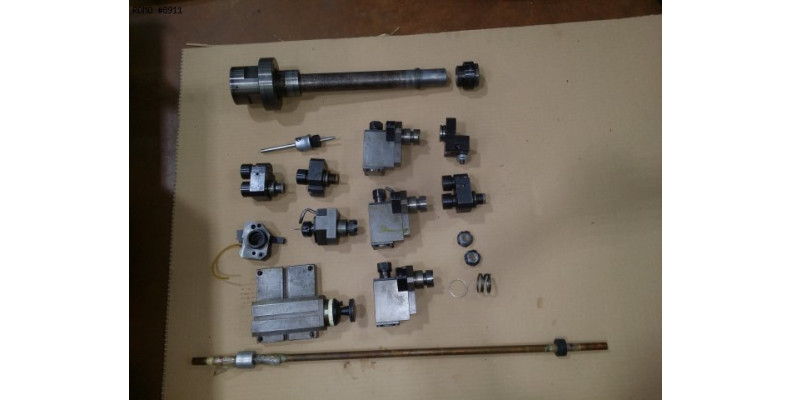

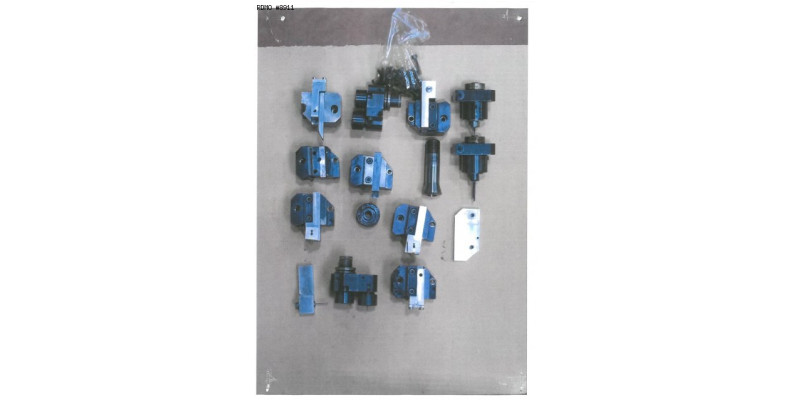

- Number of turning tool holders : divers
- Number of fixed tool holders : divers
- Collet chuck : 1

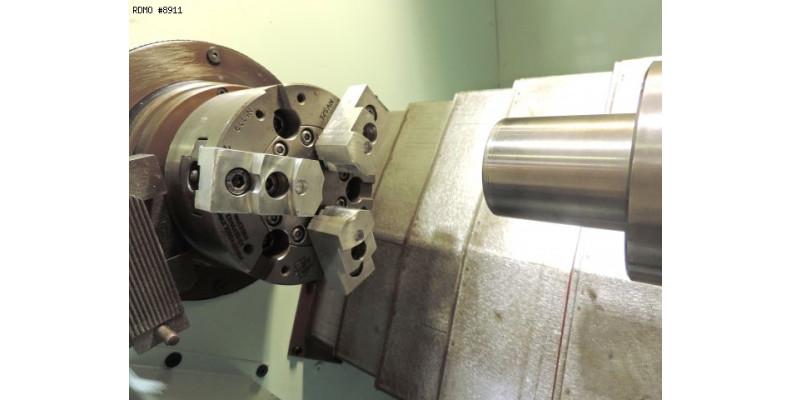

- Chuck 3 jaws : 1
