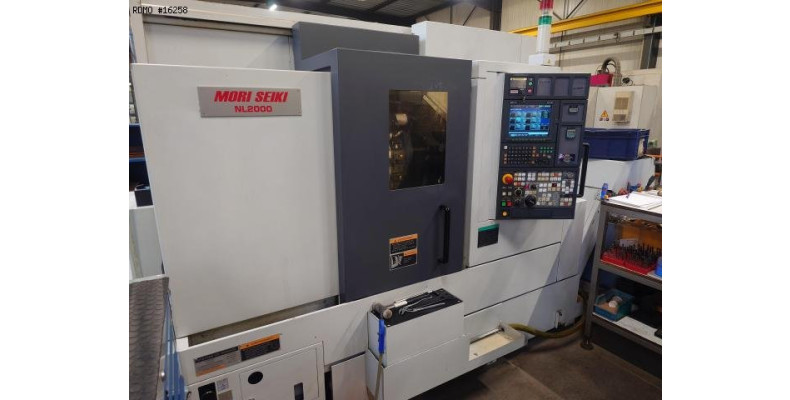

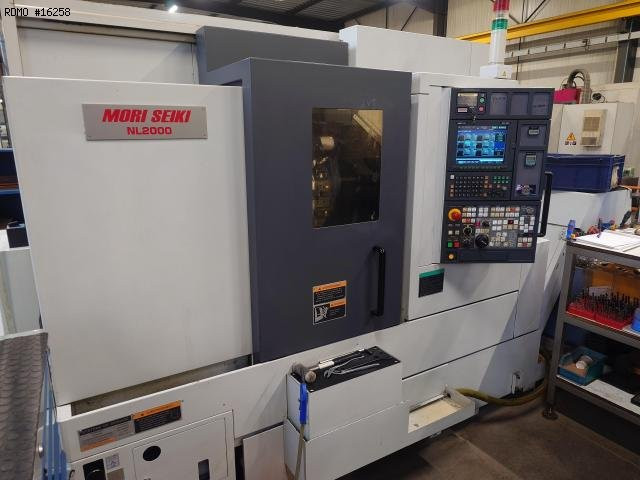

MORI SEIKI NL2000 /500 2 axis

Name: CNC lathe MORI SEIKI NL2000 /500 2 axes
Brand: MORI SEIKI
Availability: InStock

Turning CNC lathe

16258

PDF datasheet to download:

Brand: MORI SEIKI

Model: NL2000 /500

Year: 2004

Serial: NL201DD0011

16258

MORI SEIKI NL2000 /500 2 axis

Turning CNC lathe

PDF datasheet to download:

Brand: MORI SEIKI

Model: NL2000 /500

Year: 2004

Serial: NL201DD0011

Ask Price

Caracteristics

- Number of axes : 2
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 356 [mm]

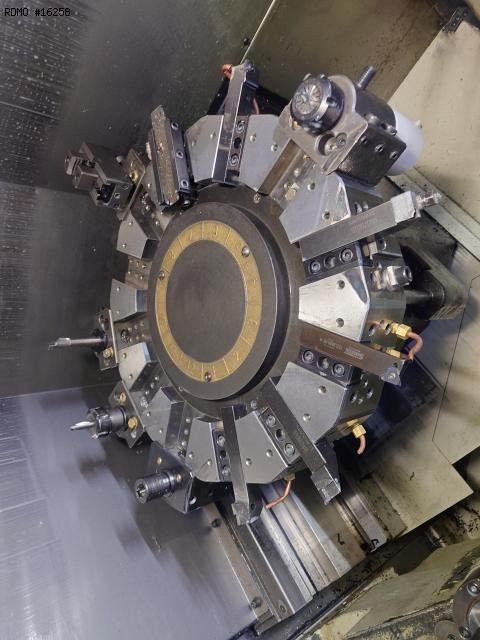

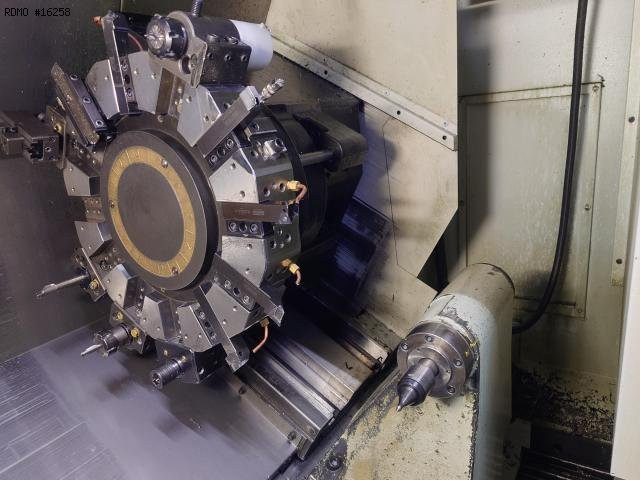

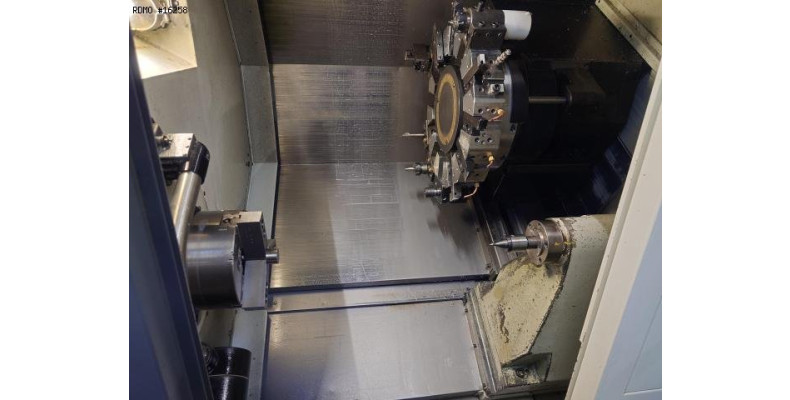

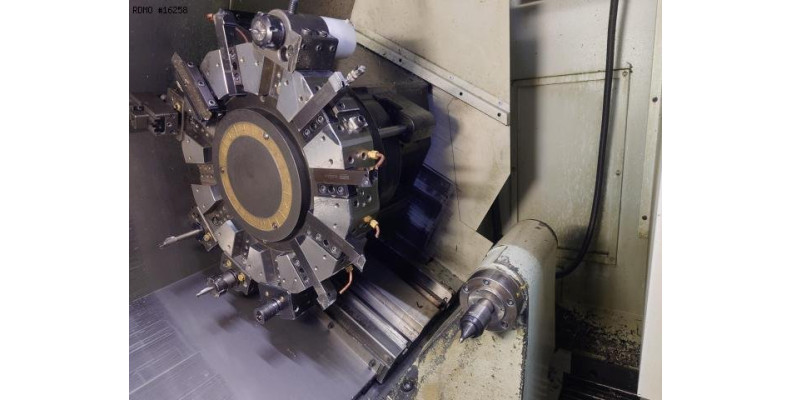

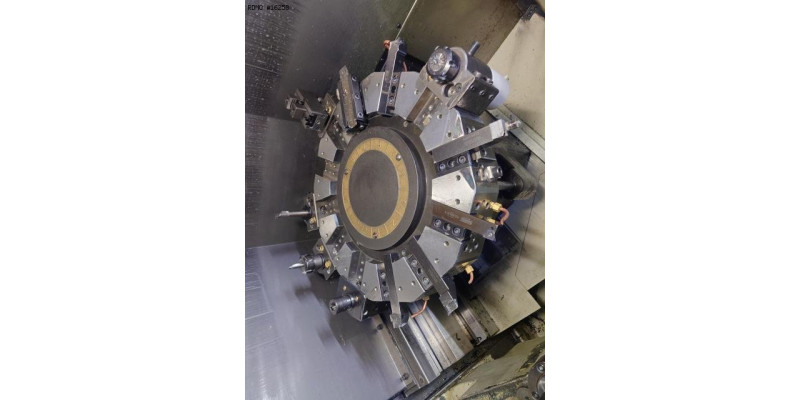

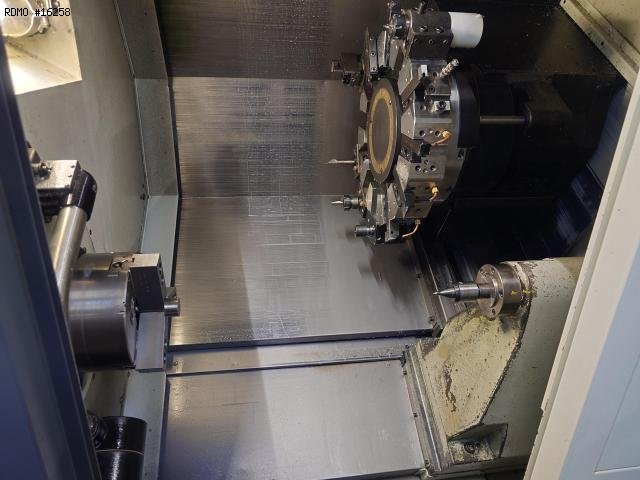

TURRET
- Number of positions : 12
- X/Z stroke : 260 x 590 [mm]
TAILSTOCK
- Tailstock type : Numérique
- Tailstock stroke : 564 [mm]
- Type of cone : CM4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 23 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.705 x 1.922 [mm]
- Machine height : 2.120 [mm]
- Machine weight : 5.400 [kg]

Equipment

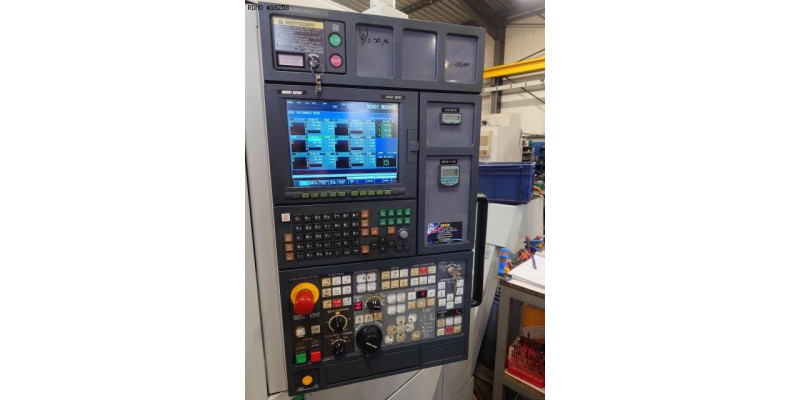

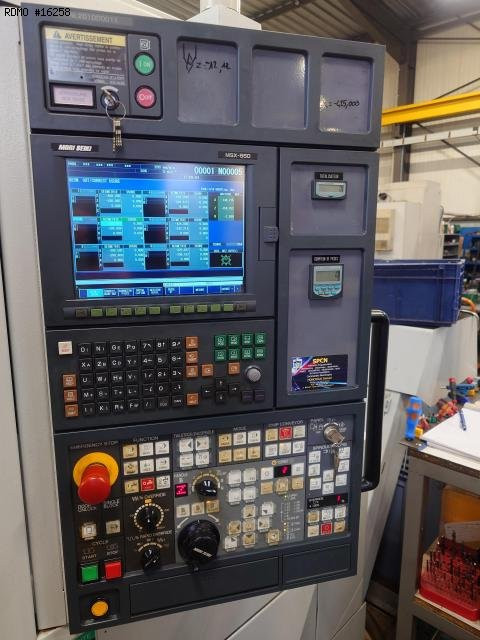

- CNC : MORI MSX-850

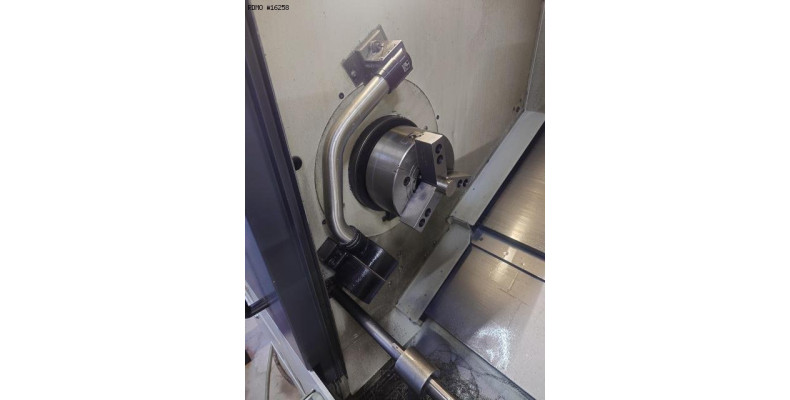

- Tool probe : Renishaw
- Coolant tank

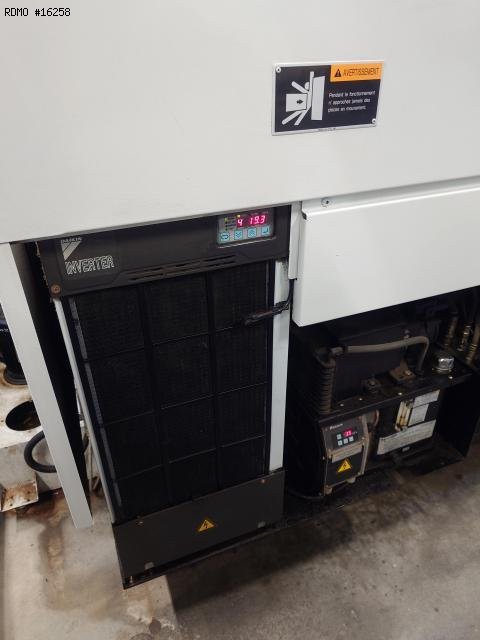

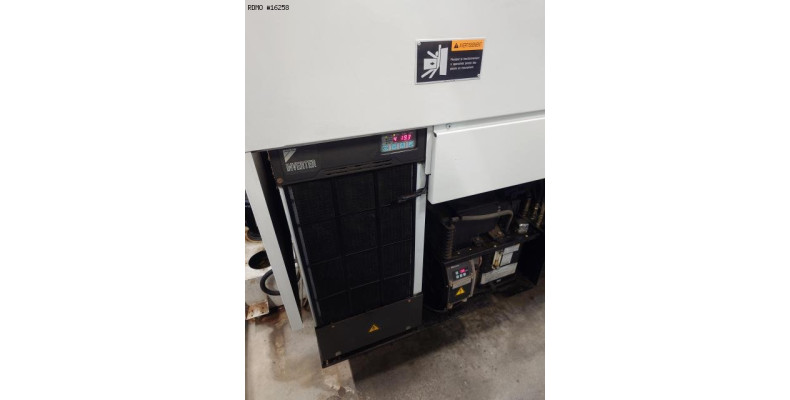

- Spindle cooling unit

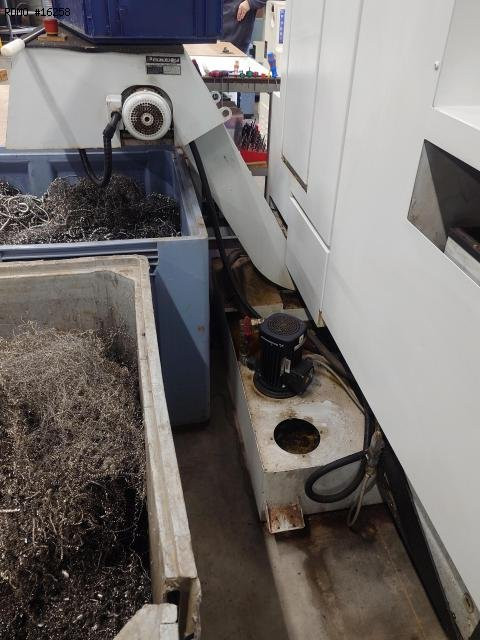

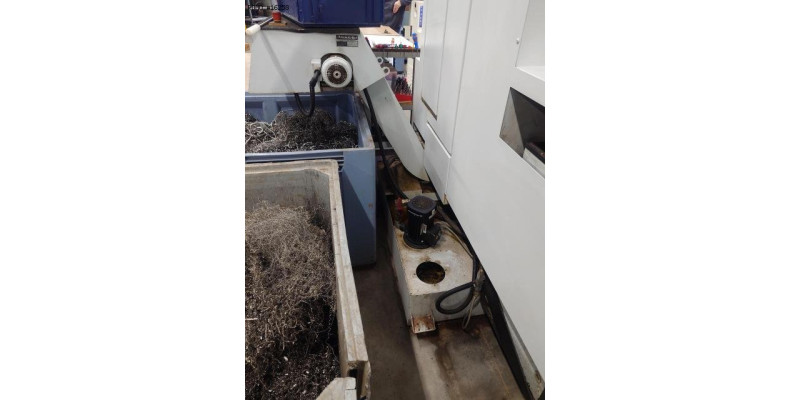

- Chips conveyor

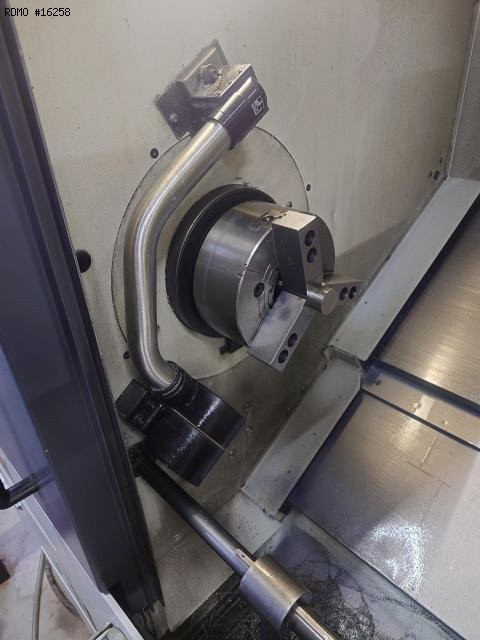

- Chuck 3 jaws

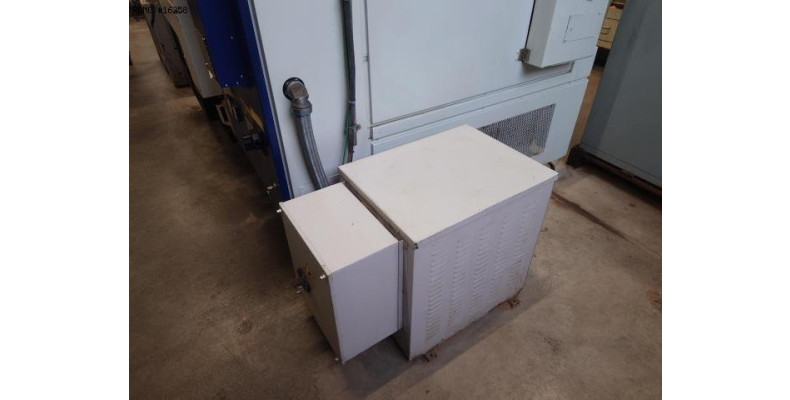

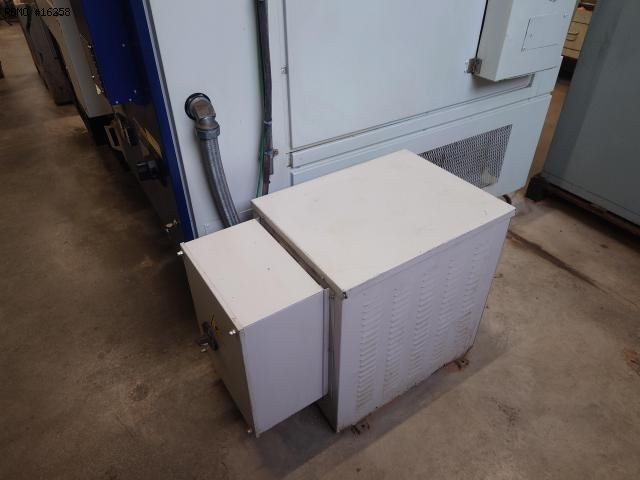

- Electric transformer
