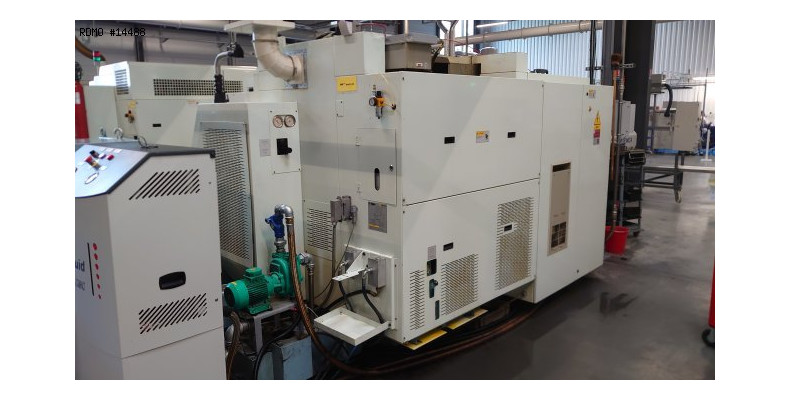

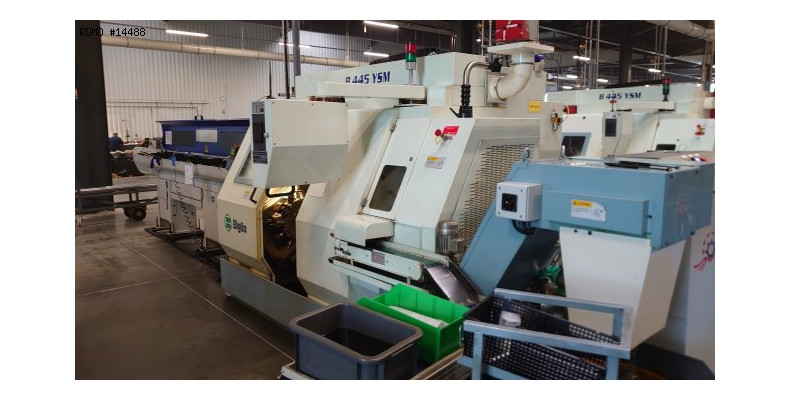

Biglia B445/YSM 7 axis

14488
Brand: Biglia
Model: B445/YSM
Year: 2004
Serial: 7135
14488
Biglia B445/YSM 7 axis
Brand: Biglia
Model: B445/YSM
Year: 2004
Serial: 7135

Caracteristics & Equipment

Caracteristics

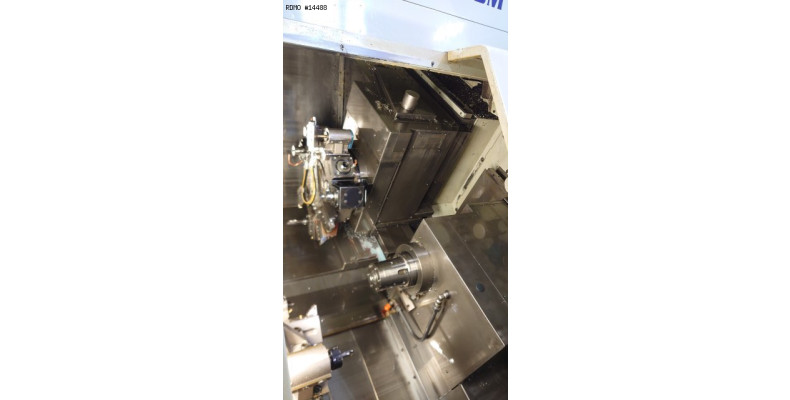

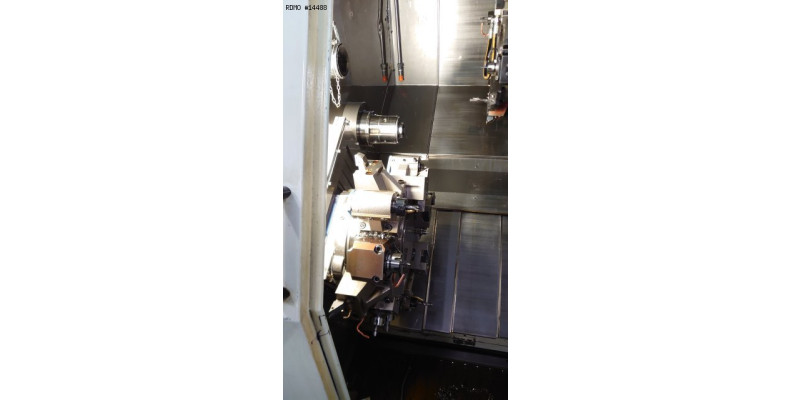

- Number of axes : 7 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 15 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 45 [mm] * Max. turning diameter : 200 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 45 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0.001 [°] - X/Z stroke : 115 / 420 [mm] - Spindle / counter-spindle distance : 560 [mm] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 160 / 390 [mm] - Y stroke : +60 / -40 [mm] - Live tools speed : 4.000 [rpm] - Live tools power : 3,7 [kW] TURRET 2 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 158 / 240 [mm] - Live tools speed : 4.000 [rpm] - Live tools power : 3,7 [kW] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 4.100 x 2.150 [mm] - Machine height : 2.200 [mm] - Machine weight : 6.200 [kg] MACHINE HOURS - Number of working hours : 32.878 [h]
Equipment

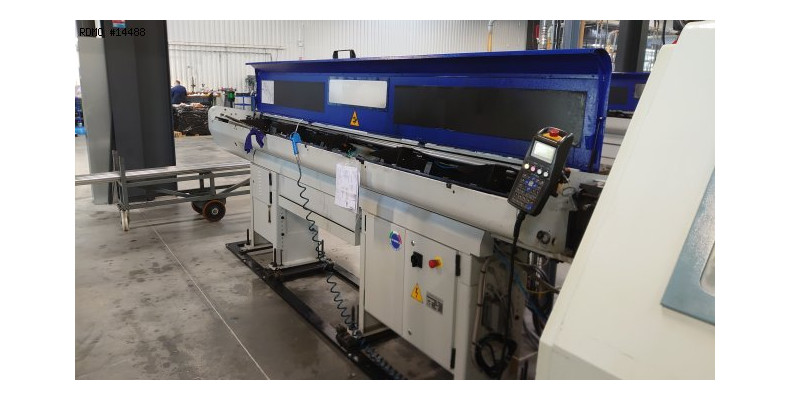

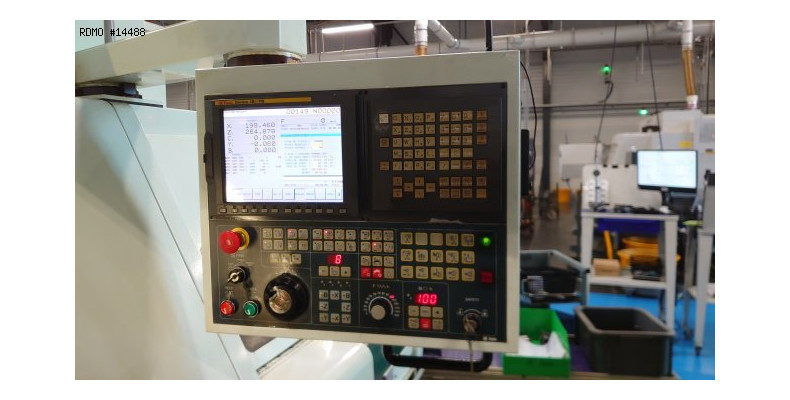

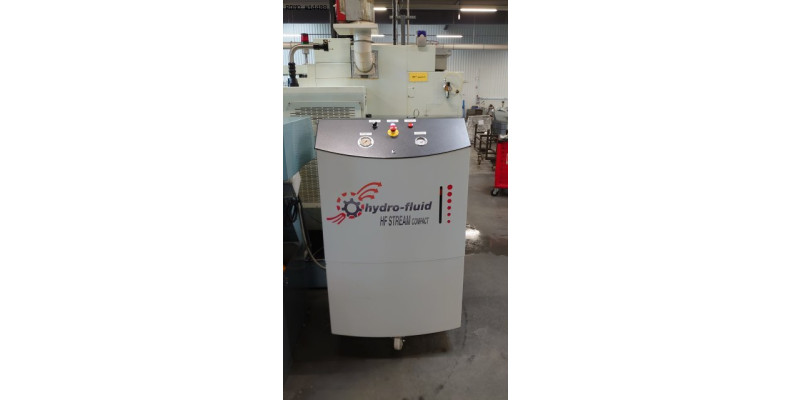

- CNC : Fanuc 18-iTB - Coolant tank * with high-pressure pump : Hydro-fluid - Chips conveyor - Tool probe : Renishaw - Parts catcher - Parts conveying strip - Bar loader : IEMCA BOSS 545 E - Collet chuck : 2
