Brand: Benzinger
Model: TNC-S
Year: 2002
Serial: 31.0053
Brand: Benzinger
Model: TNC-S
Year: 2002
Serial: 31.0053

Caracteristics & Equipment

Caracteristics
- Number of axes : 2 MAIN SPINDLE - Spindle power : 7,5 [kW] - Spindle speeds : 6.500 [rpm] - Max. bar diameter : 26 [mm] - Max. turning diameter : 380 [mm] - X/Z stroke : 300/250 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 10 [kW] MACHINE HOURS - Number of hours under power : 15228 [h]
Equipment

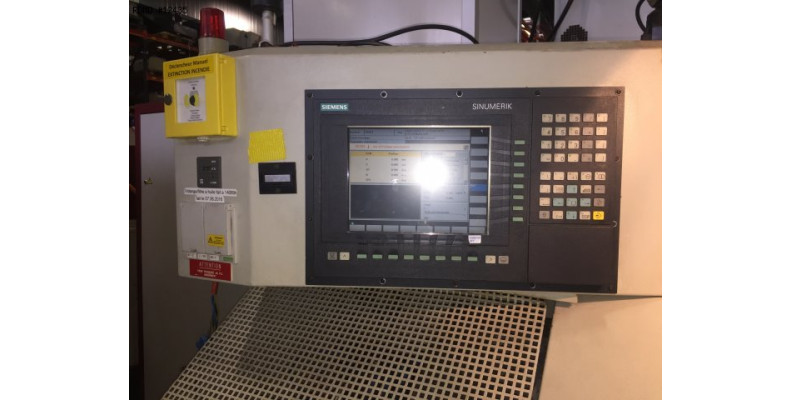

- CNC : Siemens 810D - Predisposition for automatic turret : VDI 20 - Coolant tank * with high-pressure pump : HYDRO-FLUID HP1, 40 [bars] * With washing gun - Fire extinguisher : PRIMUS UE-02 * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Oil mist extractor : ELBARON RON/A 60 SV - Diamond grinding head
PDF datasheet to download:
