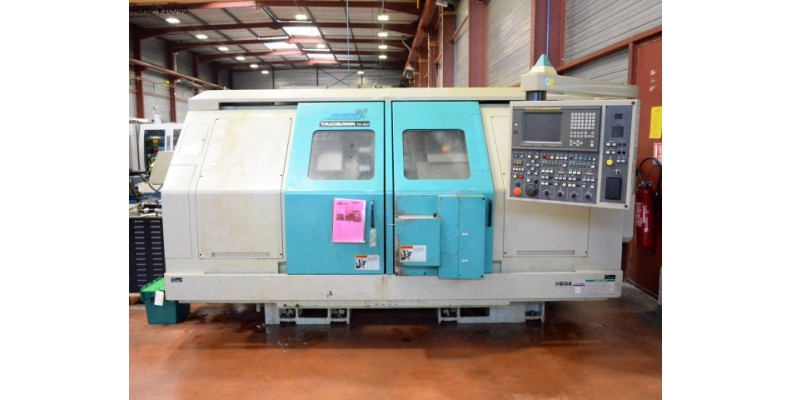

Takisawa TD-200 6 axis

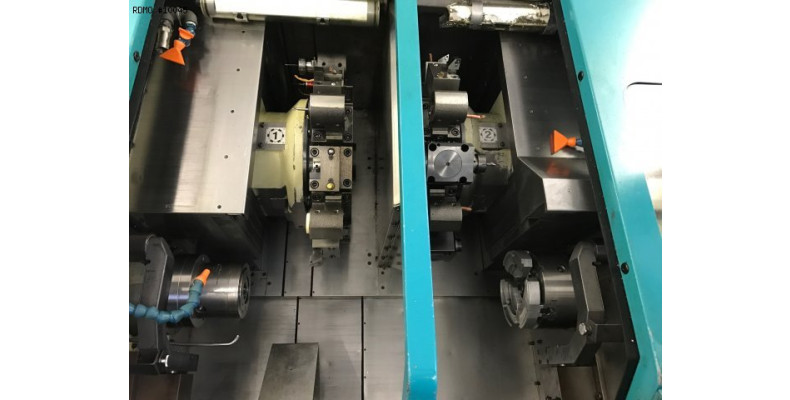

- Number of axes : 6 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 15 [kW] - Spindle speeds : 50 - 5.000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 260 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 15 [kW] - Spindle speeds : 50 - 5.000 [rpm] - Max. turning diameter : 260 [mm] - C axis indexing precision : 0,001 [°] - Spindle / counter-spindle distance : 280 - 1.100 [mm] - Z stroke : 820 [mm] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - Live tools speed : 36 - 3.600 [rpm] - Live tools power : 3,7 [kW] - X/Z stroke : 195 / 275 [mm] TURRET 2 - Number of positions : 12 - Number of motorized positions : 12 - Live tools speed : 36 - 3.600 [rpm] - Live tools power : 3,7 [kW] - X stroke : 195 [mm] POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 56 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.700 x 2.023 [mm] - Machine height : 1.970 [mm] - Machine weight : 8.000 [kg] MACHINE HOURS - Number of hours under power : 6.096 [h] - Number of working hours : 2.961 [h]

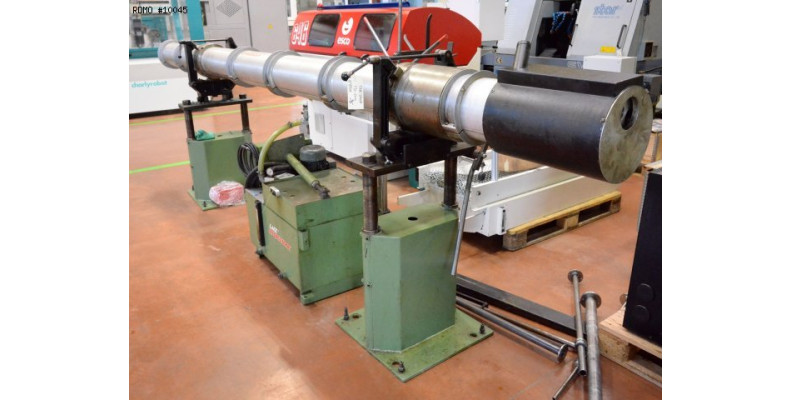

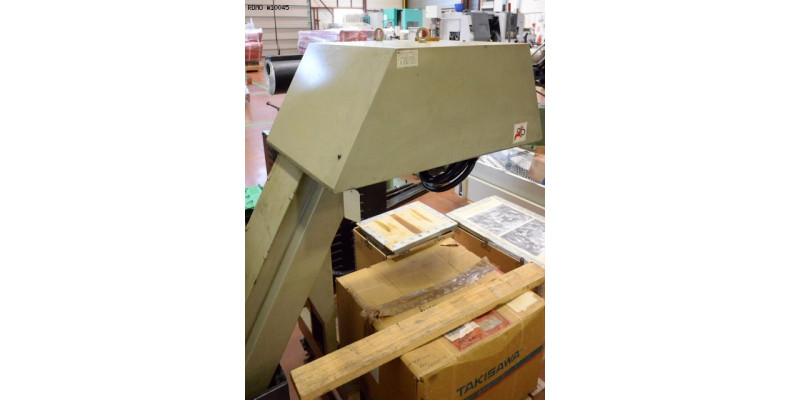

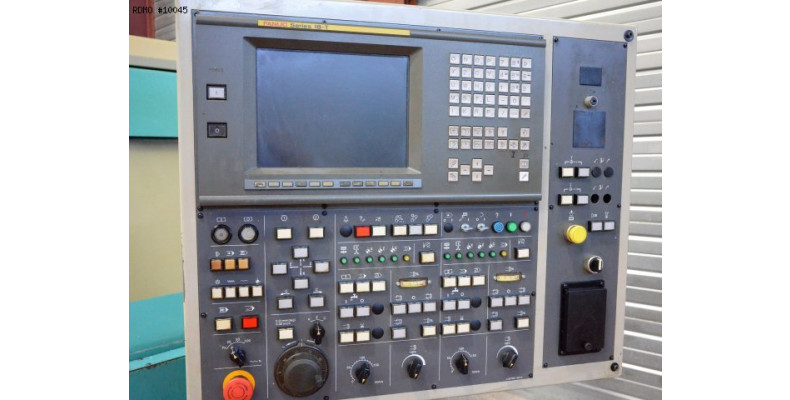

- CNC : Fanuc 18-T - Linear scales - Coolant tank : 250 [l] - Chips conveyor - Tool probe : x2 - Parts catcher - Hydraulic bar-push brand/type : LNS 6.52 HS 4.4 - Electric transformer : 380 / 200 [V] - Number of turning tool holders : 3 - Collet chuck : 1 - Chuck 3 jaws : 2
