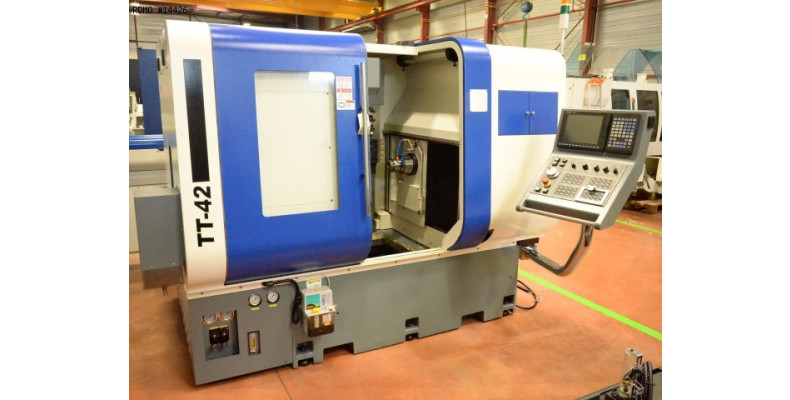

QUICK TECH TT42 8 axis

Brand: QUICK TECH
Model: TT42
Year: 2011
Serial: 2935
14426
QUICK TECH TT42 8 axis
Brand: QUICK TECH
Model: TT42
Year: 2011
Serial: 2935

Caracteristics & Equipment

Caracteristics
- Number of axes : 8
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 7,5 [kW]
- Spindle speeds : 6.000 [rpm]
- Max. bar diameter : 42 [mm]
- Max. turning length : 230 [mm]
- C axis indexing precision : 0,001 [°]

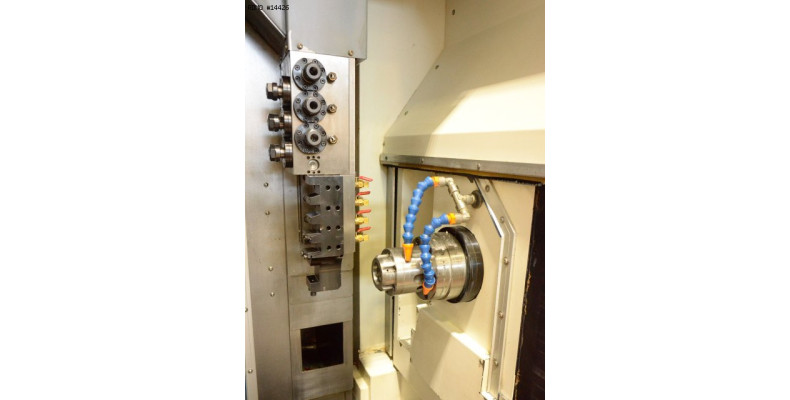

COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 3,7 [kW]
- Spindle speeds : 6.000 [rpm]
- Max. bar diameter : 42 [mm]
- Max. turning length : 100 [mm]
- C axis indexing precision : 0,001 [°]
- Z stroke : 360 [mm]
- X stroke : 410 [mm]

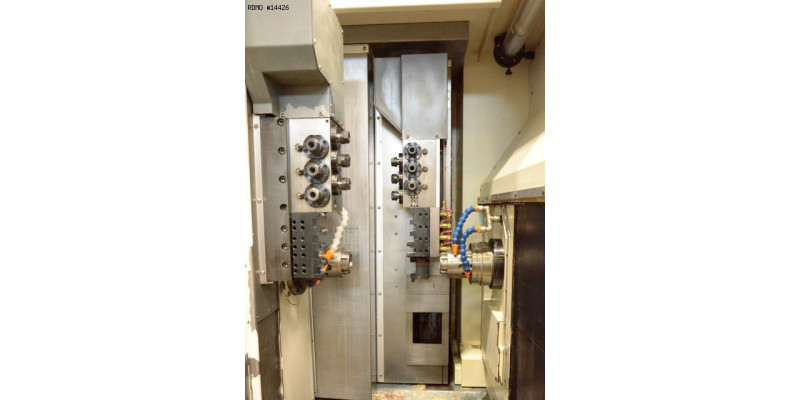

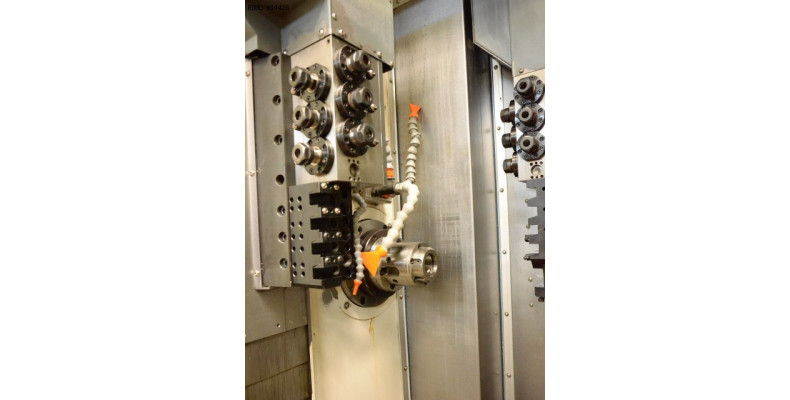

TOOL BLOCK SYSTEM 1
- Number of positions : 16
- Number of motorized positions : 6
- X/Z stroke : 140 x 230 [mm]
- Y stroke : 410 [mm]
- Tool type : ER20
- Live tools speed : 4.000 [rpm]
- Live tools power : 1 [kW]
TOOL BLOCK SYSTEM 2
- Number of positions : 15
- Number of motorized positions : 6
- Y stroke : 410 [mm]
- Tool type : ER 20
- Live tools speed : 4.000 [rpm]
- Live tools power : 1 [kW]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 20 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.465 x 1.654 [mm]
- Machine height : 1.896 [mm]
- Machine weight : 4.200 [kg]
MACHINE HOURS
- Number of hours under power : 10363 [h]
- Number of working hours : 7359 [h]
Equipment

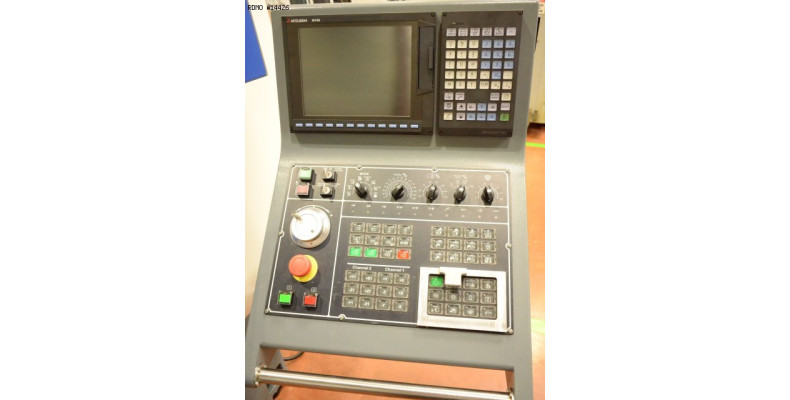

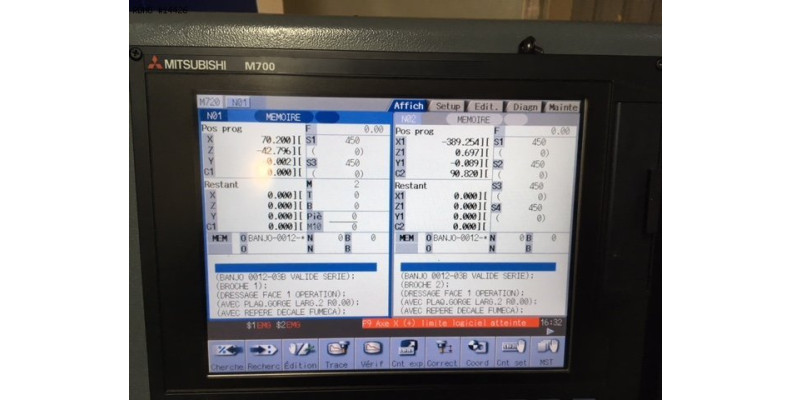

- CNC : Mitsubishi M700
- Interface : Ethernet / RS232 / USB / PCMCIA
- 3 colors status lamp
- Coolant tank

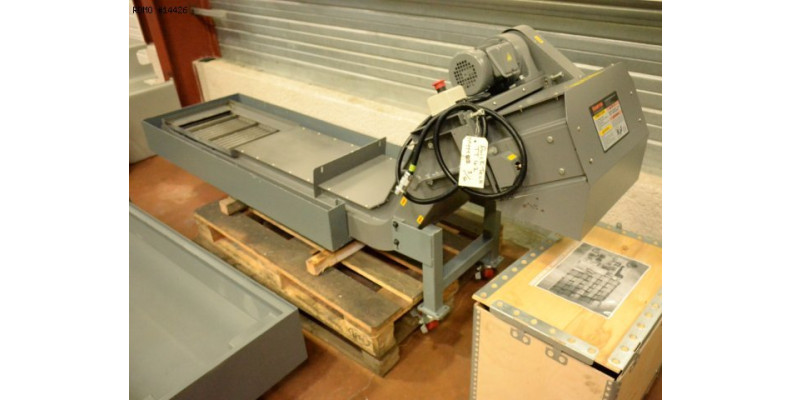

- Chips conveyor
- Parts catcher
- Parts conveying strip
- Collet chuck : 2x BELLEGRANDI 48F
