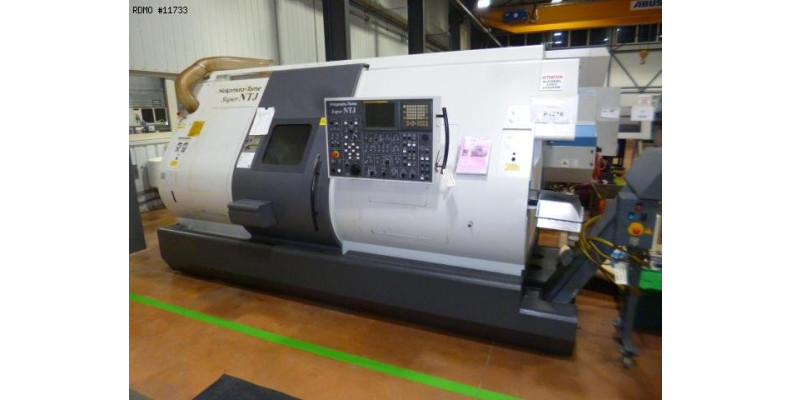

Nakamura SUPER NTJ 9 axis

Brand: Nakamura
Model: SUPER NTJ
Year: 2006
Serial: 151208
11733

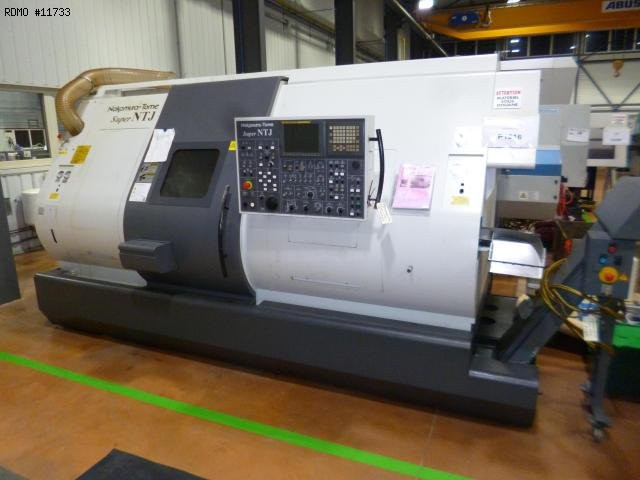

Nakamura SUPER NTJ 9 axis
Brand: Nakamura
Model: SUPER NTJ
Year: 2006
Serial: 151208

Caracteristics & Equipment

Caracteristics

- Number of spindles : 2
- Number of axes : 9
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 4500 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 190 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 51 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 760 [mm]
- Spindle / counter-spindle distance : 210/970 [mm]

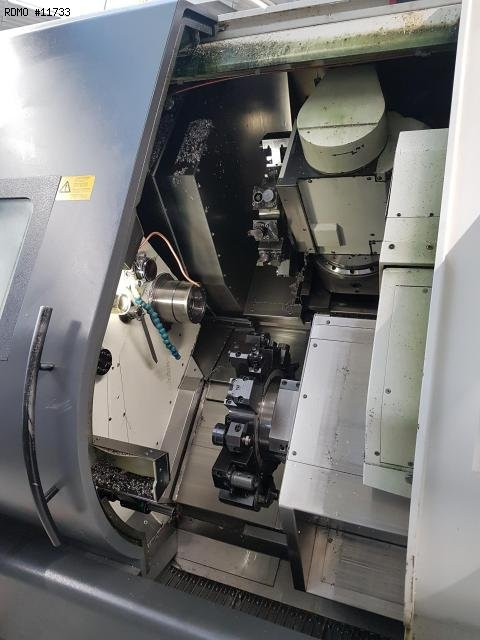

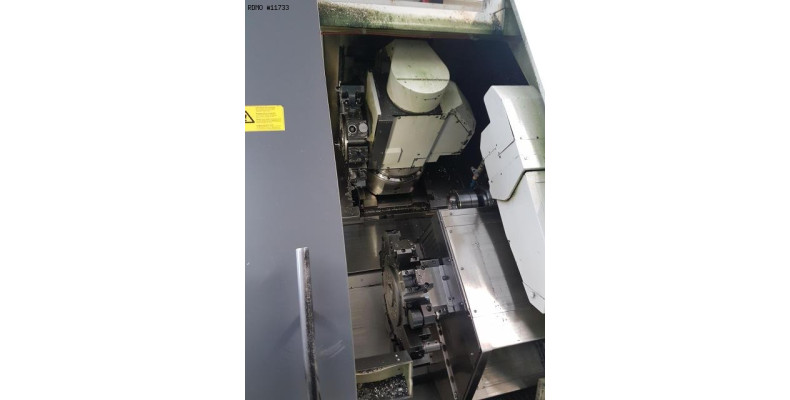

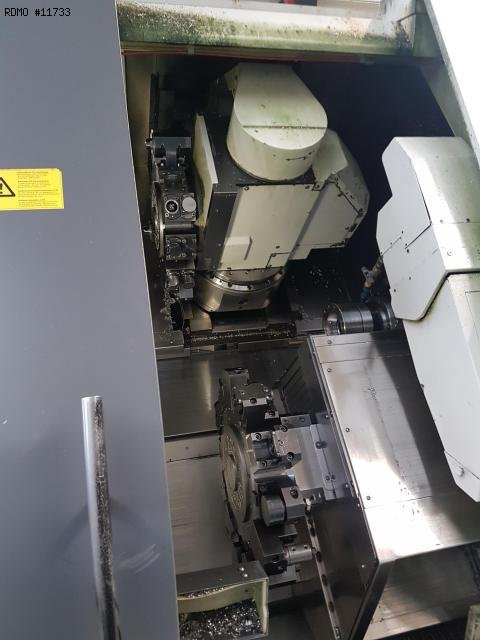

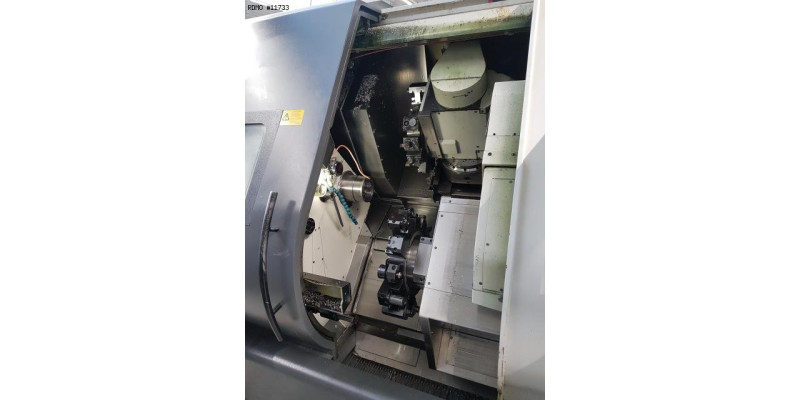

UPPER LEFT TURRET
- Number of positions : 24
- Number of motorized positions : 12
- X/Z stroke : 345/1240 [mm]
- Y stroke : +/- 45 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 5.5 [kW]
- B Axis stroke : +/- 91 [°]
- Indexing precision : 0.001 [°]
- Milling spindle
LOWER RIGHT TURRET
- Number of positions : 24
- Number of motorized positions : 12
- X/Z stroke : 167.5/685 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 5.5 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 5350X3350 [mm]
- Machine height : 2395 [mm]
- Machine weight : 14425 [kg]
MACHINE HOURS
- Number of working hours : 29000 [h]
Equipment

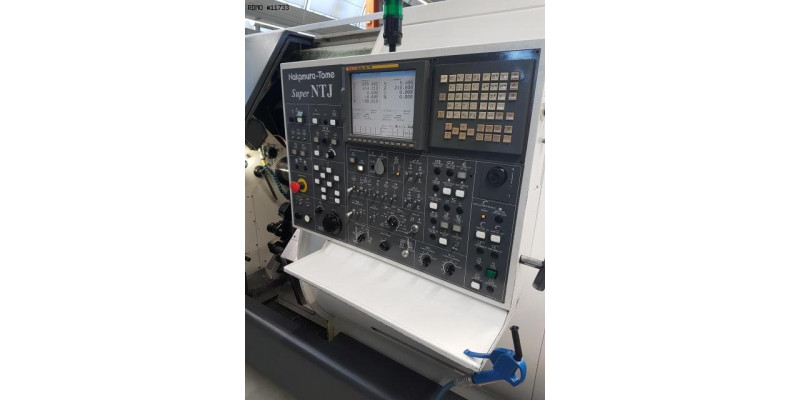

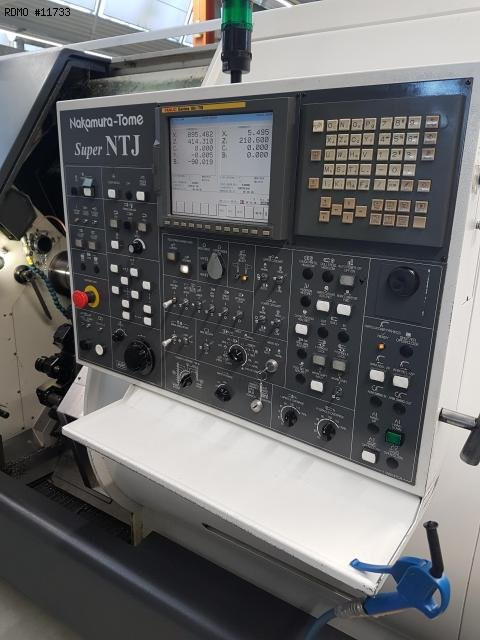

- CNC : Fanuc 18iTB
- Interface : Ethernet / RS232
- 3 colors status lamp

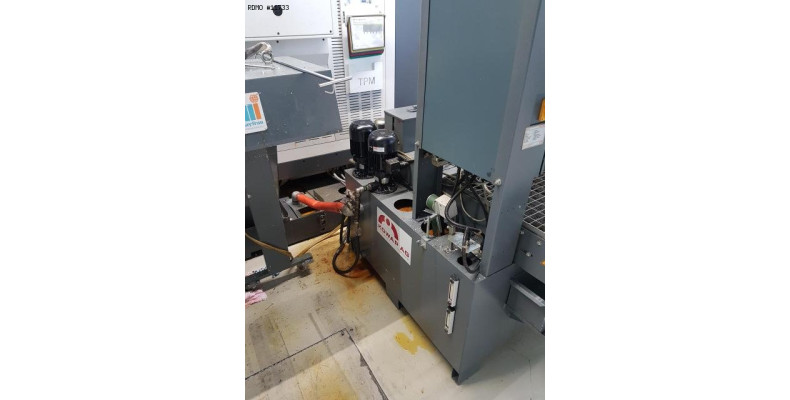

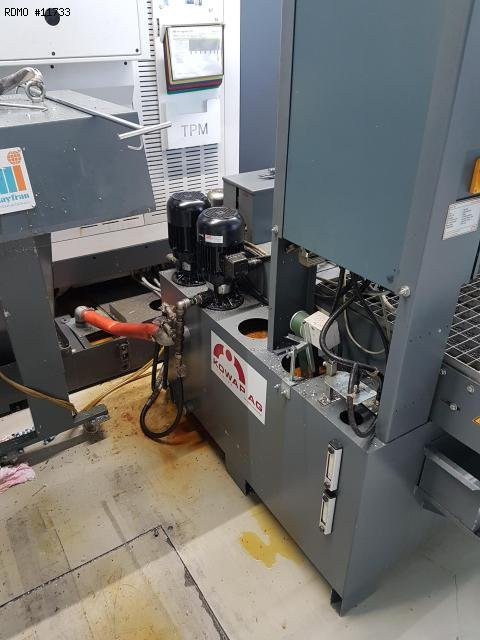

- Coolant tank
* with high-pressure pump : 5/12 [bars]
* with paper filtering unit
* with cooling unit for coolant
- Chips conveyor
- Tool probe

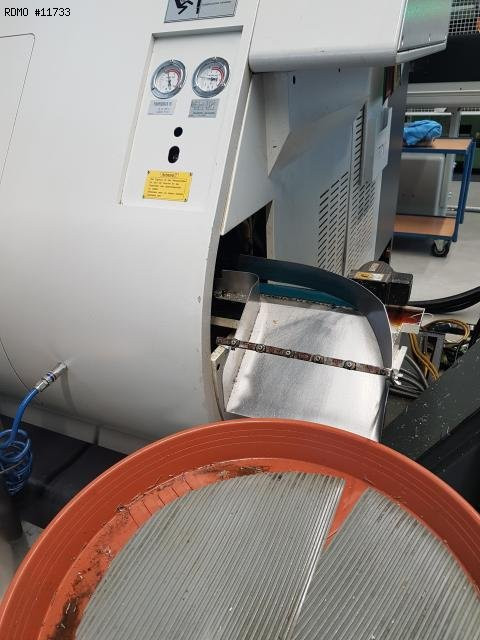

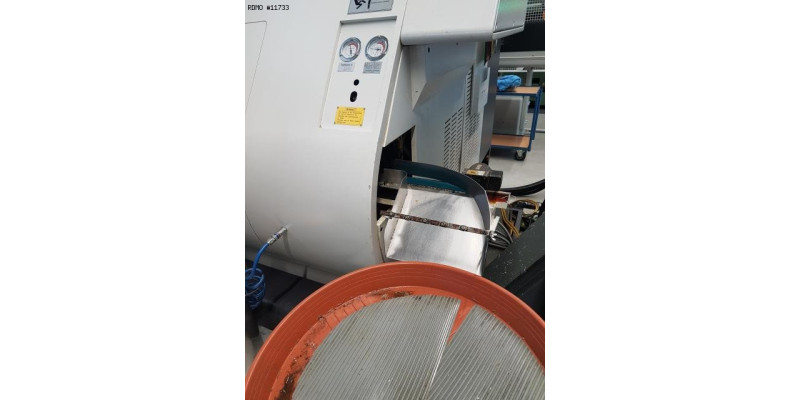

- Parts catcher
- Parts conveying strip

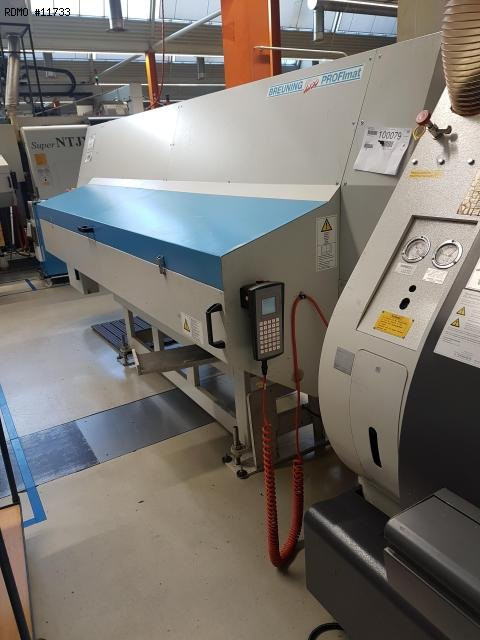

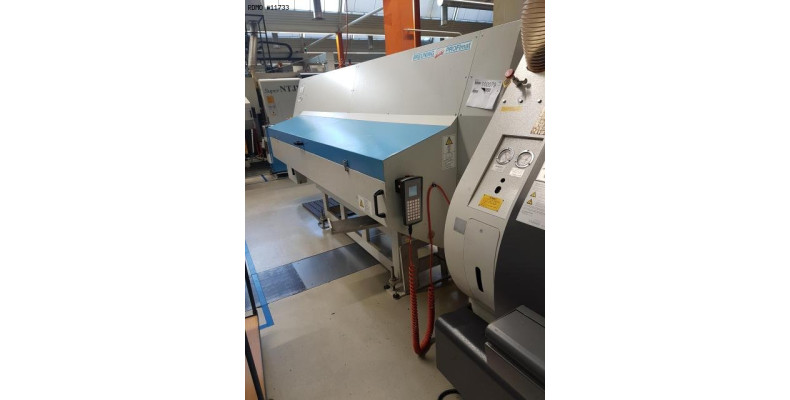

- Bar loader : IRCO PROFIMAT 65.8
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Number of turning tool holders : 8
- Number of fixed tool holders : 13
- Collet chuck : 2X Hainbuch Axfix 65
