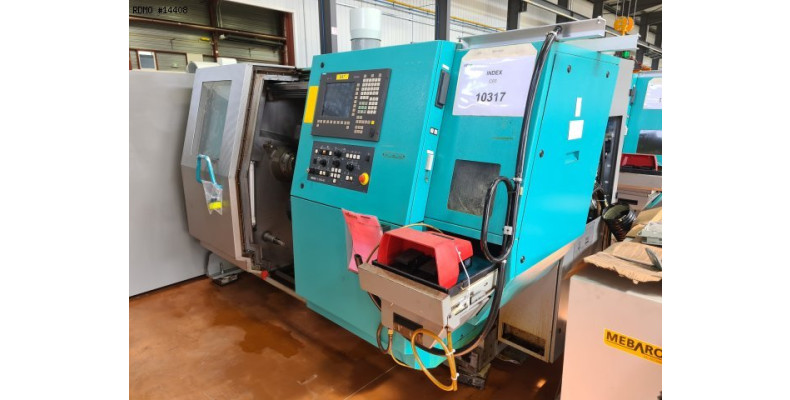

Caracteristics

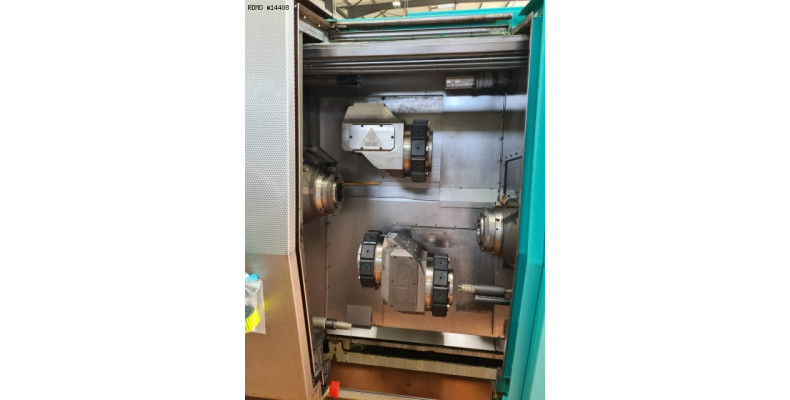

- Number of axes : 9 - Number of spindles : 2 - Number of turrets : 3 - MAIN SPINDLE - Coolant through spindle - Spindle power : 20/27 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - COUNTER-SPINDLE - Coolant through spindle - Spindle power : 20/27 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] TRAVEL - Z stroke : 600 [mm] - X stroke : 150 [mm] - Rapid traverse rate : 25 [mm/min] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 110/360 [mm] - Y stroke : 70 [mm] - Tool type : VDI 25 - Live tools speed : 6000 [rpm] - Live tools power : 4/8 [kW] - TURRET 2 and 3 - 2 independant motorization - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 110/360 [mm] - Y stroke : 70 [mm] - Tool type : VDI 25 - Live tools speed : 6000 [rpm] - Live tools power : 4/8 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 61 [kW] - Machine weight : 7000 [kg]
Equipment

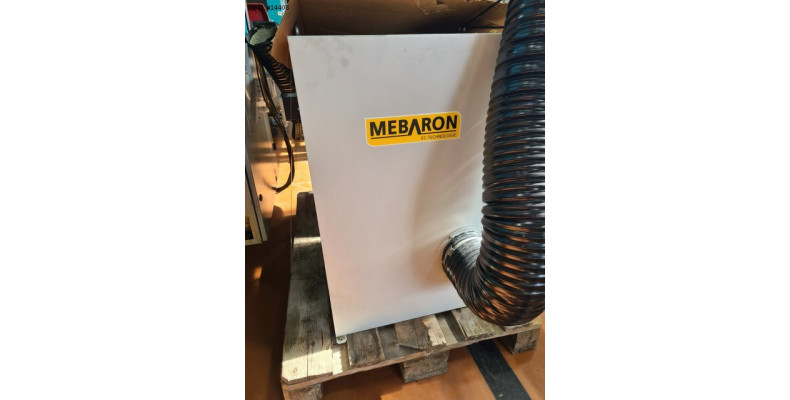

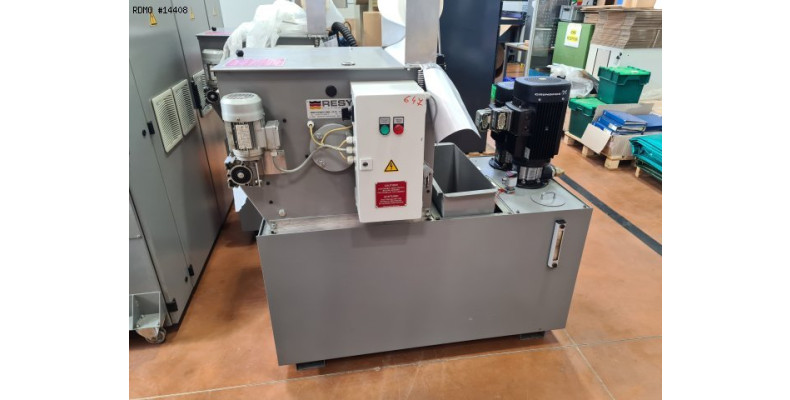

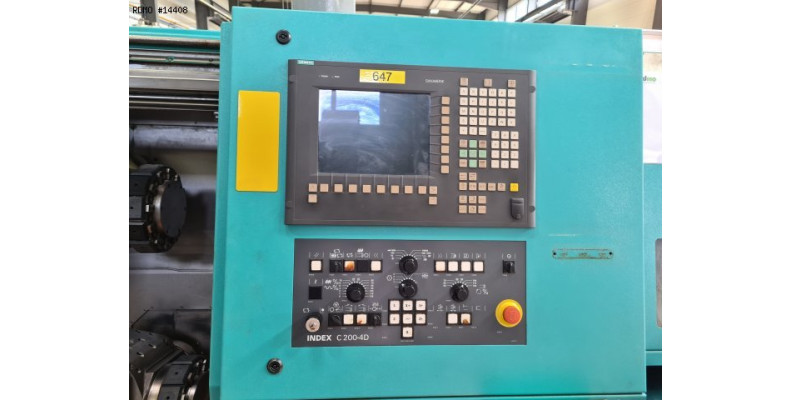

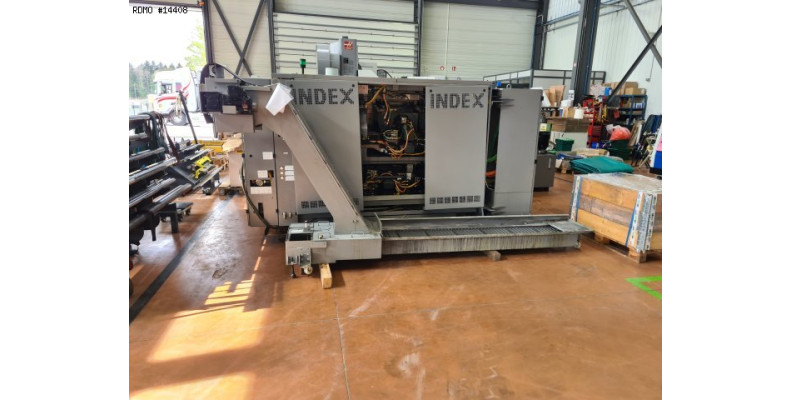

- CNC : INDEX C200 4D (Siemens 840D powerline) - Linear scales - Coolant tank : RESY * with high-pressure pump : 80 [bars] * with paper filtering unit - Chips conveyor - Oil mist extractor : ELBARON MEBARON - Parts catcher : using gripper attachments - Parts conveying strip - Predisposition for barfeeder - Collet chuck : 2 Hainbuch
