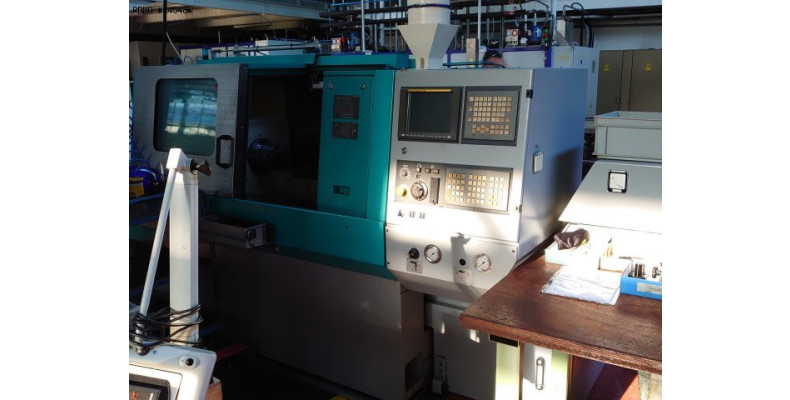

Index 170MC 2 axis

14548
Brand: Index
Model: 170MC
Year: 2004
Serial: 29907
14548
Index 170MC 2 axis
Brand: Index
Model: 170MC
Year: 2004
Serial: 29907

Caracteristics & Equipment

Caracteristics

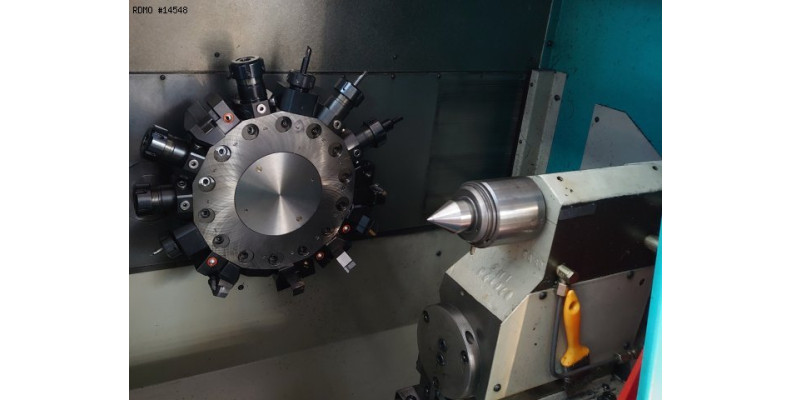

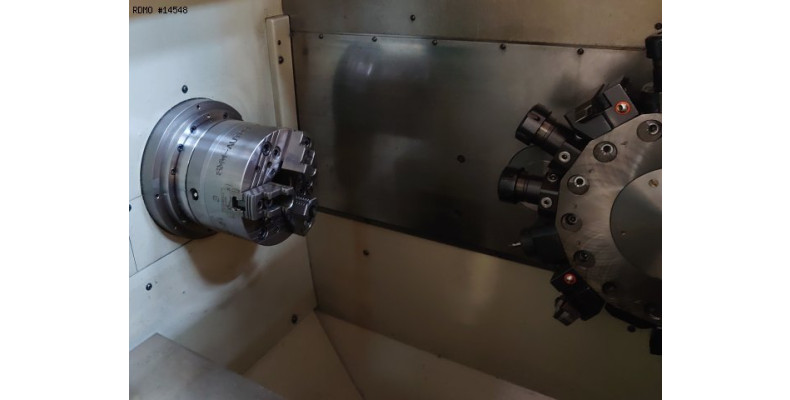

- Number of axes : 2 MAIN SPINDLE - Spindle power : 11 [kW] - Spindle speeds : 8000 [rpm] - Max. turning diameter : 300 [mm] - Max. turning length : 280 [mm] - Max. diameter on bench : 400 [mm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - X/Z stroke : 250 x 280 [mm] - Rapid traverse rate : 20 [m/min] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 29 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3.100 x 2.200 [mm] - Machine height : 2.000 [mm] - Machine weight : 3.000 [kg]
Equipment

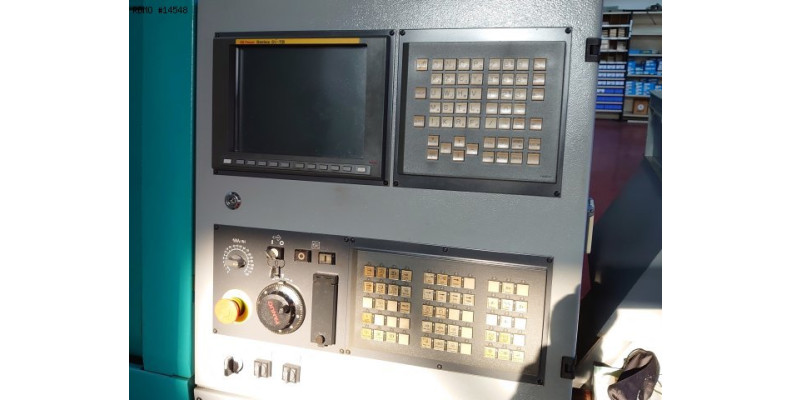

- CNC : FANUC Series Oi-TB - Coolant tank - Chips conveyor - Parts catcher
