Caracteristics

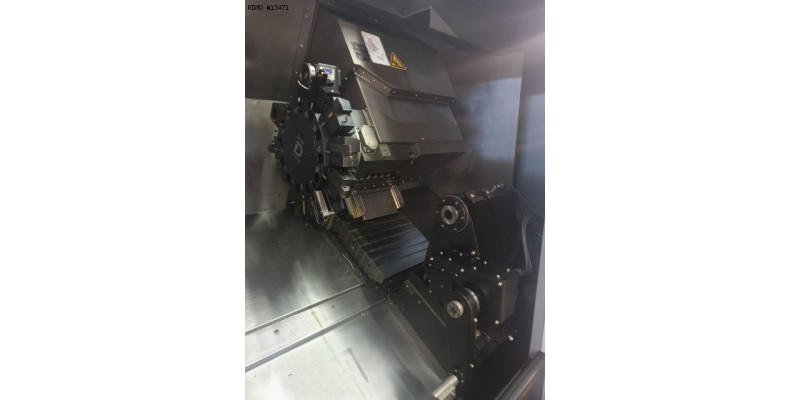

- Number of axes : 5 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 25 [kW] - Spindle speeds : 4.500 [rpm] - Max. bar diameter : 64 [mm] - Max. turning diameter : 336 [mm] - Max. diameter on bench : 508 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 203 x 560 [mm] - Y stroke : 110 [mm] - Tool type : VDI 40 - Live tools speed : 4.000 [rpm] - Live tools power : 6,3 [kW] TAILSTOCK - Tailstock type : Numeric - Counter-spindle stroke : 640 [mm] - Distance between centers : 754 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5.510 x 3.086 [mm] - Machine height : 2.552 [mm] - Machine weight : 7.500 [kg] MACHINE HOURS - Number of hours under power : 3.965 [h] - Number of spindle hours : 924 [h]
Equipment

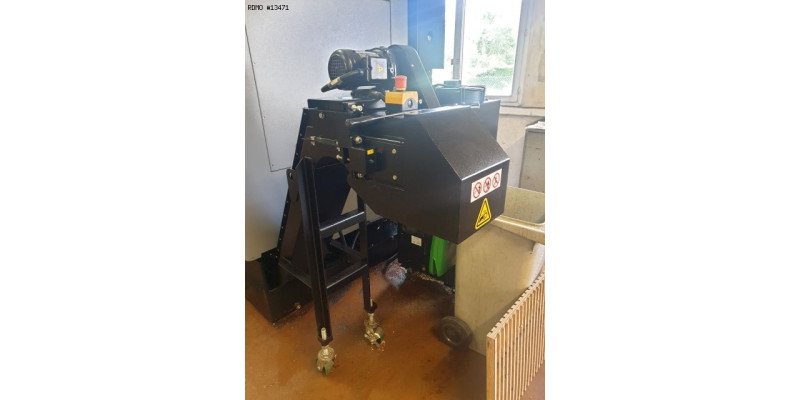

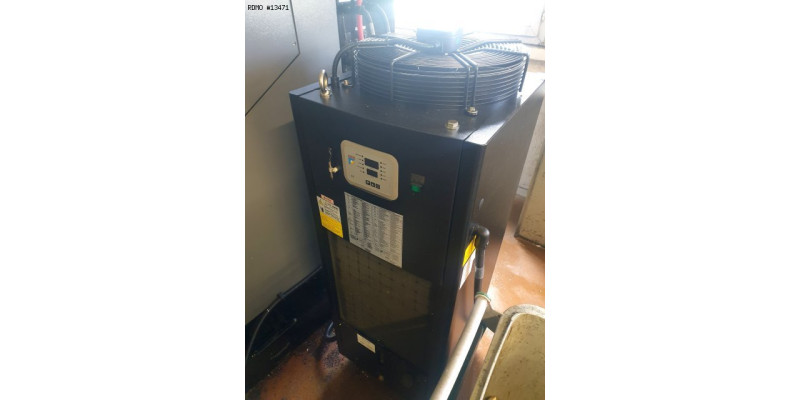

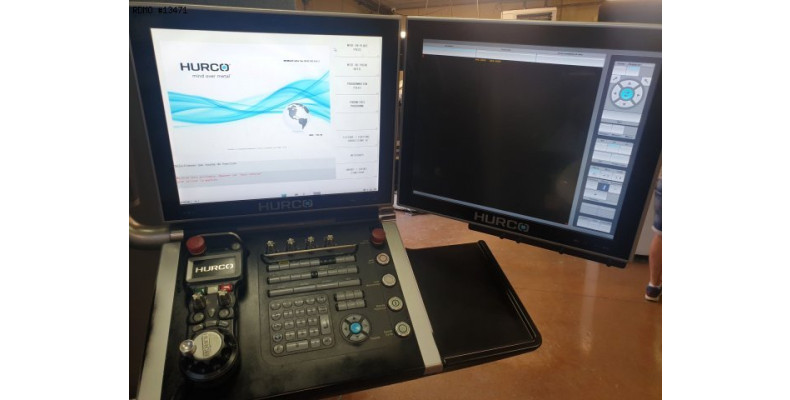

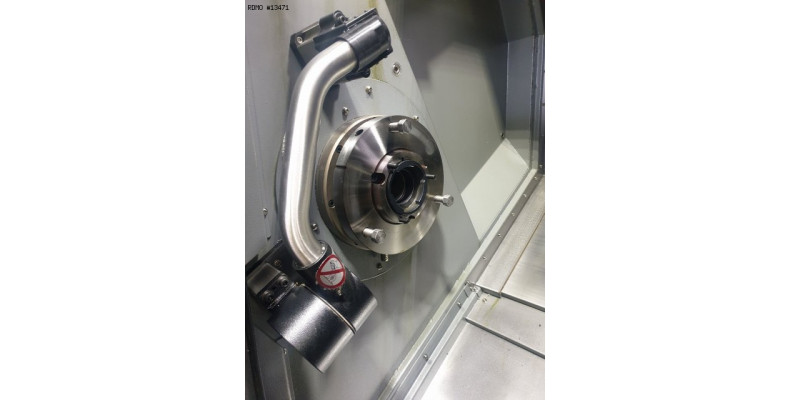

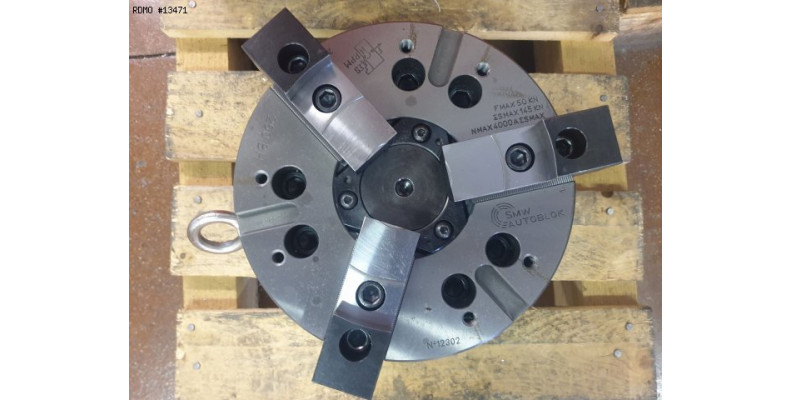

- CNC : HURCO Winmax MAX5 - Interface : Ethernet / USB - Interactive programming - Electronic handwheel - 3 colors status lamp - Coolant tank * With washing gun - Chips conveyor - Spindle cooling unit - Tool probe - Parts catcher - Number of turning tool holders : 2 - Number of fixed tool holders : 9 - Chuck 3 jaws : SMW Autoblock 250 BH
